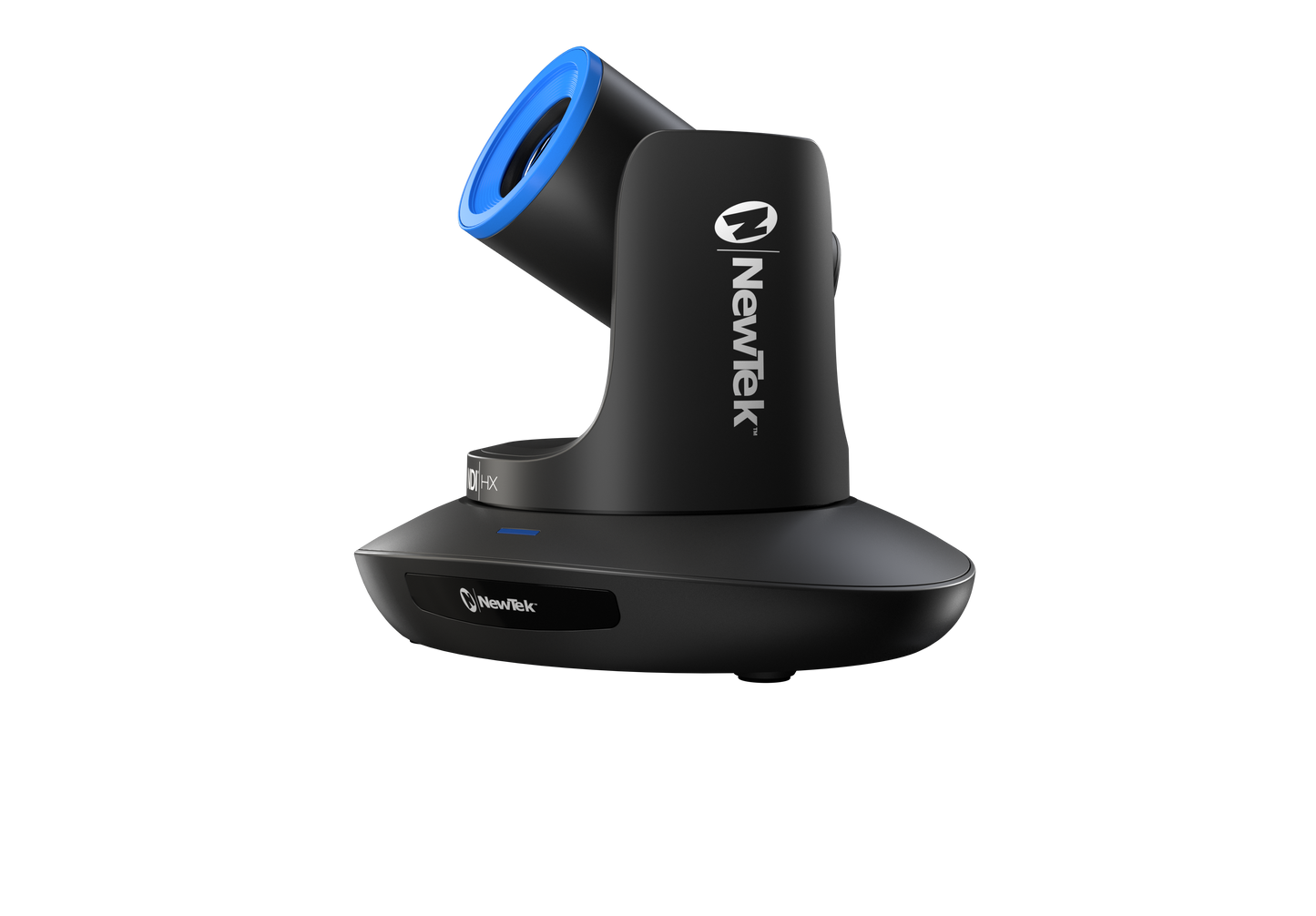

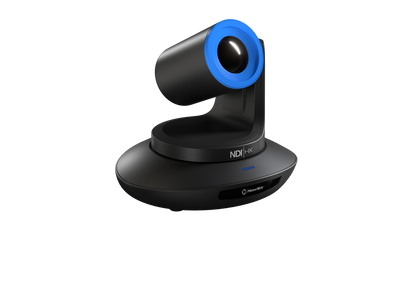

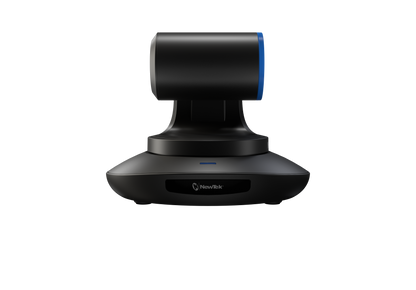

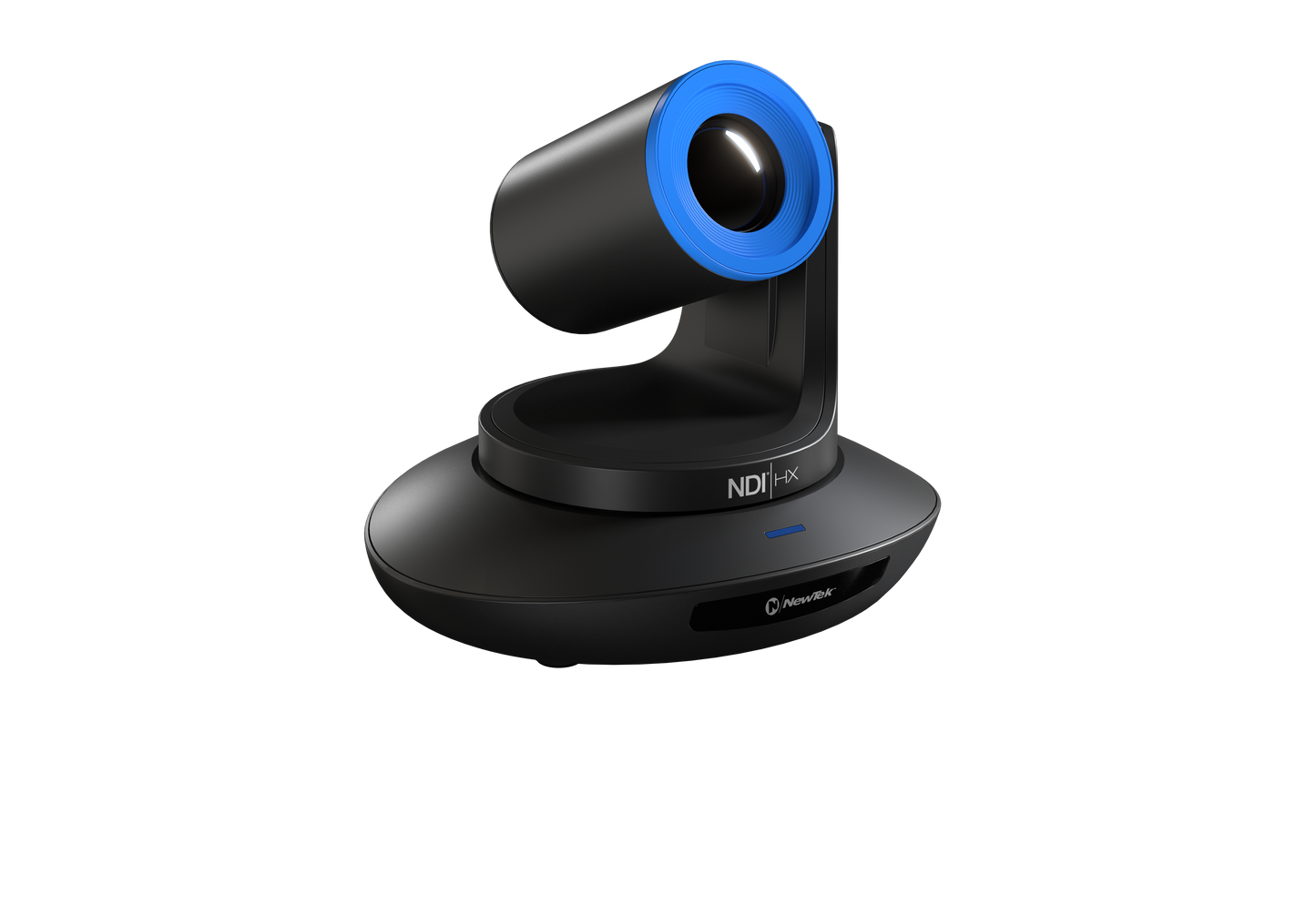

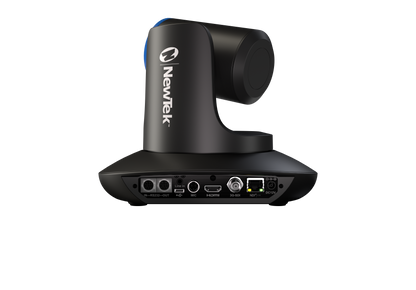

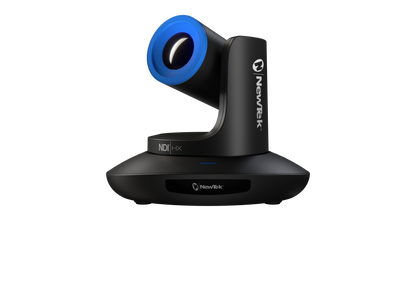

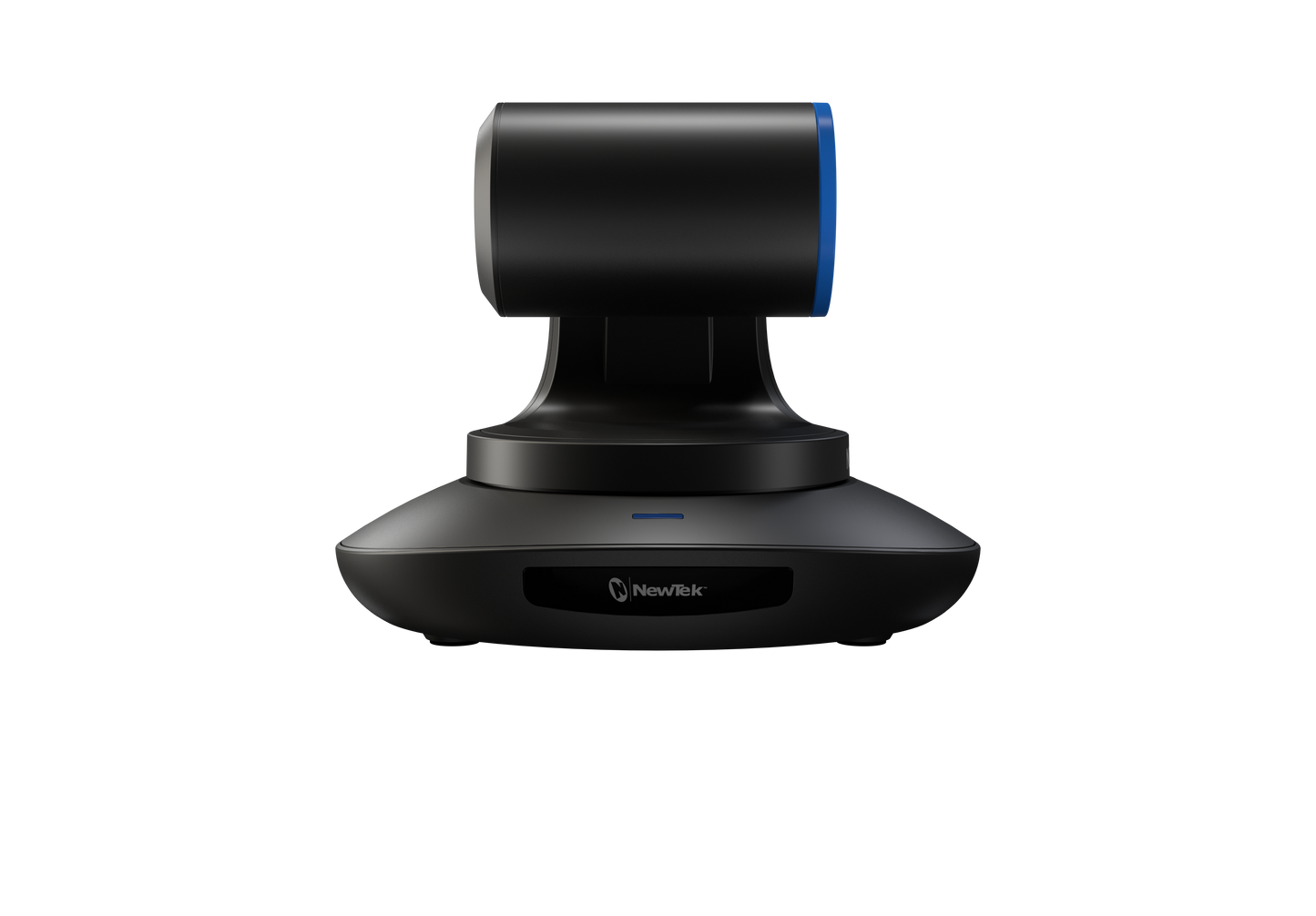

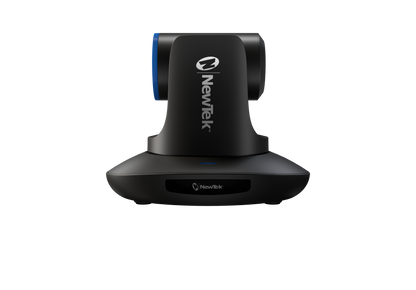

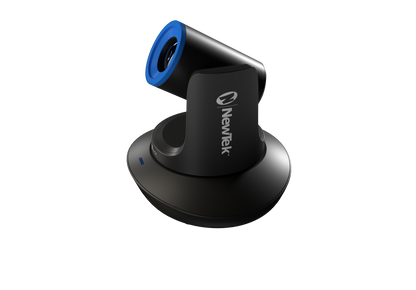

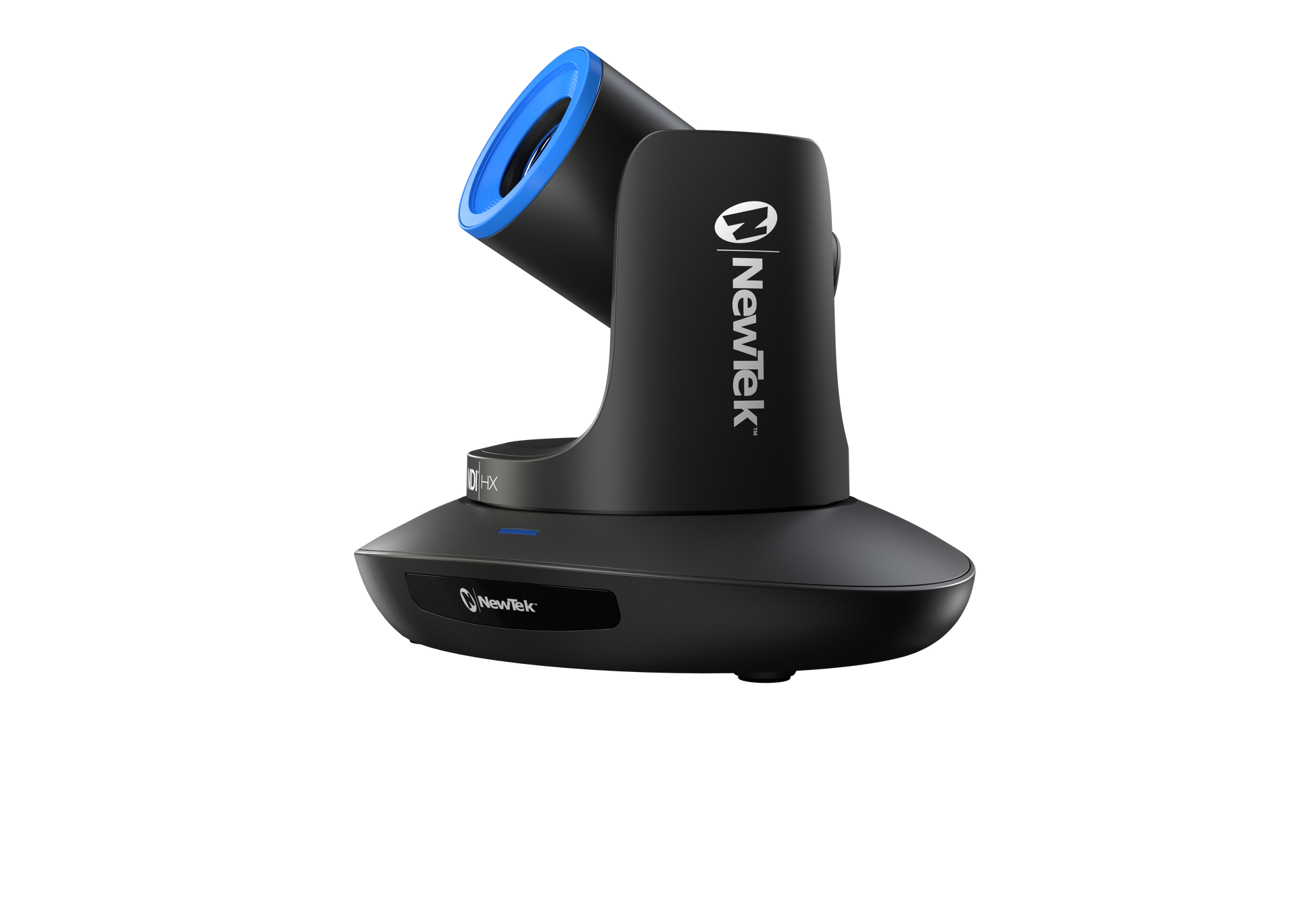

Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)
Vizrt NDI®|HX 20x PTZ3 Camera (Black)

Vizrt NDI®|HX 20x PTZ3 Camera (Black)

Regular price$2,395.00
/
Free Shipping & Tech Support.

Videoguys Part # (SKU): NDIHX-PTZ3B
MFR Part # (MPN): FG-003248-R001
Short Description:

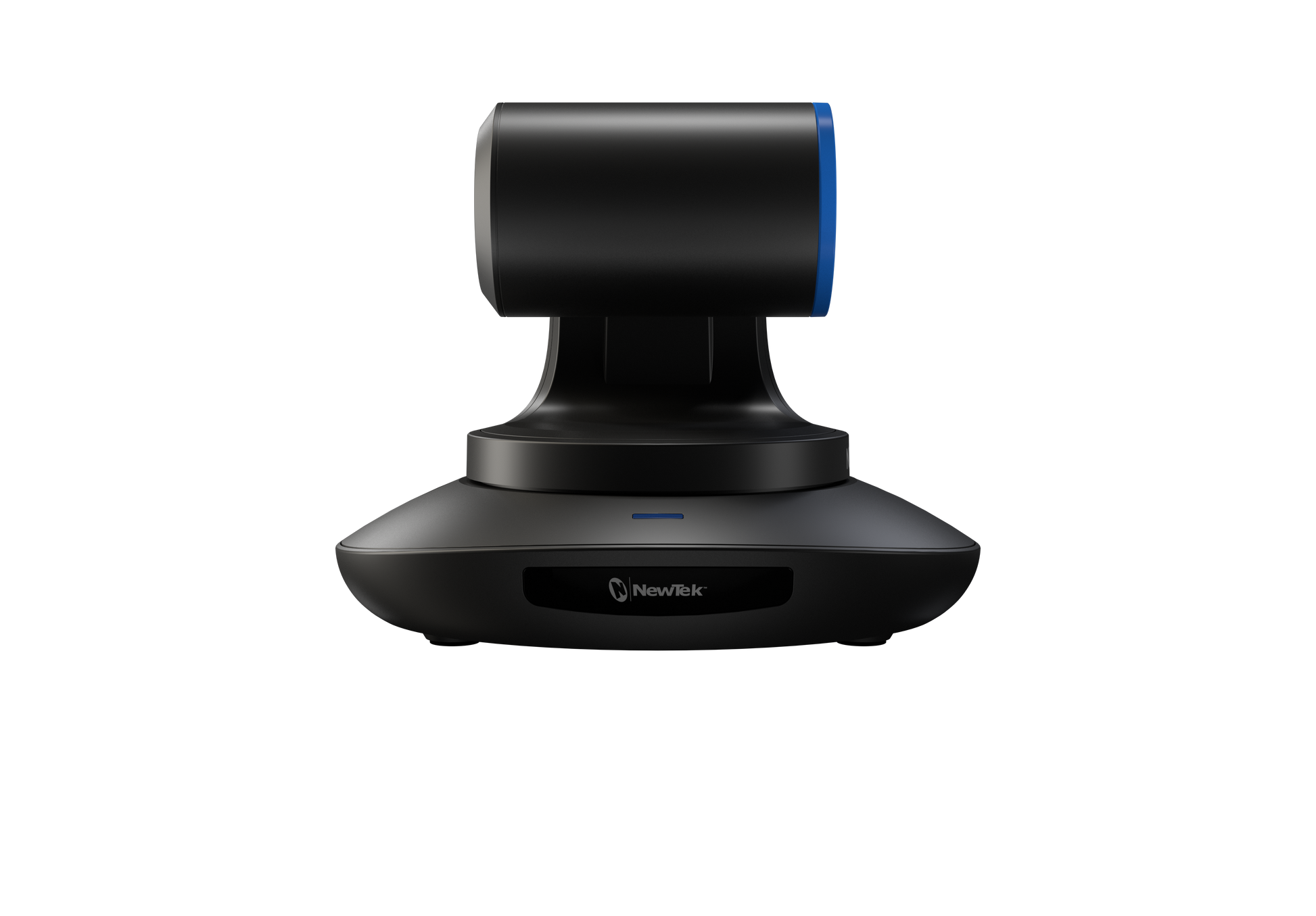

Vizrt NDI®|HX PTZ3 Camera Simple, Flexible, Uncompromising

A world of new PTZ Capabilities at your fingertips

The NewTek NDI®|HX PTZ3 Camera is the very best and easiest way to acquire live video for input into any workflow - raising the bar for PTZ Cameras everywhere.

NDI at its best.

NDI|HX3 puts the user in control; striking the perfect balance of quality and efficiency with zero compromise. This new standard offers the quality and low latency of full NDI without the heavy bandwidth usage.

Advanced Audio

The PTZ3 has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.

Seamless Movement

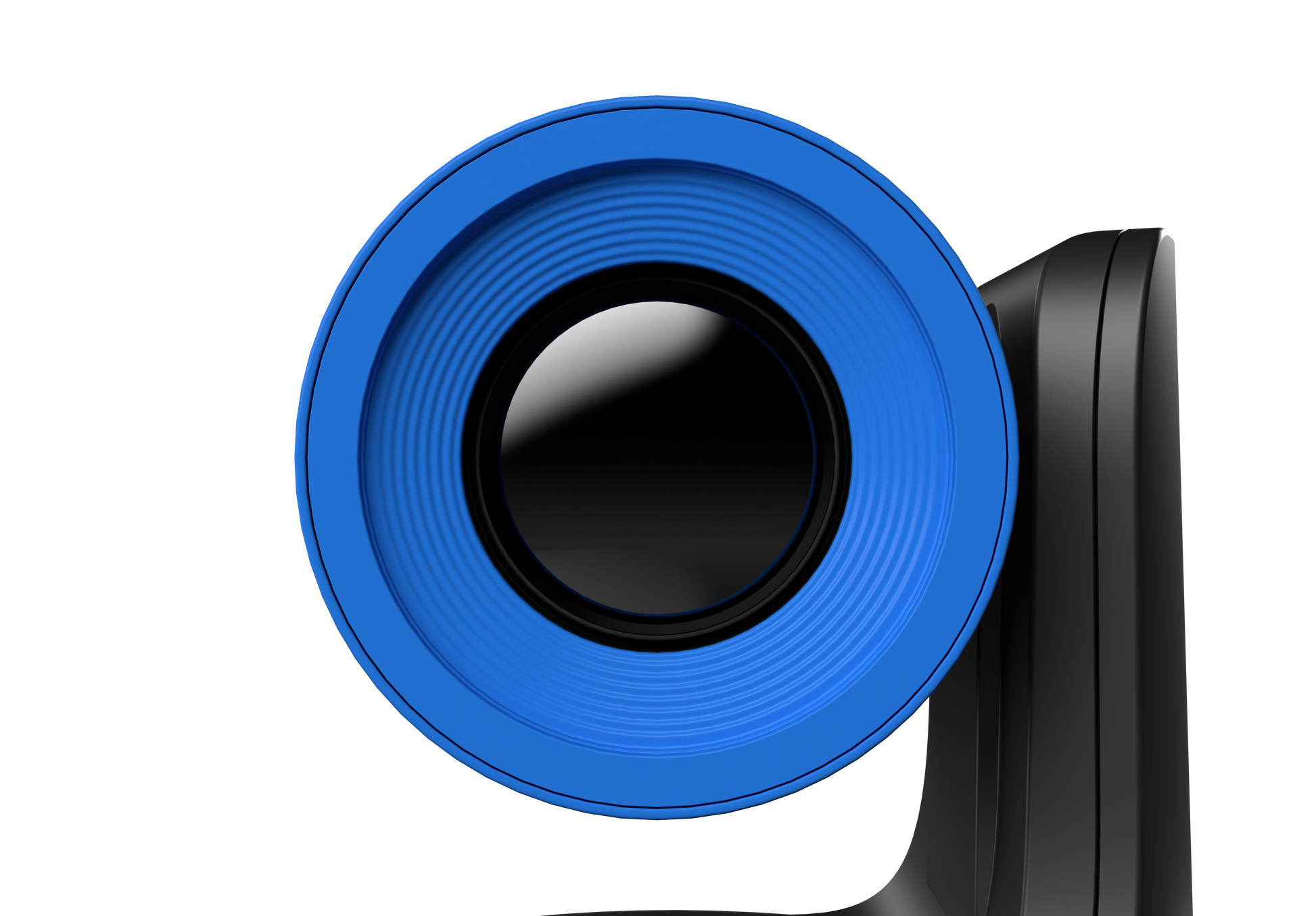

The PTZ3 offers far superior visual quality with much smoother movement between camera presets and an improved lens and sensor meaning this all-new camera is as at home in low light environments like studios as in brighter classrooms or hospitals.

Simple, Flexible, Uncompromising.
The NDI®|HX PTZ3 Camera is the very best and easiest way to acquire live video for input into any workflow and is the world’s first camera to offer NDI|HX3 – delivering low latency, all the while maintaining maximum quality at efficient bandwidth. In addition, the all-new PTZ3 is the very first NewTek camera to offer Professional XLR audio connectivity as well as Tally, control, power, audio and video all using a single cable

NDI. Better.
By simply appearing on the network automatically, NDI Cameras can be easily integrated into any workflow. The PTZ3 breaks the mold with the integration of NDI|HX3; giving the option to deliver low latency transmission with reduced bandwidth, while maintaining the visually lossless standards NDI users’ demand.

Audio. Better.
Better than ever audio is now possible with the Professional XLR audio input available in the NDI|HX PTZ3 Camera. Delivering clean, professional level audio directly from the camera into the NDI network, the XLR feature offers an array of connectivity options – all with a single connection.

Connect. Better.
No other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain. The NewTek PTZ3 can be added into any workflow with a single ethernet cable for HD video up to 1080/60p, audio, PTZ presets and control, tally, and PoE

PTZ. Better.
Hard stop and stop movements during camera presets which create an inferior viewing experience are a thing of the past – the PTZ3 offers synchronized preset starts and a new motion algorithm that helps create a natural look and feel to any production

That’s not all - the PTZ3 is also now available in both Black and White body colors and includes ceiling and wall mounts, making it perfect for any setting including studios, hospitals, corporate meeting spaces, or for live events.

A PTZ Camera Like No Other
The PTZ3 allows video professionals, information techonology managers, and system designers to explore new ways to expand, grow, and evolve their video productions using the network, while simultaneously streamlining integration and installation by incorporating power over Ethernet.

Features:


  • Offers NDI|HX3 support
  • Support for sophisticated devices with Professional XLR audio connection
  • Available in Black and White body colors
  • One ethernet cable for audio and video, PTZ control and tally
  • Compatible with NDI version 5
  • Smooth, motor-driven pan-tilt-zoom operation and movement between presets
  • Integrated and automatic tally support via NDI®
  • Native support for HD video formats up to 1080p 60


Advanced Flexibility and Simplicity
With one cable for power and connectivity, no other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain.

A Future-Proofed PTZ Camera
NewTek NDI|HX PTZ3 offers countless new elements that add quality, simplicity and flexibility ensuring users can maintain pace with the evolving needs of any production.

NDI at its best.
NDI|HX3 puts the user in control; striking the perfect balance of quality and efficiency with zero compromise. This new standard offers the quality and low latency of full NDI without the heavy bandwidth usage.

Advanced Audio
The PTZ3 has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.

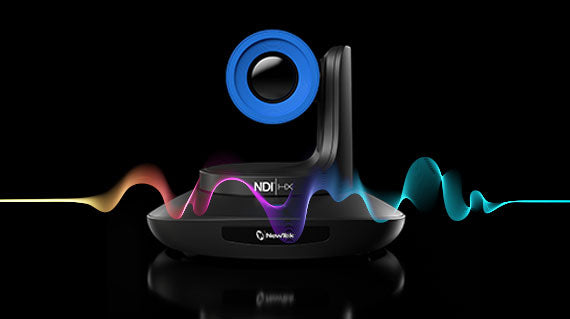

Seamless Movement
The PTZ3 offers far superior visual quality with much smoother movement between camera presets and an improved lens and sensor meaning this all-new camera is as at home in low light environments like studios as in brighter classrooms or hospitals.

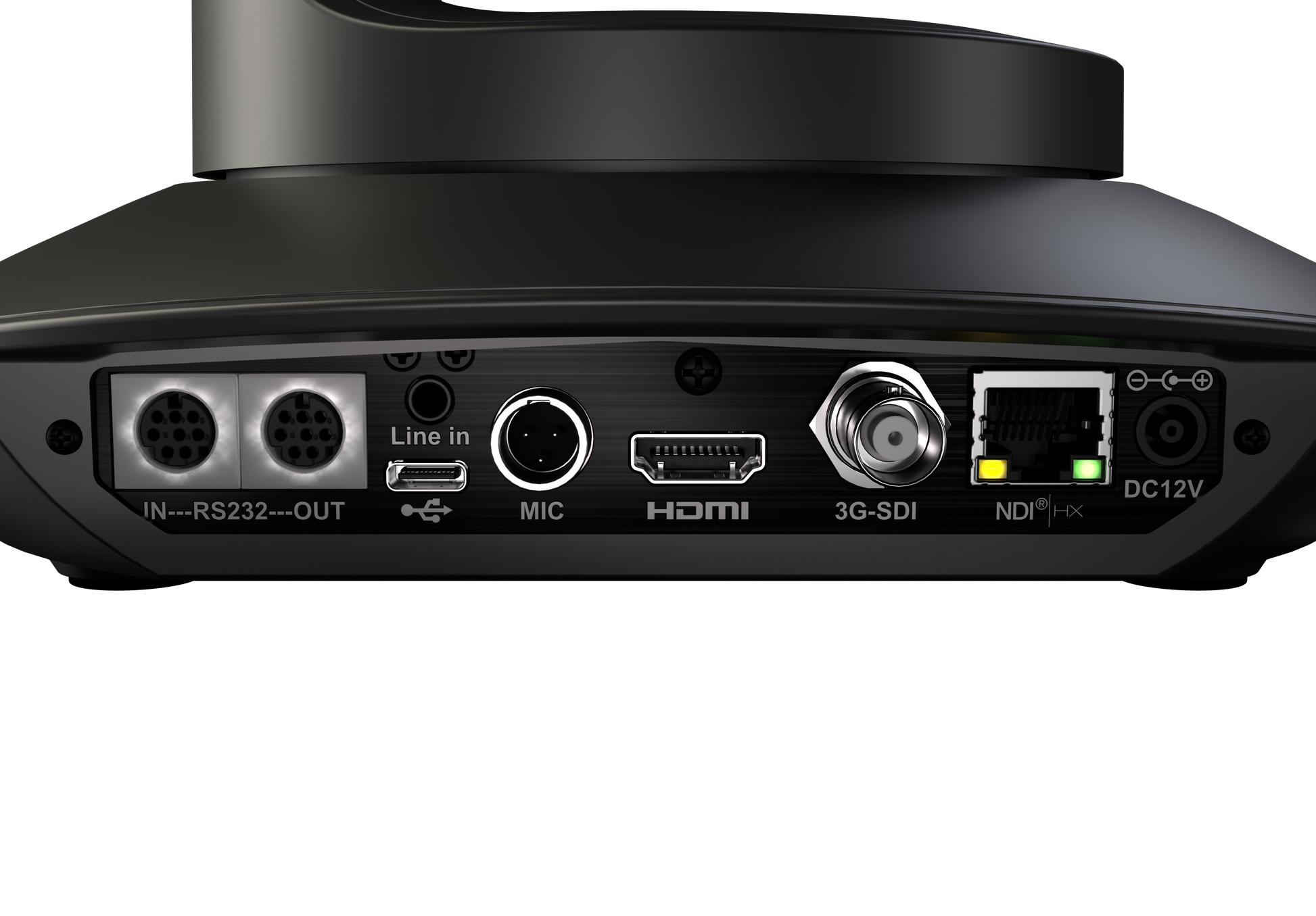

Better Connected Than Ever
Offering Tally, control, power, audio and video all using a single cable, the PTZ3 also includes the latest in NDI with NDI|HX3 and Professional XLR audio connectivity, for the very first time.

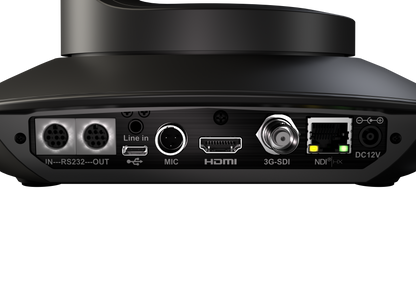

Video Output
NDI|HX, 3G-SDI, HDMI
Audio Output
NDI|HX, HDMI
Video Formats
1080p: 60, 59.94, 50, 30, 29.97, 25, 24,
1080i: 59.94, 50
720p: 60, 59.94, 50, 30, 29.97, 25
Zoom
20x Optical & 2x digital zoom
Sensor
1/2.86" High Quality CMOS Sensor
Shutter Speed
1/30 to 1/10,000 sec
Panning Angle
-170° to +170°
Panning Speed
Max 120°/sec
Tilting Angle
30° to +90°
Tilting Speed
Max 80°/sec
Aperture
F1 ~ F14
Focal Length
4.9~98mm
Horizontal Angle of View
60°(Far)-3,2°(Near)
Min. Object Distance
1.5m (Wide/Tele)
Min. Illumination
1.0 lux
Encoding
H.264/H.265, NDI|HX

Audio Input Mini
XLR, 3.5mm stereo audio input (line)
Embedded Audio
NDI, HDMI
Signal
Balanced (Mini XLR), Unbalanced (Line In)
Sample Rate
48KHz
Frequency
100Hz~20KHz
Total Harmonic distortion
-90dB
Tally
Supported

Anti-Flicker
Off/50Hz/60Hz
Gain Control
Auto, Manual
Control
NDI
User Interface
Web based or NewTek NDI® Studio Monitor applications for remote
configuration, control, and monitoring

POE+
POE+ (IEEE 802.3 at)
Direct Power
DC12V
Power Consumption
8W
Operating Temperature
-10°C~50°C
Operating Humidity
20%~80%
Dimensions
8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm)
Weight
2.97lbs (1.35 kg)
Ceiling Mount
Included
Wall Mount
Included
Adapters
MiniXLR (f) to XLR(f) adapter included

  • NewTek NDI HX3 PTZ3 Camera (Black)
  • Ceiling Mount
  • Wall Mount
