Atomos Ninja Inferno Bundle with SONY 960GB SSD & Free Power Kit

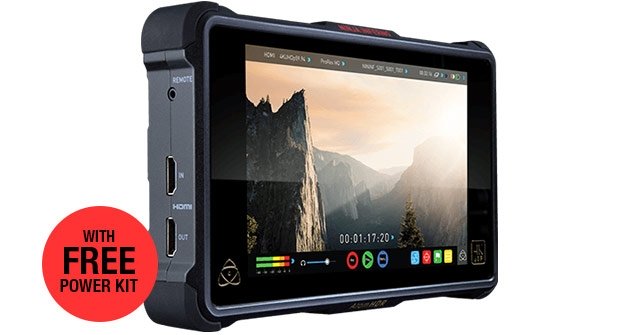

Atomos Ninja Inferno
Unlock Hollywood Monitoring & Recording from any HDMI Device with Ninja Inferno
Portable HDR 4Kp60 10-bit 422 monitor recorder - the ultimate camera accessory for the GH5.
Apart from being an obvious companion for the new GH5, the Ninja Inferno is the world’s first HDMI monitor-recorder to accept 4K DCI signals. Support for the 4096 DCI standard unlocks cinema recording from 4K video and mirrorless DSLRs.
The Ultimate Monitor
1920x1200 resolution LCD panel and 10-bit processing in highlights and equivalent 10+ bit resolution in blacks achieved through the patented AtomHDR engine which, when combined with the custom Atomos-built backlight, allows the power of 1500nits to be utilized for High Bright Rec709 or HDR PQ/HLG at 10+ stops.
The full-size HDMI 2.0 connection bypasses the camera’s internal limitations by recording to 4Kp60 4:2:2 10-bit pristine video in grading-friendly Apple ProRes or Avid DNxHR. The Ninja Inferno upgrades mirrorless and DSLR camera audio by including balanced XLR input and 48V Phantom Power, negating the need to purchase separate audio recorders.
For on set review, the wide angle 7” calibrated screen, playback controls, playlist and XML tagging make the Ninja Inferno the perfect client or director’s monitor, with playout to the latest HDR PQ/HLG or SDR TV’s.
On Set or in the Studio
The Ninja Inferno is equally adept in the editing suite as it is in the field with the recorded files dropping directly onto the timeline of all the major NLE editing and grading software with the HDMI input capable of accepting HDR signals to make the Ninja Inferno an unbelievably affordable HDR reference monitor for portable or in studio color grading.
Atomos Power Kit: includes 2x NP-F750 5200mAh batteries, Charger, Power Supply
960GB SSD for Professional Recorders
Unique Error Correction technology ensures high speed data writing and dependable recording of 4K video while avoiding speed degradation and extended life.
- Sony tested transfer speed: READ 550MB/s; WRITE 500MB/s
- Sony ECC (Error Correction Code) enables 2400TBW (terabytes written) with SVGS96.
- Est. 10 year life compared to 1 – 2 years max on competitive models.
- Unique data protection technology even in power loss or improper disconnect.
- Sturdier connectors tested to 3K insertion / removal cycles.
- Supports Windows 7, 8.1, 10, Mac OS v. 10.9, 10.10, 10.11, 10.12
- Recommended for use with ATOMOS on camera/ portable recorder/ monitors: Shogun Inferno, Shogun Flame, Shogun Studio, Ninja Flame, Ninja Blade and Sumo
- Recommended for use with BLACKMAGIC DESIGN: HyperDeck Shuttle, HyperDeck Studio, HyperDeck Studio 12G, HyperDeck Studio Pro.
These SSDs were designed to meet the growing need for reliable, external video recording devices docked to camcorders or high-performance DSLRs. For content creators looking for more efficient, stable and flexible hi-bitrate recording in often unpredictable environments, Sony’s G Series SSDs deliver optimal performance for several popular professional video recording devices, while offering a far longer lifetime.
Building on the reliability synonymous with Sony’s Professional Media products, the new SSDs are a solid option for respective video recorders, offering videographers stable high-speed capabilities, a sense of security and lower cost of ownership due to their longer life. Using Sony’s Error Correction Code technology, the 960GB G Series SSD achieves up to 2400 TBW (terabytes written), while the 460GB drive can reach 1200 TBW, resulting in less frequent replacement and increased ROI. 2400 TBW translates to about 10 years of use for the SV-GS96, if data is fully written to the drive an average of five times per week.
The drives are also designed for ultra-fast, stable data writing. While other SSDs have a tendency for data write speeds to suddenly drop after repeated re-write cycles, Sony G Series SSDs feature built-in technology preventing sudden speed decreases, while ensuring stable recording of high bitrate 4K video without frame dropping. For example, used with an ATOMOS Shogun Inferno, G series SSD is able to record video at 4K 60p (ProRes 422 HQ) mode stably.
When paired with the necessary connection cables, the new G Series drives can be effortlessly removed from a recorder and connected to a computer for file downloading, making editing easier and faster with read speeds up to 550MB/s.
G Series SSDs also offer data protection technology that keeps content secure and intact, even if a sudden power failure occurs. To add to the drive’s stability, it features a durable connector which withstands extreme repeated insertion and removal up to 3000 times – or 6 times more tolerance than standard SATA connectors – even in harsh conditions.
Ninja Inferno Tech Specs
|Without batteries & media||630g / 22.2oz|
|With batteries & media||1074g / 37.9oz|
|Dimensions (W x H x D mm)||214 x 127 x 45mm, 8.4 x 5 x 1.8”|
|Construction||High quality lightweight ABS Polycarbonate for durability & portability|
|Built-in armor protection|
|Operating power||10 - 33W|
|Compatible batteries||NP-F series and supporting accessories|
|Input voltage (battery)||6.2V to 16.8V|
|Battery time (based on 7.4V)||-|
|5200mAh - up to 1.5hrs (monitor & record 4K 30p)|
|7800mAh - up to 2.2hrs (monitor & record 4K 30p)|
|DC In||1 x DC in (6.2 - 16.8V)|
* Patent pending
|Primary-secondary battery system. |
Change batteries without losing power
Loop batteries continuously
|Resolution||1920 x 1200|
|Aspect ratio||16:9 native|
|Color Gamut||REC709 HDTV|
|Look up table (LUT) support||3D LUT (.cube format)|
|Anamorphic de-squeeze||2x, 1.5x, 1.33x, Panasonic 8:3|
|Technology||SuperAtom IPS panel (capacitive touch), |
calibration to Rec.709 with optional calibration unit
|Supported Log formats||Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,|
Panasonic Vlog, JVC JLog, Red LogFilm
|Supported Gamuts||Sony SGamut / SGamut3 / SGamut3.cine|
Canon Cinema / BT2020 / DCI P3 / DCI P3+
Panasonic V Gamut
Arri Alexa Wide Gamut
|Bit depth||10-bit (8+2 FRC)|
|Brightness||1500nit (+/- 10%)|
|HDR input (PQ/HLG)|
HDR output (PQ/HLG)
|Yes / Yes|
Yes / Yes
|Video Input/Loop Out|
|HDMI||1 x HDMI (2.0)|
|Signal||Uncompressed true 10-bit or 8-bit 422|
|Video Output (Play Out)|
|HDMI||1 x HDMI (2.0)|
|Signal||Uncompressed true 10-bit or 8-bit 422|
(playback file dependent)
|Supported Loop Out Formats|
|HDMI to HDMI||720p 50/60, 1080i 50/60,|
|Supported Codecs & Frame Rates (Record & Playback)|
|Video to ProRes / DNxHR |
(DNx utilizes a .MOV wrapper)**
|Brand / Model / Codec|
Refer camera compatibility list; atomos.com/cameras
ProRes (HQ, 422, LT) DNxHR (HQX,HQ,SQ,LB)
|Resolution / Framerate|
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i
|Pulldown removal||24/25/30pSF > 24/25/30p (2:2 pulldown) |
60i > 24p (3:2 pulldown)
|4K UHD downscaling||Yes - Loop-out and playback|
|Audio In/Out (48kHz PCM Audio)|
|HDMI||2 or 8ch 24-bit, camera dependent|
|Audio||2ch balanced XLR analog in/out|
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +52dB
48V Phantom Power for Mic
|HDMI||Auto HDMI Trigger|
Supported Protocols - Canon, Sony, Atomos Open Standard
|Other||LANC control - Slave|
|CDNG (Recorded content)||N/A|
|ProRes (Recorded content)||All recorded les can playback. Playback in slow motion >= 100fps|
|DNxHR / DNxHD (recorded content)||All recorded les can playback. Playback in slow motion >= 100fps|
|Pre-roll record||Yes (HD 8s, 4K 2s)|
|Meta data tagging||Yes (10 tags available)|
(Approved List at Atomos.com/drives)
|Select SSD: Video (4K 30p, 1080 60p)|
Select SSD or HDD: Video (1080 30p, 720 60p)
|Master caddy case||Master Caddy II (included)|
75mm x 105mm x 12mm
|Master caddy dock||2.5” SATA to USB 2.0/3.0|
|Supported applications||Supported Applications FCPX/FCP7+ / Media Composer|
5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
Autodesk Smoke 2015
|XML support||FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools|
|Accessories included||Ninja Inferno unit, 12V-3A AC adapter, 1 x Master Caddy II, Travel case|
All specifications correct when published, subject to E&OE.
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
*** No HDMI spec for 2K DCI
^ From supported HDMI sources such as gaming consoles and graphics cards.
