Atomos Shogun Flame Bundle with SONY 480GB SSD & Free Power Kit
Atomos Shogun Flame Bundle with SONY 480GB SSD & Free Power KitAtomos Shogun Flame Bundle with SONY 480GB SSD & Free Power KitAtomos Shogun Flame Bundle with SONY 480GB SSD & Free Power Kit

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): SHOGFLAMSSD48
Atomos Shogun Flame HDMI / SDI / XLR 4K/HD monitor-recorder and power kit bundled with SONY's durable, reliable and fast 480GB SSD, which is ideal for 4K or higher-bitrate recording.
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

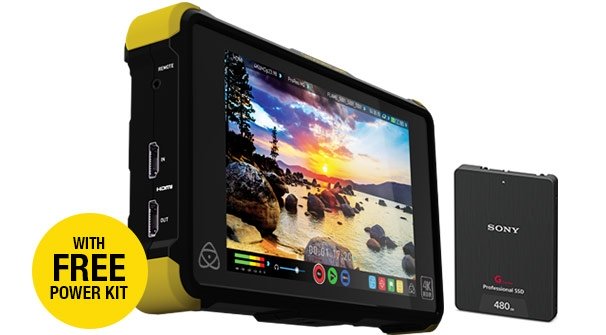

Atomos Shogun Flame Bundle with SONY 480GB SSD & Free Power Kit

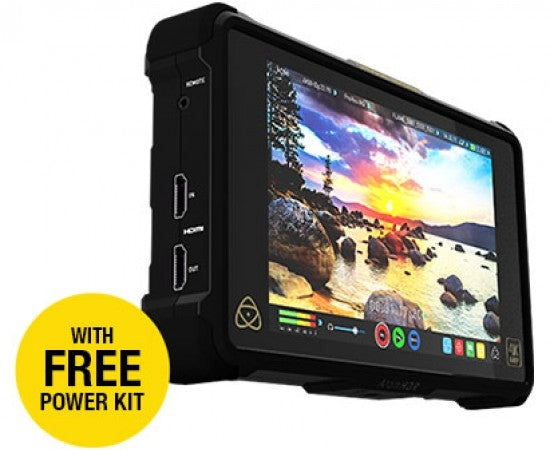

Atomos Shogun Flame


Filmmakers constantly face exposure challenges on set, choosing between detail in the highlights and in shadows. Shooting Log from the camera is a partial solution, recording a broader brightness range but still you need to compromise on the monitor's image quality. The solution is the Shogun Flame, a 7" 10-bit AtomHDR 1500nit Field Monitor with 4K/HD 10-bit ProRes/DNxHR recording, Sony & Canon Raw to ProRes/DNxHR recording, professional HDMI, SDI and XLR connections along with LTC/Genlock & bidirectional SDI/HDMI conversion needed on set and in broadcast. With AtomHDR, you get the brightness and dynamic range of HDR Log with natural, vibrant colors to let you simply shoot the way you see.


AtomHDR
Cameras with Log output (S-Log2, S-Log3, C-Log, V-Log etc) already have the 10+ stops of dynamic range needed for High Dynamic Range (HDR). Be at the forefront of the HDR revolution sweeping the industry by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.


SCENES IGNITE WITH 1500NITS OF LIGHT
Not all scenes call for HDR Log recording. In situations that don't call for 10 stops of dynamic range, use the intensity of the 1500nit panel to monitor traditional standard dynamic range (SDR/Rec709) video at high brightness for outdoor monitoring.


Simply pick the right mode, HDR or High Bright SDR, and get busy setting up your shot on the premium 7" display boasting 10-bit processing, 1920x1200 resolution, 325ppi pixel density, optional calibration to overcome natural LCD color drift and an arsenal of precision video setup tools for perfect shots every time.


WIDEST CAMERA COMPATIBILITY
With both HDMI and SDI connectivity in/out and bi-directional conversion, the Shogun Flame connects with almost all cameras.


UNLOCK THE RAW FROM SONY & CANON
Output Raw from select cameras and record direct to 4K/HD Apple ProRes or DNxHR.


RECORD PROFESSIONAL 4K & HD
Shogun Flame records to professional 10-bit 4:2:2 ProRes & DNxHR demanded in post production.


SIMPLE OS, SOPHISTICATED SHOTS
The Flame Series is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Safe Area, luma/RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LUTs or upload .cube files) and options for de-squeezing anamorphic content.


CONTINUOUS POWER IS BACK... WITH SUPER FAST CHARGING.
Our patented continuous power system pioneered on our HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (both included with the product) means that continuous power in the field is all but assured.


MONITOR & RECORD XLR AUDIO
The Shogun Flame has professional audio to match professional video. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power. Audio control is simple with dedicated meters and menus to select channels for recording/ monitoring and adjustments for frame delay and gain.


ADVANCED RECORDING CAPABILITY
Outside of 10-bit 4:2:2 ProRes/DNxHR, the Shogun Flame adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI from select Canon, Sony, Panasonic, Nikon cameras. Convert interlace video from your camera to progressive on the fly with built-in 3:2 and 2:2 pulldown and gain advanced functionality like Pre-roll (continuous cache recording to never miss the action) and Time lapse to maximise your creativity.


BATTLE-READY! FOR THE FIELD
Our built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, XLR breakout cable, Lanc cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.


Atomos Power Kit: includes 2x NP-F750 5200mAh batteries, Charger, Power Supply


SONY SV-GS48/BT G Series Professional Solid State Drive


480GB SSD for Professional Recorders


Unique Error Correction technology ensures high speed data writing and dependable recording of 4K video while avoiding speed degradation and extended life.


Highlights



  • Sony tested transfer speed: READ 550MB/s, WRITE 500MB/s

  • Sony ECC (Error Correction Code) enables 1200 TBW (terabytes written) with SVGS48

  • Estimated 10 year life compared to 1-2 years max on competitive models.

  • Unique data protection technology even in power loss or improper disconnect.

  • Sturdier connectors tested to 3K insertion/removal cycles.

  • Supports Windows 7, 8.1, 10, Mac OS v. 10.9, 10.10, 10.11, 10.12

  • Recommended for use with ATOMOS on camera/ portable recorder/ monitors: Shogun Inferno, Shogun Flame, Shogun Studio, Ninja Flame, Ninja Blade and Sumo

  • Recommended for use with BLACKMAGIC DESIGN: HyperDeck Shuttle, HyperDeck Studio, HyperDeck Studio 12G, HyperDeck Studio Pro.


In Depth


These SSDs were designed to meet the growing need for reliable, external video recording devices docked to camcorders or high-performance DSLRs. For content creators looking for more efficient, stable and flexible hi-bitrate recording in often unpredictable environments, Sony’s G Series SSDs deliver optimal performance for several popular professional video recording devices, while offering a far longer lifetime.


Building on the reliability synonymous with Sony’s Professional Media products, the new SSDs are a solid option for respective video recorders, offering videographers stable high-speed capabilities, a sense of security and lower cost of ownership due to their longer life. Using Sony’s Error Correction Code technology, the 960GB G Series SSD achieves up to 2400 TBW (terabytes written), while the 460GB drive can reach 1200 TBW, resulting in less frequent replacement and increased ROI. 2400 TBW translates to about 10 years of use for the SV-GS96, if data is fully written to the drive an average of five times per week.


The drives are also designed for ultra-fast, stable data writing. While other SSDs have a tendency for data write speeds to suddenly drop after repeated re-write cycles, Sony G Series SSDs feature built-in technology preventing sudden speed decreases, while ensuring stable recording of high bitrate 4K video without frame dropping. For example, used with an ATOMOS Shogun Inferno, G series SSD is able to record video at 4K 60p (ProRes 422 HQ) mode stably.


When paired with the necessary connection cables, the new G Series drives can be effortlessly removed from a recorder and connected to a computer for file downloading, making editing easier and faster with read speeds up to 550MB/s.


G Series SSDs also offer data protection technology that keeps content secure and intact, even if a sudden power failure occurs. To add to the drive’s stability, it features a durable connector which withstands extreme repeated insertion and removal up to 3000 times – or 6 times more tolerance than standard SATA connectors – even in harsh conditions.

Shogun Flame Tech Specs




























Weight
Without batteries & media650g / 22.9oz
With batteries & media1094g / 38.6oz
Dimensions (W x H x D mm)214 x 127 x 45mm, 8.4 x 5 x 1.8”
ConstructionHigh quality lightweight ABS Polycarbonate for durability & portability
 Built-in armor protection







































Power
Operating power10 - 24W
Compatible batteriesNP series and supporting accessories
Input voltage (battery)6.2V to 16.8V
Battery time (based on 7.4V)-
 5200mAh - up to 1.5hrs (monitor & record 4K)
 7800mAh - up to 2.2hrs (monitor & record 4K)
DC In1 x DC in (6.2 - 16.8V)
Continuous power
* Patent pending
Primary-secondary battery system Change batteries without losing power Loop batteries continuously















































Touchscreen
Size7.1”
Resolution1920 x 1200
PPI325
AtomHDRYes
Bit depth10-bit (8+2 FRC)
Brightness1500nit (+/- 10%)
Aspect ratio16:9 native
Color GamutREC709 HDTV
Look up table (LUT) support3D LUT (.cube le format)
TechnologySuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder



















Video input/loop out
HDMI1 x HDMI (1.4b)
SDI1 x 4K-SDI 6G or HD-SDI 3G/1.5G (SMPTE)
SignalUncompressed true 10-bit or 8-bit 422 (camera dependent)



















Video output (play out)
HDMI1 x HDMI (1.4b)
SDI1 x 4K-SDI 6G or HD-SDI 3G/1.5G (SMPTE)
SignalUncompressed true 10-bit or 8-bit 422 (playback file dependent)















Supported loop out formats
HDMI to HDMI720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/120*, 2160p 24/25/30
SDI to SDI720p 50/60, 1080i 50/60
1080pSF 24/25/30
1080p 24/25/30/50/60/120*, 2160p 24/25/30















720p 50/60, 1080i 50/60
1080pSF 24/25/30
1080p 24/25/30/50/60/120*, 2160p 24/25/30
HDMI to SDI720p 50/60, 1080i 50/60 1080p 24/25/30/50/60/120, 2160p 24/25/30
SDI to HDMI720p 50/60, 1080i 50/60 1080p 24/25/30/50/60/120, 2160p 24/25/30





























Supported formats (Record & Playback)
4K2160p 24/25/30
HD - high frame rate**1080p120*, 1080p60/50
HD**1080i60, 1080i50, 1080p30, 1080p25, 1080p24, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p50
4K UHD downscale for HD monitoringYes - loop-out & playback
Anamorphic de-squeeze2x, 1.5x, 1.33x, Panasonic 8:3






















Realtime hardware encoding
4K - DCI RAW 4096x2160 to
Supported cameras;
Sony FS700, FS7
Canon C300MKII, C500
Apple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
4K-UHD 3840x2160 8/10-bit 4:2:2 toApple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
1920x1080 8/10-bit 4:2:2 toApple ProRes
HQ, 422, LT
DNxHD
220x, 220, 145, 36











Onboard processing
Pulldown removal24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)



















Audio in/out (48kHz PCM audio)
HDMI2 or 8ch 24-bit, camera dependent
SDI12ch 48kHz 24-bit
Audio2ch balanced XLR analog in/out
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +52dB
48V Phantom Power for Mic



















Remote start/stop
HDMIAuto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDISDI trigger camera selectable
OtherLANC control - Slave















Playback
PlaylistYes
Genlock / LTCYes / Yes















































Playback
Pre-roll recordYes (HD 8s, 4K 2s)
Custom timelapseYes
Meta data taggingYes (10 tags available)
Supported media
(Approved List Only)
4K / HD (50/60/120p*)
SSD 2.5”, HDD (7,200 up to 1080p60)

HD
SSD 2.5”, HDD (5,400 up to 1080p30)
Master caddy caseMaster Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock2.5” SATA to USB 2.0/3.0
Supported applicationsSupported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
Autodesk Smoke 2015
XML supportFCPX XML native, FCP7 supported with conversion (Adobe compatible)
Accessories includedShogun Flame unit, soft travel case, 1x Master Caddy II case, 1x power supply, 1x XLR breakout cable
Optional extrasAtomos HDMI cable, Spyder calibration
