Avid Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch
Avid Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch


Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): DELLN2024
MFR Part # (MPN): 7080-30085-00

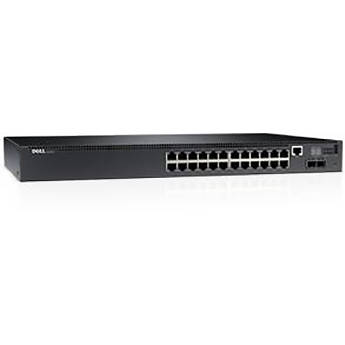

The Dell Networking N2024, from Avid, is a 24-port 1-Gigabit Ethernet switch compatible with the NEXIS | 1000 20TB Shared Storage System that enables multiple workstations and network devices to access your stored media.
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews


The Dell Networking N2024, from Avid, is a 24-port 1-Gigabit Ethernet switch compatible with the NEXIS | 1000 20TB Shared Storage System that enables multiple workstations and network devices to access your stored media. It offers Layer 3 standard Ethernet switches with basic routing functionality and features two unpopulated SPF+ 10-Gigabit Ethernet ports. Additionally, the unit offer rear mini-SAS stacking ports for linking up to 12 units together. The unit is rack-mountable in 1U of space using an included rack-mounting kit.


Layer 3 Standard Ethernet Switches
  • Use MLAG for multipath loop-free redundancy without spanning tree to enable full-bandwidth utilization and high availability
  • Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) (available with OS 6.1 release) and devices using Cisco Discovery Protocol (CDP)
  • Offer a more flexible choice in your network by uniting products with the latest open standard protocols
  • Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces
Switch Attributes
  • Line-rate Layer 2 switching
  • Line-rate Layer 3 routing
  • Data rates up to 172 Gbps (full duplex) and a forwarding rate of up to 128 Mbps
  • Dual firmware images on-board
  • Temperature sensors for environmental monitoring
  • Cable diagnostics
  • Optical transceiver (SFP/SFP+) diagnostics
  • Switch auditing support
  • UDLD
Traffic Ports & Attributes
  • 2 x Integrated 10GbE SFP+ dedicated ports
  • Auto-negotiation for speed and flow control
  • Auto MDI/MDIX S
  • Port mirroring
  • Flow-based port mirroring
  • Broadcast storm control
  • Energy Efficient Ethernet per port settings
  • Port Profile support including Admin profiles
Management & Configuration
  • 1 x RJ45 console/management port with RS-232 signaling
  • 1 x USB port for configuration
  • Single OS (Dell Networking OS 6) for all N2000 Series switches
  • One common command line interface (CLI) and graphical user interface (GUI) that uses a well-known command language to help skilled network administrators become productive quickly
  • USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
  • A variety of enterprise-class features with familiar and intuitive configuration and management commands
  • The latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible
Stacking Attributes
  • 2 x Rear mini-SAS stacking ports and standard N-Series stacking cables support a stacking architecture of up to 12 units at 84 Gbps (full-duplex)
  • 9.8' maximum stacking distance
  • Switch stacks can be managed from a single screen or IP address
Power & Cooling Hardware
  • 80PLUS-certified efficient integrated power supply (non-removable)
  • External power supply (option available)
  • Power supply redundancy (option available)
  • Redundant variable-speed cooling fans
  • Energy-Efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links
  • Air flow: IO to PSU (Normal)
  • 1U rack height
  • Tool-less rack-mounting kit included
Ports 24 x 1-Gigabit Ethernet (RJ45), auto-sensing fixed ports
2 x 10-Gigabit Ethernet SFP+ ports (unpopulated)
2 x 21 Gbps mini-SAS stacking ports
1 x Console/management port with RS-232 signaling (RJ45)
1 x USB (Type A) for configuration
Switch Fabric Capacity 172 Gbps (full duplex)
Forwarding Rate 128 Mbps
Stacking Max. Distance: 9.8' (3 m)
Max. Speed (Full-Duplex): 84 Gbps
CPU Memory 1 GB
Flash Memory 256 MB
Packet Buffer Memory 4 MB
Power Supply 100 W
Efficiency: 80% or better in all operating modes
Thermal Output 117.44 BTU/hr (maximum)
Power Consumption 42.9 W (maximum)
Operating Temperature 32 to 113°F (0 to 45°C)
Storage Temperature -40 to 149°F (-40 to 65°C)
Operating Relative Humidity 95%
Storage Relative Humidity 85%
Rack Height 1 U
Dimensions 1.7 x 17.3 x 10.1" (43.5 x 440 x 257 mm)
Weight 8.15 lb (3.69 kg)
Packaging Info
Package Weight 14.6 lb
Box Dimensions (LxWxH) 23.0 x 16.0 x 13.0"
