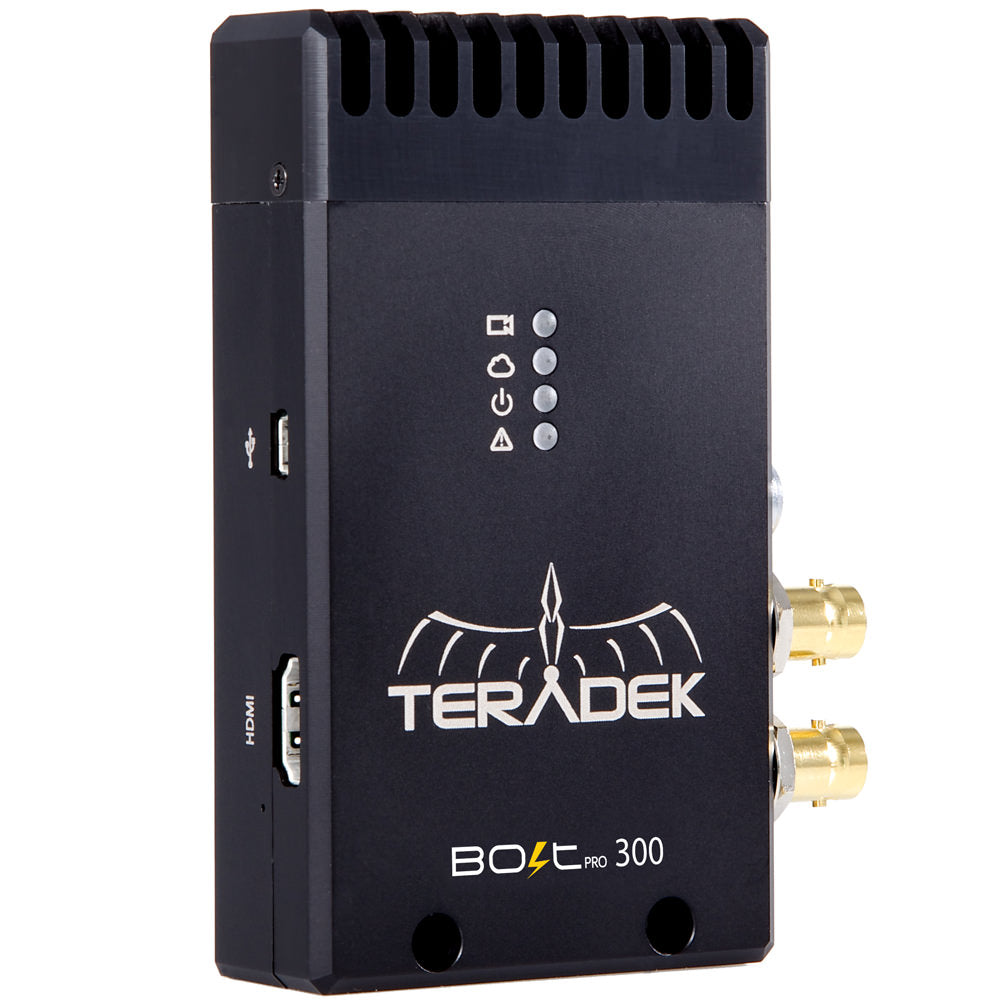

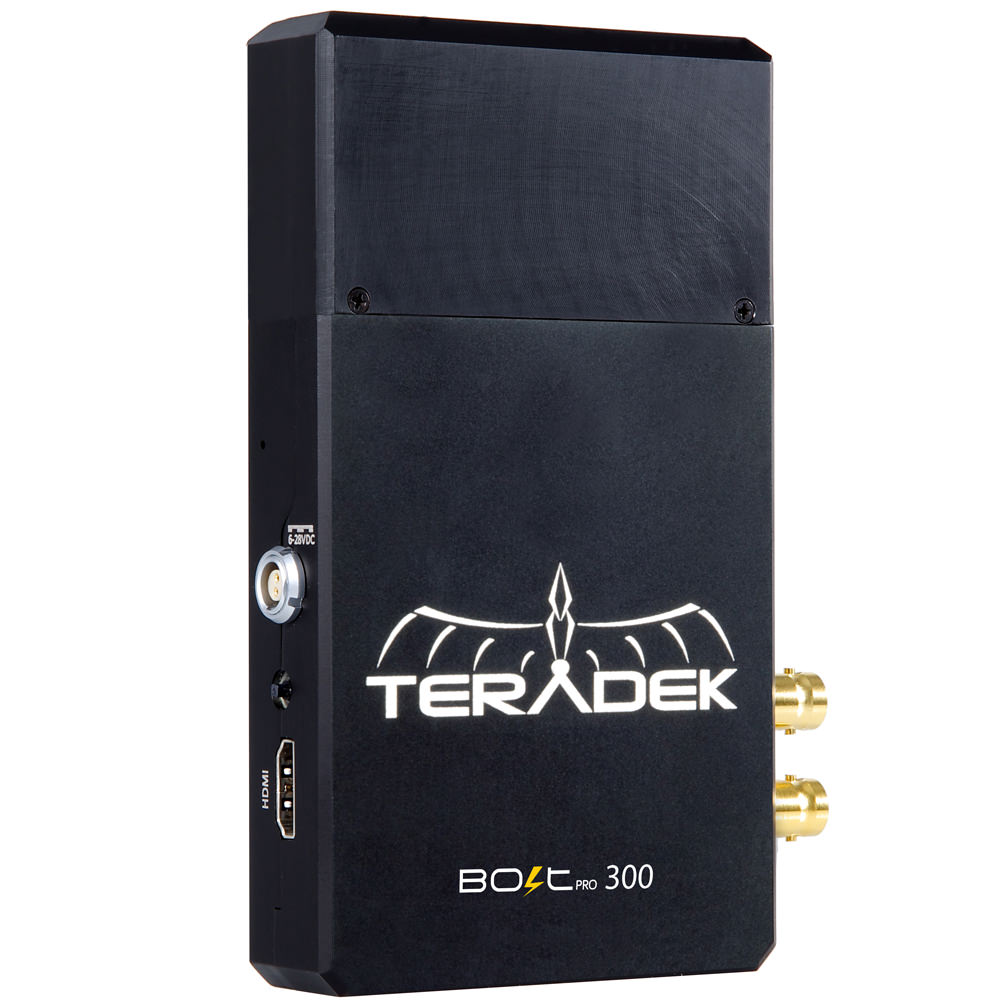

Teradek Bolt 300 Wireless HD-SDI Video Transmitter/2 Receivers
Teradek Bolt 300 Wireless HD-SDI Video Transmitter/2 Receivers
Teradek Bolt 300 Wireless HD-SDI Video Transmitter/2 Receivers

Teradek Bolt 300 Wireless HD-SDI Video Transmitter/2 Receivers

Regular price $3,680.00 Sale price$2,944.00 Save 20%
Free Shipping & Tech Support.

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.
Videoguys Part # (SKU): BOLT923
Short Description:

Teradek Bolt 300 Wireless HD-SDI Video Transmitter/2 Receivers

Bolt Pro 300

Bolt 300 Wireless HD-SDI/HDMI Dual format Video Transmitter/Receiver Set

The Bolt Pro 300 is the latest update to the popular Bolt Pro line, offering you a choice of HDMI, 3G-SDI, or dual inputs/outputs on the transmitter and receiver. The 300 model maintains its internal antennas and offers a completely redesigned fan-less receiver that includes a USB 3.0 output, which allows you to ingest video directly into your computer or DIT cart with ease. All Bolt SDI models support metadata and timecode pass through.

The Bolt Pro 300 offers up to 300ft of zero latency wireless video, perfect for focus pullers and director’s monitors. The 300 model comes in HDMI, 3G-SDI, and dual I/O varieties and includes a new fan-less receiver design with internal antennas. Like all Bolt models, the 300 also includes the new USB 3.0 GRAB Engine.


Video resolution

480p59.94/576p50 (via HDMI ports only)
Color samplingY:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)


1 x 75 Ohm BNC


1 x Type A receptacle HDMI


 1 x USB 3.0 micro B receptacle
1 x 75 Ohm BNC(Loop-out)1 x 75 Ohm BNC
 1 x Type A receptacle HDMI
Delay(TX to RX)<0.001sec (when no video format conversion is enabled)


Format support48kHz 24-bit PCM



Non-DFS Frequencies:
US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP : 5.19 ~ 5.23 GHz
DFS Frequencies:
US : 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP : 5.27 ~ 5.67 GHz
RF power17dBm EIRP15dBm EIRP
RangeUp to 300ft line of sight
Unicast / MulticastUnicast/MulticastUnicast/Multicast
Noise rejectionCan coexist with WiFi and 5GHz cordless phones


Input2-Pin Lemo 7-28 VDC2-Pin Lemo 7-28 VDC
Internal batteryNoNo
Consumption(1080p60)6.5 Watts8.2Watts


LCD screenNoNo
Menu joystickNoYes
FirmwareUpgrade via Mini-USB
Operating temperature0 ~ 50 deg-C

Chassis material

Body:Milled aluminumBody:Milled aluminum


Hot-shoe mountHot-shoe mount
Multiple mounting options with 1/4" holesMultiple mounting options with 1/4" holes
