Add comprehensive, professional video capture and monitoring to your Mac or Windows computer with support for uncompressed HD and SD, Apple ProRes, and many other popular workflows.
With the blazing speed of PCI Express, the HDX-SDI video interface turns your Mac or PC desktop or laptop computer into a powerful HD/SD video production workstation equipped with all the I/O you need.
Connect any source, from SD camcorders to today’s latest professional HD cameras, then log and capture HD or SD clips directly into your video editing software.
For the best-possible image quality, capture uncompressed video via HD-SDI or HDMI with 4:2:2 10-bit color depth and full-raster 1920x1080 HD resolution. Many cameras feed their uncompressed SDI, HDMI or component output directly from the camera’s optics and imager, before compression, for absolutely pristine picture quality during capture with the HDX-SDI.
If you prefer to edit more conveniently at a lower data rate, use Apple ProRes, ProRes HQ or the codec of your choice in Apple Final Cut Pro or Adobe Premiere Pro. Because the HDX-SDI delivers 10-bit uncompressed video to the computer, you are not limited to a particular codec and are instead free to go with the host-based workflow of your choice, including many popular file-based formats now supported by today’s video editing software.
By using a codec directly supported by your editing software, you eliminate unnecessary extra stages of compression and decompression for maximum CPU efficiency and smooth editing.
As you edit, monitor your timeline with pixel-for-pixel accuracy on a large plasma screen via digital HDMI output, with color-corrected balance on an LCD reference monitor via HD-SDI output, or with the real-world look of a consumer display via analog HD or SD component, composite or S-Video output.
Capture and monitor up to 16 channels of audio (analog, AES/EBU or embedded) at sample rates up to 96 kHz. Employ Sony 9-pin machine control for advanced Batch Capture and Edit to Tape operations. Keep everything frame-accurate using time code and video reference.
For high-performance desktop operation, the HDX-SDI provides PCI Express card connectivity for today’s ultra-fast, multi-core Mac and PC towers. Need to go mobile? The HDX-SDI is also available with an ExpressCard adapter for any current-generation Mac or Windows laptop equipped with an ExpressCard slot.
From initial capture to final finishing, the HDX-SDI delivers exceptional video I/O performance and quality.
-
PCI tower operation
The HDX-SDI connects to a Mac or Windows tower via the included PCI Express card, but it is also available with an ExpressCard adapter for laptops.
For high-performance desktop operation, the HDX-SDI provides PCI Express card connectivity for today’s ultra-fast, multi-core Mac and PC towers.
-
Laptop operation

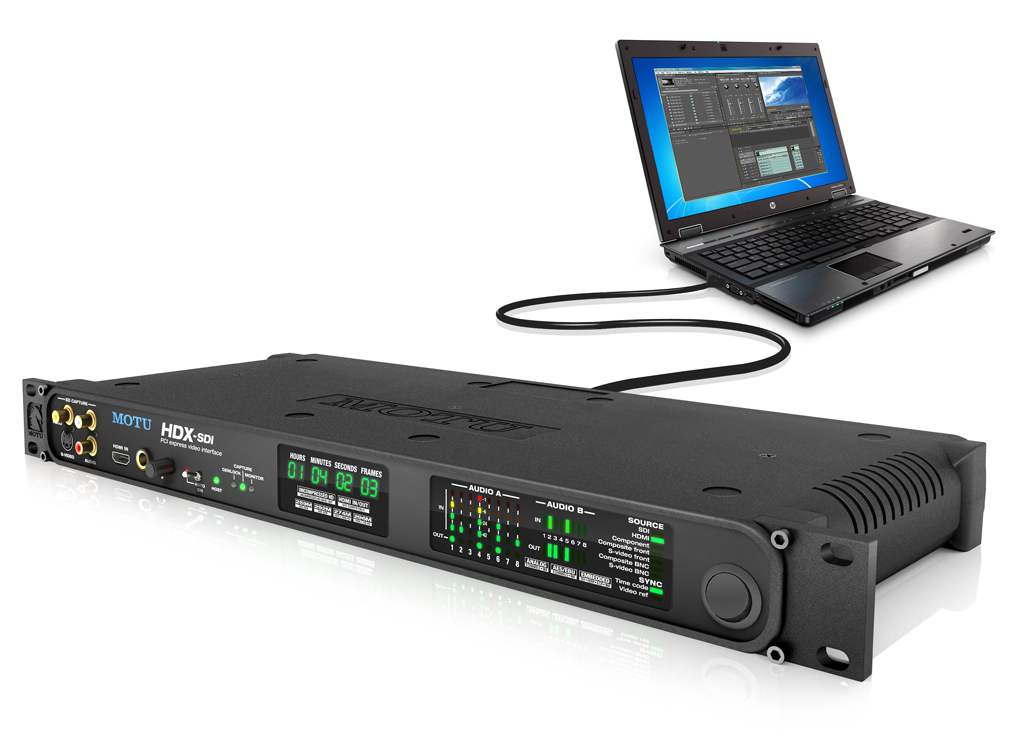

Are you thinking about doing field capture with a laptop, or editing on the go with a laptop-based system? The HDX-SDI connects to a Mac or PC notebook via an included ExpressCard adapter, but it is also available with a PCI Express card for operation with today’s ultra-fast multi-core Mac and Windows towers.
Most current-generation high-performance PC laptops, including Apple MacBook Pro computers, are equipped with ExpressCard slots. On these portable systems, the HDX-SDI gives you broadcast-quality capture and monitoring. With the enormous performance gains seen in laptop technology, these compact computers are now powerful enough to easily capture and play back both HD and uncompressed SD video. You can essentially build a complete capture/edit system that fits in a backpack.
There's another major benefit for using ExpressCard connectivity to a laptop for video I/O: doing so frees up the FireWire port on your laptop for professional-grade video storage solutions, which offer enough storage space and access speed to support the most demanding HD and uncompressed SD workflows.
