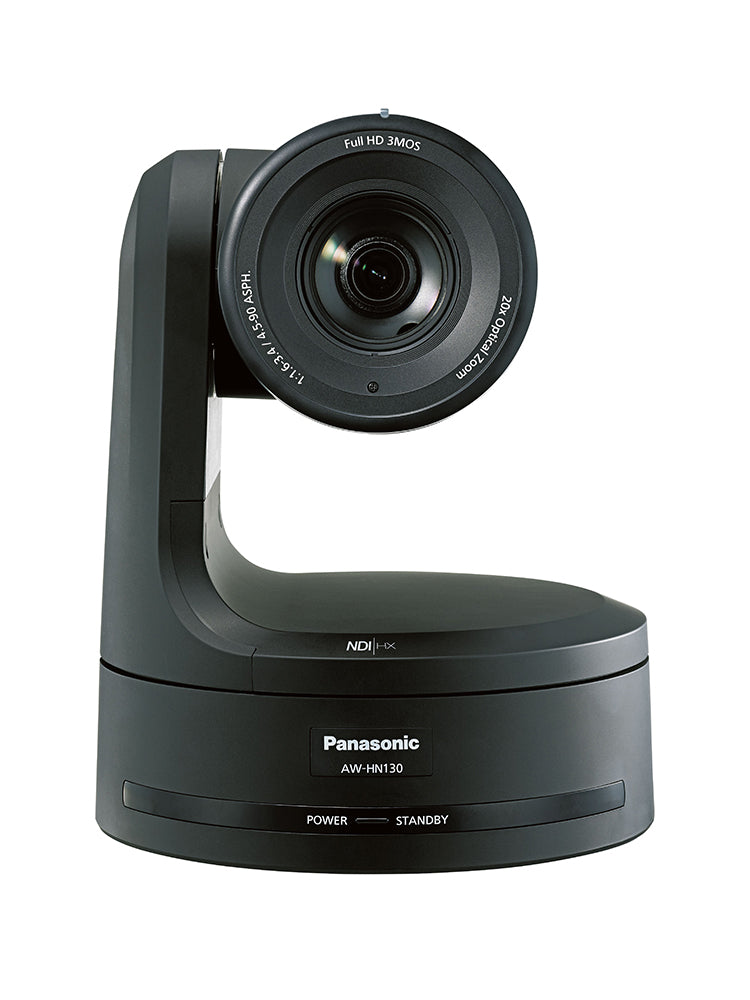

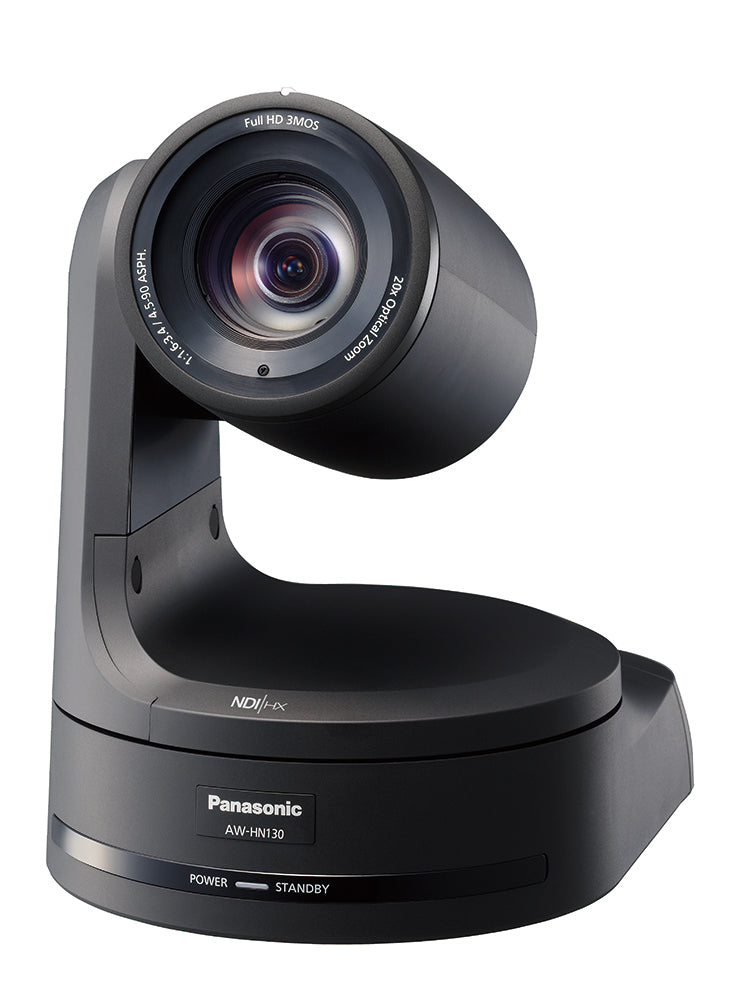

The Panasonic AW-HN130 HD Integrated PTZ Camera with NDI|HX, in black, is capable of transmitting up to four channels over IP, and at the same time, a single channel over SDI or HDMI, or you can use the NDI protocol to stream video and audio, control (IP), Tally, and power over a single Ethernet cable. Transmitting over IP enables four channels of video, with channel 1 supporting up to 1080p60 H.264 transmission, IP channel 2 up to 1080p30, and IP channels 3 and 4 supporting up to 720p30. The SDI and HDMI outputs support up to 1080p60. In a multicast setup, the four IP channels can be sent simultaneously to a total of up to 14 devices (including one Android device).
The AW-HN130 features a high-sensitivity, low-noise 1/2.86" 3MOS sensor, an advanced digital signal processor (that's used in Panasonic broadcast camcorders such as the AJ-PX270), and a motorized 20x zoom lens. It's designed to capture high-image quality even in low-light conditions in sports, news, corporate, and other professional applications. The camera also offers Power-over-Ethernet+ (PoE+), which delivers more power than standard PoE and also allows for quicker and less expensive installation. Other features include 12-axis color correction, built-in neutral density filters, and optical image stabilization.
Color Black (K) or White (W)
Sensor 1/2.86 inch 3MOS
Optical Zoom 20x
DIGITAL ZOOM 10x
FOV (Horizontal) 60.2° (W) - 3.3° (T)
FOV (Vertical) 36.2° (W) - 1.9° (T)
FOV (Diagonal) 67.4° (W) - 3.8° (T)
Focus Auto / Manual
Horizontal Resolution 1000 Lines
MINIMUM ILLUMINATION 2 lx
Gain 0 dB - 36 dB
Power PoE+ or AC
Installation Tripod, Wall*2, Ceiling
Mount Position Invertible
Standard Warranty 1 Year
Pan Range ±175 degrees
Tilt Range -30 to 210°
Pan / Tilt Speed 0.08°/s to 60°/s
Operation noise NC35 or Less
VIDEO OUTPUT -
LAN with built-in NDI|HX*1 ✓
Output Format 1080/59.94p, 1080/29.97p, 1080/23.98p, 1080/59.94i, 1080/29.97PsF,1080/23.98PsF, 720/59.94p, 480/59.94p (i)*4, 1080/50p, 1080/25p,1080/50i, 1080/25PsF, 720/50p, 576/50p (i)*4
Browser (PC/Mac/Mobile) via IP) ✓
Live Production Center (Streaming Switcher/Controller) AV-HLC100
Wide-Angle Tablet Control AW-HEA10
IR Remote Control AW-RM50
Compact Controller AW-RP50
Full-Size Controller AW-RP120
Remote Operation Panel AK-HRP200
Compact Live Switcher AW-HS50N
IP Live Preview ✓
Simultaneous Multi-Stream ✓
Image Stabilization Optical
Night Mode (for IR) ✓
Dynamic Range Stretch (DRS) ✓
Audio Input / Embedding ✓
Color Temperature Adjustment ✓
Presets Up to 100
microSD Card Recording -
High Dynamic Range (HDR) -
Fanless Design ✓
ND Filters ✓
Advanced Color Adjustment ✓
Digital Noise Reduction (DNR) ✓
Note *1: This product is compatible with NDI|HX technology of NewTek, Inc.
*2: With appropriate right angle wall mount, available locally
*3: HDMI output only.
*4: When either 480/59.94p(i) or 576/50p(i) is selected, the output formats are delivered as follows: P signal for HDMI output and I signal for SDI output.
Weight (kg) Approx. 3.1 kg
Weight (lbs.) 6.83 lbs
NDI goes beyond simply sending video over IP, and instead of just encoding video to travel along Ethernet cable, NDI also encodes control, tally, and PoE+. In addition to having to run fewer cables without needing to route power, video, and control to each camera location, now you can connect your camera to your network and have full control. NDI|HX brings automatic discovery, ultra-low latency, PTZ control and tally, all with a single cable.
4-Channel IP Transmission
The AW-HN130 is capable of transmitting 4 channels of video over IP plus over a 3G-SDI or HDMI output at the same time. IP channel 1 and the 3G-SDI/HDMI outputs deliver up to 1080p60 video, IP channel 2 up to 1080p30, and IP channels 3 and 4 up to 720p30.
1/2.86" 3MOS Sensor
Equipped with three advanced 1/2.86" Full HD MOS sensors and DSP (Digital Signal Processor), the AW-HN130 achieves high sensitivity, a high S/N ratio, and high resolution through the use of advanced video processing.
Optical Image Stabilizer and Digital Extender
Optical Image Stabilization System (OIS) automatically minimizes the effect of small vibrations from the surface where the camera is mounted, whether this is caused by the opening and closing of doors, nearby speakers, or other disturbances. A high-performance 20x zoom lens with 1.4x digital extender zoom can increase the effective focal length of the lens by 40% while delivering smooth, high-resolution video.
IP Transmission without Separate Encoder
There is no need for a separate encoder normally required when streaming video and audio via IP.
POE+ for Lower Installation Cost
By connecting to network devices that support the IEEE 802.3 at POE+ standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local AC outlet, installation costs can be significantly reduced.
Image Monitoring via Windows, Mac, and Mobile
Using an IP browser, such as Internet Explorer or Safari, it is possible to set up and control the camera from a remote location. This feature simplifies the management of cameras around a campus or across a worldwide enterprise network. IP video monitoring and remote camera control can also be performed from mobile terminals such as iPhones, iPads, and Android devices.
Flexible IP Control Architecture
Up to a hundred AW-HN130 cameras can be controlled via IP from a single AW-RP120G or AW-RP50 controller (optional), or from a PC. One AW-HN130 can also be simultaneously controlled by up to five AW-RP120G or AW-RP50s controllers via IP. Optional Remote Operation Panel AK-HRP200G can be used for precise color adjustment.
Advanced Color Adjustment
In addition to the conventional twelve axes, three additional axes have been added for the skin tone area. This makes it possible to reproduce skin tones with greater precision.
Color Temperature Adjustment
In addition to the usual white balance modes, a new variable color temperature-based function has been added. This makes it easier to make the precise camera adjustments required for different lighting conditions.
Dynamic Range Stretch (DRS) / Hybrid DNR
Black defects, halation, and washed-out colors are minimized for video images with a visually broad dynamic range (DRS). In addition, with Hybrid Digital Noise Reduction (Hybrid DNR), two types of noise reduction, 2D, and 3D, are used together to enable clear video capture under a wide range of lighting conditions, with minimal after-image blurring or image degradation.
The AW-HN130 can deliver high-quality monochrome video in total darkness when the camera's Night Mode is used in conjunction with an optional IR illuminator.
Freeze During Preset Function
The Freeze During Preset function may be enabled to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera.
Audio Input Function
The AW-HN130 supports audio input, embedding, and encoding. The input from the camera's switchable mic/line input can be combined with the SDI, HDMI, and streaming outputs for mixing, recording, or transmission.
Thanks to its fanless design and advanced pan/tilt mechanism, the AW-HN130 is very quiet and greatly reduces audio noise during video capture.
Smooth Pan/Tilt Movement
The AW-HN130 achieves smoother and more natural movement during on-air shots. The pan/tilt head also has a wide shooting range, with a pan range of ±175° and a tilt range of -30 to 210°. The pan/tilt drive provides high-speed operation at a maximum of 60°/sec, excellent response to remote control operation, and precise stop control. These features combine to accurately capture fast-action sports scenes or smooth concert footage. The noise level during operation is also very low, at NC35 or less, which is ideal for use in quiet environments. (Depending on the position of the pan and tilt, the unit may be reflected in the image.)
Compatible Controllers: AW-RP120, AW-RP50, AK-HRP200
Other Features: Equipped with ND filters (through, 1/8, 1/64)
Four assignable scene files
Preset memory of up to 100 positions
Functions such as freeze during preset and digital extender zoom can be assigned to the user buttons on compatible controllers
RS-422 remote terminal; up to five units can be controlled via serial control from a controller
RS-232C remote terminal (standard serial communication support)
Up to four units can be operated with a wireless remote controller (AW-RM50G, sold separately)
Easy installation thanks to use of turn/lock mechanism
Color variations (black/white) can be chosen for different applications or conditions
