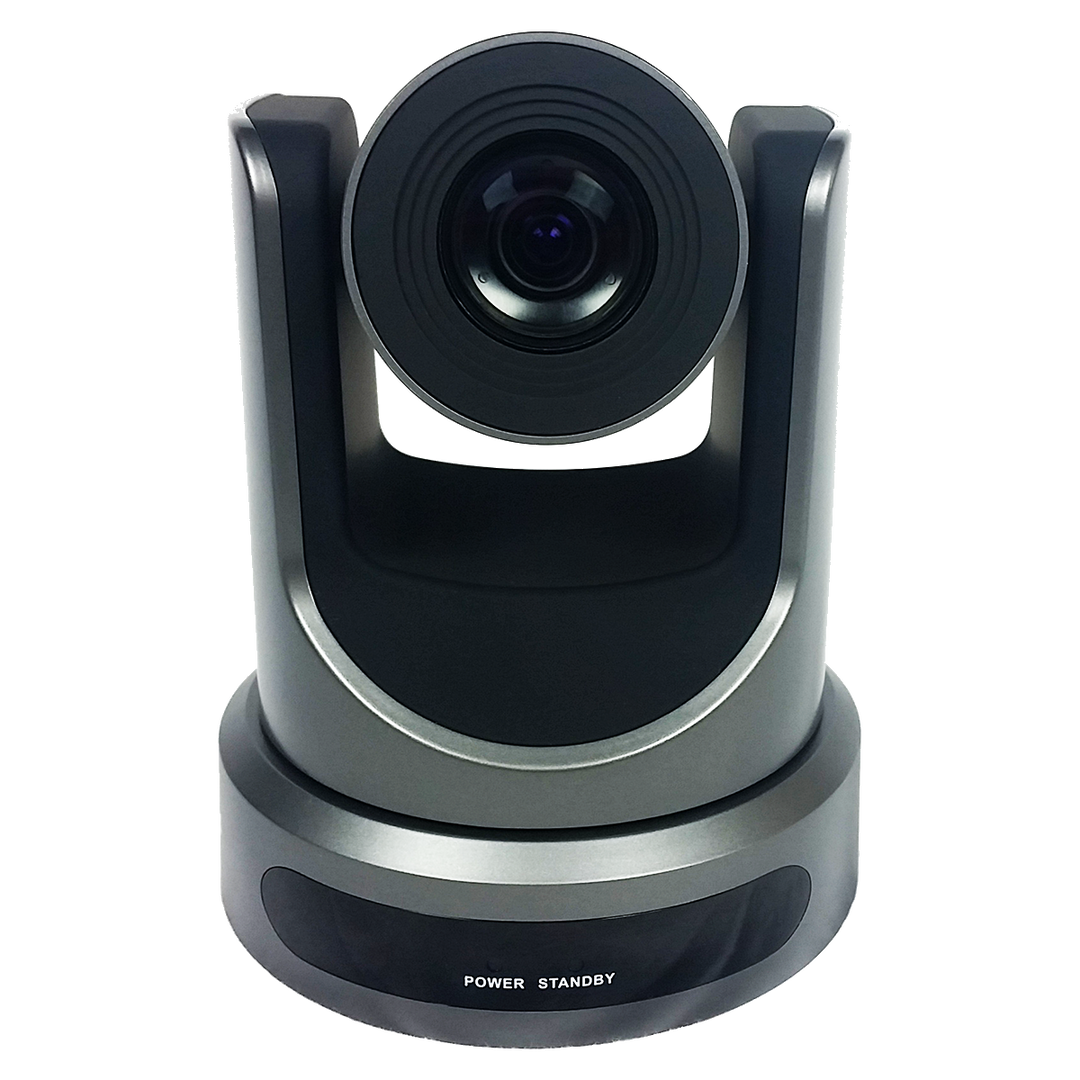

PTZOptics 20X-SDI Video Conferencing Camera (Gray) with NDI Firmware Update
PTZOptics 20X-SDI Video Conferencing Camera (Gray) with NDI Firmware UpdatePTZOptics 20X-SDI Video Conferencing Camera (Gray) with NDI Firmware Update

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): PT20XSDIGYG2NDI
20X Optical Zoom | 3G-SDI, HDMI, IP Network RJ45, CVBS | 1920 x 1080p | 60.7 degree FOV (Gray)
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

Video Conferencing Camera
The PTZ Optics 20X-SDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances.With support for HD-SDI, HDMI, and IP Streaming (H.264) this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.




KEY FEATURES
• 60.7 degree wide-angle lens.
• High performance in low illumination situations.
• Full 1920x1080p HD Resolutions up to 30 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RJ-45 H.264 Streaming port (Control Software is open source)
• HDMI, HD-SDI, IP Streaming (All Simultaneuos)


Camera & Lens



  • Video CMOS Sensor 1/3” CMOS, 2.12 Mega Pixels

  • Frame Rate 1080p/30, 1080p/25, 720p/60,

  • 720p/50, NTCS, PAL

  • Lens 20x, F4.42mm-88.5mm, F1.8-F2.8

  • Lens Zoom 20x, 16x Digital Zoom

  • Field of View 60.7°

  • Min Lux 0.5 Lux at F1.8, AGC ON

  • Shutter Speed 1/30s - 1/10000s

  • SNR ≥55dB

  • Vertical Flip & Mirror Supported

  • Horizontal Angle of View 3.36° (tele) to 60.7° (wide)

  • Vertical Angle of View 1.89° (tele) to 34.1°(wide)

  • Working Enviornment Indoor





Electrical Index



  • Power Supply 12W 24W(Max)

  • Input Voltage 12V DC (10.8 - 13.0V DC)



Pan & Tilt Movement



  • Pan Movement ±170°

  • Tilt Rotation Up: 90°, Down: 30°

  • Presets 64 Presets (245 Presets via RS-232)



Rear Board Connectors



  • Video Output Interface HDMI, HD-SDI, IP Streaming, CVBS

  • Network Interface RJ45

  • Audio Interface Line In, 3.5mm (IP Stream Only)

  • Communication Interface RS-232, RS485

  • Baud Rate 2400/4800/9600 bits

  • Power Supply Interface JEITA Type Power Adapter (DC IN 12V)

  • USB Interface USB 2.0 (for firmware updates only)



Physical Specications



  • Dimension (in.) 5.56W x 6.63H x 5.88D (7.25H w/ Tilt Up)

  • Dimensions (mm.) 142W x 169 H x 150 D (185H w/ Tilt Up)

  • Box Dimensions 9”x9”x10” | 228mmx254mmx228mm

  • Camera Weight 3.10 lbs. (1.41 kg)

  • Boxed Weight 5.4 lbs. (2.45 kg)




WHAT’S IN THE BOX



  • 20X Zoom HD-SDI Camera

  • Power Adapter + Cord

  • IR Remote Control

  • RS-232C Cable

  • User Manual
