Roland Octa-Capture - Hi-Speed USB Audio Interface
$819.00$519.88
0
VideoGuys Part # (SKU): UA1010
MFR Part # (MPN): UA1010
Hi-Speed USB Audio Interface
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews
EIGHT PREMIUM MIC PREAMPS, COMPACT I/O, PRISTINE SOUND QUALITY
Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. OCTA-CAPTURE is not only the perfect interface for multi-channel computer-based production, but also a great solution for expanding the I/O capability of the V-STUDIO 700 and V-STUDIO 100. Brimming with quality and performance seldom seen in its price range, OCTA-CAPTURE is the next-generation audio interface.

Features
  • Eight premium mic preamps built in (VS PREAMP)
  • AUTO-SENS function intelligently sets optimal input levels for all preamps
  • Extremely stable low-latency VS STREAMING driver
  • Four independent software-controlled Direct Mixers for creating custom monitor mixes
  • Supports all major DAW platforms on Mac or PC, through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers
  • Rackmount ears included


Eight Premium Mic Preamps
OCTA-CAPTURE boasts eight premium-grade digitally controlled mic preamps (VS PREAMPS), built with the same high-grade components as the preamps in the V-STUDIO 700 and M-400 V-Mixer. Eight XLR inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel.

Auto Input Level Adjustment
Never before has it been this fast and easy to set perfect input levels — simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and OCTA-CAPTURE automatically sets the ideal recording level for each input. It’s great for quick, fail-safe audio capture when recording either a fully mic’d drum kit or an entire band.

Extreme Low-Latency Driver
OCTA-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS STREAMING technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers. Thanks to VS STREAMING, you can use multiple devices (two OCTA-CAPTURE units or one OCTA-CAPTURE plus a V-STUDIO 100 or V-STUDIO 700) on the same USB bus without compromising stability, performance, or audio quality.


Four Flexible Monitor Mixes
Beyond traditional audio interfacing, OCTA-CAPTURE offers four independent Direct Mixers for creating software-controlled monitor mixes. Each mix can be routed to any of the analog outputs and can take advantage of the internal 40-bit DSP processing — perfect for sending custom monitor mixes to headphones, speakers, or recording devices.

NUMBER OF AUDIO RECORD/PLAYBACK  CHANNELS

  • 44.1/48/96 kHzRecord: 10 channels
    Playback: 10 channels
  • 192 kHzRecord: 4 channels
    Playback: 4 channels


SIGNAL PROCESSING

  • PC interface:24 bits
  • AD/DA Conversion: 24 bits
  • Internal:40 bits


SAMPLING FREQUENCY

  • AD/DAConversion: 44.1/48/96/192 kHz
  • DIGITAL (IN/OUT):44.1/48/96 kHz


NOMINAL INPUT LEVEL

  • Input Jack 1—6 (XLR type)-56 to -6 dBu
  • Input Jack 7—8 (XLR type)-50 to +0 dBu
  • Input Jack 1—8 (1/4 inch TRS phone type)-46 to +4 dBu



NOMINAL OUTPUT LEVEL

  • OUTPUT 1—8+0 dBu (balanced)


HEAD ROOM

  • 16 dB


INPUT IMPEDANCE

  • Input Jack 1—6 (XLR type)5 k ohms (balanced)
  • Input Jack 7—8 (XLR type)10 k ohms (balanced)
  • Input Jack 1—8 (1/4 inch TRS phone type)17 k ohms (balanced)



OUTPUT IMPEDANCE

  • OUTPUT 1—8: 1.8 k ohms (balanced)
  • PHONES: 47 ohms

FREQUENCY RESPONSE

  • 192.0 kHz: 20 Hz to 90 kHz (+0/-8 dB)
    20 Hz to 60 kHz (+0/-2 dB)
  • 96.0: kHz20 Hz to 40 kHz (+0/-2 dB)
  • 48.0: kHz20 Hz to 22 kHz (+0/-2 dB)
  • 44.1: kHz20 Hz to 20 kHz (+0/-2 dB)


RESIDUAL NOISE LEVEL

  • MAIN OUT: -87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
    * Internal Direct Monitor Mixer setting
    Stereo Link: ON, Input channel fader: Unity



DYNAMIC RANGE

  • AD block: INPUT 1—8: 104 dB typ. (GAIN: min.)
  • DA block: OUTPUT 1—8: 113 dB typ.



DISPLAY

  • 128 x 64 dots Graphic LCD (backlit LCD)

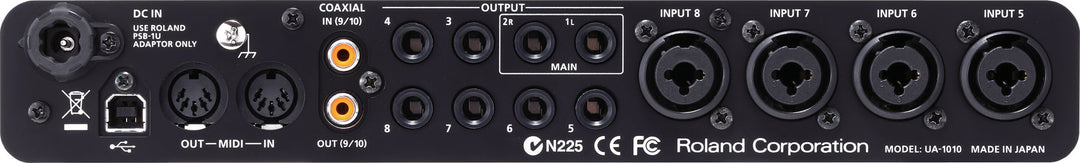

CONNECTORS

  • Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
  • XLR type (balanced / phantom power +48 V)
  • 1/4 inch TRS phone type (balanced)
  • Coaxial Input Connector
  • Coaxial Output Connector
  • Headphones Jack (Stereo 1/4 inch phone type)
  • Output Jack 1—8 (1/4 inch TRS phone type (balanced))
  • MIDI Connectors (In, Out)
  • USB Connector



OTHERS

  • Power Supply: DC 9 V (AC adaptor)
  • Current Draw: 1.45 A
  • Accessories: Rack Mount Angle x 2
    Owner's Manual
    Driver CD-ROM
    AC Adaptor
    USB cable



SIZE AND WEIGHT

  • Width: 284 mm 11-3/16 inches
  • Depth: 158 mm 6-1/4 inches
  • Height: 50 mm 2 inches
  • Weight: 1.3 kg 2 lbs. 15 oz.

Roland Octa-Capture - Hi-Speed USB Audio Interface

  • Rack Mount Angle x 2
  • Owner's Manual
  • Driver CD-ROM
  • AC Adaptor
  • USB cable
