Teradek Bond cellular bonding solution 5 Modem Support
Teradek Bond cellular bonding solution 5 Modem Support

DISCONTINUED PRODUCT

Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): BOND
Teradek Bond cellular bonding solution 5 Modem Support
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

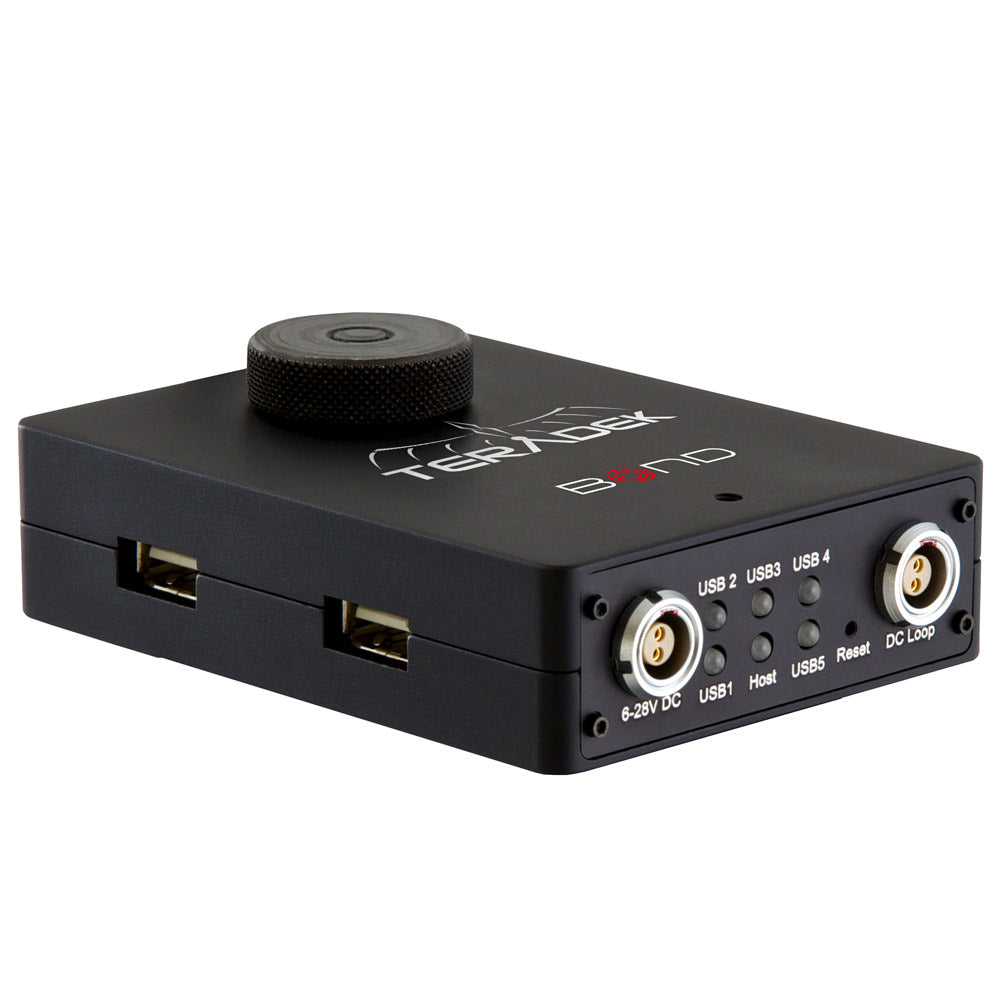

The original Bond is a hardware module that can be added to existing Cube encoders for live HD broadcasting over several bonded network connections. The Bond module is compatible with all current Cube models and is connected via USB.


The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, and Ethernet*. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, Closed Captioning support, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to many H.264 decoders.


Send Your Content Anywhere




Teradek Bond devices allow you to transmit your live HD content directly to the Internet or to multiple decoders located worldwide. Bond’s revolutionary Adaptive Internet Streaming technology constantly adjusts the video bit rate in real time to adapt to varying network conditions. This will ensure that your content is delivered reliably and at the highest quality possible to its destination.


Sputnik Server


Sputnik is Teradek’s free software application between Bond and your streaming destination. Sputnik is designed to run on a Linux computer either in the cloud (using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines the packets from your cellular modems into a cohesive stream that can be sent to an H.264 decoder or viewed online.




Compact and Affordable


The Bond, Bond II, and Bond Pro are the smallest and most cost-effective cellular bonding solutions on the market today. Despite its industry leading design and features, Bond is very affordable, which opens the doors for anybody to go live from any location with adequate cellular coverage.


Base: Turnkey Sputnik Server & Decoder


Base is an integrated link aggregation and H.264 decoding solution for video broadcasts transmitted over the Teradek Link or Bond. As an alternative to an Amazon EC2 instance or building your own Linux server, Base de-bonds and decodes your video feed from a single rack mount server with an HD-SDI output.




Dashboard


The Teradek Dashboard is a web GUI for monitoring the performance of your Bond system. Dashboard displays the bit rate and latency per modem, total data usage, modem status, buffer length, and many other statistics to help you keep track of your streaming performance in real time.




Core Integration


Core is Teradek's new cloud-based encoder fleet management system that integrates with Sputnik. From an intuitive Web GUI, users are provided with extensive control over many parameters of connected Teradek IP video devices. Core also offers a unique drag and drop workflow that allows you to direct video feeds from any encoder to any number of decoders in real time.




Adaptive Bit Rate Streaming


Bond features Teradek's novel Adaptive Bit Rate Streaming (ABRS) technology, which dynamically adjusts the video bit rate and buffer of your stream in real time to adapt to varying network conditions. ABRS ensures that your content is delivered reliably and at the highest quality possible.




Adaptive Frame Rate Streaming


Bond's Adaptive Frame Rate Streaming feature was designed to ensure that your live video reaches its destination at any cost. If cellular service at your location suddenly drops to levels that are too slow to transmit an HD quality video, the AFRS feature will begin to drop the frame rate until your content reaches its destination in tact. This feature is ideal for breaking news coverage where successful video transmission is imperative at any cost.
