HuddleCamHD 30x Optical Zoom USB 3.0 1080p PTZ Camera (Gray)
HuddleCamHD 30x Optical Zoom USB 3.0 1080p PTZ Camera (Gray)
HuddleCamHD 30x Optical Zoom USB 3.0 1080p PTZ Camera (Gray)

HuddleCamHD 30x Optical Zoom USB 3.0 1080p PTZ Camera (Gray)

Regular price $2,199.00 Sale price$1,999.00 Save 9%
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): HC30XGYG2
MFR Part # (MPN): HC30X-GY-G2

Short Description:

30X Optical Zoom | USB 3.0 | 1920 x 1080p | 63 degree FOV Sony Lens | Free Ceiling Mount (Gray) G2 models include an updated firmware and new form factors.

  • Free Shipping & Tech Support

The ideal entry-level conferencing camera for small to medium sized rooms

HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.

Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 20X optical zoom letting you get up close to see and interact with your team.

Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.

Plug-and-Play USB & DVI-I Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software via USB. For best results use a quad-core processor.

Ideal Field of View
The HuddleCamHD 30X has the ideal field of view for large space. With a wide enough field of view to capture large areas and a 3 degree field of view for those up close shots.

Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.

Robust Installation Options
Easily invert the camera image for installation on the ceiling (Free ceiling mount included). Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.

RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX. Even convert RS-232 to USB and control from your computer.

Features

  • Zoom: 30X Optical Zoom
  • Resolution: 1920x1080p
  • Field of View: 3-63 Degrees
  • Frames Per Second: Up to 30 fps
  • Connection Cable: USB 3.0
  • RS-232: Yes, In and Out
  • Presets: 64
  • Mounts: Ceiling and Tripod Mounts included

Technical Specifications

Features:

• 30X Optical Zoom
• USB 3.0
• RS-232
• 1920 x 1080
• 63° Field of View
• Up to 30fps
• 64 Presets
• IR Remote
• Certified SONY Lens

Camera & Lens
Video CMOS Sensor 1/2.8” CMOS 3.27 Mega Pixel
Frame Rate 30fps 1920 x 1080p, 60fps 1280 x 720p
Lens Zoom 30X Optical Zoom, 12X Digital Zoom f=4.6-138.3
Field of View 3°~63°
Min Lux 1.4 Lux
White Balance Auto/Sunlight/Shade/Fluorescence White Balance

Pan/Tilt Movement
Pan Movement 0-355°
Tilt Rotation + 125°
Presets 64 Presets

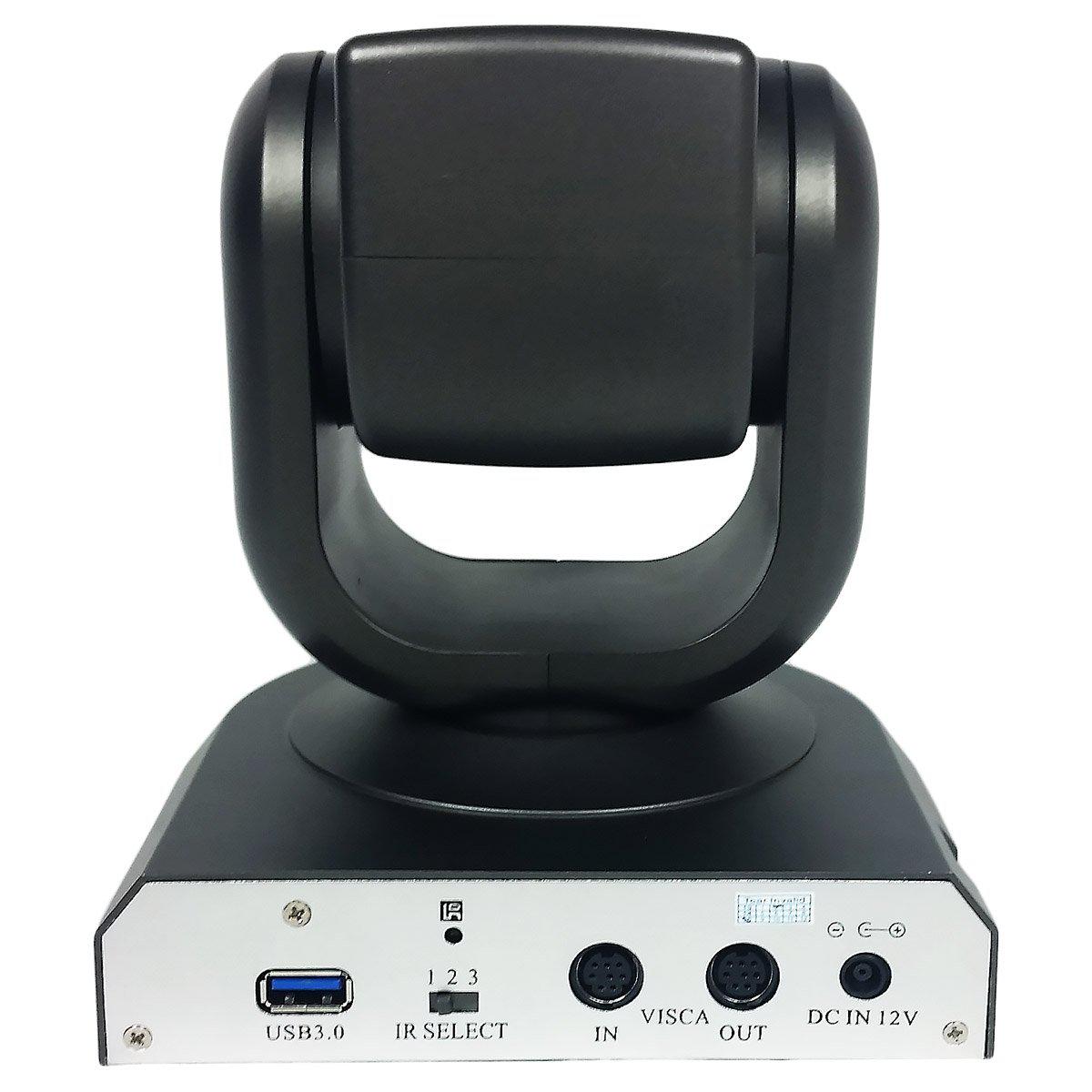

Rear Board Connectors
High Definition Interface USB 3.0
Controller Signal Interface Mini DIN-8 (VISCA IN, VISCA OUT/RS485)
Controller Signal Config. IDip-Switch Pin 7/TTL Signal
Baud Rate 9600 bds
Power Supply Interface DC 12V 2A

Electrical Index
Power Supply Adapter 12V DC 2A
Input Voltage 12V DC (10.5-14V DC)
Input Power 24W (Max)

Physical
Material Aluminum, Plastic
Dimensions 5.68”W x 5.63”H x 5.88”D (7” Height Ext)
(W x H x D) mm 144mm x 142mm x 149mm (177mm Height Ext)
Camera Weight 2.52 lbs (1.14 kg)
Box Dimensions 13.25”x9.25”x9.5” (336mm x 234mm x 241mm)
Boxed Weight 5.8 lbs | 2.63 kg
Temperature 32°F to + 113°F
Color Silver Gray



Compatibility:

  • Windows 7 & 8
  • Mac OS X
  • Acano
  • Adobe Connect
  • Blue Jeans
  • Cisco Jabber
  • Cisco WebEX
  • EasyMeeting.net
  • Facetime
  • Fuzebox
  • Google Hangout
  • GoToMeeting
  • Lifesize
  • Microsoft Lync
  • MeetFree.US
  • Polycom RealPresence
  • Radavision
  • Spontania
  • Skype
  • TurboMeeting.US
  • Vidyo
  • VSee
  • Zoom.US

G2 models include an updated firmware and new form factors.

What’s in the Box
30X Zoom USB 3.0 Camera
12V/2.0A DC Power Adapter
Installation Bracket & Screw
USB 3.0 Data Cable (9ft) Serial Control Cable, RS-232C to RS-485 Cable
IR Remote Control
User Manual
