Kiloview MG300 IP Video Media Gateway

Kiloview MG300 IP Video Media Gateway

Regular price$799.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): MG300v2
MFR Part # (MPN): MG300 v2

Short Description:

Kiloview MG300 IP Video Media Gateway

  • Free Shipping & Tech Support

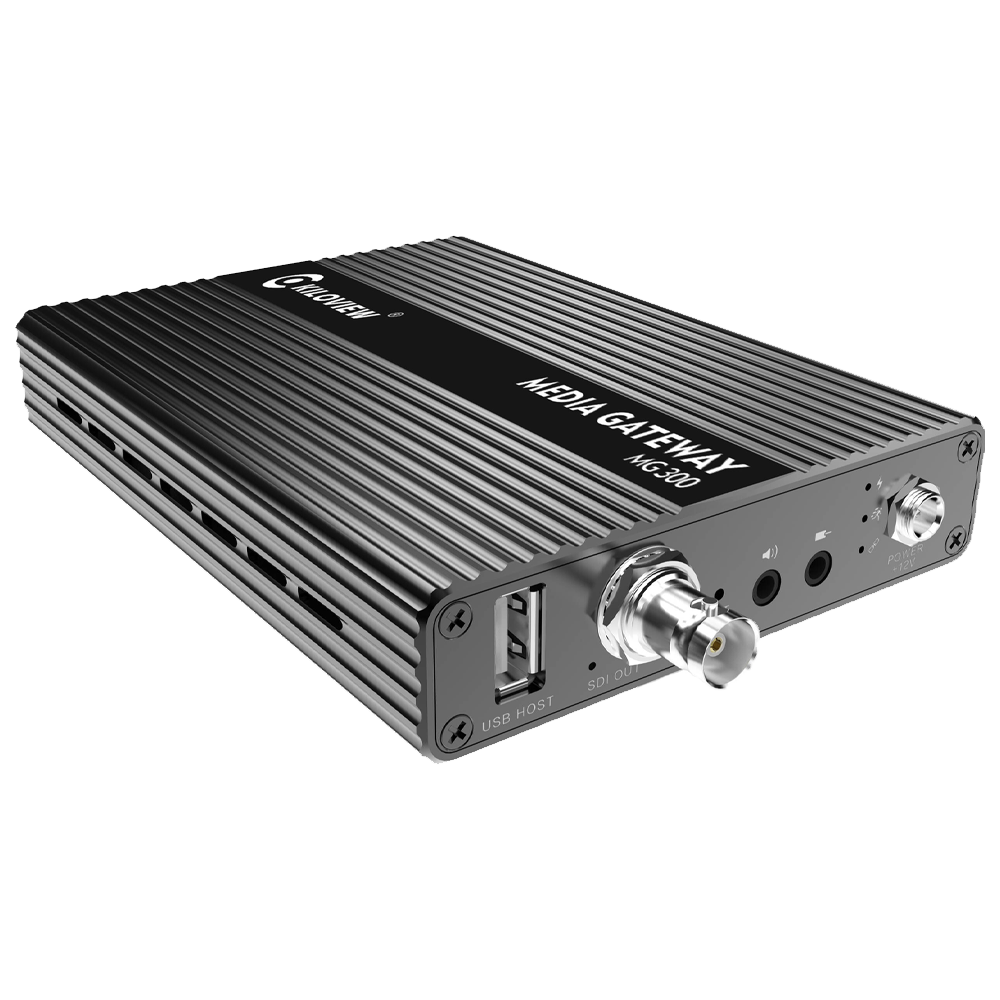

Kiloview MG300 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.

It's a protocol converter
MG300 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.

Powerful IP Stream Function
Multi-channel video streams can be re-published as a Multiview video source with free layout;

Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.

It’s a Media Server
It supports up to 50 concurrent access for streams distribution/live streaming;

(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps).

It’s a Transcoder
Kiloview MG300 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.

It’s Also a Decoder
It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.

Low Latency and High Quality
Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment

Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output

RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

Dual Output, Same or Different
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
(Note:HDMI output up to 3840×2160@60Hz, SDI up to 1920×1080@60Hz.)

HDMI
Up to 3840x2160 @ 60Hz
SDI
Up to 1920x1080 @ 60Hz

Customize Your Output Display
Free Layout: The output display can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish.

Free Resolution: The output resolution is adjustable, de-interlace, frame rate adjustable

Free output background and OSD

Video Previewing Function
With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.

Other Functions
Support SDI/HDMI embedded audio or 3.5mm analog audio output;

Support audio mixing;
Dual network ports for multi-purpose management;

Network

  • 2*100M/1000M RJ45 adaptive Ethernets
Decoding output
  • 1*SD/HD/3G-SDI, up to 1080P 60Hz
  • 1*HDMI, up to 3840*2160@60Hz
Analog audio output
  • 1*3.5mm Line out
Analog audio input
  • 1*3.5mm Line in
USB
  • 1*USB 3.0 Type-A
Access protocol
  • NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
Output protocol
  • NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
Protocol conversion
  • 9 channels1080P video conversion
Streaming distribution
  • 50 channels of RTSP, 36 channels of RTMP/SRT
    (Not more than 800Mbps)
Live streaming
  • 9 channels*4 channel 1080P
Number of decoding
  • 4K 30Hz H.264/H.265: up to 4 simultaneous channels
  • 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
  • 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265:up to 9 channels simultaneously
Video decoding standard
  • H.264, H.265
SDI output format
  • 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
HDMI output format
  • 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
  • Compatible with VESA standard format
Video rate range
  • 128Kbps ~ 40Mbps
Audio decoding
  • AAC G.711 (aLaw/uLaw)
Audio rate range   ​​​
  • AAC: 8Kbps ~ 320Kbps G.711: 64KbpsDecoding delay    ≤200ms
Split display style
  • Support 1/2/3/4/5/6/7/8/9 splitting;
  • Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
Management interface
  • Web
Remote management
  • Support
Remote firmware upgrade
  • Support
Operating temperature
  • -25 ~ 60°C
Dimension & weight
  • 140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz)
Power consumption
  • ≤6W
Power supply
  • 12V/1A
Remark
  • NDI|HX means NDI|HX Version 2.0
