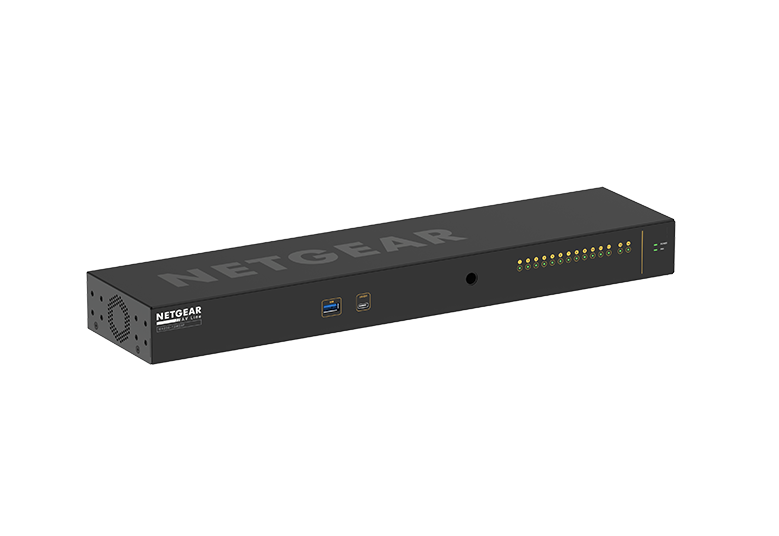

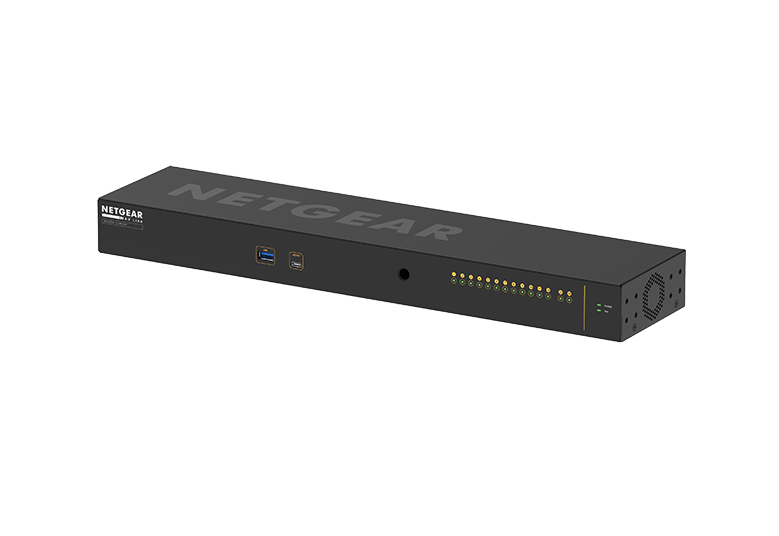

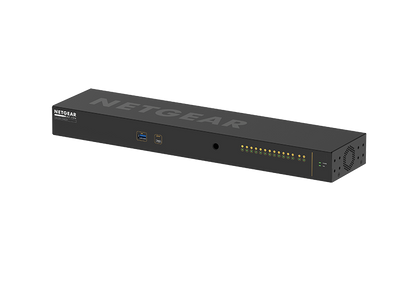

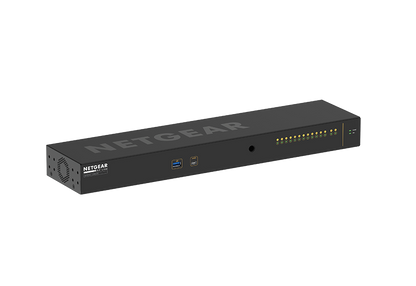

NETGEAR M4250 12M2XF AV Switch
NETGEAR M4250 12M2XF AV Switch
NETGEAR M4250 12M2XF AV Switch
NETGEAR M4250 12M2XF AV Switch
NETGEAR M4250 12M2XF AV Switch

NETGEAR M4250 12M2XF AV Switch

Regular price $1,528.72 Sale price$979.99
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $548.73!!

Videoguys Part # (SKU): MSM4214X100NAS
MFR Part # (MPN): MSM4214X-100NAS

Short Description:
  • Free Shipping & Tech Support

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support.
M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When
multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Highlights


Extended AV features


  • Dedicated AV web-based GUI
  • interface for more specific AV installations
  • Color-based AV profiles can be applied to the different ports
  •  Dante, Q-SYS, AES67 and AVB audio profiles
  • NVX, SVSI, Q-SYS, NDI and Dante video profiles
  • Audio / video / control mixed profiles
  • Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG and IGMP Plus
  • Common Layer 2 and Layer 3 switching engine across all M4250 models
  • Built-in IT web GUI, console, telnet and SSH consistent with other
  • NETGEAR M4300 and M4500 series Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2



Audio Video Bridging (AVB) services


  • AVB is one of the many features designed into the M4250 product line
  • AVB is an industry standard for transporting content over a network
  • AVB is used most often when very low latency is required such as in live
  • performances when lip sync is critical
  • All of the AV Line M4250 switches can be optionally licensed for AVB support




Other IT use cases


  • Standard or recessed mounting with all ports in the back, or all ports in the front
  • Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV




Industry standard management


  • Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN
  • Single-pane-of-glass NMS300 management platform with centralized firmware updates and massconfiguration support


M4250-12M2XF AV Switch

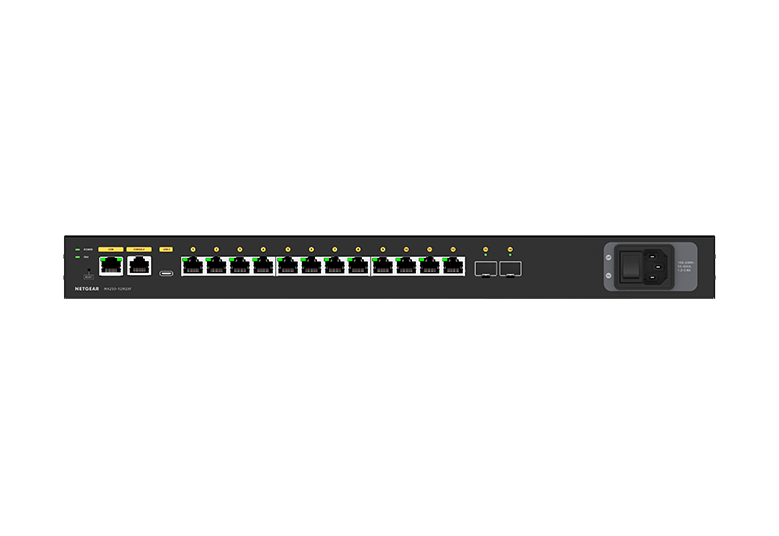

  • 12-port 100/1000/2.5GBASE-T (RJ45)
  • 2-port 1000/10GBASE-X (SFP+)
  • 100 Gbps non-blocking fabric across 14 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port

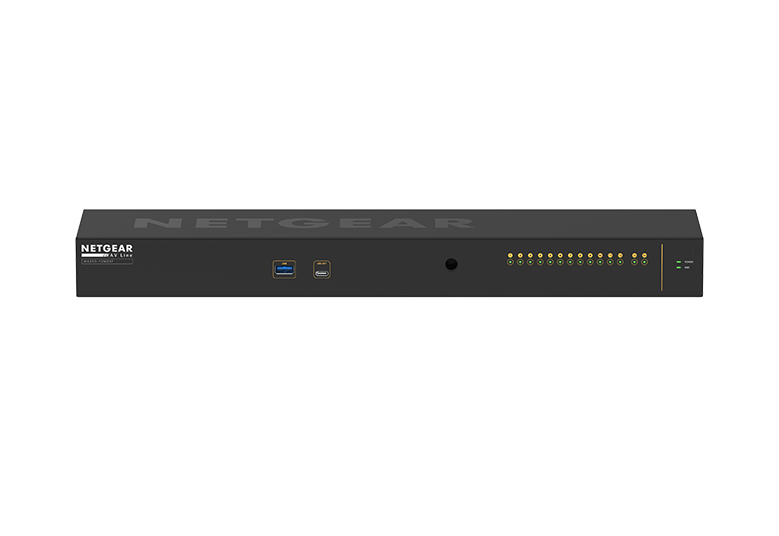

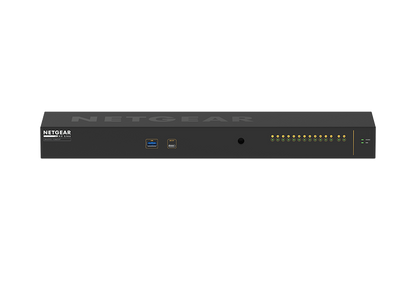

  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation

Now with AVB License! New M4250 firmware released in Nov 2023 includes the ability to transmit AVB at no additional cost


PHYSICAL SPECIFICATION


  • Dimensions (WxDxH) : 440 x 100 x 43.2mm
  • Weight : 1.745Kg (3.85lb)


TECHNICAL SPECS


  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 12 (12x 2.5G, 2x SFP+)
  • PoE Ports / Budget : None
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • Acoustics : Fanless or 46.4dB@25ºC
  • Power Consumption : System Full Load: 37.9W/129.39Btu/hr; Standby without any port connection: 14.1W/48.14Btu/hr
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4214X-10000S)

  • M4250-12M2XF (MSM4214X)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
