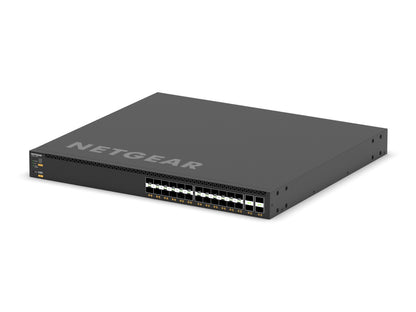

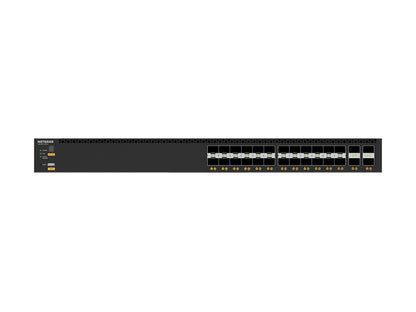

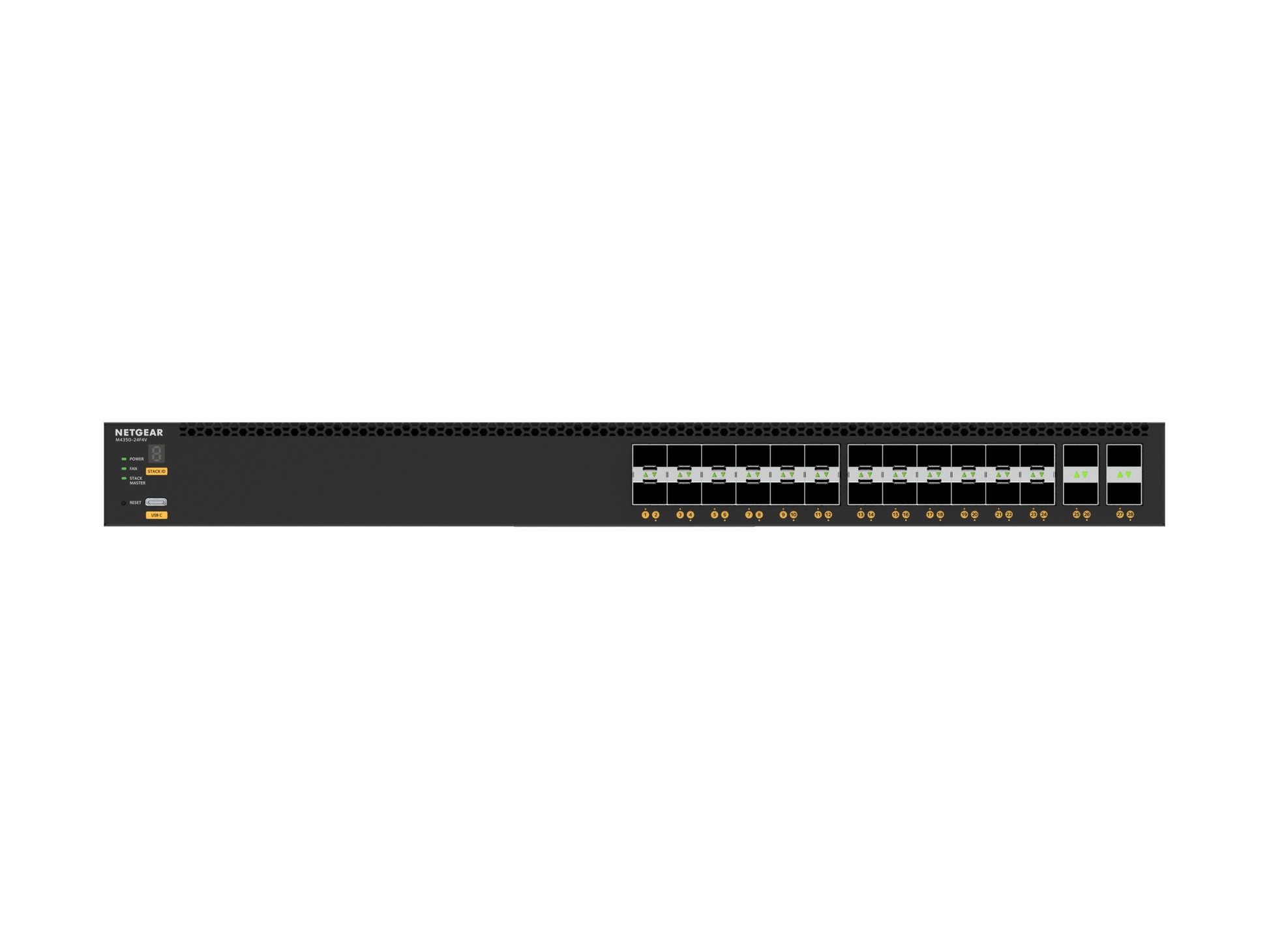

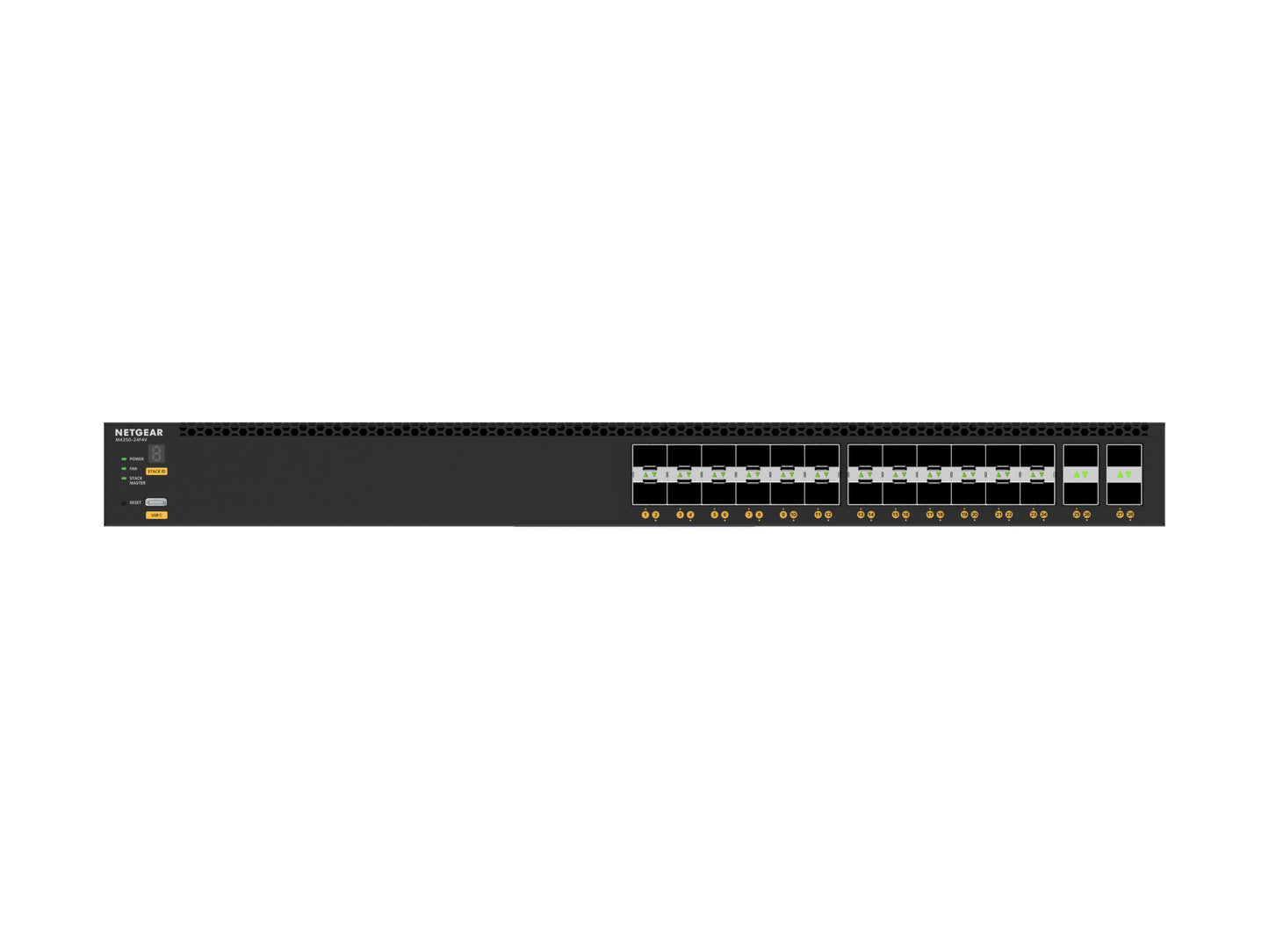

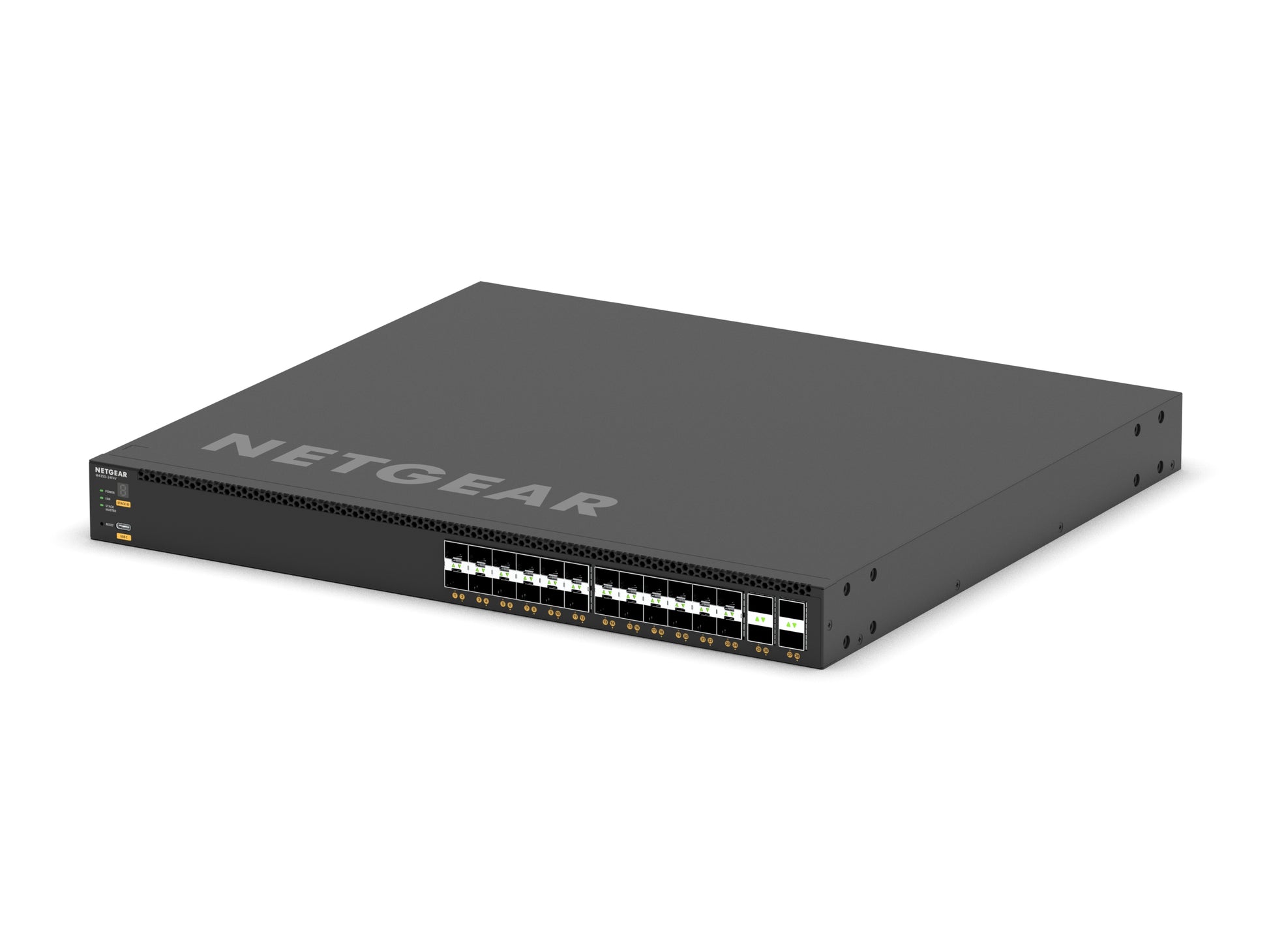

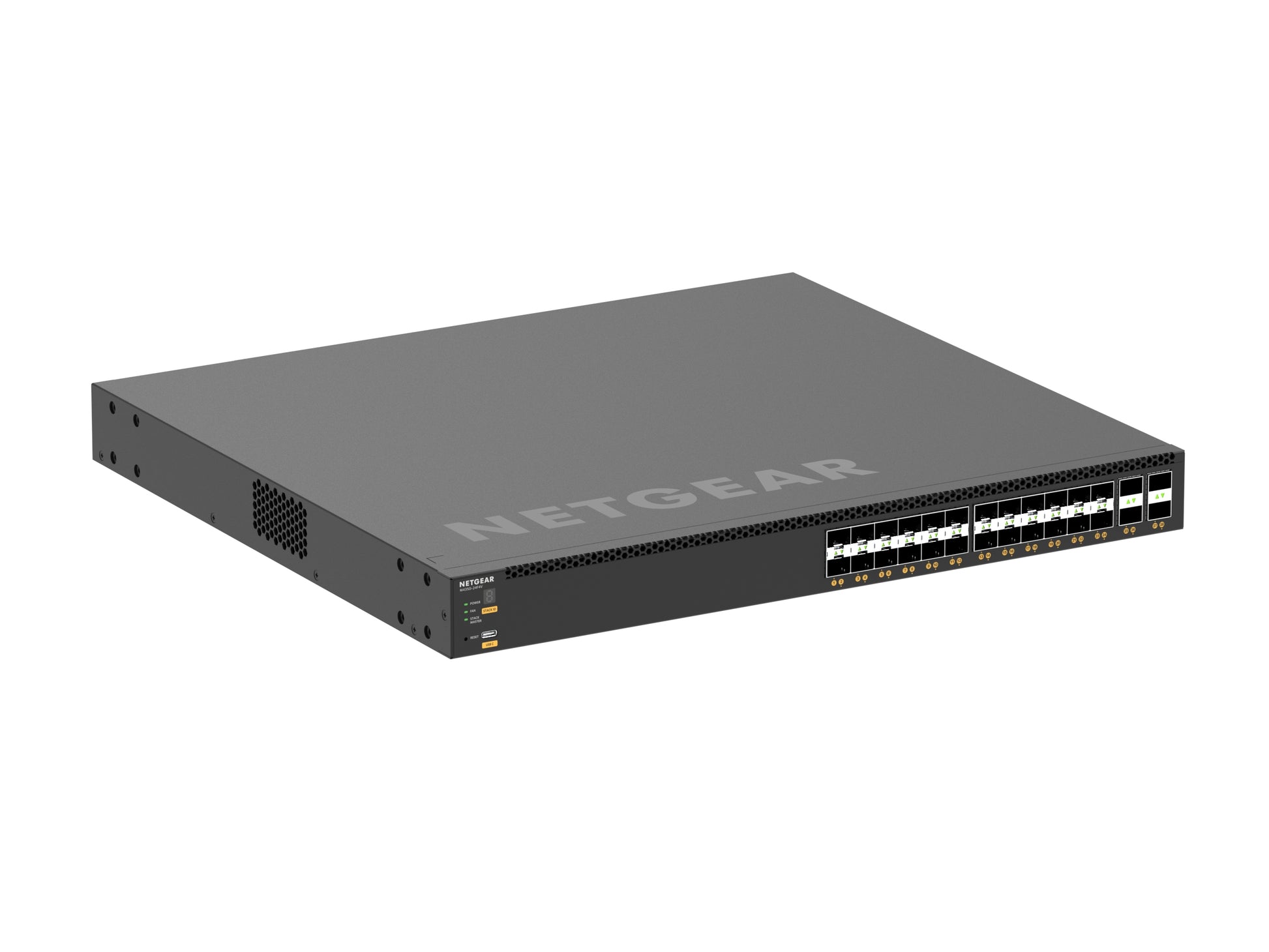

- 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
- 240W internal power supply

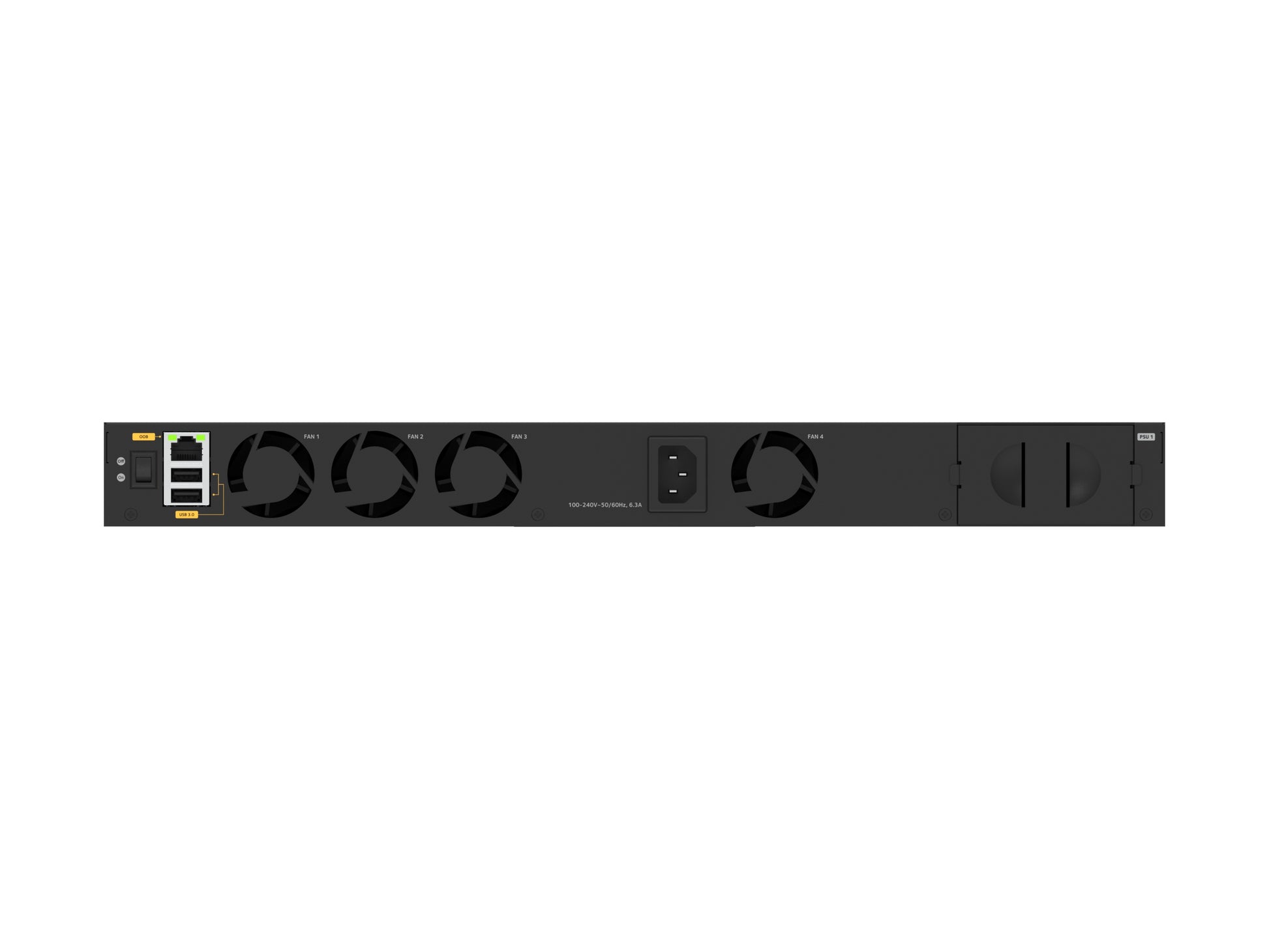

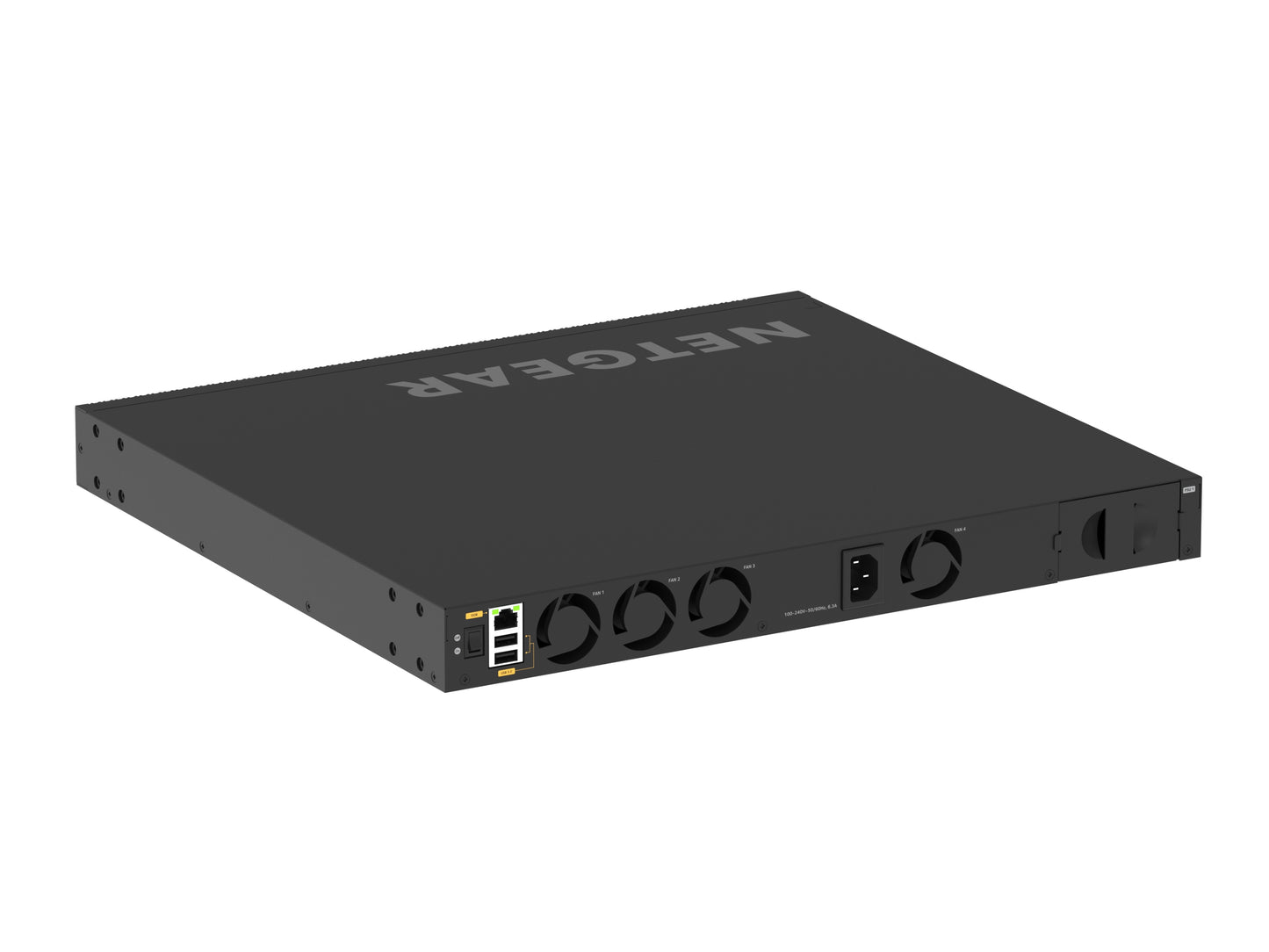

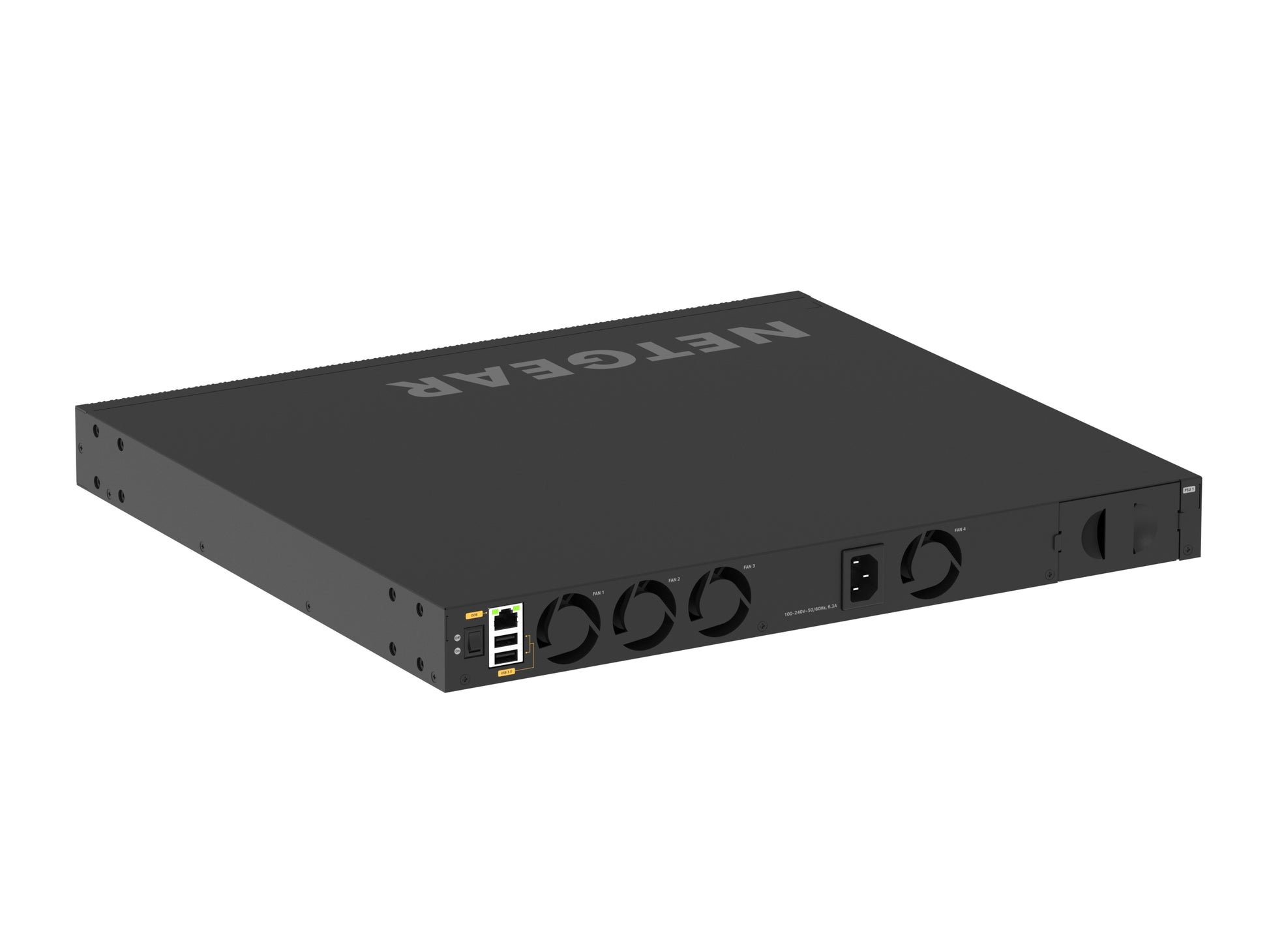

- 1 slot for modular power supply (1+1 redundancy)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT, NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
- # Total Ports: 28
- Port Types: 24x SFP+, 4x SFP28 (25G)
- Total PoE Budget: n/a
- # PoE+ Ports: n/a
- # PoE++ Ports: n/a
- Rack Mount: 1U
- Form Factor: 440 x 400 x 43.2
Width
440mm
Depth
400mm
Height
43.2mm
Weight
6.25kg (13.78lb)
Primary Port Speed
10 Gigabit
Number of Ports
28 (24 x 10G SFP+, 4 x 25G SFP28)
PoE Ports / Budget
N/A
IGMP Support
Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support
Yes, up to 12kb
AVB Support
Yes, included
Acoustics
Quiet Mode 34.2dB@25ºC
Power Consumption
119.3W/374.6Btu/hr
Standby without any port connection: 45.2W/141.93Btu/hr
PSU Compatible Models
APS350Wv1
APS600Wv2
APS920Wv1
APS2000Wv1
- M4350-24F4V (XSM4328FV)
- Power cord(s)
- Console USB Type-C cable
- Rack-mounting standard bracket set
- Set of longer brackets for recessed mounting
- Rubber footpads for tabletop installation (4x)
- Installation guide
