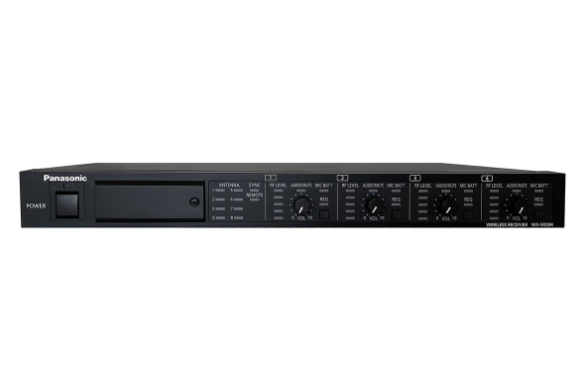

Panasonic WX-SR204 4-Channel Digital Wireless Mic Receiver

Panasonic WX-SR204 4-Channel Digital Wireless Mic Receiver

Regular price $1,925.00 Sale price$1,540.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $385.00!!

Videoguys Part # (SKU): WXSR204
MFR Part # (MPN): WX-SR204

Short Description:

Panasonic WX-SR204 4-Channel Digital Wireless Mic Receiver

  • Free Shipping & Tech Support
The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR204 digital wireless receiver supports four wireless microphone channels (choose between Panasonic’s WXST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks). Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SR204 features RJ45 (CAT5 / CAT5e / CAT6) connections up to eight (8) external antennas (WX-SA250), an RJ45 connection for an optional expansion receiver, and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, Q-SYS and others. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure Euroblock connectors for independent channel outputs, external audio input and a mix output provide peace of mind that they will not detach easily in any type of installation. Ships with rack ears for easy rack mount installation.

KEY FEATURES
  • Easy to setup four channel digital wireless mic receiver with no need for planning / allocation of channels, plus secure pairing with Panasonic microphones
  • Supports nearly any room size, up to 8 antennas can be connected,external audio input and mixing with mix channels
  • Ethernet networking enables additional confirmation from Panasonic settings support software and easy integration with 3rd party control systems (Crestron, Extron & Q-SYS modules available).
  • Connection for optional Expansion Receiver (sold separately)
  • Rack mountable (1u high, rack ears included)

Weight

  • 6.17 lbs (2.8 kg)
Dimensions (W x H x D)
  • 16-17/32" x 1-47/64" x 9-27/32" (420mm x 44 mm x 250mm)
Warranty-Parts/Labor
  • 3 years
Power consumption
  • AC 120 V 60 Hz / 39 Watts
Operating Ambient Temperature
  • 32 deg. F to 113 deg. F (0 deg. C to 45 deg. C)
Channel Output Circuits
  • 4
Channel Output Connectors
  • EuroBlock
Channel Output Characteristics
  •  -10dBV balanced 600 Ohms
Channel Output Signal to Noise Ratio
  • 70 dB or greater
Channel Output Frequency Response
  • 50 Hz to 15 kHz
Audio Input Distortion
  • less than 3%
Mix Output Connectors
  • Euroblock
Mix Output Characteristics
  •  -10 dBV Balanced 600 Ohms
Mix Output Signal to Noise Ratio
  • 64 dB or greater
Mix Output Frequency Response
  • 50 Hz to 15 kHz
Mix Output Distortion
  • less than 3%
Antenna Connectors
  • 8 x RJ45 (compatible cables: CAT5 / CAT5e / CAT6 straight), wiring distance up to 656 feet (200m)

Accessories (included)

  • Rack Ears
