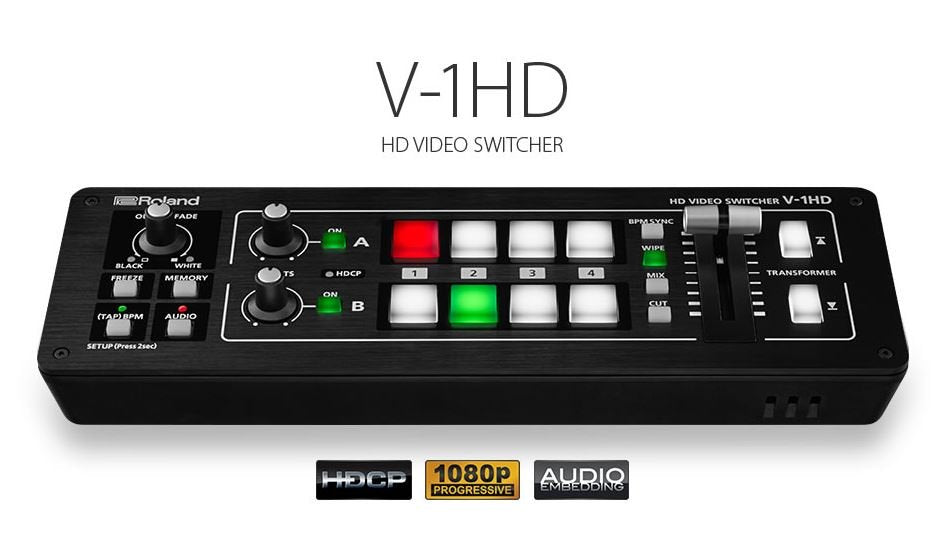

IN STOCK! Roland V-1HD - A Compact, Full 1080p HD Switcher for only $995

So compact and portable, you can bring the V-1HD and use it anywhere! Feature packed and easy to use for high-quality HD video results.

roland-v1hd roland-v1hd-2 The Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” ideal for news broadcast or corporate training productions.

Main Features

  • Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
  • 4 HDMI inputs
  • Supports up to Full HD 1080p
  • Easy to Use Interface
  • Picture-in-picture and split functions
  • Two EFFECTS knobs deliver genuine visual performance
  • Full 12 Channel Audio Mixer Included
  • Easy to Operate with Hardware Controls
  • Two HDMI Outputs
  • Remote Control via USB or MIDI Connection
  • Software Control using V-1HD RCS Application for Mac, PC and iPad
So compact and portable, you can bring the V-1HD and use it anywhere!

Videography and Webcast Videography and Webcast Visual Performance Visual Performance Education Education Event and Meetings Corporate and Installation
The compact V-1HD is an ideal portable solution switching video and action cameras for webcasts or recording. The V-1HD effortlessly mixes high resolution computer and HD camera sources and gives visual artists unique filter effects and transition performance features including Roland's legendary "TRANSFORMER" buttons. The V-1HD is an easy to use tool for students of all ages to broadcast or record sporting events, performances and other activities around campus. The V-1HD is ideal for presentations in conference rooms or at live events allowing for switching of video from different sources such as computers and video cameras.

INPUTS

Roland V-1HD Input Options The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.

PROFESSIONAL SWITCHING

The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC button, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white. Roland V-1HD Buttons and Knob Used for Displaying Menus or Adjusting Video Output

EFFECTS

Compositing Effects Roland V-1HD Picture-in-picture and split functions Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources.

Filter effects with real-time visual performance control.

Roland V-1HD Effect Examples Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.

AUDIO MIXING

Roland V-1HD Full Audio Mixer Included Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms. Roland V-1HD Mixing Diagram

MENU AND SETTINGS

Roland V-1HD Full Audio Mixer Included The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.

PREVIEW OUTPUT

Roland V-1HD Setup Examples The four-way multi-view preview screen shows all four input sources on a single display for confident moniotoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.

SOFTWARE CONTROL

Roland V-1HD Control Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. * Please use the iPad camera connection kit to connect an iPad to the V-1HD.

Video Block Diagram

Roland V-1HD Video Block Diagram
Bundle & Save $90.00 Roland V-1HD and Matrox Monarch HD NEW BUNDLE! The perfect HD live production and streaming bundle. This bundle pairs the power of the Roland V-1HD Video Switcher and the Matrox Monarch HD, a professional video streaming and recording appliance. $1,899.00 LIVE100 Coupon Already Added for Instant Savings
Buy-Now-button
VidiuLiveAir
Bundle & Save $95.00 Roland V-1HD and Teradek VidiU Pro NEW BUNDLE! With enhanced WiFi, built-in recording, several new streaming options and simplified workflows plus a professional 4 channel HD video switcher; makes for the perfect live streaming solution that wont break the bank. $1,899.00 LIVE100 Coupon Already Added for Instant Savings
Buy-Now-button
RolandSwitcher
