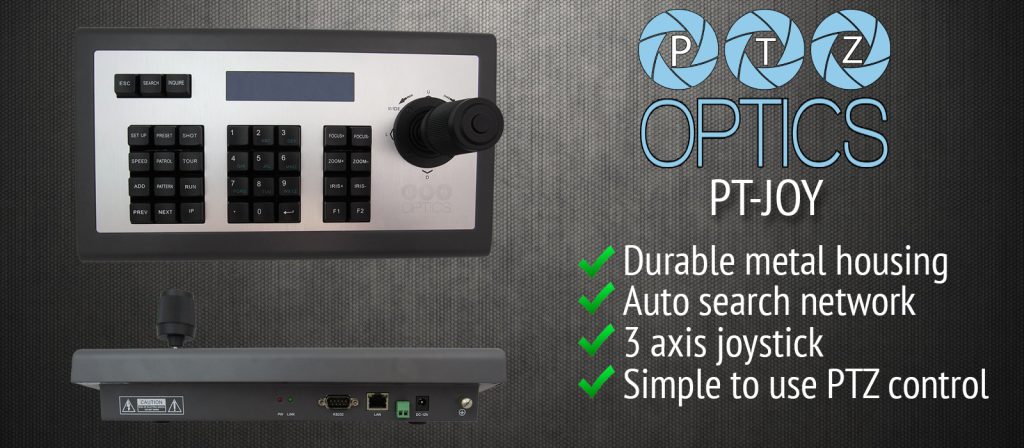

PTZOptics IP Joystick Controller Overview

The PTZOptics IP Joystick controllers allow camera operators to control more than 100 PTZOptics over a standard ethernet network. The PTZOptics IP Joystick uses the ONVIF camera protocol to automatically locate and save PTZOptics cameras on your network. Therefore you can effectively control pan, tilt, zoom, presets and other camera functionality for camera spread out across your network.

---

PTZOptics IP Joystick Controller Easy pan, tilt and zoom controls for your PTZOptics camera! Controls pan & tilt with variable speeds of slow / medium / fast. Use 2 & 3 dimensional joystick with “twist” control of focus and zoom!

Features Durable Metal housing 160×32 pixel blue LCD display Key-press “BEEP” confirmation Variable speed control of pan, tilt & zoom Speed step control adjustments Pan, tilt, rotation, zoom, iris, focus and camera settings Preset tour, pattern, absolute position, zoom operation, AUX operation Real time display of the current status Short circuit & overcurrent protection Auto-Search Network

Technical Specifications Warranty: 1 year Interfaces: RJ45 (RS-485/422 and DB9 are for future support) Maximum Communication Distance: 328 Feet (100 meters) Maximum Cameras: 253 Cameras Power: 5W (12VDC Voltage) Working Temp: 32°F ~ 131°F (0° ~ 55° C) Working Humidity: 10 ~ 90% (non-condensation) Weight 3.3 lbs | 1.5 kg Dimensions (in.): 12.6W X 4.3H X 7.1D Dimensions (mm): 320W X 181H X 110D

---

This video walks you through just how easy IP camera control is with PTZOptics IP Joystick, from auto-searching your network to calling presets. We hope you enjoy!

Click here to watch on YouTube

In this video Paul Richards and Andy Chatfield review the new IP Joystick from PTZOptics. This technical video will demonstrate how to set up the IP joystick for network control over PTZOptics cameras.

Click here to watch on YouTube.
