The Ultralite-mk3 Hybrid is MOTU's most compact and versatile audio interface, featuring hybrid FireWire/USB2 connectivity to your Mac or Windows computer, on-board mixing and effects, superb sound and reliable performance.

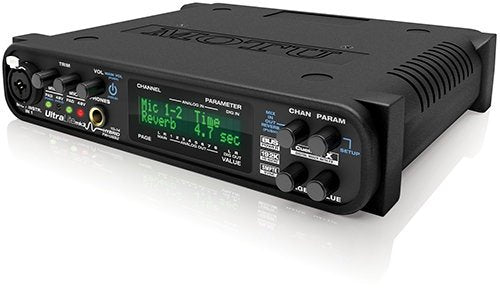

UltraLite-mk3 Hybrid — Mobile FireWire / USB2 audio interface with effects and mixing
The Ultralite-mk3 Hybrid is MOTU's most compact and versatile audio interface, featuring hybrid FireWire/USB2 connectivity to your Mac or Windows computer, on-board mixing and effects, superb sound and reliable performance.
As the first-ever "hybrid" audio interface of its kind, the UltraLite-mk3 Hybrid provides flexible and mobile operation via FireWire or hi-speed USB2 connectivity to a Mac or PC computer, with professional audio quality at samples rates up to 192 kHz and plenty of I/O, including two mic/instrument inputs, six line-level analog inputs, ten channels of analog output, stereo S/PDIF and a stereo headphone output.
Housed in a rugged, compact half-rack enclosure you can take anywhere, the UltraLite-mk3 Hybrid is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the UltraLite-mk3 Hybrid provides 10 separate inputs and 14 separate outputs.
Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines, effects processors and even MIDI devices. Record, monitor, route and process all of these live inputs using the professional on-board CueMix FX digital mixer — with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb™ with lengths up to 60 seconds. Further sculpt your sound with 7-band parametric EQ featuring filter types carefully modeled after British analog console EQs. Choose between two forms of compression: a conventional compressor and the Leveler™, an accurate model of the legendary LA-2A™ optical compressor that provides vintage, musical automatic gain control.
The included CueMix FX cross-platform mixing software provides attractive graphic mixing, graphic editing of parametric EQ, and a convenient tabbed interface for quick access to all features in one window. Advanced signal analysis tools include a full-screen real-time FFT display, spectrogram "waterfall" display, oscilloscope, X-Y plot and linear or polar phase analysis.
After programming the on-board mixing in the studio, unplug the UltraLite-mk3 Hybrid from the computer and take it on the road for operation as a stand-alone mixer with effects. All mixing and effects parameters are adjustable using the front panel backlit LCD.
The UltraLite-mk3 Hybrid provides cross-platform compatibility with Mac and Windows and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio drivers. Or you can use the included AudioDesk workstation software for Mac, with 24-bit recording/editing and 32-bit mixing/processing/mastering.
Hybrid FireWire/USB2
The UltraLite-mk3 is the very first "hybrid" audio interface to offer both FireWire and hi-speed USB2 connectivity.
FireWire has long been recognized as a reliable, high-performance connectivity standard for professional audio interfaces like the UltraLite-mk3 Hybrid. Meanwhile, hi-speed USB2 has also developed into a widely adopted standard for connecting peripheral devices to personal computers.
To fully support both formats, your UltraLite-mk3 Hybrid audio interface is equipped with both a FireWire A (400 Mbit/sec) connector and a hi-speed USB2 (480 Mbit/sec) connector, and you can use either port to connect the UltraLite-mk3 Hybrid to your computer. This gives you maximum flexibility and compatibility with today’s ever-expanding universe of Mac and Windows computers.
If your computer does not have a FireWire port, then obviously you will need to connect the UltraLite-mk3 Hybrid to one of its hi-speed USB2 ports.
If your computer has both FireWire and USB2, then it is your choice, and your decision may depend mostly on other peripherals you may also have, or bus power. FireWire provides enough power on the FireWire bus that the UltraLite-mk3 Hybrid can be powered solely by its FireWire connection to the computer. If you use USB2, you you'll need to use the DC power supply included with the UltraLite-mk3 Hybrid, as USB2 does not supply enough power by itself.
MIDI
The UltraLite-mk3 Hybrid includes a 16-channel MIDI interface that provides sample-accurate timing with supporting software.
Connect a MIDI keyboard, sound module or control surface, and you are ready to go. The FireWire or USB2 connection to the computer carries both MIDI and audio so you don't need to connect an additional USB cable for MIDI.
MIDI Thru for stand-alone operation
The UltraLite-mk3 Hybrid introduces a new MIDI Thru feature that routes all MIDI data received at its input directly to its output while running stand-alone. This allows you to play a hardware sound module or sampler connected to the MIDI OUT from a controller connected to the MIDI IN, even when the computer is turned off, or when the UltraLite-mk3 Hybrid is completely disconnected from the computer.
Feature summary
