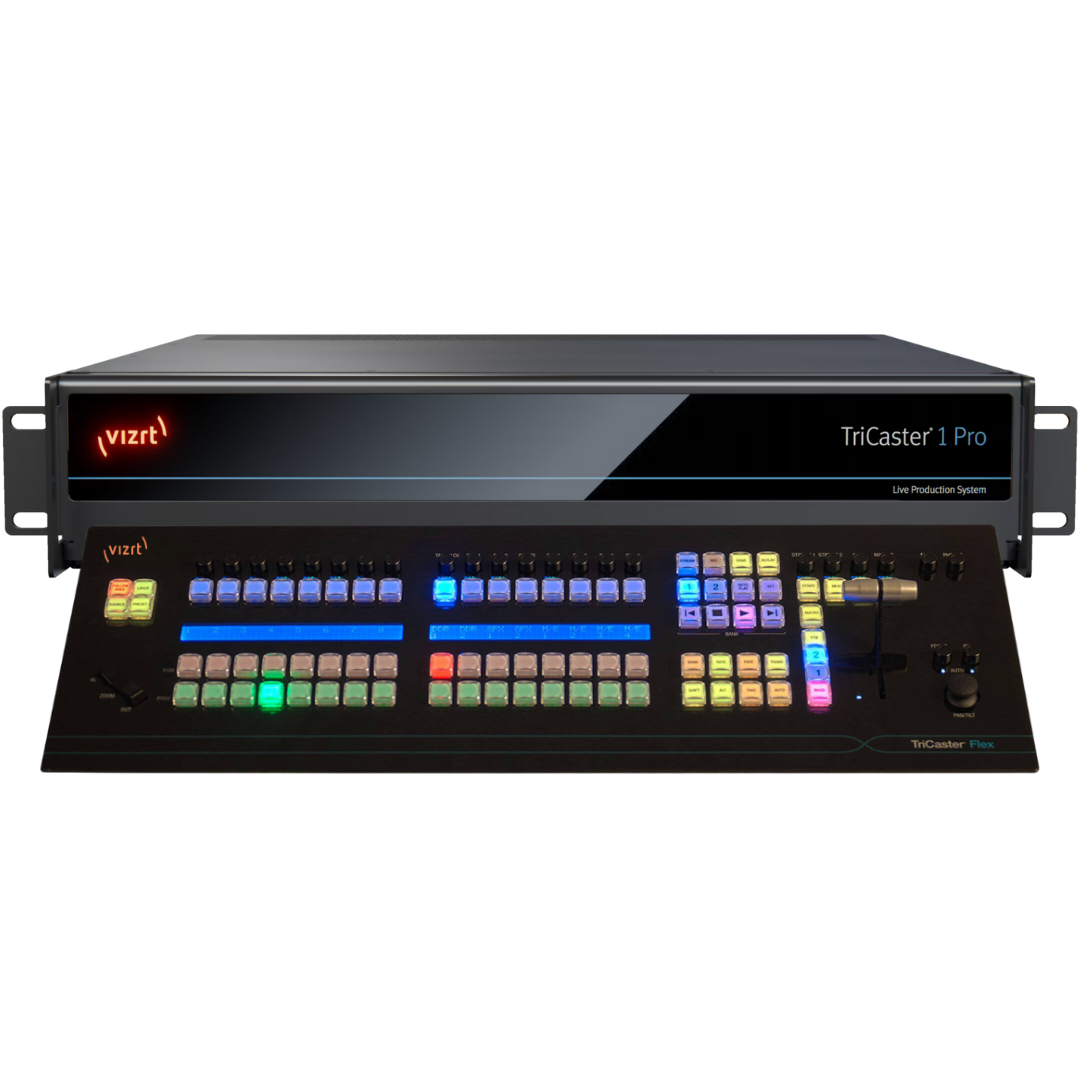

Vizrt TriCaster TC1 Pro & Flex Bundle Promo

The Winning Combination! Bundle the right TriCaster for your production with the Flex Control Panel for the best price yet!

TriCaster 1 Pro
TriCaster® 1 Pro is an incredibly powerful production system for the modern producer, publisher, and content creator. Perfect for productions with intense demands on quality and feature set. TriCaster 1 Pro is the perfect balance of investment and power, fully equipped with the industry’s leading software-driven production technology and hundreds of future-ready capabilities.

Flex Control Panel
The Flex is the best way to harness the power of TriCasters anywhere – operators can take direct control of PTZ devices, audio connections, audio and video mixing, and talkback – all connected with NDI®.

Video Input

• 16 x simultaneous external video inputs, supporting any combination of compatible
  sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)


Network Video Input

• 16 x IP video inputs via NDI™, resolution-independent, with support for key and fill


SDI Video Input*

• 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard
  formats, resolutions, and frame rates**
  • 1080p: 59.94, 50, 29.97, 25
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25
  • 576i 50
  • 480i 59.94
  *Optionally supports up to 16 simultaneous 3G/HD/SD-SDI video inputs or quad-link 3G-SDI video
  inputs (4K UHD) via network integration with NewTek NC1 conversion modules
  **Available frame rates determined by session video standard (NTSC or PAL)


PTZ

• Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and
  network protocols, including RS232, RS422 and IP, with integrated controls and preset
  system


Skype TX

• Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software
  integration, including tally and Talk Back communication


Video Output

• Configurable for up to 4 independent video mix outputs, with simultaneous delivery via
  IP and SDI


Network Video Output

• IP video output via NDI, optionally configurable for:
  • 4 x independent video mix outputs
  • 1 x 4K UHD video mix output


SDI Video Output

• 4 x 3G/HD/SD-SDI connections, optionally configurable for:
  • 4 x independent 3G/HD/SD video mix outputs
  • 1 x 4K UHD video mix output via 3G-SDI quad-link grouping


Stream Output

• 3 x resolution-independent streaming video outputs, independently configurable, with
  simultaneous stream archive


Multiviewer Output

•  3 x multiviewer outputs supporting standard display resolutions
  • 1 x DisplayPort (v1.4a)
  • 2 x HDMI™ (HDMI™ v2.1)


Mix/Effect Buses (M/E)

• 4 x M/E buses supporting video re-entry
  • 1 x Mix/Effect channel per bus with support for up to 4 sources
  • 4 x KEY layers per bus
  • 9 x memory slots per bus
• 1 x PREVIZ configuration and preview bus


DSK Channels

• 4 x DSK channels


Media

• 5 x media players
  • 2 x DDR
  • 2 x GFX
  • 1 x Sound
• 15 x media buffers
  • 10 x animation buffers
  • 5 x graphic buffers
• 30 x clip players (available for use as transitions or media depending on function

Keyers

• Integrated LiveMatte™ chroma and luma keying technology on all source channels and
  M/E buses
  • 16 x input keyers
  • 4 x media player keyers
  • 4 x M/E keyers
  • 1 x PREVIZ keyer
  • 15 x buffer keyers


COMPs

• Integrated video composition engine on the switcher and each M/E bus to create, store,
  and apply layer configurations and DVE-style motion sequences
  • 16 x configurable COMP presets per bus


Virtual Sets

• Integrated LiveSet™ technology with 30+ live virtual sets and box effects included


DataLink

• Integrated DataLink™ technology enabling real-time, automated data input from
  internal and external sources, including webpages, spreadsheets, scoreboards,
  databases, RSS feeds, watch files, XML, CSV, ASCII and more


Macros

• Record, store, edit and automate commands and user-configured operation sequences
  • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and Xkeys® buttons or GPI triggers
  • Attach to internal events and state changes, including audio, media playback,
  tally and specific switcher actions
  • Supports control via web-based interface
  • Variables support allowing operators to use logic in macros to deliver
  complex productions more easily


Recording

• 16x configurable video recording channels
  • 16x NDI® recordings
  • 4 x QuickTime® archival video recorders
  • 3x H.264 distribution video recorders (multiple profiles)
  • 1 x MP3 audio recorder


Storage 2TB internal media storage

• 2 x 2TB Media Drive
  • Capacity varies by format, resolution and file specification
  • Supports recording to external storage via USB 3.0 and eSATA
  • Supports shared storage integration and third-party partner solutions


Grab

• Grab full-resolution, deinterlaced still images from external video sources and outputs


Export

• Export video and image files to social media, FTP, local or external volumes, and
  network servers, with optional transcoding


Audio Mixer

• Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and
  4x4x4 audio input routing


Local Audio Input

• 4 x SDI embedded
• 1 x Balanced XLR stereo pair (Line)
• 3 x Balanced 1/4” stereo pairs (Line)


Local Audio Output

•  4 x SDI embedded
• 1 x Balanced XLR stereo pair
• 1 x Balanced 1/4” stereo pair
• 1 x Stereo 1/4" (phones)


Network Audio

• Native support for network audio input and output via NDI
• Embedded audio supported for all NDI input and output video signals
• Integrated support*** for Dante™ networking protocol from Audinate®
• Support for AES67 protocol via compatible WDM audio drivers****
  ***Requires Dante Virtual Soundcard license from Audinate (sold separately)
  ****Requires third-party virtual sound card license (sold separately)


Supported Media File  Formats

• Import, store, and play back multimedia files, with optional transcoding, including:
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV,
  MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW,
  TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more


Monitoring

• Support for up to 3 multiviewer displays with configurable workspaces and viewports


Signal Monitoring

• Integrated waveform and vectorscope, full field rate with digital calibration, color preview
  and support for ITU-R Rec. 709

Processing

• Video: YCbCr + Alpha color space, using 4:2:2:4
• Audio: Floating Point 96 kHz


Throughput Latency

•  ~1.0-1.5 frames


A/V Standards

• 4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division
  Quad Split)
• 3G-SDI video conforms to SMPTE 424M (Level A)
• HD-SDI video conforms to SMPTE 292M
• SD video conforms to SMPTE 259M and ITU-R BT.656
• Analog audio levels conform to SMPTE RP-155


Tally

• Support for hardware tally via HD15 GPI connector, network tally via NDI, and  Blackmagic Design® SDI tally standard


Genlock

• Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals


GPI

• Supports GPI signals via JLCooper Electronics eBox GPI interface


MIDI

• Support for standard MIDI protocol enabling third-party device control


System Drive

• 250GB SSD


NIC

• 1 x 10 Gigabit LAN
• 1 x 2.5 Gigabit LAN
• 1 x 1 Gigabit LAN


USB

• Front: 2 x USB 3.0 Type A
• Rear: 2 x USB 2.0 Type A
• 5 x USB 3.2 Gen2 Type A
• 1 x USB 3.2 Gen2x2 TypeC


System Physical

• 2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe
  • 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attache


• TriCaster TC1 Pro
• Flex Control Panel
