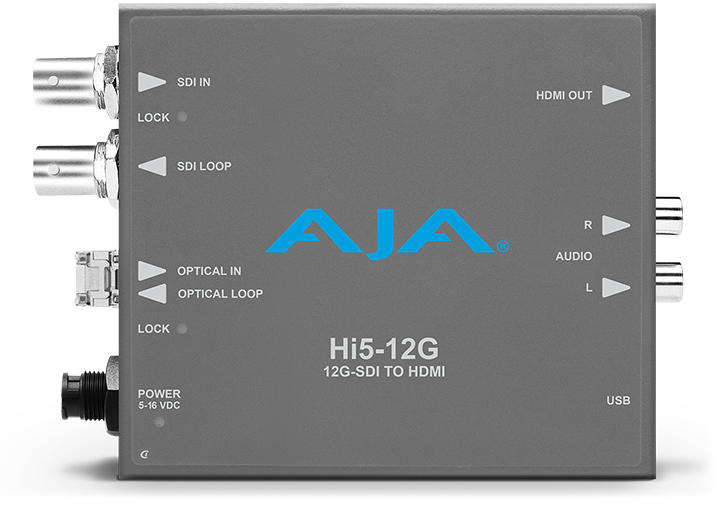

AJA Hi5 12G-SDI to HDMI 2.0 Converter

3G-SDI to HDMI Mini-Converter
Hi5-Plus is AJA’s next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows

Deep Color HDMI
When used with a compatible HDMI monitor, SDI-to-HDMI Mini-Converter outputs a 30-bit Deep Color RGB signal that allows for incredible color representation.

3G-SDI Support
The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows where image quality is critical.

Audio Integration
Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

PsF to Progressive conversion
HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF formats. Hi5-Plus converts incoming 1080PsF signals to 1080p. This progressive signal is compatible with HDMI monitors.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Video Formats

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i


Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.



Video Input Digital

• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 8, 10, 12-bit
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• 1x 12 Gb SDI
  -(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  -(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1x 6 Gb SDI
  -(4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  -(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B Dual Link)
  -(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  -(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  -(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  -(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  -(HD) 1920x1080i 50, 59.94, 60
  -(HD) 1280x720p* 50, 59.94, 60
• 1x 1.5 Gb SDI
  -(2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  -(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  -(HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  -(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  -(HD) 1920x1080i 50, 59.94, 60
  -(HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
  -(SD) 625i 50
  -(SD) 525i 59.94

*1280x720p is Level A Only



Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only


• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  -Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  -Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  -Overload Power: -2 dBm (min)



Input Signal Selection - Hi5-12G-R-ST Only


• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  -Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  -Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  -Overload Power: -2 dBm (min)



Video Output Digital


• 1x HDMI Type A connector*, HDMI v2.0b
• HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 24, 30, or 36 Bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 720x576i 50
• (SD) 720x480i 59.94


*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)



Audio Pass-Through Formats

• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)




Video Output Digital - Additional for Hi5-12G-TR Only

• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
• Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
• Optical Power: -5 dBm (min), 0.5 dBm (max)
• Extinction Ratio: 5.4 dB (min)




Audio Input Digital

• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel




Audio Output Digital

• HDMI embedded audio, 24-bit, 8-channel




Audio Output Analog

• 2x RCA style connector, 2-channel -10dBu (nominal)


User Interface

• USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows




Size (w x d x h)

• 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)




Weight

• 0.5 lb (0.3 kg)




Power

• 5-16VDC regulated, 11 watts, power supply required included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input




Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)


*Hi5-12G devices use approximately 11 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a Hi5-12G device with other Mini-Converters.
