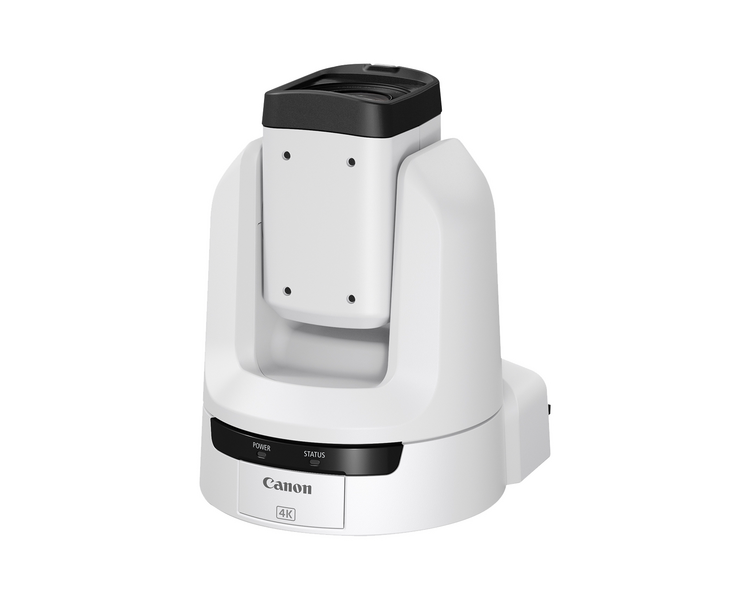

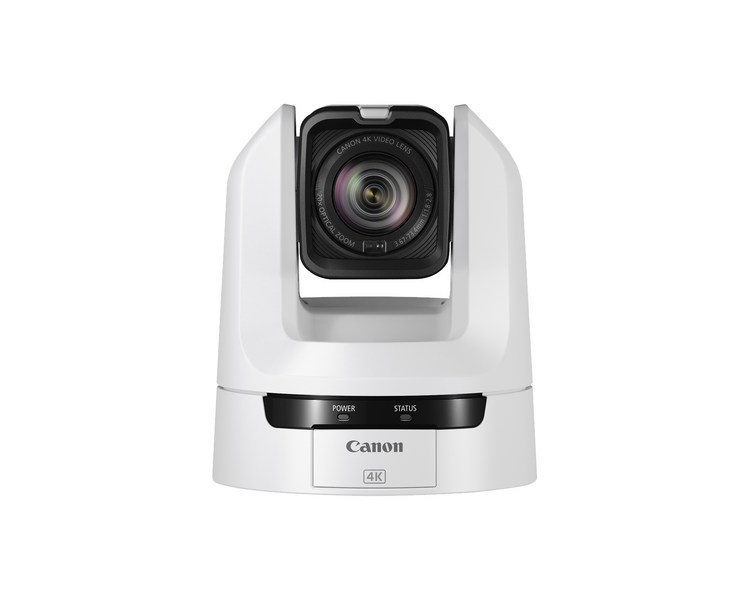

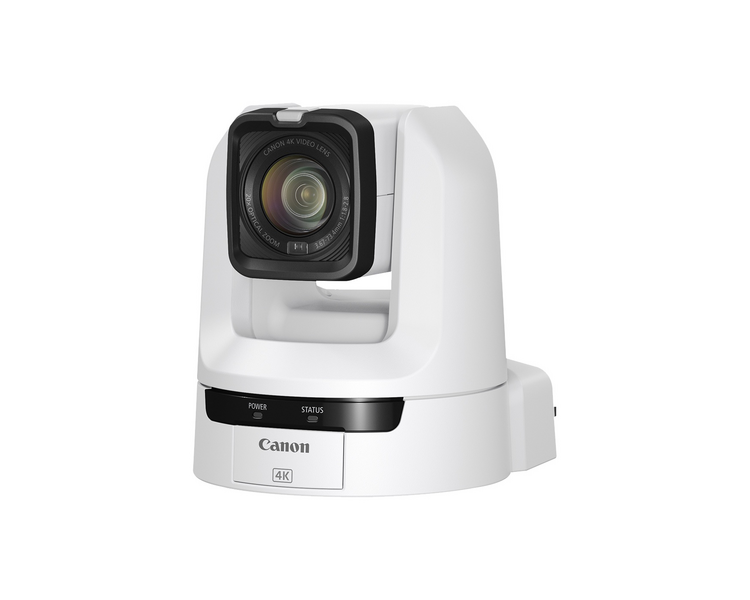

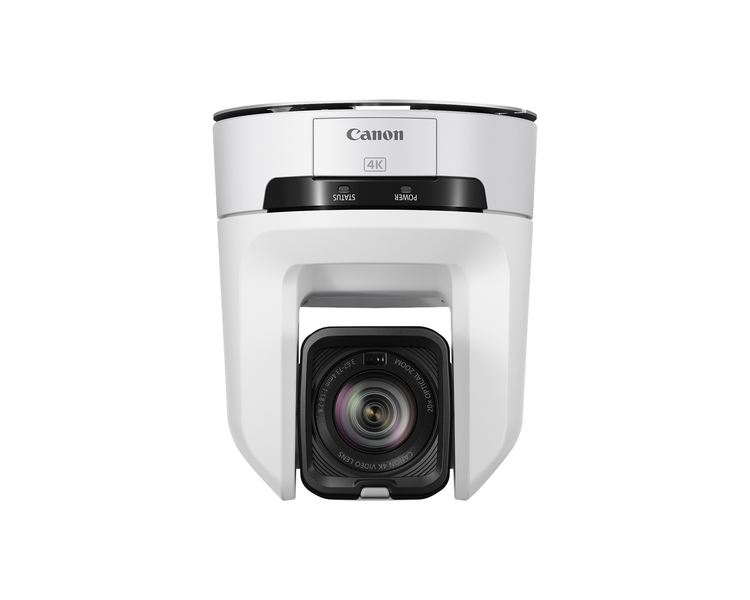

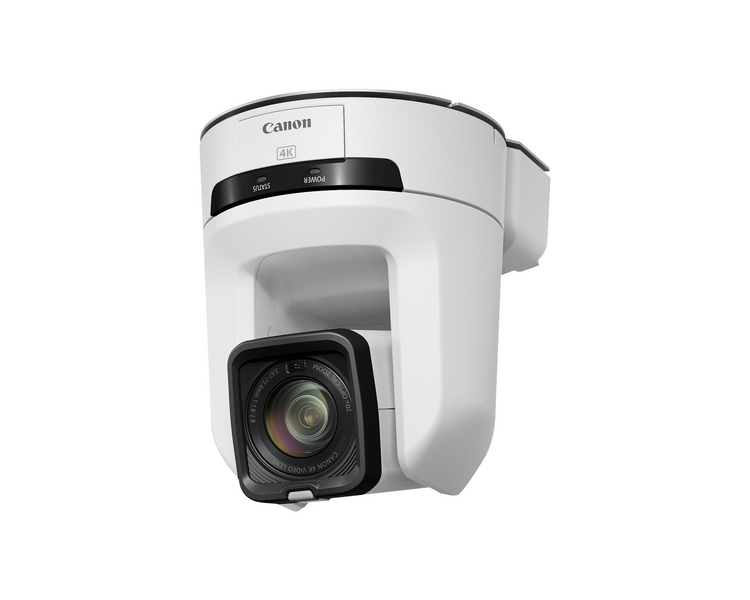

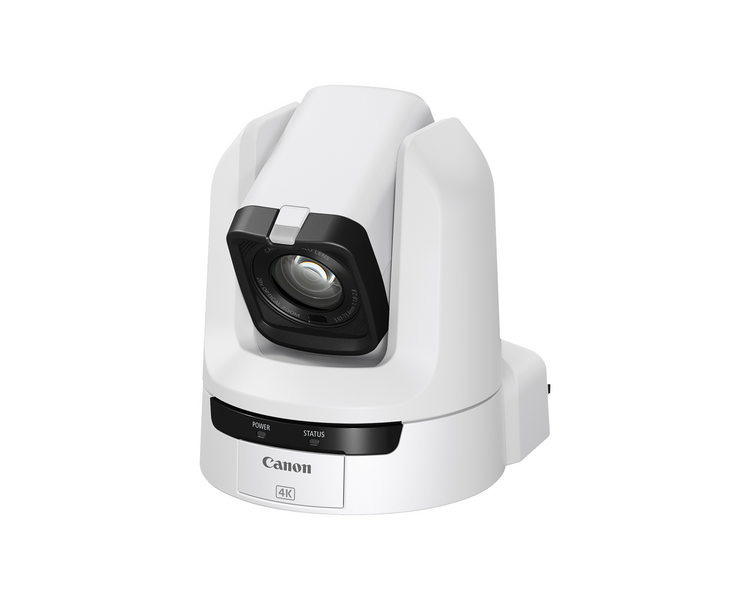

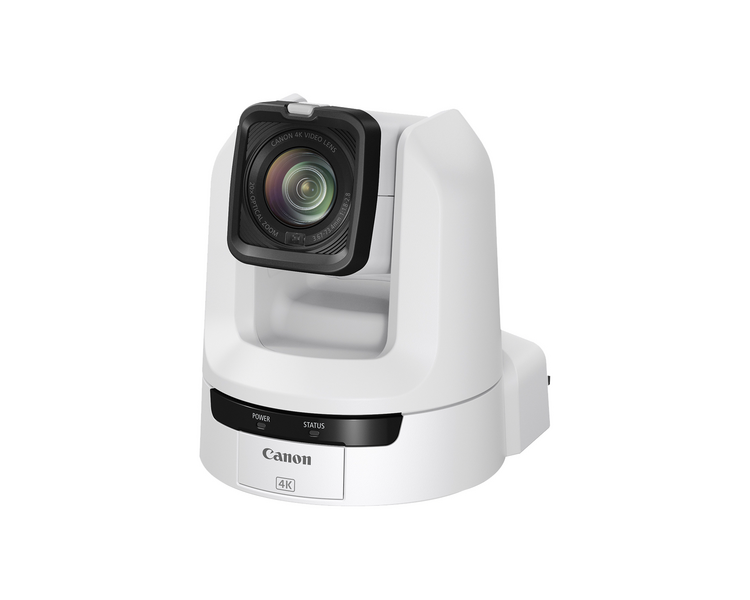

Canon CR-N100 20x NDIHX PTZ Camera - White

Canon CR-N100
A high quality 4K PTZ camera with advanced autofocus, 20x optical zoom and multiple IP protocols with built-in intelligent Auto Tracking.

Close the distance with unrivalled clarity
Experience the flexibility of a 1/2.3-type 4K sensor and DIGIC DV6 processor with Hybrid AF and a 20x image stabilized optical zoom. Compatible with the built-in Auto Tracking app*, IP streaming and control protocols, this camera offers seamless integration for the corporate, education, houses of worship and live event industries.

Key Features:

• 4K UHD Image Quality: Captures exceptional video in up to 4K UHD 30P, 4:2:2 10-bit
• DIGIC DV6 Processor: Powerful image processing for all types of environments
• 20x Optical Zoom: Broad lens zoom covering a focal length of 29.3-601mm (35mm equivalent)
• Hybrid Auto Focus: Quick and accurate auto focusing even in low light conditions
• IP Streaming and Control Protocols: Including NDI|HX 2 , SRT, RTSP/RTP, RTMP/RTMPS, Canon XC and Standard Communication protocol
• Auto Tracking: Free with latest firmware, take advantage of Auto Tracking App RA-AT001(Lite) to follow a subject automatically. A paid version (RA-AT001) unlocks extra versatility.
• Smooth and Precise Remote Control: Allows for pan and tilt movements as slow as 0.2 °/s
• Small and Compact Chassis: A compact camera weighing just 2.2kg.
• Flexible connectivity: A wide range of connectors such as HDMI, LAN (PoE+), USB-C and 3.5mm Audio Jack.

Outstanding 4K Imagery and HD oversampling
Capture powerful 4K UHD and superior Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the 4K sensor which results in true-to-life HD video.

20x Optical zoom delivers incredible flexibility
Capture all the detail you need, thanks to Canon’s advanced 4K optics with a flexible 20x optical zoom covering a broad focal length range of 29.3-601mm (35mm equivalent). Equipped with image stabilisation for minimal image disruption when moving.

Precise focusing with Hybrid AF
Combining high-precision contrast AF with high-speed phase-detection AF, the CR-N100 delivers rapid and accurate focusing of the subject, even in low light conditions. The CR-N100 PTZ camera has an external sensor measuring subject distance, and compares the point of focus with that determined by the Contrast AF system. This Auto Focus system delivers faster and more accurate focussing than conventional contrast AF, assisting the camera operator.

Accurate 4K Auto Tracking*
Unlock the potential to track the main speakers with face detection as they move around the stage, automatically. Auto Framing, with Multi-person Framing, delive rs natural composition with multiple speakers with ease, while Face Direction framing is ideal for single speakers creating natural space in front, according to their face direction. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved. *Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is required for full functionality of auto tracking

Multiple protocols for easy streaming and control
The CR-N100 features NDI|HX2 and SRT that produce high quality video streams for a variety of productions even under unstable network conditions. Stream seamlessly using RTMP/RTMPS to either Facebook or YouTube. Canon XC protocol unlocks the potential to control CR-N100 in a multiple PTZ camera system alongside Canon camcorder products.

Smooth and precise control
The CR-N100 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.2°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Comprehensive connectivity

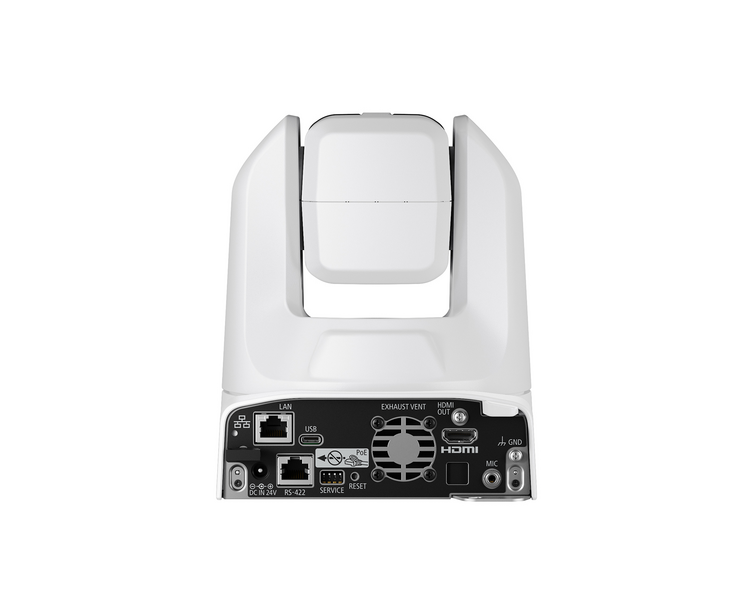

Connect flexibly with HDMI or IP (PoE+) both supporting 4K30P, the CR-N100 also includes a USB-C port, Serial Port (RS422) and a 3.5mm Audio Jack.

Multi-camera Management Application Compatible
The CR-N100 is compatible with the Multi-camera Management App. Manage up to 200 different cameras and/or controllers simultaneously making managing your Canon PTZ camera system easy and seamless. Update firmware, perform the initial set-up for all cameras and more.

PTZ Remote Camera Compatibility
Canon PTZ remote cameras are compatible with a wide variety of third-party software solutions. Discover which cameras work seamlessly with specific third-party software.

Canon Multi-Camera Control App
Simultaneously control up to 4 professional video cameras with a compatible iOS device (iPhone or iPad) via Wi-Fi by taking advantage of Canon’s XC protocol built-in to numerous Cinema EOS, PTZ and XF cameras. Access live view monitoring, as well as manage various camera settings such as exposure, focus, zoom, record trigger, waveform monitor and much more.

Camera

• Image Sensor: Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Effective Pixels: approx. 8.29 megapixels (3840 x 2160)
• Lens: f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
• Optical Zoom: 20x optical zoom
• Digital Zoom: 20x digital zoom
• Focal Length:
  • 3.67 – 73.4 mm, f/1.8 – 2.8,
  • 35mm equivalent focal length:
  • [4K UHD] approx. 29.3 (W) – 601 mm (T)
  • [Full HD] approx. 30.5 (W) – 627 mm (T)
• Angle of View:
  • [4K UHD]
  • Horizontal: 65.6 (W) – 3.6° (T)
  • Vertical: 39.8° (W) – 2.0° (T)
  • [Full HD]
  • Horizontal: 63.5 (W) – 3.4° (T)
  • Vertical: 38.4° (W) – 1.9° (T)
• Minimum Subject Illumination
• Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Shutter Speed: 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: 0.0 dB – 36 dB
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• Night Mode (IR Cut Filter Off): NoWhite Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2), color temperature setting (2,000 K – 15,000 K), Manual
• Focus:
  • Focus mode: Manual, Continuous AF, Face AF, Tracking
  • AF type: Hybrid AF, Contrast AF
• Gamma: Normal1 (Standard), Normal3 (BT.709)
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.2° – 300°/sec.
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.2° – 180°/sec.

Server

• Video Output Format: HDMI
  • 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  • 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  • 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• Video Output Format: IP
  • [Frame frequency 59.94 Hz]
  • 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • [Frame frequency 29.97 Hz]
  • 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  • [Frame frequency 50.00 Hz]
  • 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • [Frame frequency 25.00 Hz]
  • 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
  • [Frame frequency 23.98 Hz]
  • 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
  • – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
  • Resolution: 1280 x 720
  • When frame frequency is 59.94/29.97 Hz: 14.99 fps,
  • When frame frequency is 50.00/25.00 Hz: 12.50 fps,
  • When frame frequency is 23.98 Hz: 11.99 fps
• Video Output Format: USB
  • Motion JPEG:
  • 1920 x 1080
  • 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
  • 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
  • 1280 x 720
  • 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
  • 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
  • 640 x 360
  • 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
  • 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
  • YUV:
  • 640 x 360
  • 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
  • 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• Video Transmission Protocol: Protocol: XC (Canon's original), RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
• Preset: Number of presets: Max. 100 (including home position)

Interface

• Communication Control: LAN, Serial, IR
• Network Terminal: LAN x 1, RJ45, 1000Base-T
• GEN-LOCK Terminal: No
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Audio INPUT 1/INPUT 2 Terminals: No
• MIC Terminal:
  • ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• USB Terminal: Type-C (USB 3.1) x 1

Physical Features

• Operating Environment Temperature: 0°C – +40°C (+32°F – +104°F)
• Operating Environment Humidity: 10% – 90% (without condensation)
• Power Supply: PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant)
  • PoE cannot be used
  • External power source: 24 V DC (using included AC adaptor)
• Power Consumption
  • PoE+ Input: Approx. 16.2 W3 max. (body only)
  • DC Input: Approx. 15.0 W max. (body only)
• Dimensions (W x H x D): Approx. 154 x 178 x 164 mm  (excluding protrusions)
• Weight: Approx. 2.2 kg (4.86 lb.) (body only)
• Noise: NC35 or less

• CR-N100 Main Unit
• Mounting Plate with Screw
• Safety Wire
• AC Adapter
• AC Cable
• Infrared Remote Controller with Battery
• Installation Guide
• Warranty Card
