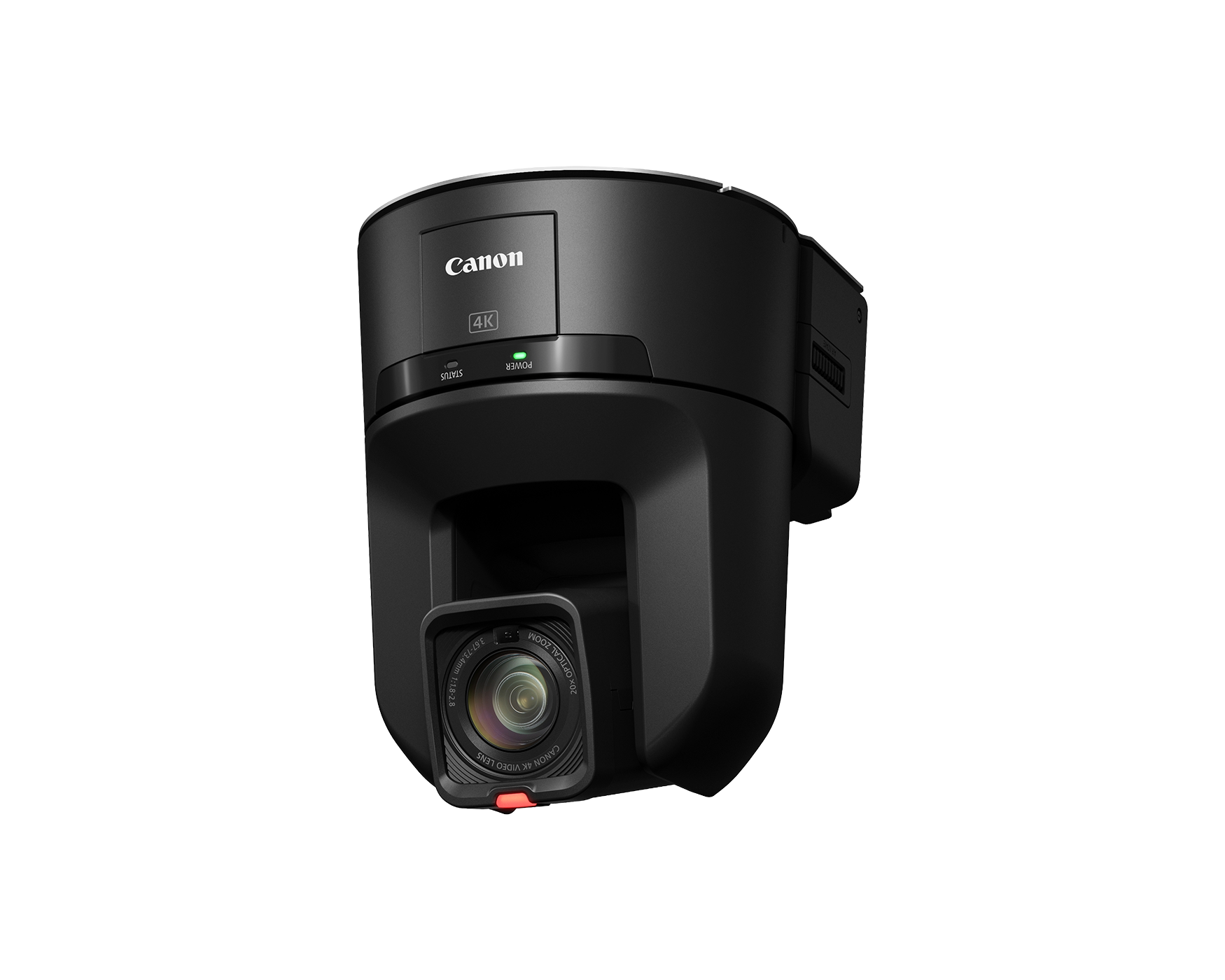

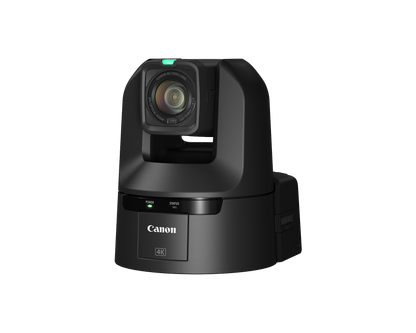

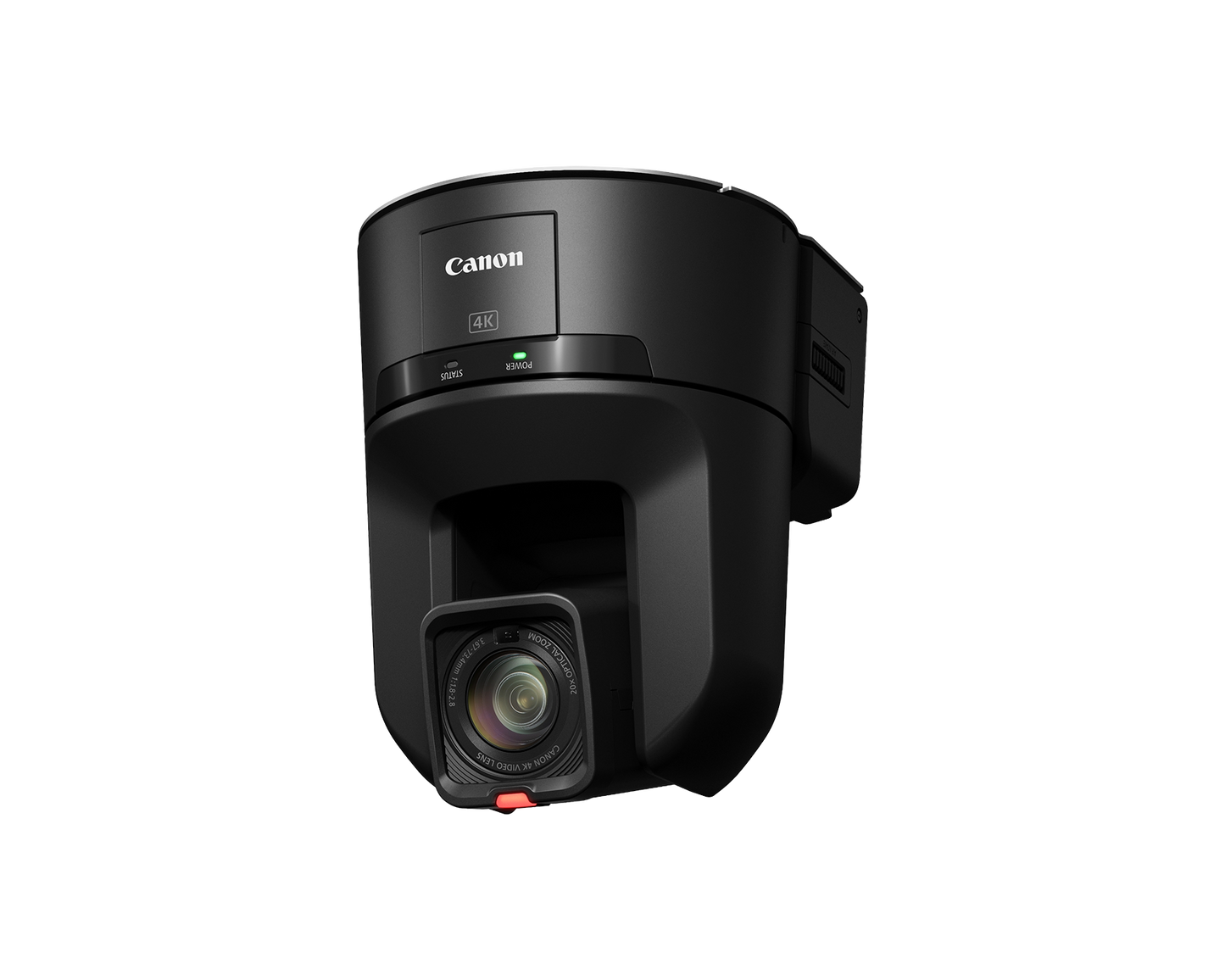

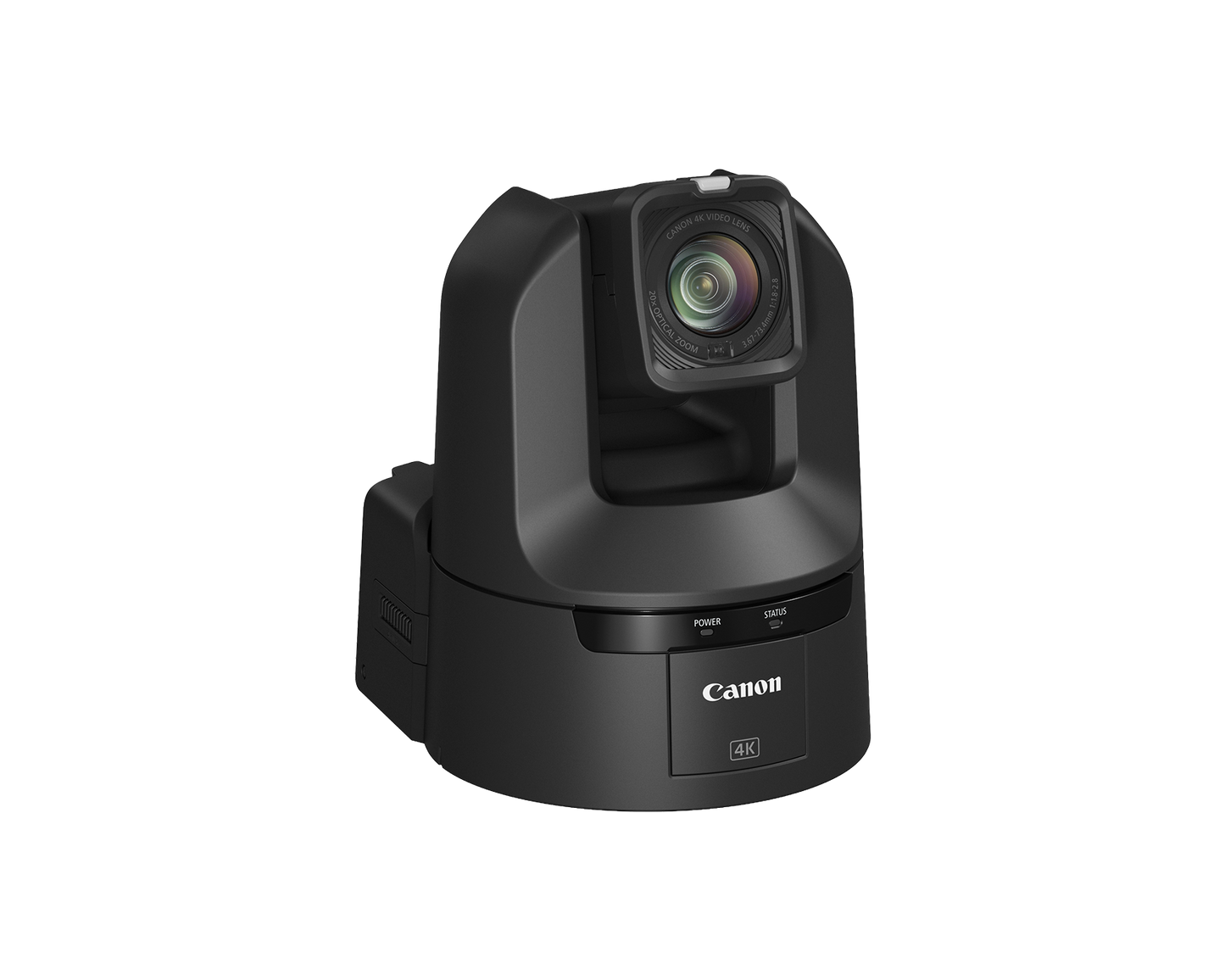

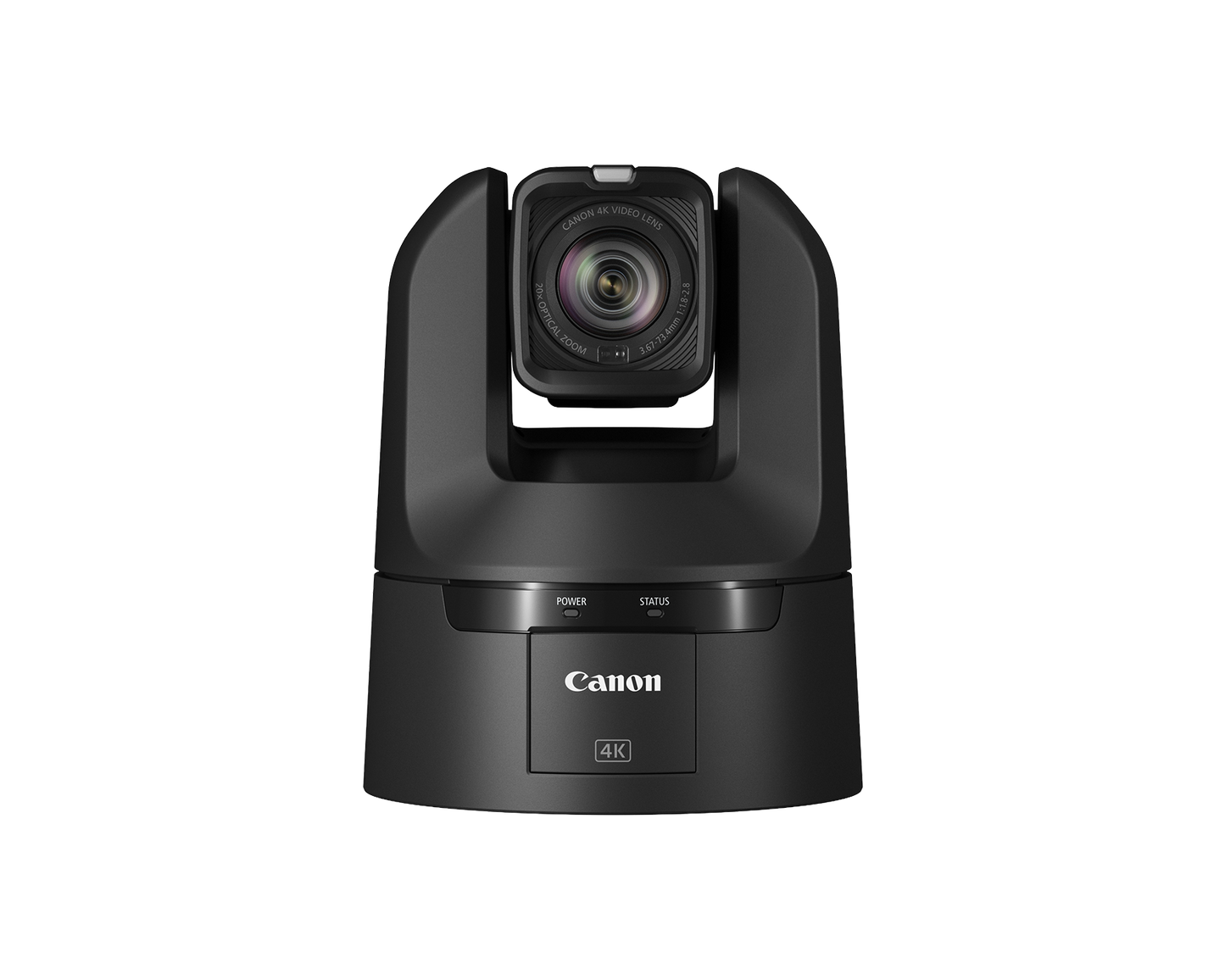

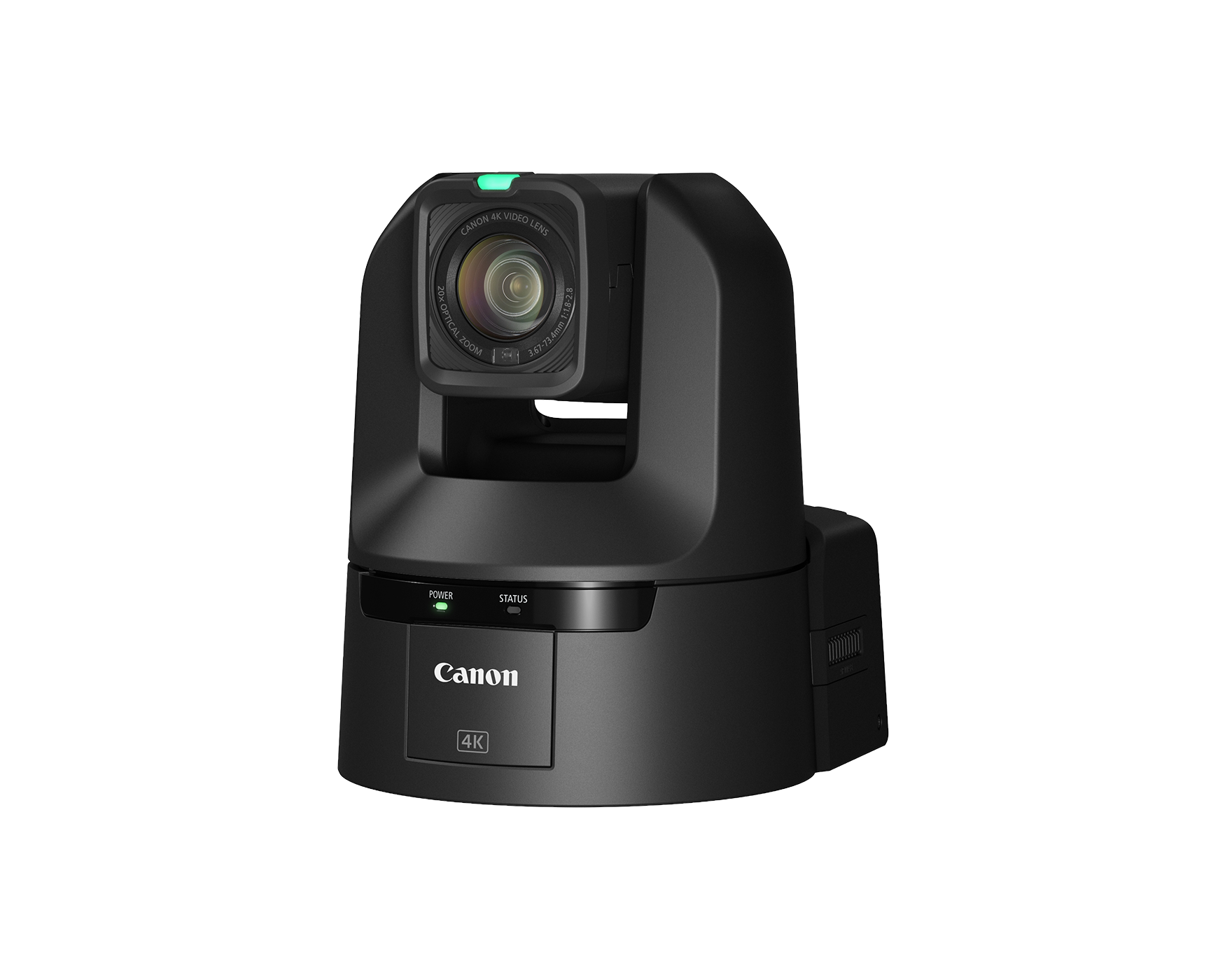

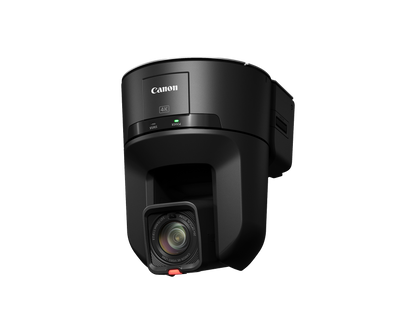

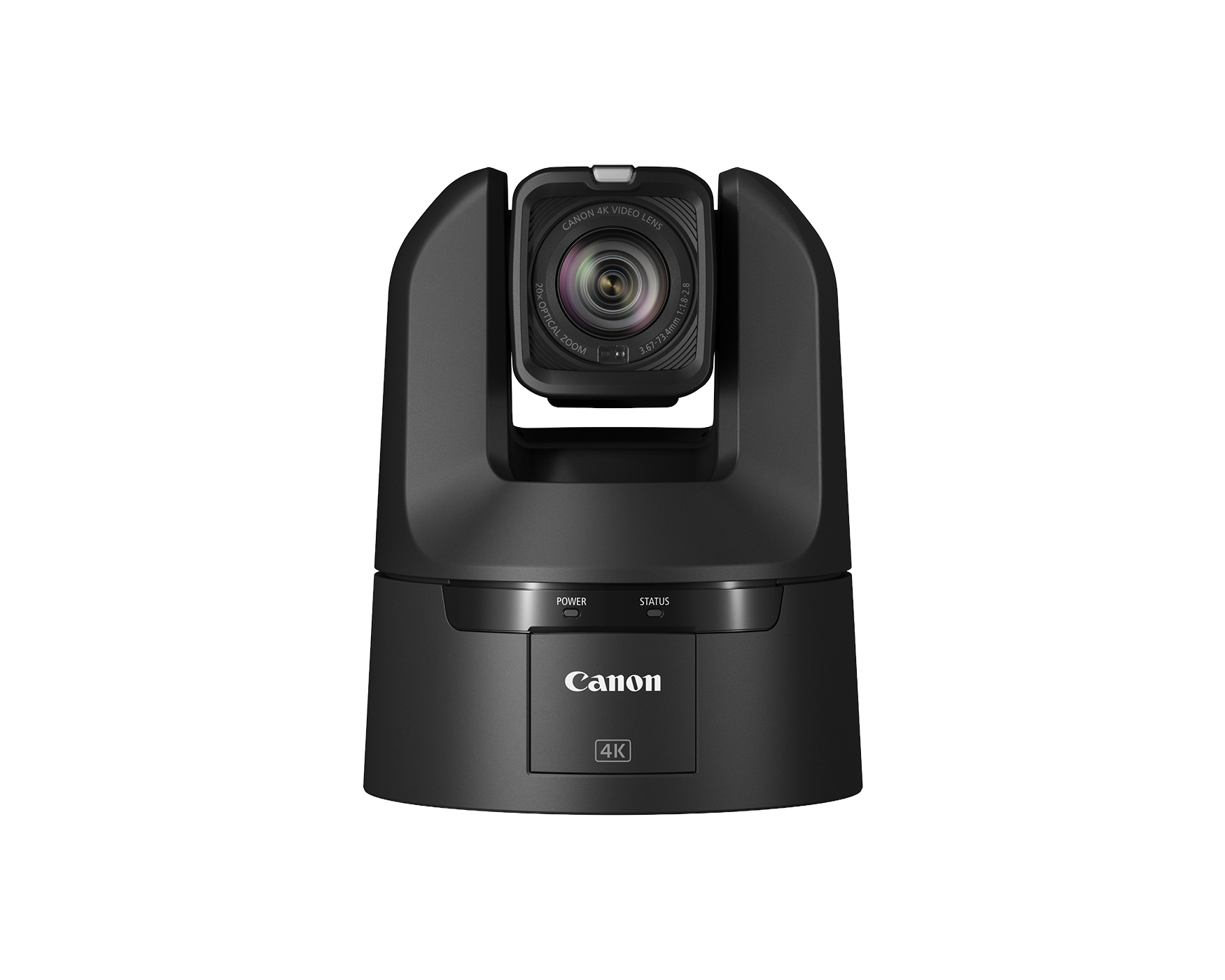

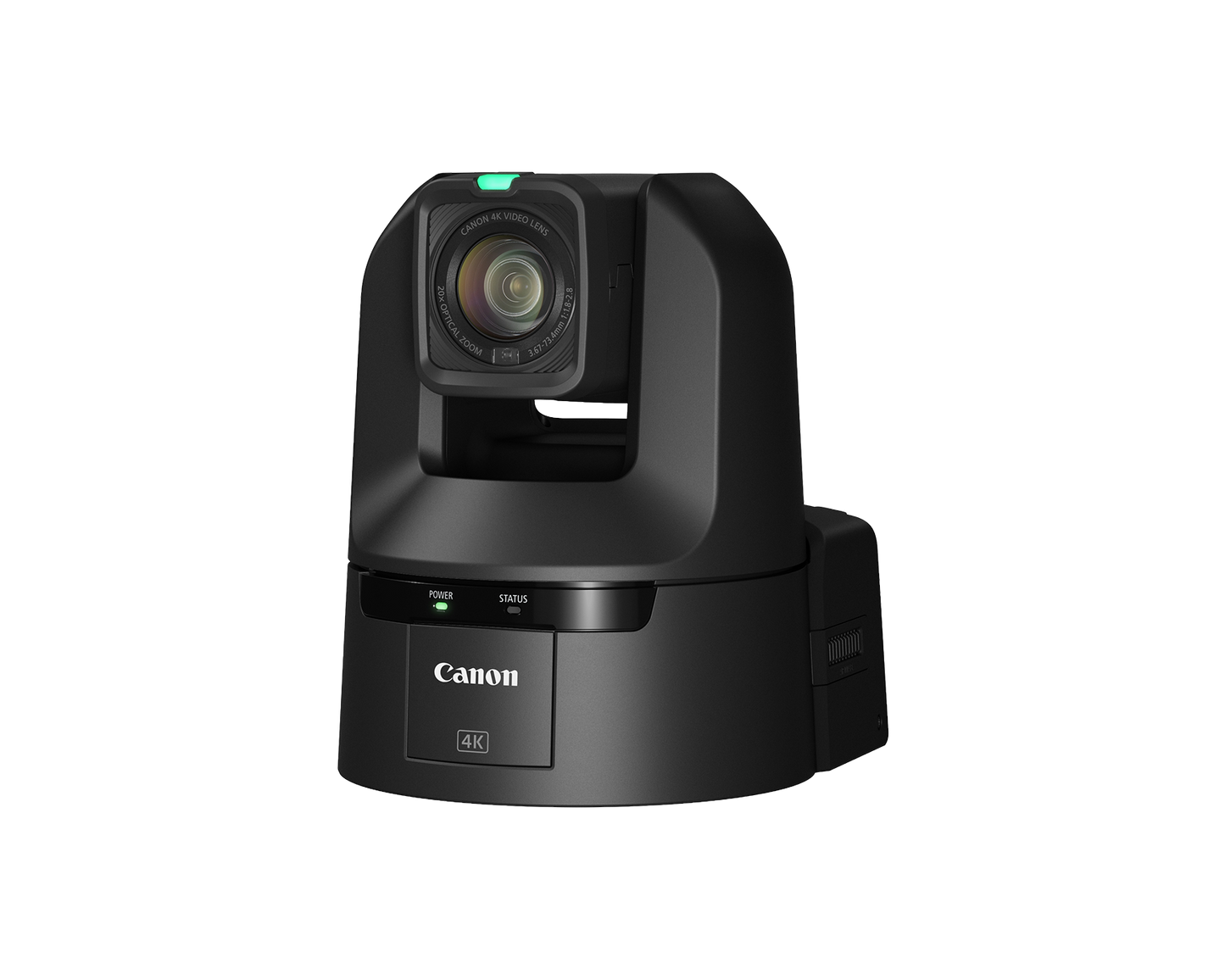

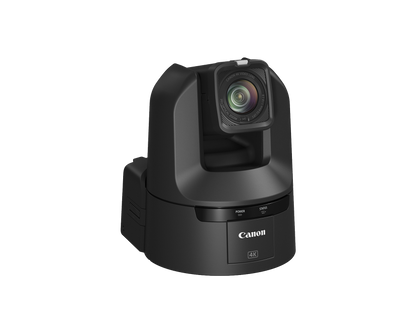

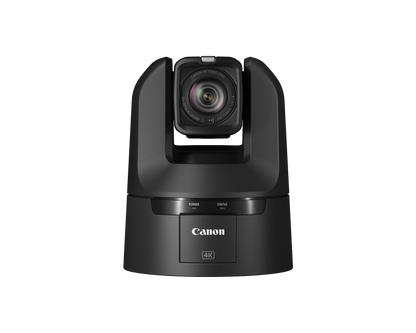

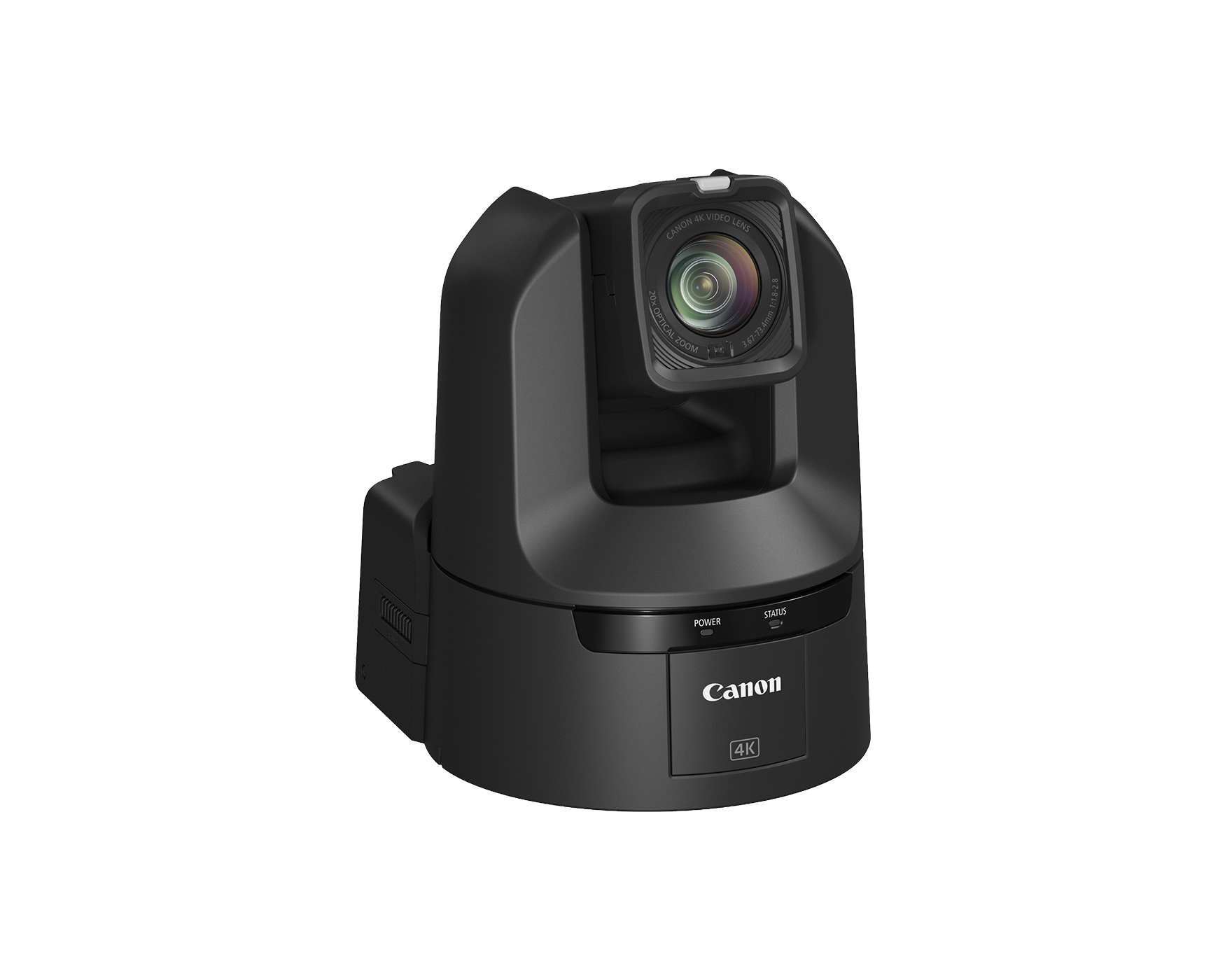

Canon CR-N400 (BLACK) Indoor PTZ, 4K UHD, 1/2.3" Sensor, 20x Zoom, 12G-SDI, 3G-SDI, HDMI, IP, USB, POE++ (Black)

Canon's CR-N400 (BLACK) Indoor PTZ Camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries, including House of Worship, Education, Broadcast, Corporate, Events and more.

The Canon CR-N400 (BLACK) Indoor PTZ Camera produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 7 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. The CR-N400 can also provide 40x Advanced Zoom when in Full HD. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N400.

The Canon CR-N400 (BLACK) Indoor PTZ Camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT, RTSP/RTP, as well as RTMP/RTMPS to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N400 can be controlled remotely by IP, Serial, or IR. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of compatible 3rd party hardware controllers.

Features:

• 1/2.3" CMOS Sensor with Hybrid Auto Focus
• High Quality 4K 60P Video Output

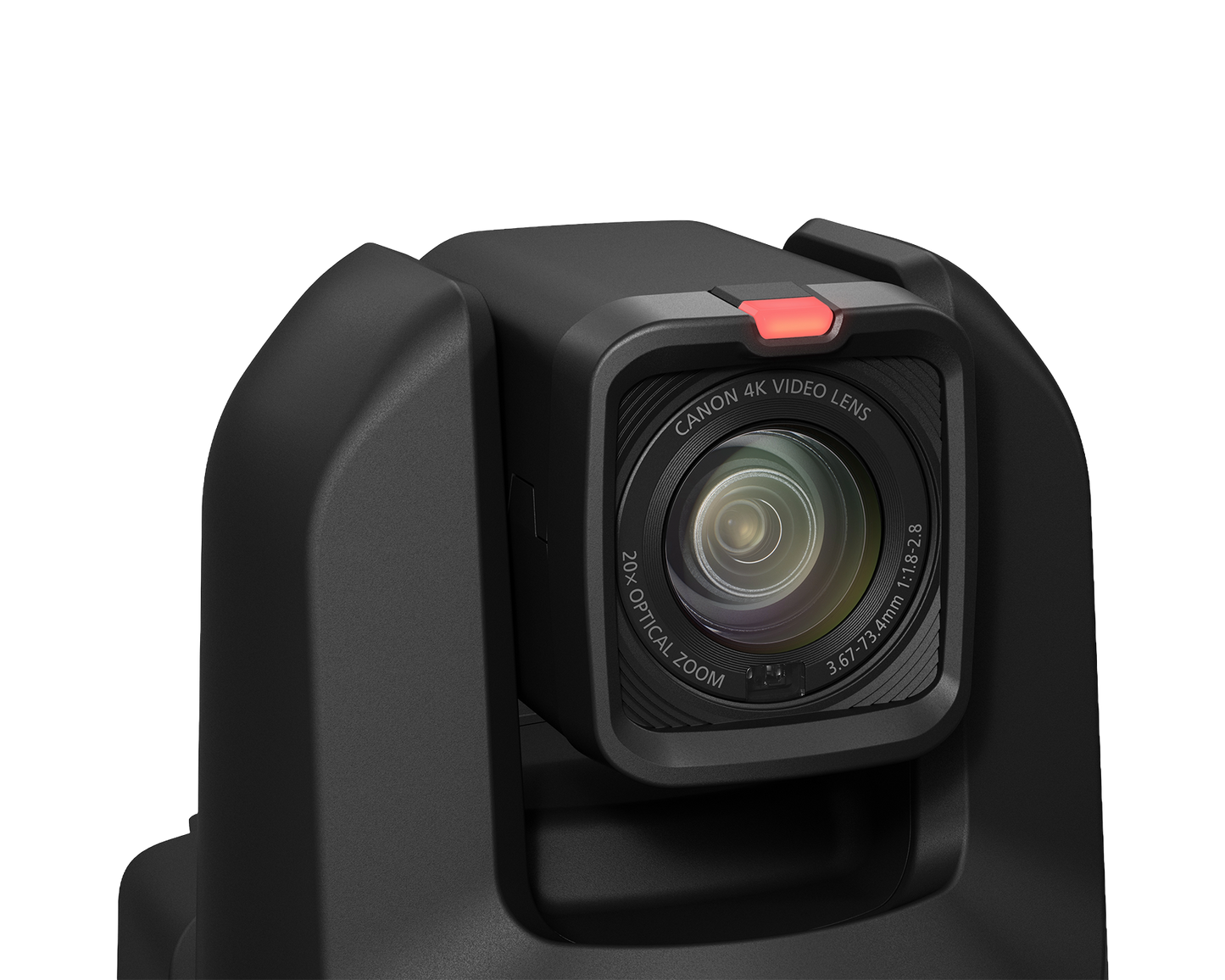

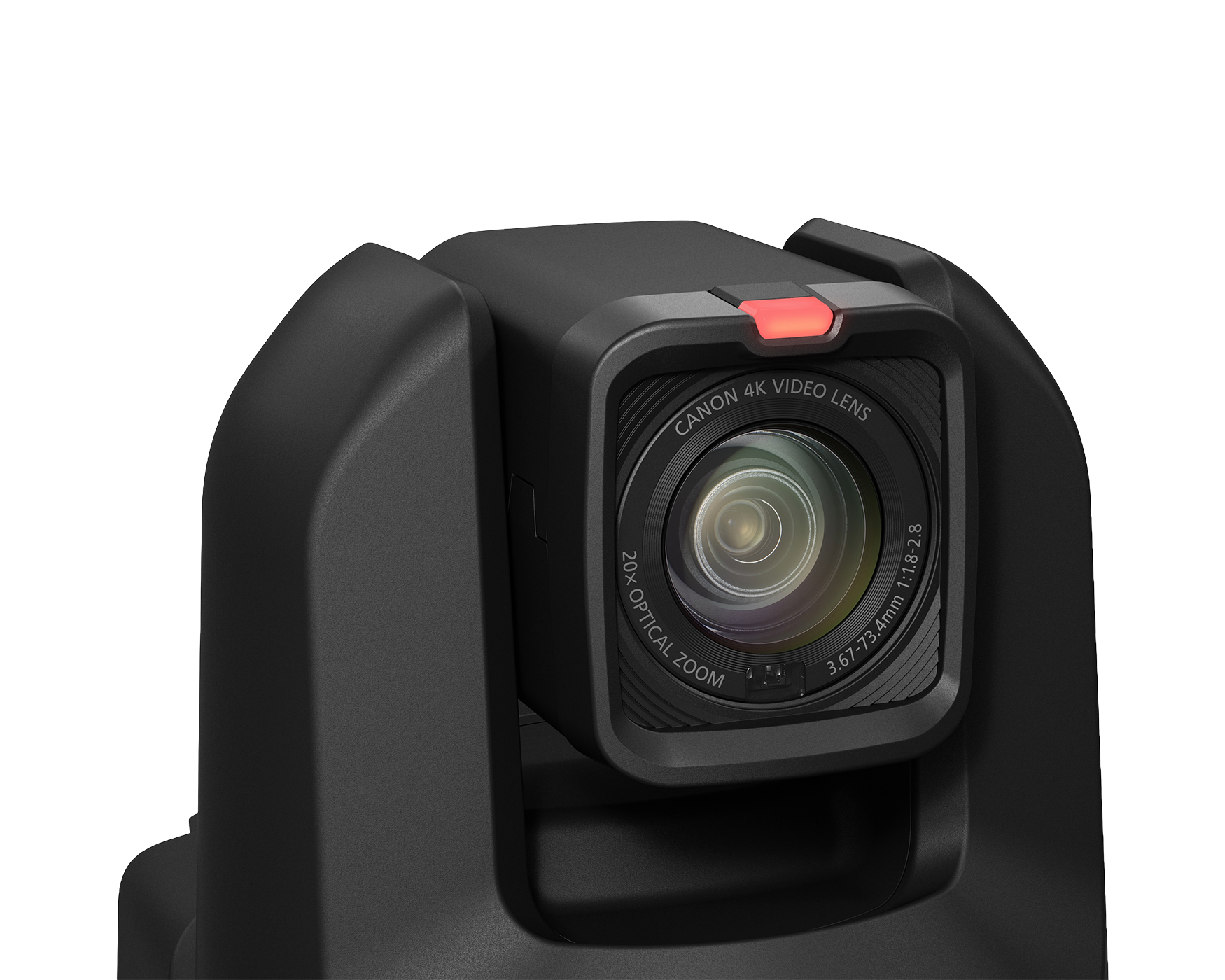

• 20x Optical Zoom Lens (40x Advanced Zoom) with Optical Image Stabilization
• Renowned Canon Color Science with Support for Wide DR, Canon Log 3, HDR(HLG/PQ), EOS Standard/Neutral Image Modes
• 12G-SDI, 3G-SDI, HDMI, and IP Video Out
• Genlock, Dual XLR and 3.5mm Audio input
• Auto Tracking Lite Built-in
• Built-in NDI HX2 and SRT (supports adaptive bitrate) support
• FreeD (with multiple destination support) support for AR/VR system
• Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into virtually any Production Environment



High Quality 4K 60P Video Output

1/2.3” Type CMOS Sensor

The CR-N400 features a Canon 1/2.3-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 60p, making the PTZ camera a strong contender for professional productions.

DIGIC DV 7 Image Processor

The CR-N400 PTZ camera incorporates Canon's DIGIC DV 7 Image Processor, which is essential in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition and precise Hybrid AF.

Hybrid AF

The CR-N400 is equipped with Hybrid AF, which is an auto focus system that combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm auto focus from the camera. This hybrid auto focus system helps achieve auto focus faster and more reliably compared to contrast auto focus alone.

Camera:

• Color Options :

  Satin Black / Titanium White

• Image Sensor : /2.3-inch, CMOS (single board)
• Total pixels: approx. 21.14 megapixels
  • 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
  • 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)

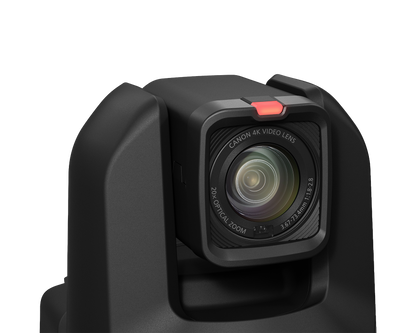

• Lens:

  f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm

  • 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
  • 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)

• Zoom



  • Optical: 20x
  • Digital: 20x
  • Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K),
• color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode:
  • Manual
  • Continuous AF
  • Face Detection & Tracking
  • Face only AF
  • Eye Detection.
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination:
  • Frame frequency 59.94/29.97 Hz:
  • Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
  • Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
  • Frame frequency 50.00/25.00 Hz:
  • Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
  • Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
  • *All of the above are when high sensitivity mode is set to On
• Pan and Tilt
  • Pan operation range: Horizontal ±170°
  • Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
  • Tilt operation range: Vertical -30° – +100°
  • Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets
• 3G-SDI:
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• 12G-SDI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720 x 576: 50.00i (4:2:2 10bit)
  • 720 x 480: 59.94i (4:2:2 10bit)
• HDMI:
  • 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
  • 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
  • 720x576: 50.00P (4:2:2 10bit)
  • 720x480: 59.94P (4:2:2 10bit)
• IP:
  • 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)
  • 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
  • 5.99fps, 5.00 fps (4:2:0 8 bit)

Video Output Format

Supported Video and Control Protocols

• Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),
• Standard Communication (IP), FreeD, SRT
• Number of Presets Max. 100 (including home position)

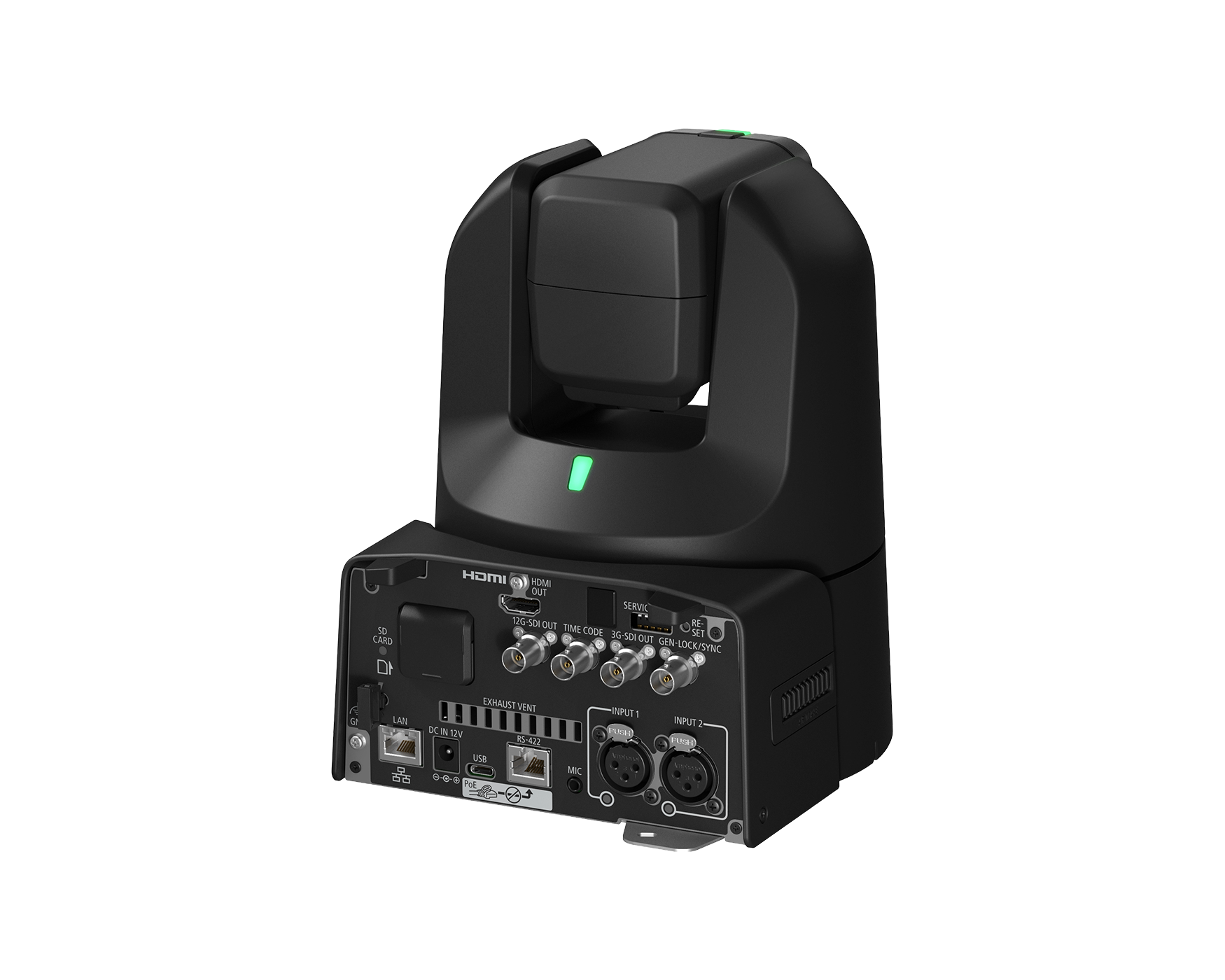

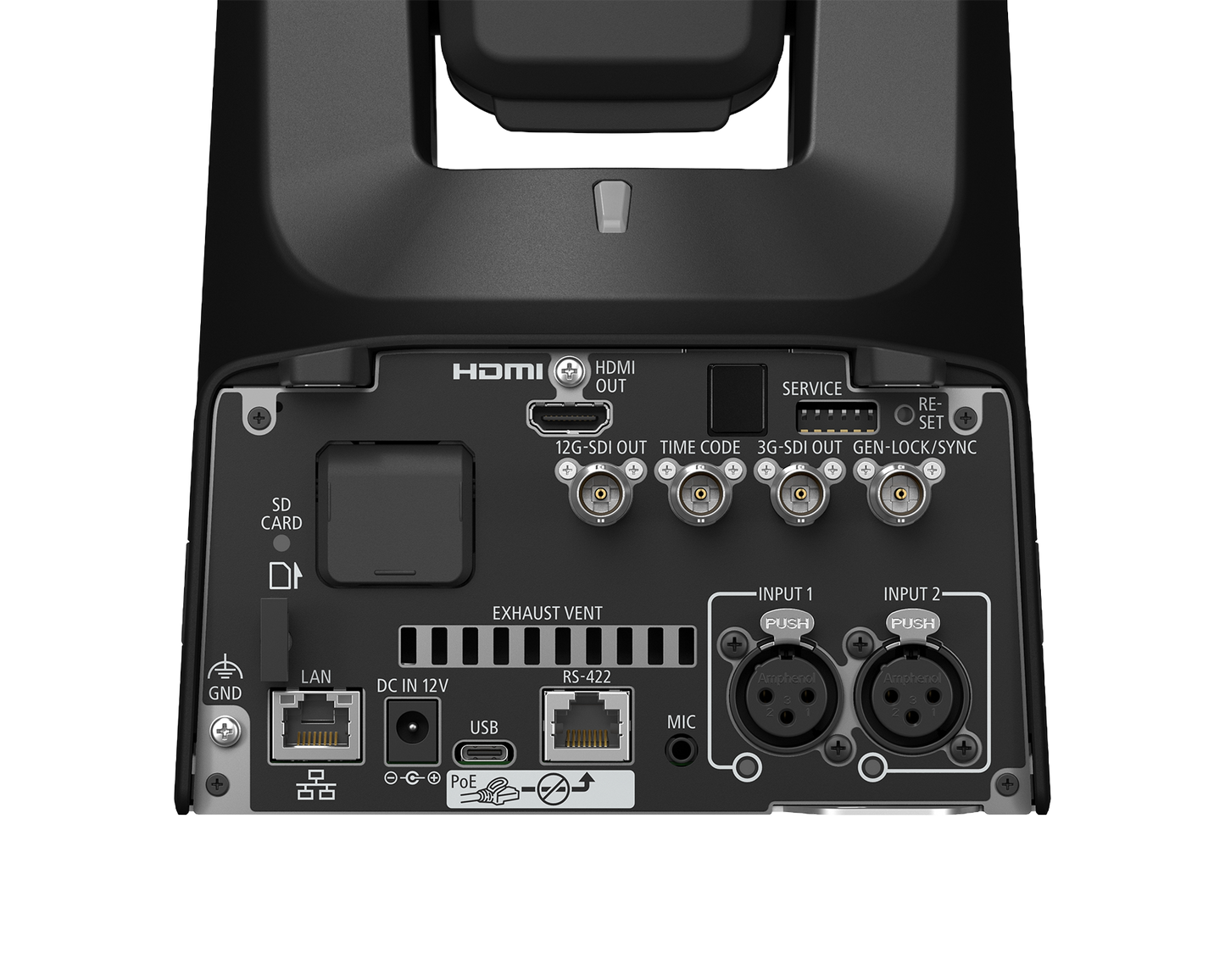

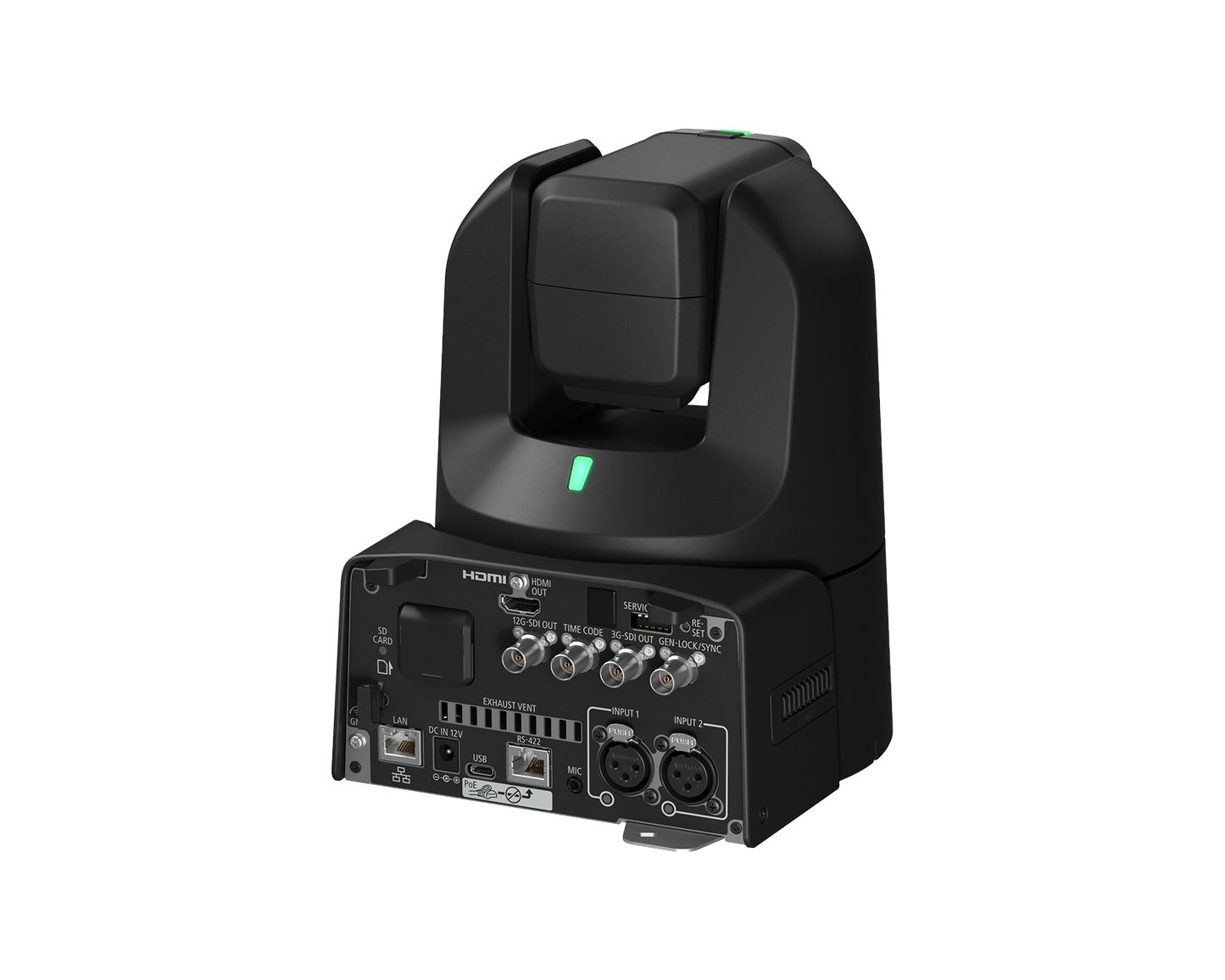

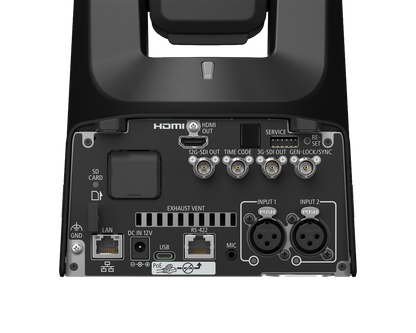

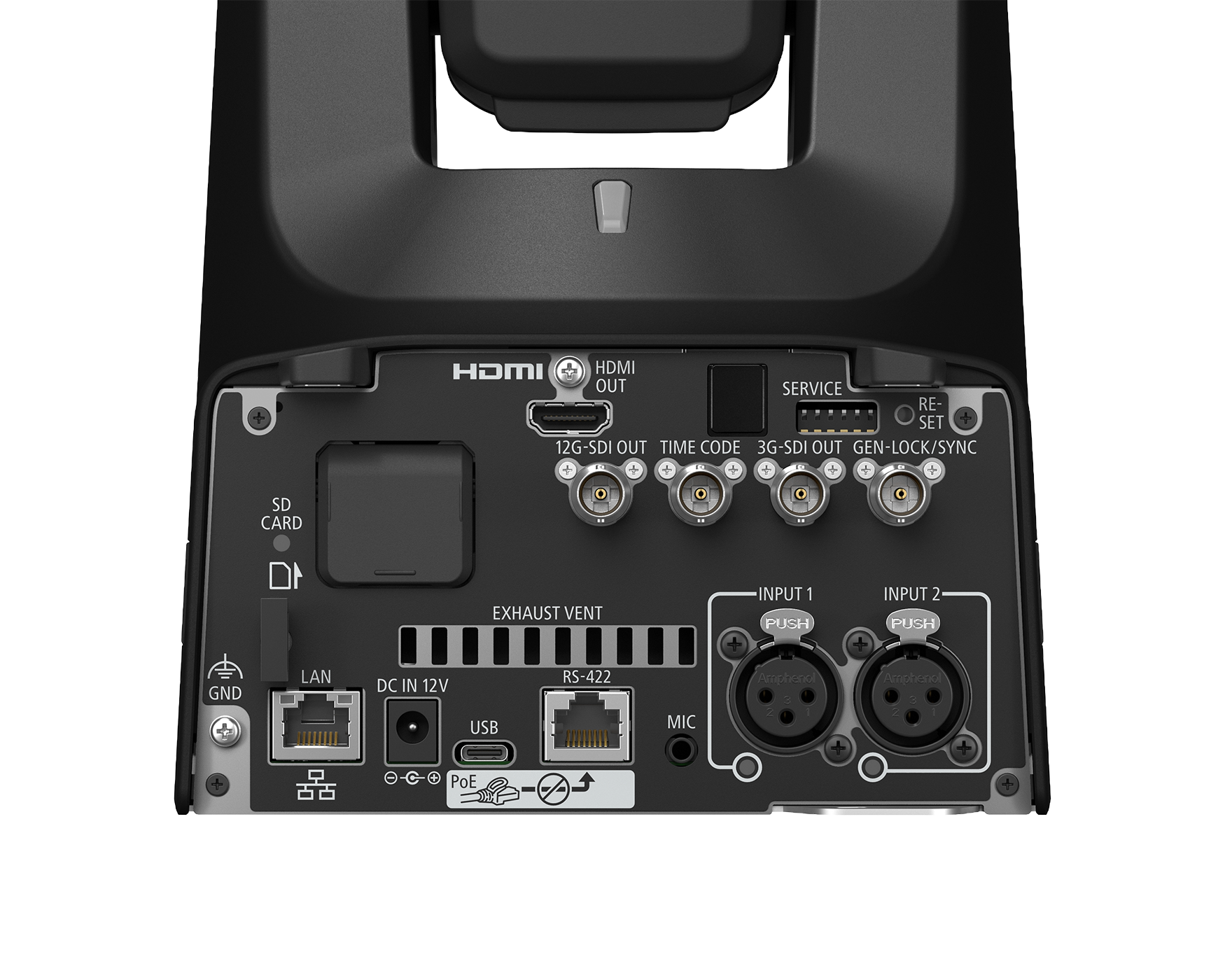

Interface

• Communication Control: LAN, Wi-Fi, Serial, IR, USB
• Network Terminal LAN x 1, RJ45, 1000Base-T
• 12G/3G-SDI OUT Terminal
  • BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ω
  • SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
  • 272, SMPTE ST 299 compliant
  • Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal BNC jack x 1, 1.0 Vp-p/75 Ω
• Time Code Terminal BNC jack x 1, 1.3 Vp-p/50 Ω or less
• HDMI OUT Terminal HDMI connector x 1, output only
• RS-422 Terminal RJ45 connector x 1
• Audio Input 1 / Input 2 Terminals
  • INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
  • Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/1 kΩ/Att.: 20 dB
  • Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ
• Mic Terminal
  • 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  • Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  • Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  • Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• Media Slot SD Card x1, future expansion

Other

• Operating Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Storage Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
• External power source: 12 V DC Terminal

• Power Consumption:

  PoE++ Input: Approx. 34.4 W max. (body only)

• DC Input: Approx. 33.8 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight: Approx. 3.1 kg (6.8 lb.) (body only)
• Supported Controllers
  • Hardware: RC-IP100, RC-IP1000
  • Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera

  • Management Application, Camera Search tool



1 X Indoor PTZ, 4K UHD, 1/2.3" Sensor, 20x Zoom, 12G-SDI, 3G-SDI, HDMI, IP, USB, POE++
