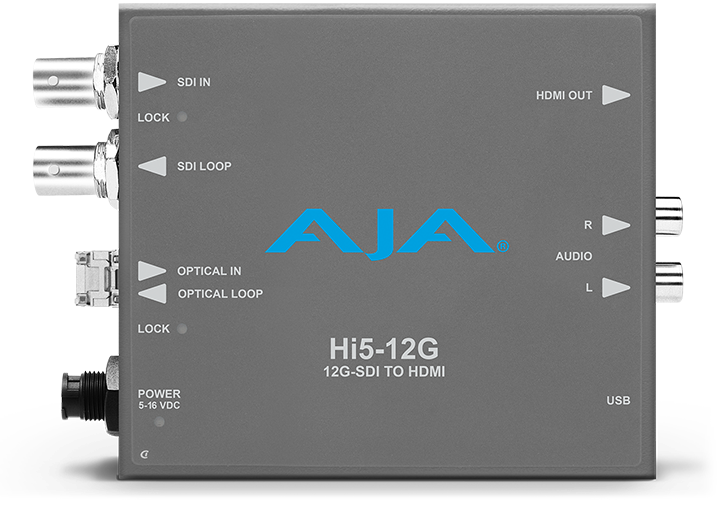

HI5 12G-SDI to HDMI 2.0 Conversion with Fiber Transceiver AJA

The AJA HI5 12G-SDI to HDMI Conversion Transceiver converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

AJA HI5 12G-SDI to HDMI Conversion Transceiver features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.

Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features:

• Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
• Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver
• which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or
• Fiber to a secondary destination
• Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
• Uses 5-16 VDC power (Universal power supply included)
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Five year warranty

The Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.

Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features:

• Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
• Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver
• which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or
• Fiber to a secondary destination
• Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
• Uses 5-16 VDC power (Universal power supply included)
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Five year warranty

Video Formats

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i
   Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in the Download / Documents section of the website product page.

Video Input Digital

• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• YCbCr 4:2:2/4:4:4
• RGB 4:4:4, SMPTE or Full level
• 8, 10, 12-bit
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• 1x 12 Gb SDI
  (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1x 6 Gb SDI
  (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30

• 1x 3 Gb SDI (Level A or B Dual Link)
  (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30


  (HD) 1920x1080i 50, 59.94, 60
  (HD) 1280x720p* 50, 59.94, 60



• 1x 1.5 Gb SDI
  (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  (HD) 1920x1080i 50, 59.94, 60
  (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
  (SD) 625i 50
  (SD) 525i 59.94
  *1280x720p is Level A Only

Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only

• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  Overload Power: -2 dBm (min)

Input Signal Selection - Hi5-12G-R-ST Only

• 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
  Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  Overload Power: -2 dBm (min)

Video Output Digital

• 1x HDMI Type A connector*, HDMI v2.0b
• HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
• YCbCr 4:2:2/4:4:4/4:2:0
• RGB 4:4:4, SMPTE or Full level
• 24, 30, or 36 Bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 720x576i 50
• (SD) 720x480i 59.94
   *If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)

Audio Pass-Through Formats

• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Video Output Digital - Additional for Hi5-12G-TR Only

• 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  Optical Power: -5 dBm (min), 0.5 dBm (max)
  Extinction Ratio: 5.4 dB (min)

Audio Input Digital

• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

Audio Output Digital

• HDMI embedded audio, 24-bit, 8-channel

Audio Output Analog

• 2x RCA style connector, 2-channel -10dBu (nominal)

User Interface

• USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

Size (w x d x h)

• 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)

Weight

• 0.5 lb (0.3 kg)

Power

• 5-16VDC regulated, 11 watts, power supply required included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
   *Hi5-12G devices use approximately 11 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing a unit, mount in a location where the device has access to air for proper cooling. Do not stack a Hi5-12G device with other Mini-Converters.
