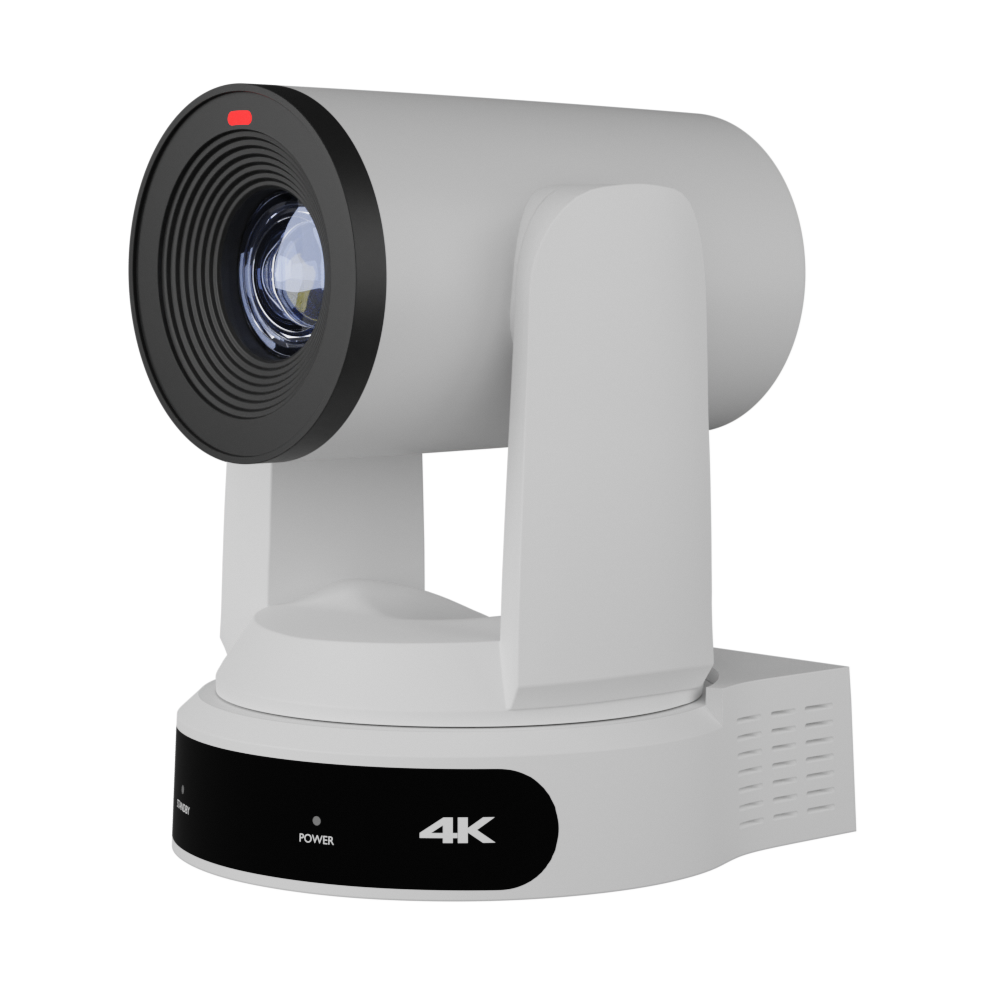

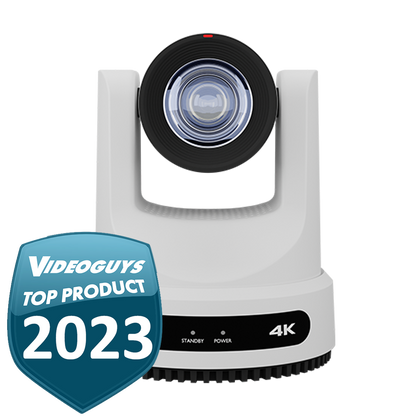

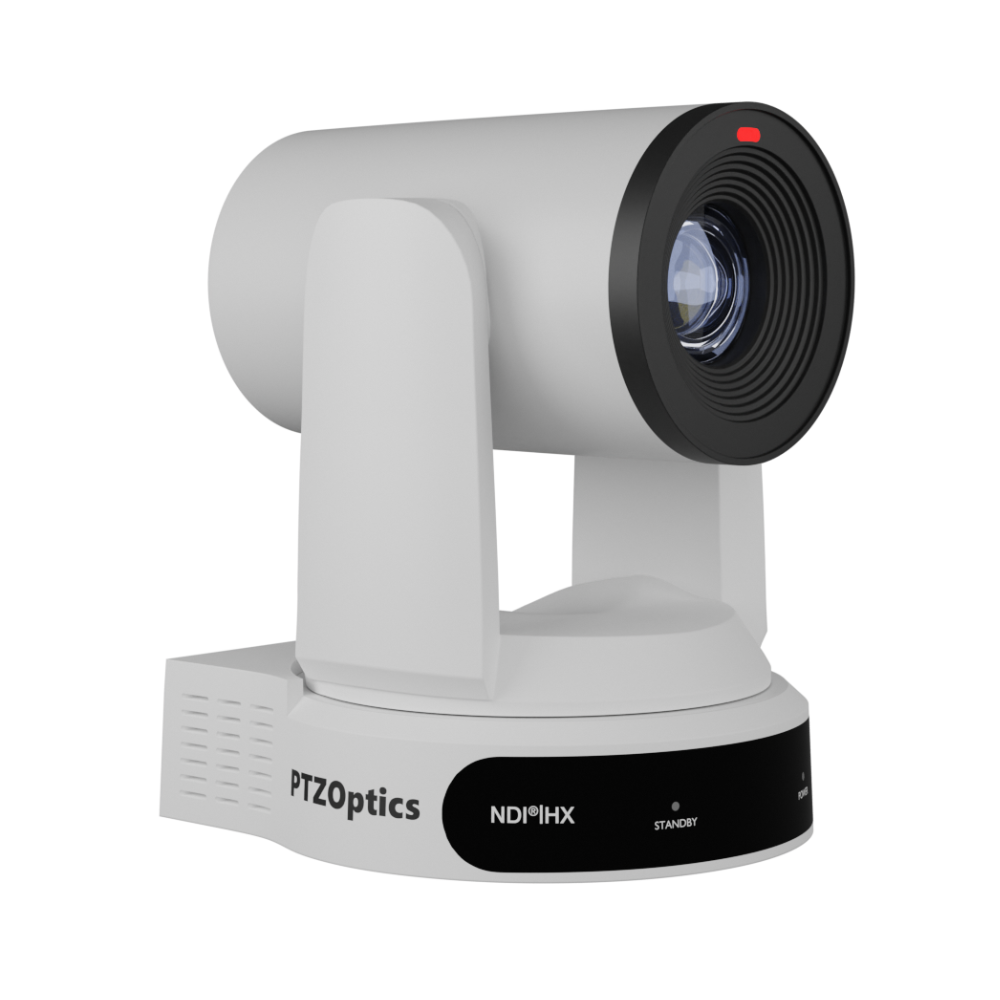

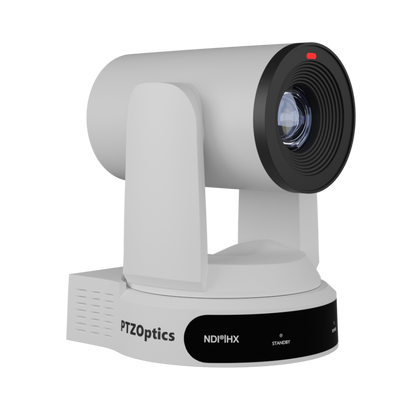

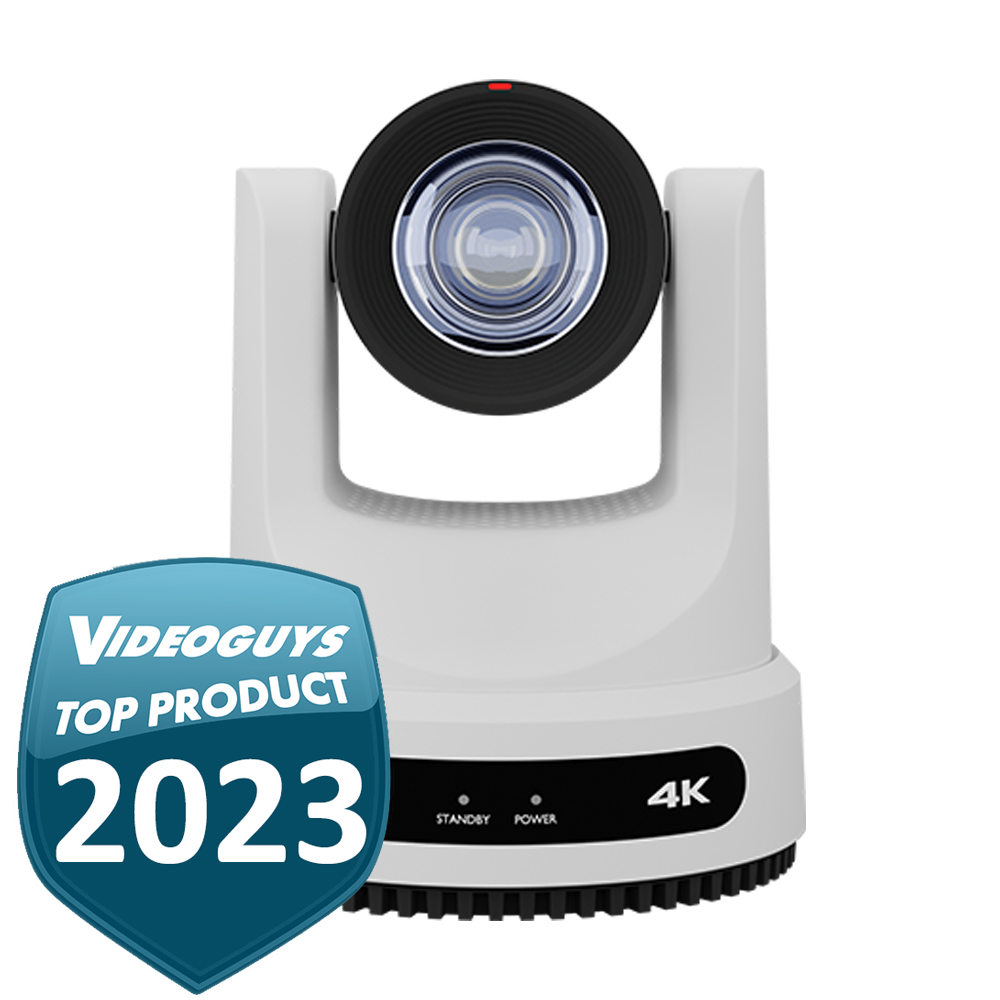

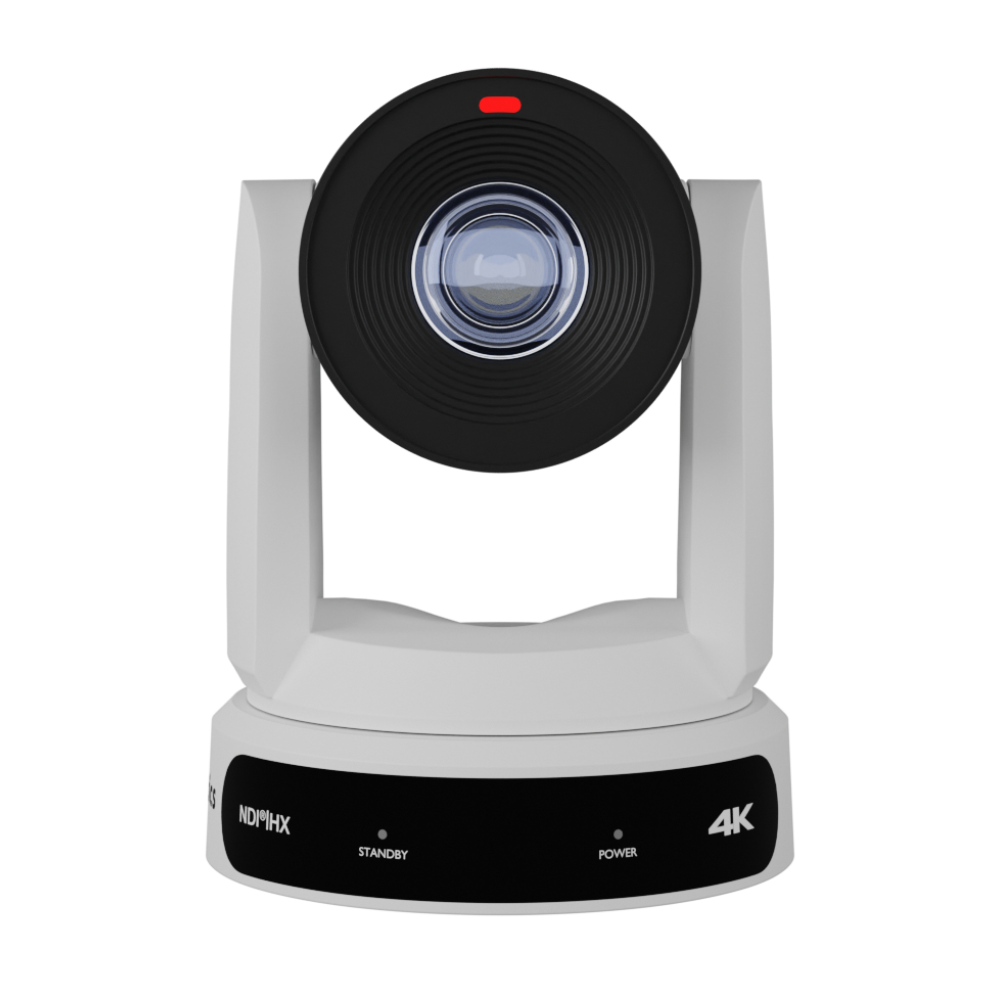

PTZOptics Move 4K 30X NDI|HX PTZ Camera - White
PTZOptics Move 4K 30X NDI|HX PTZ Camera - White
PTZOptics Move 4K 30X NDI|HX PTZ Camera - White
PTZOptics Move 4K 30X NDI|HX PTZ Camera - White
PTZOptics Move 4K 30X NDI|HX PTZ Camera - White

PTZOptics Move 4K 30X NDI|HX PTZ Camera - White

Regular price $2,419.00 Sale price$2,049.00 Save 15%
/
Free Shipping & Tech Support.

Videoguys Part # (SKU): PT30X4KWHG3
MFR Part # (MPN): PT30X-4K-WH-G3
Short Description:

PTZOptics Move 4K 30X NDI|HX PTZ Camera - White

A New Standard for PTZ Cameras

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track.

Control your production from behind the scenes – or right in front of them. With the Move 4K’s unique Presenter Lock™ technology, the camera can lock onto a specific person from up to 300 feet away, even while other people are in frame. Plus, this built-in auto-tracking feature allows users to seamlessly switch between on-stage presenters with the simple click of a button.

In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI — updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time

Discreet Mounting Options

Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Take Control Your Way

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

  • Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS and Twitch
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!
A New Standard for PTZ Cameras
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Discreet Mounting Options
Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

PTZ mounts:
  • Wall Mounts
  • Ceiling Mounts
  • Pole Mounts
  • Outdoor Enclosures

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time. Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Key Features
  •  UltraHD 4K (3840x2160p) video resolutions up to 60 FPS
  • Built-in auto-tracking capabilities
  • 30X optical zoom lens with a 59.2° horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • 3D noise reduction with our latest “low noise CMOS sensor”
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI, NDI®|HX 3 / IP streaming (SRT, RTSP, RTMP)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Built in tally light
  • Photobooth capable
  • 5-year warranty

Image Sensor & Lens
Video Sensor
1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens
f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Resolution and Frame Rate
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom
Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144
Field of View
Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
Min. Lux
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
Pan/Tilt Movement

Image Sensor & Lens
Video Sensor
1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens
f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Resolution and Frame Rate
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom
Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144
Field of View
Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
Min. Lux
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s

Pan/Tilt Movement
Pan Speed

1.7° ~ 100°/s
Tilt Movement
+90° to -30
Tilt Speed
1.7° ~ 69.9°
Presets
255 Presets
Video Tracking
Supported
Image Flip, Mirror and Freeze
Supported

Power Options
Power Supply
DC 12V / PoE+ (802.3at)
Input Power
18W (Max)

Physical Specifications
Material
Aluminum, Plastic
Color
White
Dimensions (W x D x H)
6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
Weight
4.41 lbs (2.0 kg)
Working Environment
Indoor
Operating Temperature
14°F ~ 104°F (-10°C to 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C to 60°C)

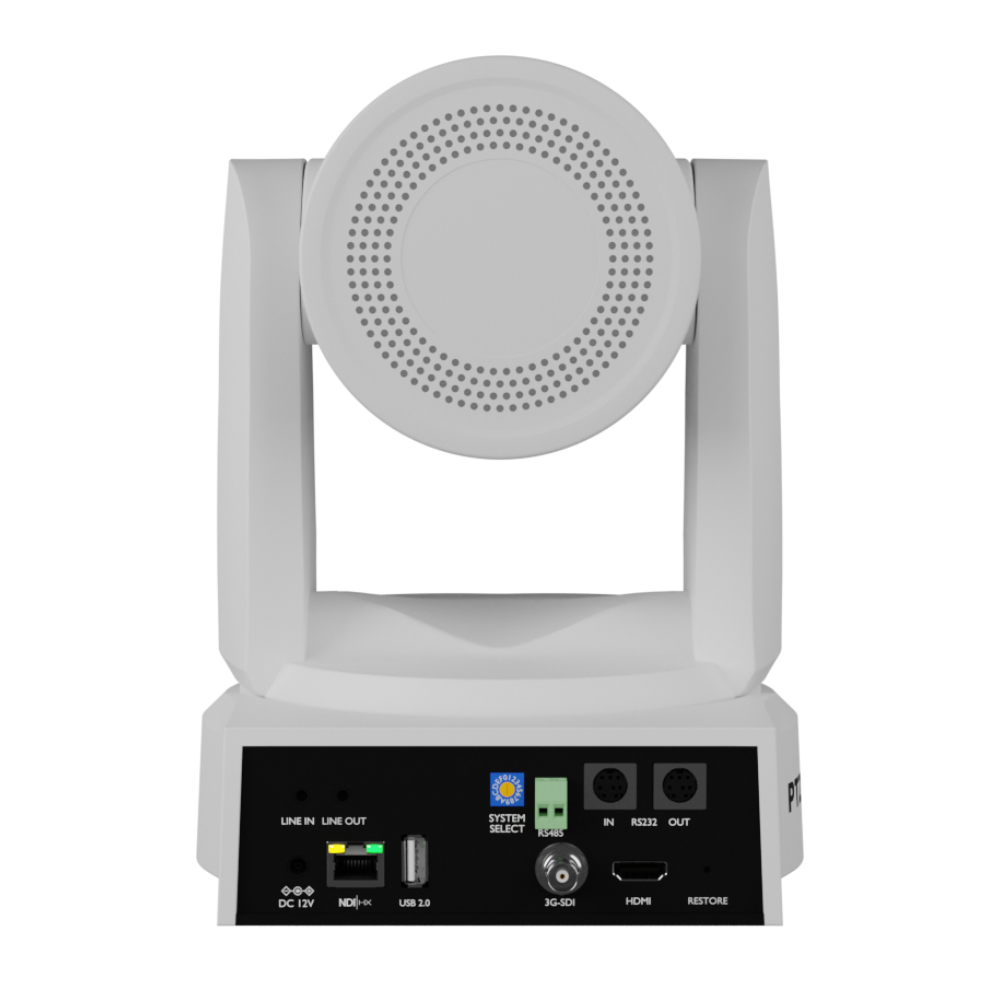

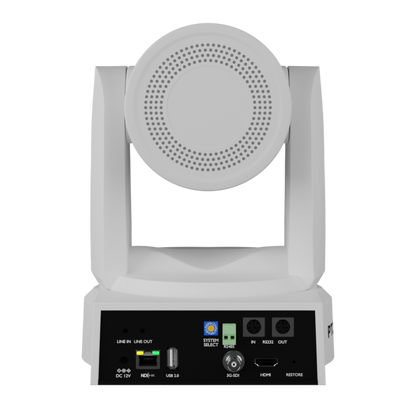

Rear Board Connectors
HD Video Output
1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface
1x 3.5mm Line level Input
Communication Interface
1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface
RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack
JEITA type (DC IN 12V)

What’s in the Box:

  • Camera
  • AC Power Supply
  • USB A-A Cable
  • RS232 Cable
  • Quick Start Guide
  • IR Remote
  • 2 AA Batteries
