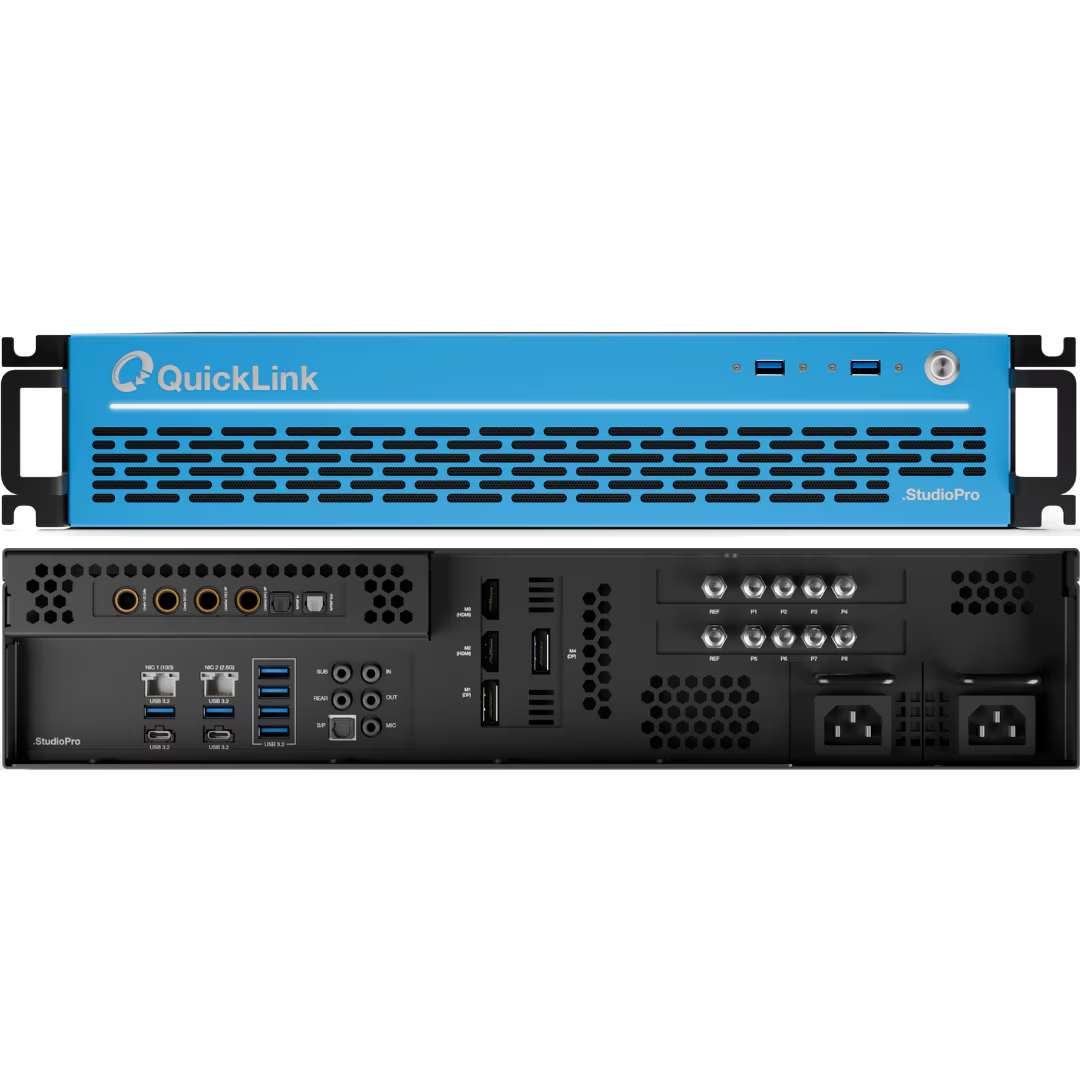

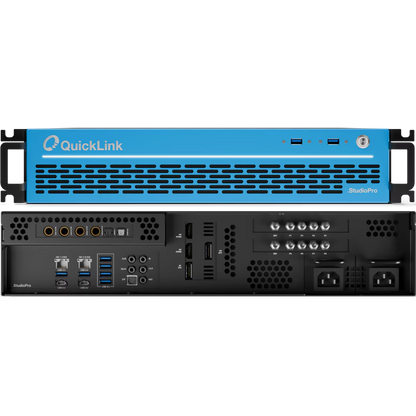

QuickLink StudioPro-8 8x configurable 12G-SDI (HD/4K/8K) with RRC™ with Power Supply Dual Hot-Swap, Includes Conference Calling (Advanced)

StudioPro is the World's Easiest-to-use 4K Video Production Platform
Enjoy atrue-to-life, ultra-lowlatency production experience without the complexity of legacy systems

StudioPro is ideal for these production environments:

• Corporate
• Houses of Worship
• Education
• Government

One-frame Delay
Synchronize flawlessly between stage speakers and large projected screens or video walls for live presentations. StudioPro eliminates lip-sync issues.

Remote Guest Integration
Take remote guest integration to unprecedented heights with built-in StudioEdge. Microsoft Teams, Skype, Zoom, WhatsApp, and more!

Capture Unlimited Devices
Effortlessly integrate unlimited cameras, microphones, videos, NDI sources, and remote guests into your productions. Create productions like a pro.

StudioPro
Produce amazing ‘scenes’, like creating presentation slides. Add multiple layers and switch effortlessly between scenes, much like Microsoft PowerPoint or Adobe Photoshop.

• Video Input: 48
• Network Video Input: NDI/RTMP/UDP/ SRT/RIST
• Hardware Video Input/Output: 8 x configurable 12G-SDI (HD/4K/8K)
• PTZ: 48 simultaneous
• Video Output: Program Output, Preview Output and 8 auxiliary independent UHD with simultaneous delivery via IP and SDI
• Network Video Output: Yes
• Conference Calling (Advanced): Yes
• Conference Calling: Yes
• Stream Output: 8
• Multiviewer Output: 4x Multiviewer outputs (2x HDMI, 2x DisplayPort)
• Mix/Effect Output: 120 individual mixed Scenes
• DSK Channels: 16
• Media Sources: Yes
• NewBlue Captivate™ Software: Yes
• Third-party Overlays: Yes
• Keyers: Yes
• Artificial Intelligence: Yes
• Virtual Sets: Yes
• Macros: Yes
• Recording: 16
• Storage: 4 TB SSD internal storage (Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2,type C, 1 USB 2.0 2(Gen2, Type A). Supports shared storage integration and third-party partner solutions)
• Support for Hardware Controllers: Yes
• Remote Control: Yes
• MIDI: Yes
• Hardware Audio Inputs/ Outputs:
  • Option #1 (Standard): 2x stereo 1/4" TRS (4 line level unbalanced in), 2 x stereo 1/4" TRS (4 line level unbalanced out)
  • Option #2 (Purchase): 8x XLR (8 line level balanced in)***: 8x XLR (8 line level balanced out)***
• Network Audio: Yes
• Genlock: Genlock input supporting SD (Bilevel) or HD (Tri-level) reference signals
• Supported Input & Output Formats:
  • 8K – 25, 30, 50, 60 *
  • 4K – 25, 30, 50, 60 *
  • 2K – 25, 30, 50, 60 *
  • 1080i – 50, 59.94, 60
  • 1080p – 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• HDR / 10 Bit SDR: Yes
• Monitoring: 4
• Tally (Hardware): Yes
• Tally (Network): Yes
• NIC:
  • 1x 10GbE NIC
  • 1x 2.5GbE NIC
  • 2x 1GbE NIC***
• RRC™ (Rugged Reliable Chassis), Dual Hot-Swap Power Supply: Yes
• Raided Drives: N/A
• Dimensions: 480mm (W) x 88mm (H) x 496mm (D) | 18.89” (W) x 3.46” (H) x 19.52” (D)
• Chasis: 2U chassis
• Weight: 9.7kg (21.4 lb)
