YoloLiv Instream Vertical Video All-in-One Encoder, Switcher, Monitor, and Streamer

Regular price$998.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): YOLOINSTREAM
MFR Part # (MPN): YOLO-INSTREAM

Short Description:
  • Free Shipping & Tech Support
Vertical Streaming Made Easy. The first and only all-in-one multi-cam vertical livestreaming studio.

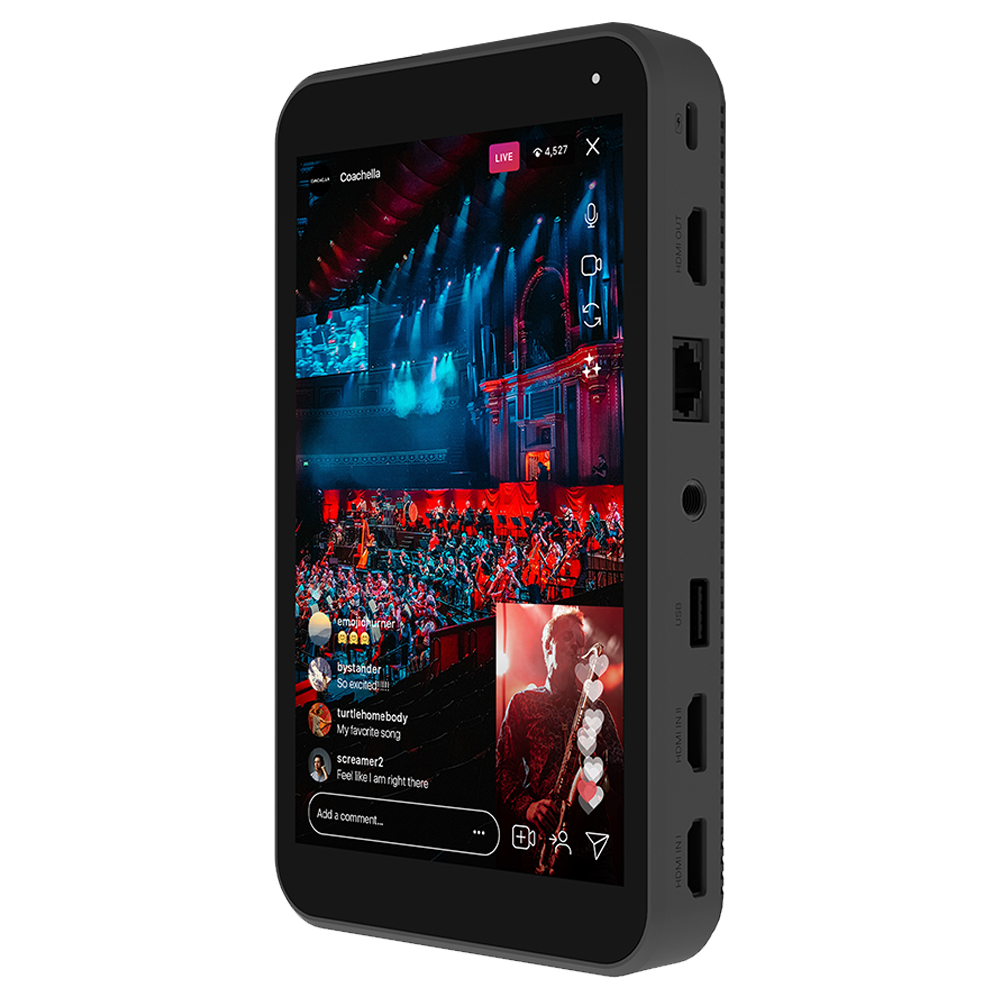

YoloLiv Instream is the industry’s first vertical all-in-one encoder, switcher, monitor, and streamer. Create better content for Instagram, TikTok, and more. Add multi-cam, graphic overlays, picture-in-picture, chroma key, transition effects, lower thirds, countdown timer and more to elevate your vertical livestream to the next level.

Create better content for Instagram, TikTok, and more.
  • Multi-Cam
  • Countdown Timer
  • Picture in Picture
  • Graphic Overlays
  • Lower-Thirds
  • Chroma Key

Features:
  • All-in-One: Encoder, Switcher, Recorder, and Monitor
  • Multiple Capture Sources: 2 HDMI + 1 USB In + SD Card
  • Running on Android OS: No computer or OBS required
  • 3 Ways to Connect: Wifi, 4G LTE, Ethernet
  • Total Touch Screen Control: Operate intuitively as your smartphone
  • Internal Battery: Lasts for 3+ hours
  • Portable and Mobile: Compact size, fits into backpack
  • Live On The Go: Entire mobile livestram studio, in one box

Dimensions & Weight
Height: 25mm
Width: 112.5mm
Length: 188mm
Weight: 600g

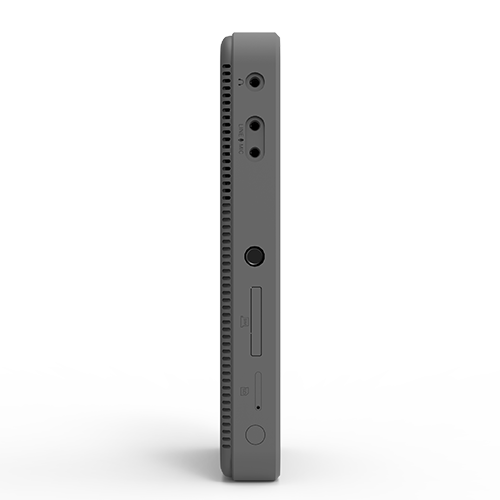

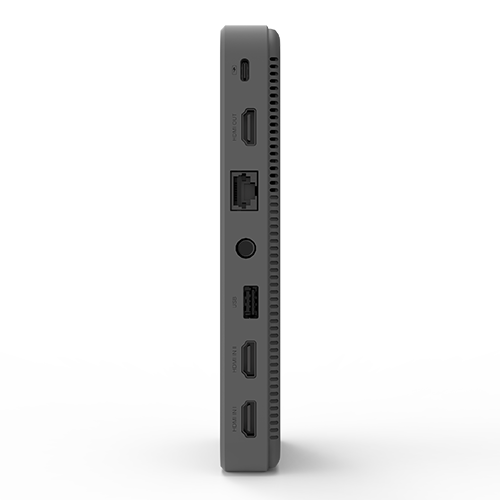

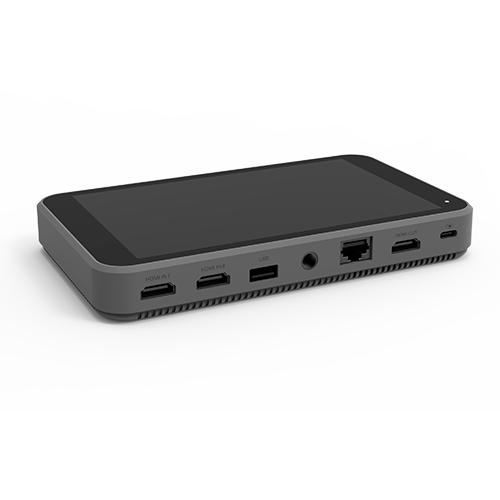

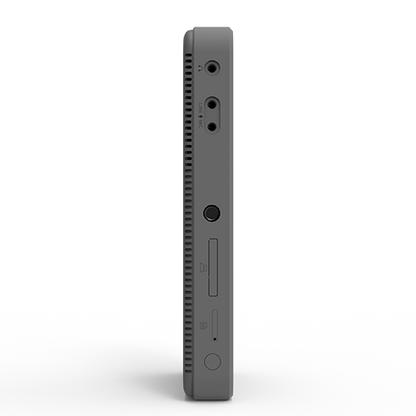

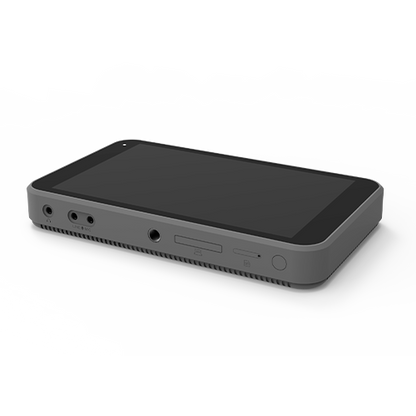

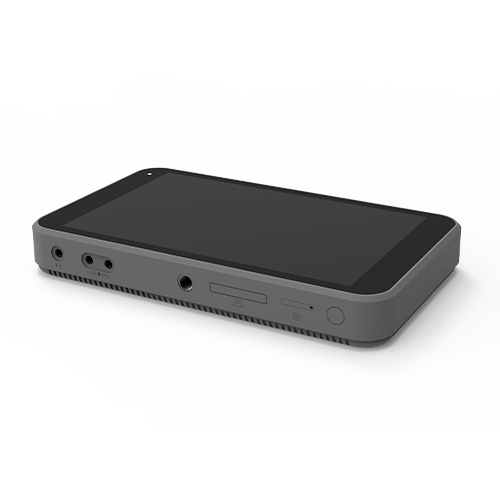

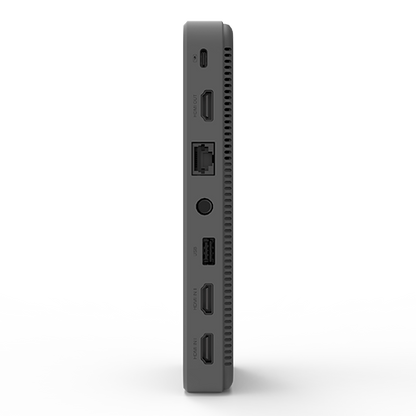

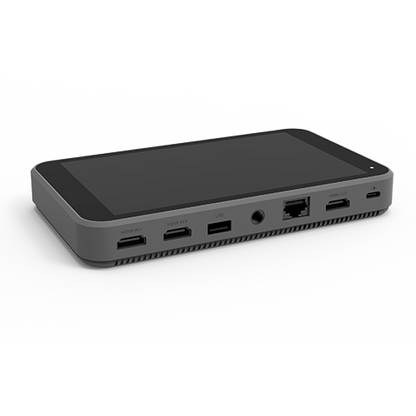

Ports
HDMI IN: Video input
HDMI IN: Video input
USB-C: Video input (Please note in some USB webcams, only video can be captured.)
1/4" Screw Hole: Mount Instream Mini with camera
ETHERNET PORT: Connect to Internet by Ethernet cable
HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
USB-C: Only for charging
AUDIO OUT: Connect with 3.5mm monitor headphones
LINE IN: Stereo, connect to electric guitar or synthesizer
MIC IN: Mono, connect to microphone for recording
SD Card Slot: Used for recording and loading graphics
SIM Card Slot: Insert SIM card to connect to Internet
Power Button: Turn on and turn off

Encoded Format
Video Encoded Format:H.264
Audio Encoded Format:(AAC)44.1K 2Ch 16bit
Video Recorded format:MP4
Audio Input Format:32KHZ/44.1KHZ/48KHZ :16bit
Live Broadcast Resolution:480P/720P/1080P
Frame Rate: Up to 60 fps

Video Storage
Storage Card Type:SD Card
Storage Card Type:SD Card
File System for SD Card: FAT32, exFAT, NTFS

Network Connection
WiFi: 2.4G/5G
4G Network: Global standard
SIM Card Size: Nano card

CPU
QualComm Snapdragon 845, 8-core Processor

Power
Power Interface:Type C, Quick Charge 3.0
Battery Capacity:10000mAh
Input power rating: DC5V 3A,9V 2A,12V 1.5A
Power Consumption: <18W

Transmission
Network Protocol:RTMP/RTMPS

Working Environment
Operating Temperature:0℃-40℃
Operating Humidity: 15%-85%, No Condensation
