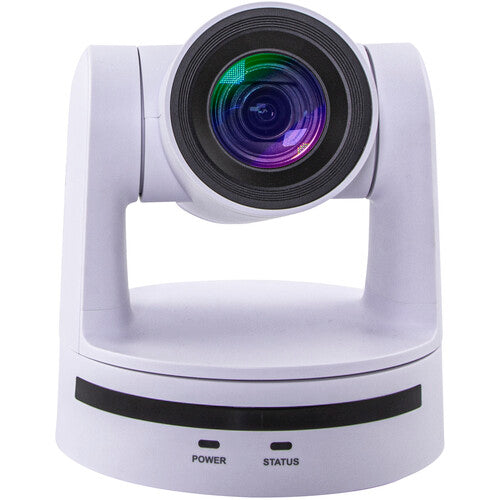

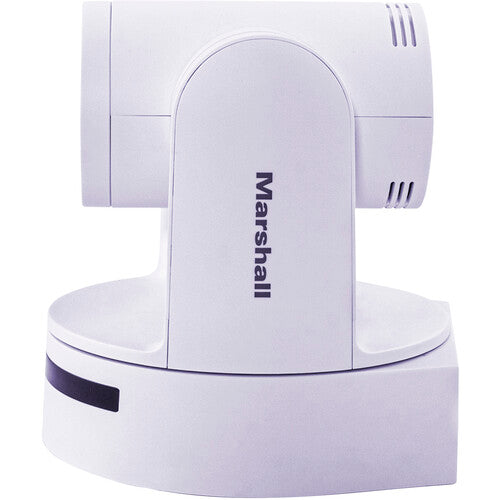

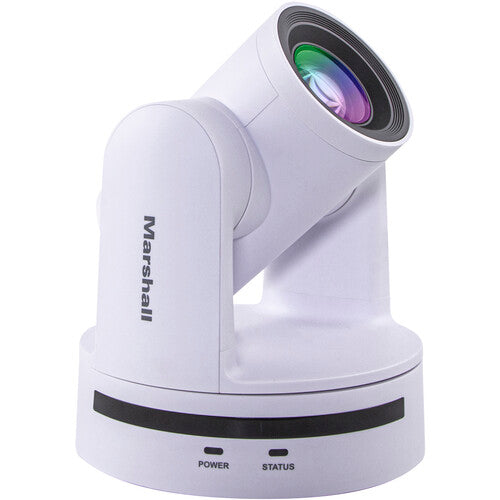

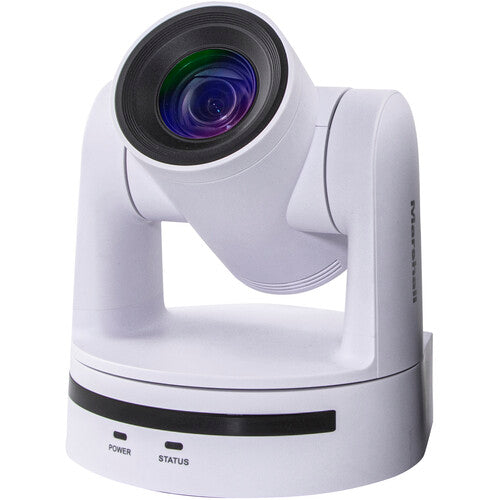

The CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.
Ultra-Wide 85° Horizontal AOV
The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.
Ultra-Wide 85° Horizontal AOV
The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.
Low-light Sensitivity
The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.
One Cable to Camera
One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.
Privacy Standby Mode
The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
2400 to 7100K
Presets: Auto, Manual, One Push
Lens
Focal Length
3.1 to 15.5mm
Optical Zoom Ratio
5x
Max Digital Zoom
10x
Field of View
84 to 20°
Maximum Aperture
f/1.8 to 11
Video Capture
External Recording Modes
HDMI
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 50/59.94 fps
RJ45
1920 x 1080p
1600 x 896
1280 x 720
1024 x 768
1024 x 576
960 x 540
800 x 600
800 x 448
720 x 576
720 x 480p
640 x 360
640 x 480p
480 x 270p
320 x 180p
USB
1920 x 1080p
1280 x 720
1024 x 576
800 x 600
800 x 448
640 x 480p
640 x 360
480 x 270p
320 x 180p
Broadcast Output
NTSC
Control
Presets
255 via IP, RS-232, VISCA
10 via IR
Move Speed
Pan: 0.1 to 60°/sec
Tilt: 0.1 to 30°/sec
Movement Range
Pan: 270° (-135 to 135°)
Tilt: 60° (-30 to 30°)
Tally Light
No
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
Interface
Video I/O
1x HDMI 1.0 Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
1x RJ45 (RS-232) Input
1x RJ45 (LAN) Control Input
1x USB-C (USB 3.2 / 3.1 Gen 1) Video Input
Built-In Speaker
No
Power
Power I/O
1x Barrel (12VDC at 1 A) Input
Power Consumption
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
Environmental
Operating Temperature
14 to 122°F / -10 to 50°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 95%
General
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
5.7 x 6.1 x 5.8" / 145.5 x 154 x 147 mm
Weight
2.84 lb / 1.29 kg
Packaging Info
Package Weight
6.35 lb
Box Dimensions (LxWxH)
10.5 x 9.8 x 9.2"
