AIR One Bundle
Advanced Image Robotics

AIR One Bundle

$9,995.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): AIR1A2023
MFR Part # (MPN): AIR1A2023
Short Description:

AIR ONE Camera

AIR One integrates off-the-shelf digital cinema cameras with a sophisticated robotic gimbal and precision control, delivering unparalleled PTZ performance and versatility.

The AIR One Bundle:
  • AIR One smart gimbal with embedded CPU
  • Camera: Z CAM E2-M4 (integrated)
  • Lens: Panasonic Lumix 14-140 (integrated)
  • iPad (10.2″ 64GB WiFi)
  • AIR iOS app
  • AIR zoom motor and mount
  • 12v-8a power supply
  • Ethernet cable
  • Quick release plate

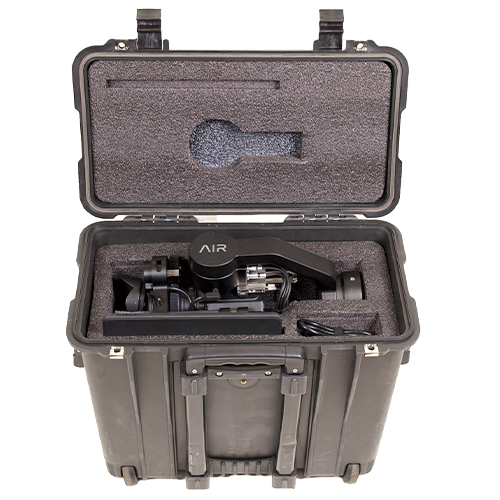

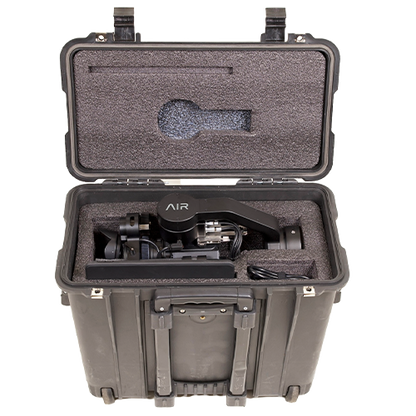

  • High-impact plastic travel case + foam
  • 3 months AIRcloud subscription
  • 12 months warranty on AIR One robot
  • 12 months support + software updates

AIR One isn't just another piece of equipment – it's an opportunity.

Production professionals understand the importance of image quality in livestreaming. AIR One brings advanced PTZ functions to digital cinema cameras, setting a new standard for professional live production, while reducing costs associated with traditional production.

AIR One Robotics

Meet AIR One – a robotic gimbal that brings human-like movement and automation to remote camera control. AIR One is self-contained kit that can be operated from anywhere using only a broadband connection, and will stream live video to any CDN.

Quality

Can record or stream at full camera resolution

Lightweight

Mount anywhere. Small enough to fit in an aircraft overhead bin.

Camera Agnostic

AIR supports multiple camera makes and models.

Smart Gimbal

Onboard CPU enables highly advanced shots without ever needing to touch the camera.

AIR App

The AIR iOS app allows touchscreen control of the AIR One robot from a local ethernet connection or remotely via the internet. Control up to 6 robots, each with up to 40 preset recall positions, from one iPad. Using the AIRcloud deeplinking, all camera settings and permissions can be autopopulated.

AIRcloud

AIR One connects directly into AIRcloud, an orchestration layer that simplifies your most complicated productions. You can automate your shoot prep and permissions, access all your favorite live production apps from one place, and manage your content via our media asset manager.


Scale Your Livestreaming Video Production

Results you can count on. A budget you can afford. AIR technology is better, simpler, and radically less expensive than traditional video production techniques. Guaranteed. Join the ranks of successful AIR users, from tier one sports teams to independent YouTubers.

AIR One integrates off-the-shelf digital cinema cameras with a sophisticated robotic gimbal and precision control, delivering unparalleled PTZ performance and versatility.



AIR One isn't just another piece of equipment – it's an opportunity.
Production professionals understand the importance of image quality in livestreaming. AIR One brings advanced PTZ functions to digital cinema cameras, setting a new standard for professional live production, while reducing costs associated with traditional production.



AIR One Robotics
Meet AIR One – a robotic gimbal that brings human-like movement and automation to remote camera control. AIR One is self-contained kit that can be operated from anywhere using only a broadband connection, and will stream live video to any CDN.



AIR App
The AIR iOS app allows touchscreen control of the AIR One robot from a local ethernet connection or remotely via the internet. Control up to 6 robots, each with up to 40 preset recall positions, from one iPad. Using the AIRcloud deeplinking, all camera settings and permissions can be autopopulated.



AIRcloud
AIR One connects directly into AIRcloud, an orchestration layer that simplifies your most complicated productions. You can automate your shoot prep and permissions, access all your favorite live production apps from one place, and manage your content via our media asset manager.



Scale Your Livestreaming Video Production
Results you can count on. A budget you can afford. AIR technology is better, simpler, and radically less expensive than traditional video production techniques. Guaranteed. Join the ranks of successful AIR users, from tier one sports teams to independent YouTubers.

M4 Camera Module

Sensor Type

  • 4/3" WDR CMOS Sensor


Sensor Size

  • 19.0 x 13.0 mm


Effective Pixel

  • 10.28M


Dynamic Range

  • 13~15 Stops / 16 Stops (with WDR)


Lens Mount

  • Locking MFT
  • Optional Mount: Locking EF (future PL)

Audio

  • Built-in Stereo Microphones
  • Aux inputs: lemo stereo/3.5mm stereo
  • 24-bit 48 kHz - AAC or PCM(MOV only)
  • Gain -10 to +12
  • Noise reduction on/off
  • Phantom power on/off (lemo inputs only)
  • Mic level only


Recording Resolution

  • 4096 x 2160 (C4K) / 3840 x 2160 (4K) / 1920 x 1080
  • 4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
  • 3696 x 2772 / 3312 x 2760
  • 2704 x 1600 /



Frame Rate

59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps



Max Variable Frame Rate

  • 120 fps for 4096 x 2160 (H.265)
  • 120 fps for 3840 x 2160 (H.265)
  • 240 fps for 1920 x 1080 (H.265)
  • 150 fps for 4096 x 1728 (H.265)
  • 160 fps for 3840 x 1620 (H.265)
  • 160 fps for 2704 x 1600 (H.265)
  • 59.94 fps for 3696 x 2772
  • 59.94 fps for 3312 x 276



Max Bit Rate

  • H.265 / H.264
  • 300 Mbps: 4096x2160 / 3840x2160 / 4096x1728 / 3840x1620 / 3696x2772 / 3312x2760 / 2704x1600
  • 200 Mbps: 1920x1080



Color Bit Depth

  • 10-bit (H.265) & 8-bit (H.264)



Video Encoder

  • 12-bit ProRes Raw / 12-bit ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile



File Format

  • MOV / MP4


Internal Recording

  • C-Fast 2.0 exFAT


ISO

  • Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR)
  • Native ISO: 500 / 2500 (250 / 1250 with WDR)


Shutter Speed:

  • Auto, Manual (up to 1/8000”)


Shutter Angle:


  • Auto, Manual (1° ~ 360°)


White Balance

  • Auto, Preset, Manual (2300K ~ 7500K)


Focus Mode

  • MF / AF / CAF


Image Control

  • Brightness / Contrast / Saturation / Sharpness


Image Profile

  • Rec.709 / Z-Log2 / FLAT / HLG


Time Code

  • Time of Day / Manual Input


Streaming

  • SRT (end-to-end 128/256 bit AES encryption)
  • RTMP
  • Bitrate 500kbs to 300Mbs
  • h.264/h.265
  • 1080p HD or 4K - fps: 24/25/30/60
  • Frame size/rate must be ≤ internal record format.



Camera Material

  • Aluminum Alloy


Operation Temperature

  • 0ºC ~ 40ºC


Storage Temperature

  • -20ºC ~ 60ºC



Optional Camera Modules


S6 Model:

  • S35 sensor – 23.4x15.67 mm - 26M pixels - 14 stop DR
  • Locking EF lens mount standard.
  • Resolutions and frame rates
  • 6244x4168 @30fps max (Open Gate)
  • 6144x3240 @48fps max (6K DCI)
  • 6144x2592 @60fps max (6K 2.4:1)
  • 5760x3240 @48fps max (6K UHD)
  • 5552x4164 @30fps max (5K 4:3)
  • 4992x4160 @30fps max (5K 6:5)
  • 4096x2160 @30fps max (4K DCI Low Noise) *
  • 4096x2160 @75fps max (4K DCI) *
  • 4096x1728 @100fps max (4K 2.4:1)
  • 3840x2160 @30fps max (4K UHD Low Noise) *
  • 3840x2160 @75fps max (4K UHD) *
  • 1920x1080 @120fps max (FHD)
  • ISO: 400~125000
  • Other specs same as M4


F6

  • Full Frame 6K sensor – 37x24.75mm - 26M pixels - 15 stop DR
  • Locking EF lens mount standard.
  • Resolutions and frame rates
  • 6064x4040 @30fps max (Open Gate)
  • 6064x3196 @48fps max (6K DCI)
  • 6064x2560 @60fps max (6K 2.4:1)
  • 5760x3240 @48fps max (6K UHD)
  • 5376x4032 @30fps max (5K 4:3)
  • 4848x4040 @30fps max (5K 6:5)
  • 4096x2160 @72fps max (4K DCI) *
  • 4096x1728 @120fps max (4K 2.4:1)3840x2160 @72fps max (4K UHD) *
  • 1920x1080 @120fps max (FHD)
  • ISO: 400~125000
  • Other specs same as M4


F8

  • Full Frame 8K sensor - 36x24mm - 61M pixels - 14 stop DR
  • Locking EF lens mount standard.
  • Resolutions and frame rates
  • 8192x3456 @30fps (8K 2.4:1)
  • 7680x4320 @30fps (8K UHD)
  • 6144x3240 @30fps max (6K DCI)*
  • 5760x3240 @30fps max (6K UHD)*
  • 3840x2160 @60fps max (4K UHD)*
    * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode
  • ISO: 400~125000
  • Bitrate 500 Mbps max for H.265 & H.264
    Other specs same as M4




Global Shutter Option


S6G

  • S35 - Global Shutter sensor – 28mm - 26M pixels - 14 stop DR
  • Locking EF lens mount standard.
  • Resolutions and frame rates
  • 6144x4096 @30fps max (Open Gate)
  • 6144x3240 @30fps max (6K DCI)
  • 5760x3240 @30fps max (6K UHD)
  • 6144x2592 @50fps max (6K 2.4:1)
  • 4096x2160 @56fps max (4K DCI) *
  • 4096x1728 @70fps max (4K DCI 2.4:1)*
  • 3840x2160 @56fps max (4K UHD) *
  • 1920x1080 @70fps max (FHD)
    * supersampling / cropping selectable when < 30fps
  • ISO: 1250~20000
  • Other specs same as M4


Internal Record Time (approximate)

  • 1T Cfast Card h.265 30fps at high bitrate
  • @1080p = 74+ hrs
  • @ 4K = 11+ hrs



LENSES

Lens mount

  • Locking MFT mount (interchangeable)
  • Optional Mount: locking EF, (future PL)


Lens types, focal lengths

  • MFT, EF, EF-S
  • Wide angle zooms (starting at 7mm)
  • Standard zoom (14mm+/- to 140mm+/-)
  • Telephoto zoom (up to 300mm*)
  • Primes


Lens max weight

  • 1.0kg


Lens max length

  • 300mm


Approved lens list

  • Contact your Broadfield sales rep


Crop factor (Field of view varies by mount, lens type, and sensor size.)

  • M4 camera + MFT mount + MFT lens = 1.9x crop
    e.g. 14mm MFT lens provides a 35mm-equivalent field of view of a 27mm Full Frame lens (approx. 67º horizontal field of view).
  • M4 camera + EF mount + EF lens = 1.75x crop
    e.g. 14mm EF lens provides a 35mm-equivalent field of view of a 25mm Full Frame lens (approx.71º horizontal field of view).
  • S6 camera + EF mount + EF lens = 1.5x crop
    e.g. 14mm EF lens provides a 35mm-equivalent field of view of a 21mm Full Frame lens (approx. 81º horizontal field of view)
  • F6 + FF mount + FF lens = 1x crop
  • F8 + FF mount + FF lens = 1.2x crop


Sensor subsampling

  • S6/F6/F8 also feature a “crop sensor” mode for subsampling from a smaller area of the sensor when recording/streaming in a 4k/1080HD (vs standard mode which downsamples the full frame from 6K/8K to 4k/HD). Crop mode effectively gives a narrower optical field of view with zero loss in video quality for scenarios where increased focal length on the long end of the zoom is desirable.
  • S6 4K supersample mode = 2.1x
  • S6 HD supersample mode = 4.2x
  • F6 4K supersample mode = 1.5x
  • F6 HD supersample mode = 3x
  • F8 6K supersample mode = 1.6x
  • F8 4K supersample mode = 2.4x



Lens requirements

  • Electronic focus required for remote control
  • Electronic aperture required for remote control
  • Fitted 0.8 MOD lens gear adapter required for ungeared lenses
  • Recommended: Tiltaing Seamless Focus Gear Ring, diameter lens dependent.
    (0.8 MOD ring for 14-140mm Panasonic included in base AIR One™ package)


Zoom servo (included)

  • Dynamic variable speed AIR servo
  • Up to 45º of rotation per second.
    (End-to-end zoom travel time dependent on lens, typical is 2 secs)



ROBOT - 3 axis stabilization Dual IMU, triple encoder. Full time automatic stabilization.


Gimbal materials

  • Aluminum Alloy – Carbon Fiber


Payload capacity

  • 3kg


Mount orientation

  • Inverted or vertical


Rotation Horizontal

  • 710º (-355º~+355º) 0º from center


Rotation Vertical

  • 180º (-60º to +120º) 0º from level horizon


Rotation Roll

  • 180º+90º of stabilization (-270º to +270º) 0º from level horizon


Speed

  • 90º per second standard (135º/sec in turbo mode)


Gimbal drift (all axis)

  • <0.5º per hour



AIRstation

  • On board CPU


CPU

  • Quad core Cortex-A72 64-bit @ 1.5GHz
  • 4GB RAM LPDDR4-3200 SDRAM
  • Gigabit ethernet


Operation Temperature

  • 0ºC ~ 50ºC


Storage

  • 4GB RAM, eMMC 32GB


API library

  • AIR API

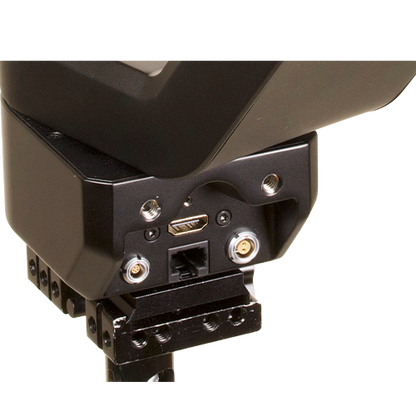

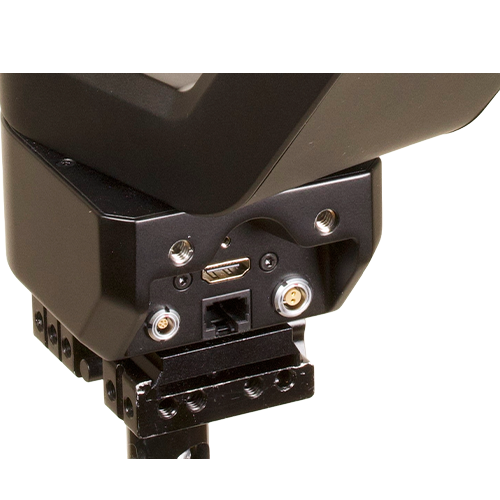

AIRstation Base Connections: External connections


Ethernet

  • RJ-45 – Gigabit


Video/Audio

  • HDMI - 4k 25/30/50/60. 1080p25/30/50/60. 720p60. Frame size/rate must
    be ≤ internal record format.


Audio Input

  • Stereo lemo 5-pin
    (5 pin lemo to dual XLR breakout cable required)


Power Input

  • DC 12V 8A power supply provided – 2 pin lemo



AIR iOS control APP


  • iOS 16.7.2+
  • Apple iPad 9th generation +
  • 10.2”   64GB  WiFi only


iPad ethernet connection

  • RJ45 to lightning hardwire connector highly recommended.
  • Ethernet + power adapter (included in base AIR One™ package)
    (When used with a PoE+ network or a Apple lightning USB power supply allows for unlimited iPad runtime and simultaneous hardwire ethernet connectivity).
  • Wifi connection to LAN for control possible but not recommended.


Remote control

  • Pan/Tilt/Zoom/Focus/Exposure/Camera settings
  • Over standard gigabit LAN for on-site control
  • <150ms latency
  • Off-site control via internet connection
    (AIR cloud subscription required for offsite control)


LAN connection for remote control app

  • >1,000Mbs ethernet recommended
  • <50ms ping recommended


Internet connection for remote control app

  • >10Mbs down, >3Mbs up required. (single camera)
  • >100Mbs up/down recommended.
  • >1,000Mbs up/down optimal.
  • <50ms ping recommended. Increased latency affects control performance.


Internet connection for streaming

  • Recommended streaming bandwidth up at least X2 video data rate per camera. e.g. 4 cameras @ 20Mbs X2 = 160Mbs upload speed.
  • >5Mbs up required per camera
  • >100Mbs up recommended.
  • >1,000Mbs up optimal.
  • <50ms ping recommended. Increased latency affects performance.


Tablet Pan Tilt

  • Manual P/T - Touchscreen in picture area
  • Manual P/T - iPad accelerometer/gyroscopic mimic
  • Automated P/T – via recall buttons
  • Horizontal/Vertical position (max rotation - horz:-179º~+179º / vert:-60º~+120º)


Control slider

  • Lens: zoom (dynamic variable speed)
  • Lens: focus (absolute position)
  • Lens: aperture (absolute position)
  • Camera: ISO (absolute position)


Recall presets

  • ~40 presets. Recall of Pan/Tilt/Zoom/Focus. Settings for speed of recall 1~5. Toggle automatic easing on/off.  Toggle focus on recall on/off.


Recall activation

  • WYSIWYG - save current camera position & settings
  • Slide button upward to set
  • Double-tap button to recall – triggers smooth automated camera movement.


Preset button available parameters

  • Horizontal/Vertical position
    (-179º~+179º horz/ -60º to +120º vert.  0º x 0º = level horizon/centered)
  • Lens zoom focal length (parameters lens dependent)
  • Focus position (parameters lens dependent)
  • Aperture (parameters lens dependent)
  • ISO (500 ~ 102400 / 250 ~ 51200 with WDR)
  • Speed of movement settings for each parameter (1~10)
  • Ease in/out of movement parameters (1~10)
  • Button can set/recall either an individual parameter or multiple parameters collectively.


Camera settings

  • All camera configuration settings (frame rate, resolution, codec, etc.) available via the AIR app submenu.


Audio settings

  • Display levels
  • Gain -10 to +12
  • Noise reduction on/off
  • Phantom power on/off


Playback

  • Select clip/Play clip/Delete clip



SYSTEM

System weight Includes: M4 camera, 14-140mm lens, complete robot, zoom motor.

  • 4.750kg (10.5 lbs)
  • Height: 35cm (14 in)
  • Width:10cm (when folded flat)  (4 in)
  • Depth: ~35cm (with bundled lens) (14 in)
  • Case: (H) 46cm x (W) 30.5cm x (L) 21cm  (18 x 12 x 20

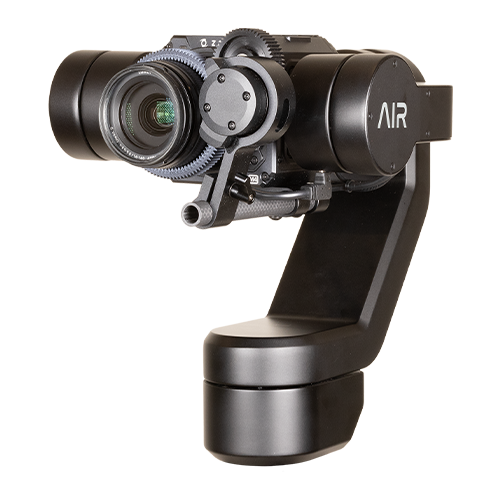

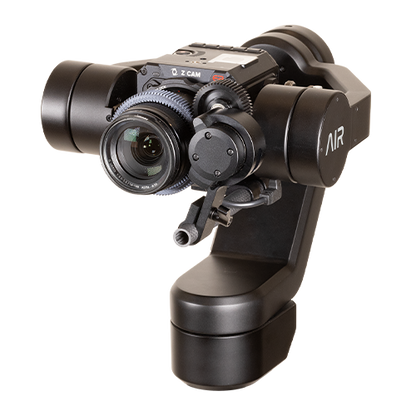

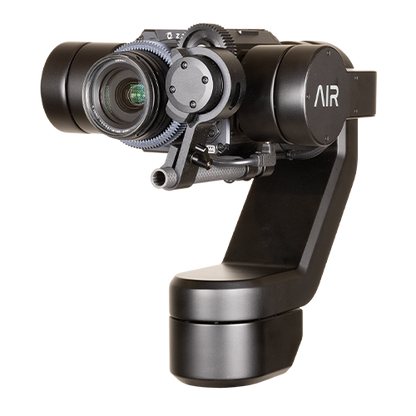

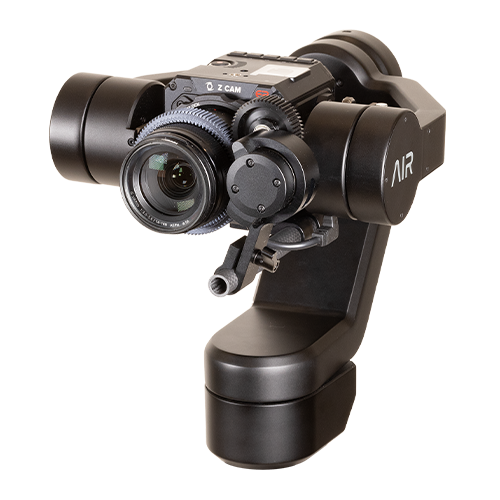

  • AIR One smart gimbal with embedded CPU

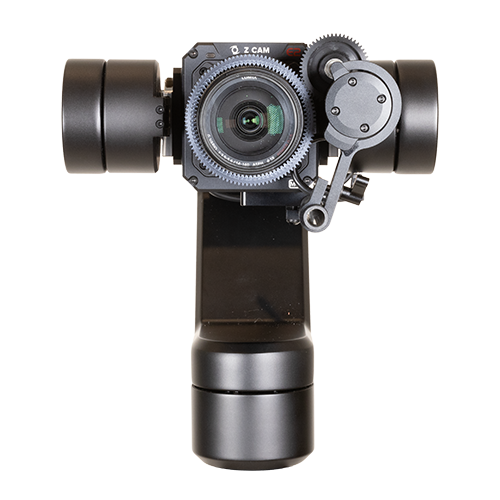

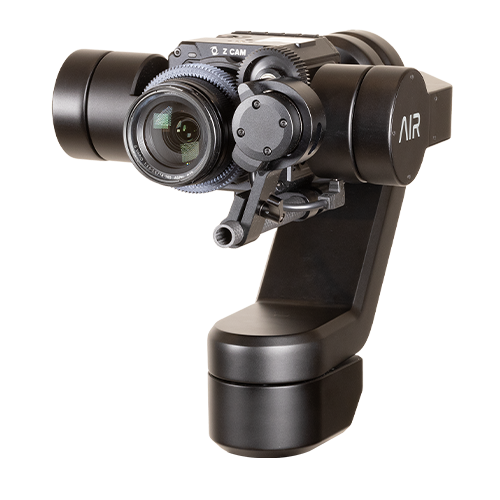

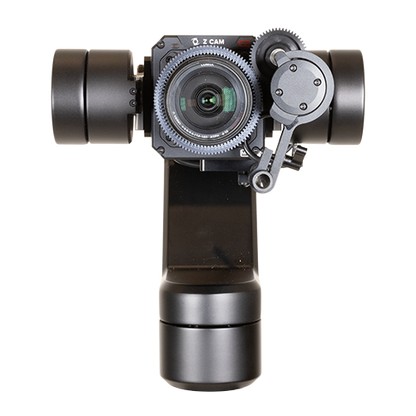

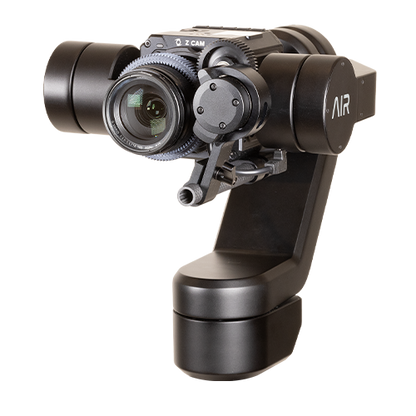

  • Camera: Z CAM E2-M4 (integrated)
  • Lens: Panasonic Lumix 14-140 (integrated)
  • iPad (10.2″ 64GB WiFi)
  • AIR iOS app
  • AIR zoom motor and mount
  • 12v-8a power supply
  • Ethernet cable
  • Quick release plate
  • High-impact plastic travel case + foam
  • 3 months AIRcloud subscription
  • 12 months warranty on AIR One robot
  • 12 months support + software updates
