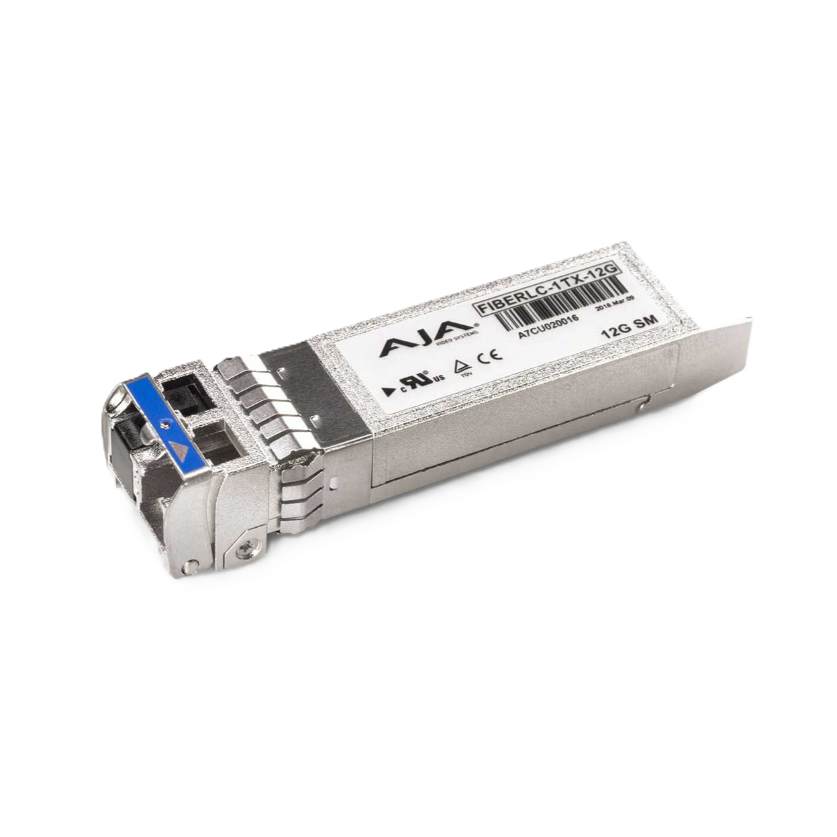

AJA 1-Channel 12G-SDI Single Mode LC Fiber Transmitter

AJA FIBERLC-1TX-12G 12G-SDI Single-Mode LC Fiber Transmitter

The AJA FIBERLC-1TX-12G is a 1-channel 12G-SDI single-mode LC fiber transmitter SFP designed for use with AJA FS-HDR and FS4 frame synchronizers and converters. It provides direct fiber connectivity for high-bandwidth SDI workflows and is designed to work with the AJA FIBERLC1RX12 receiver.

Key Features

• 1-channel 12G-SDI fiber transmitter
• Single-mode LC fiber connectivity
• AJA FIBERLC-1TX-12G SFP module
• Designed for AJA FS-HDR and FS4 frame synchronizers and converters
• Compatible with the AJA FIBERLC1RX12 receiver
• Supports fiber cable runs up to 6.21 miles (10 km)
• Enables direct fiber connectivity without a separate fiber-to-SDI converter
• Ideal for professional broadcast, live production, and SDI infrastructure

12G-SDI Single-Mode Fiber Transmission

The AJA FIBERLC-1TX-12G provides 12G-SDI transmission over single-mode LC fiber, allowing compatible AJA equipment to connect directly to long-distance fiber infrastructure. With support for cable runs up to 6.21 miles (10 kilometers), it is well suited for applications requiring reliable, high-bandwidth SDI connectivity over extended distances.

Designed for AJA FS-HDR and FS4

This AJA 12G-SDI fiber transmitter SFP is designed specifically for use with the FS-HDR and FS4 frame synchronizers and converters. When paired with the compatible FIBERLC1RX12 receiver, it provides a direct fiber transmission solution without requiring a separate fiber-to-SDI conversion device.

The FS-HDR supports flexible SDI and fiber I/O configurations, including 12G/6G-SDI HD-BNC and single-mode or multimode fiber options. The FIBERLC-1TX-12G gives users another option for building flexible fiber-based SDI workflows around AJA's professional video infrastructure.

• Type: SFP 12G-SDI Single Fiber LC Transmitter Single Mode 1310nm
• Compatibility: FS-HDR and FS4 models

• AJA FIBERLC-1TX-12G 12G-SDI Single-Mode LC Fiber Transmitter
• Warranty: Limited 5-Year Manufacturer Warranty
