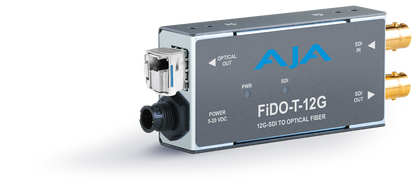

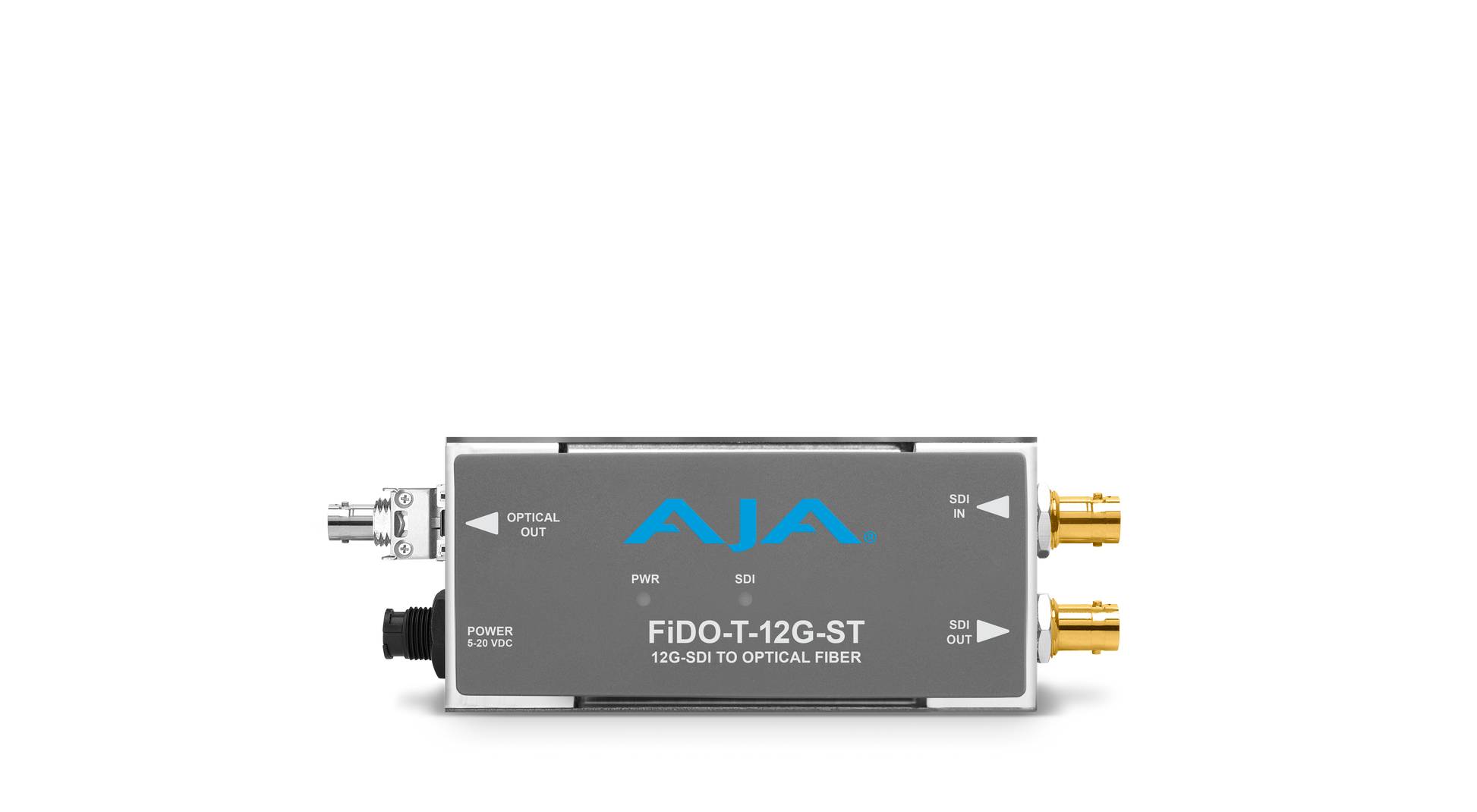

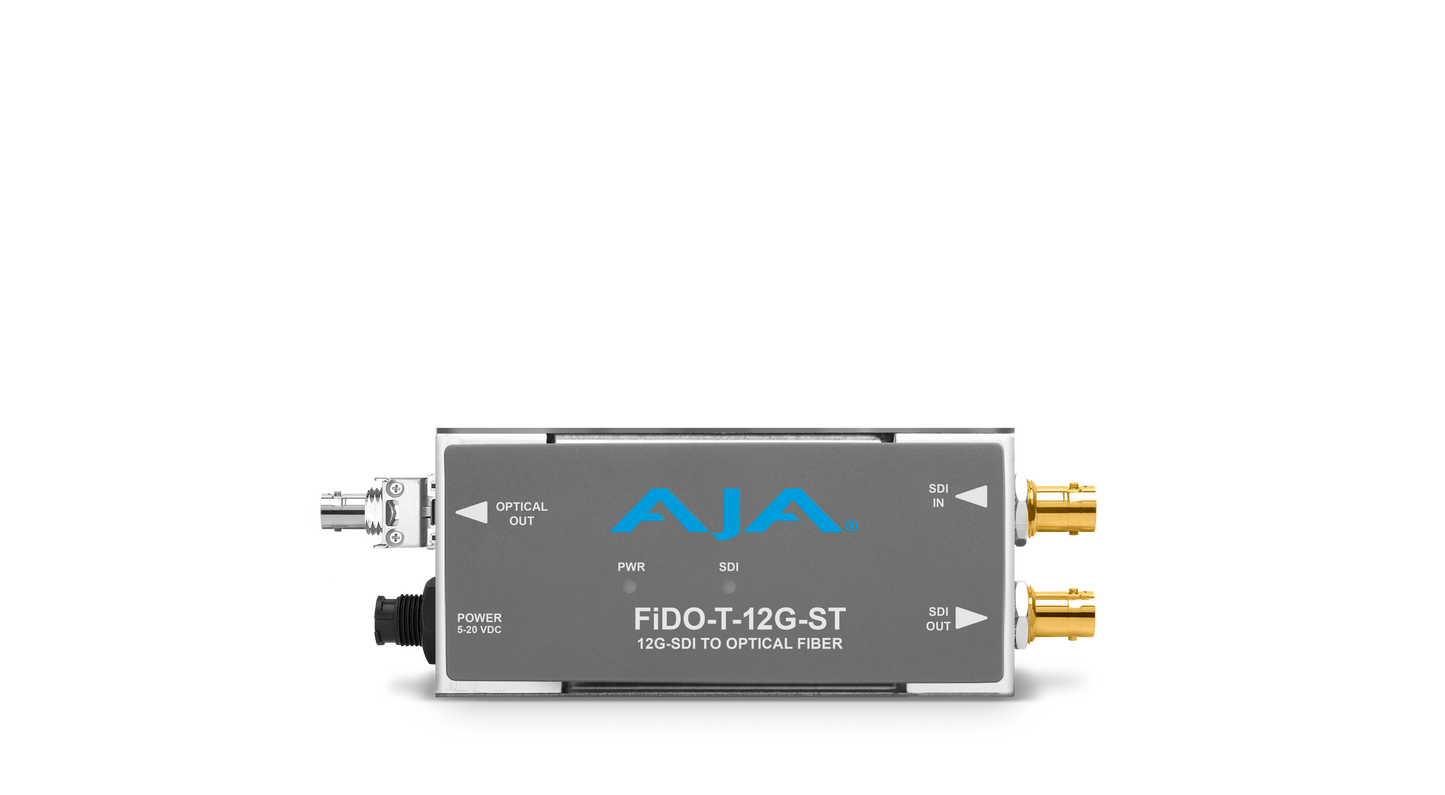

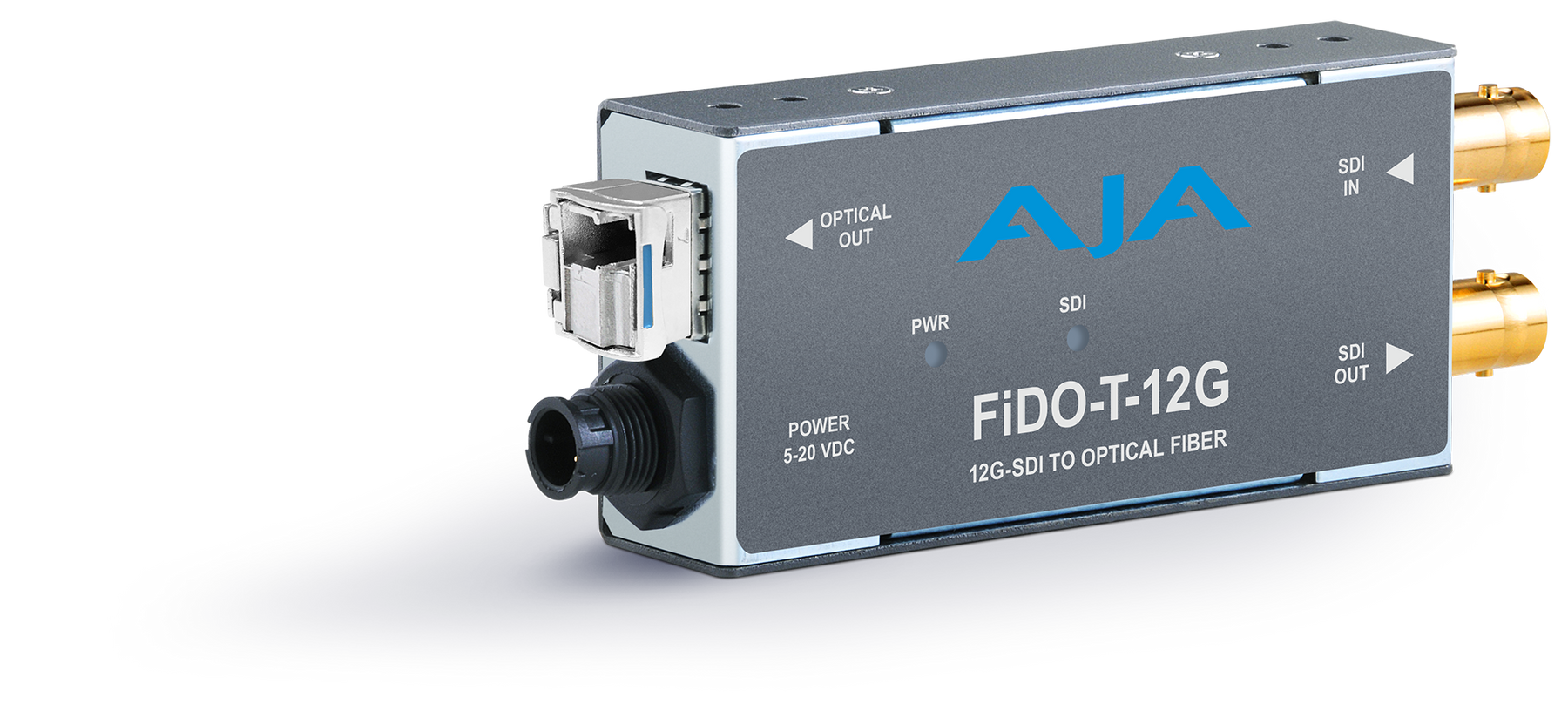

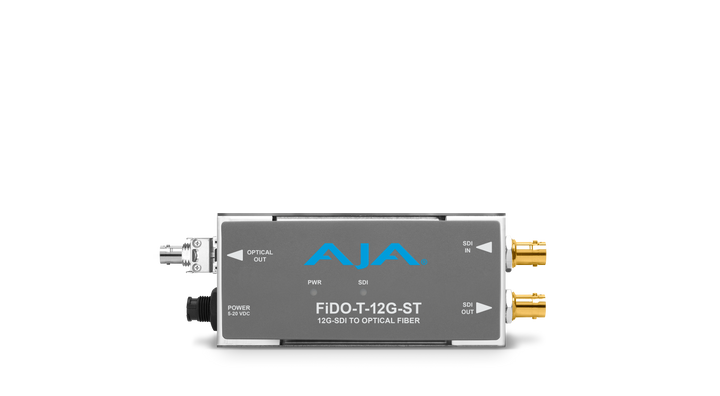

AJA 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter

Overview
AJA 1-Channel 12G-SDI Single Transmitter offers unmatched flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

AJA 1-Channel 12G-SDI Single Transmitter converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:
1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
Simplex connection (LC connector)
12G-SDI input, which also supports 6G/3G/HD/SD-SDI
Reclocked loop through of SDI input
Supports pass through of SDI metadata, including HDR
Uses 5-20VDC power (Universal power supply included)
Five year warranty

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Video Formats

• 270 Mbps - 12 Gbps, format agnostic

Video Input Digital

• 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082

Video Output Digital

• 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082
• 1-channel 12G-SDI Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
• Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
• Optical Power: -5 dBm (Min), 0.5 dBm (Max)
• Extinction Ratio: 3.5 (Min)

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps,
• 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked

Size (w x d x h)
4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)

Weight
0.4 lb (0.2 kg)

Power
2 watts, max
Uses 5-20VDC power, universal power supply included



Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
