AJA 12G 32-Ch Dante Embedder/Disembedder no SFP

The AJA 12G 32-Ch Dante Embedder is a high performance Audio over IP (AoIP) Converter, embedding and disembedding SDI audio to a Dante network and back to SDI from Dante audio. Equipped with 12G-SDI input and output and dual etherCON GigE ports, the DANTE-12GAM is capable of simultaneously embedding and disembedding up to 16* channels of audio in and out for a total of 32* audio channels in a compact device.

The AJA 12G 32-Ch Dante Embedder is your portal to a vast array of IP audio solutions. Dante networks not only support the Dante audio streams but also support AES67 and SMPTE ST 2110-30 AoIP, providing massive flexibility for all your IP audio needs.

DANTE-12GAM is available with a single-channel 12G-SDI input and output, or as two dual-channel options: DANTE-12GAM-TR-LC (with LC Fiber SFP) or DANTE-12GAM-TR-BNC (with BNC SFP), which support a total of up to 64 channels of Dante audio in a compact Mini-Converter form factor. The single channel can be upgraded to the dual channel version at any time via an optional license and the addition of either the BNC or LC Fiber SFP.

No matter the configuration you choose, you can rely on AJA’s legendary build quality and support to give you peace of mind whether you're an individual creator or broadcasting the largest live events.

*up to 64 channels of audio with the dual channel option/upgrade.

Dante: The Audio Networking Standard for the Pro AV Industry and Beyond
Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters. It is widely adopted by over 600 manufacturers offering 4000+ Dante device types. Dante IP audio networking provides digital audio distribution over local and wide area networks with very low latency (<1 ms), using standard network hardware or connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, ease of installation, and maintenance.

Dante allows uncompressed, multi-channel, low-latency, high-resolution digital audio to be distributed across a switched Ethernet network using standard TCP/IP protocols while meeting stringent quality and timing requirements of professional audio. For your peace of mind, Dante audio supports a redundant network topology with dual networks via a primary and secondary 1 GigE port on most Dante devices.

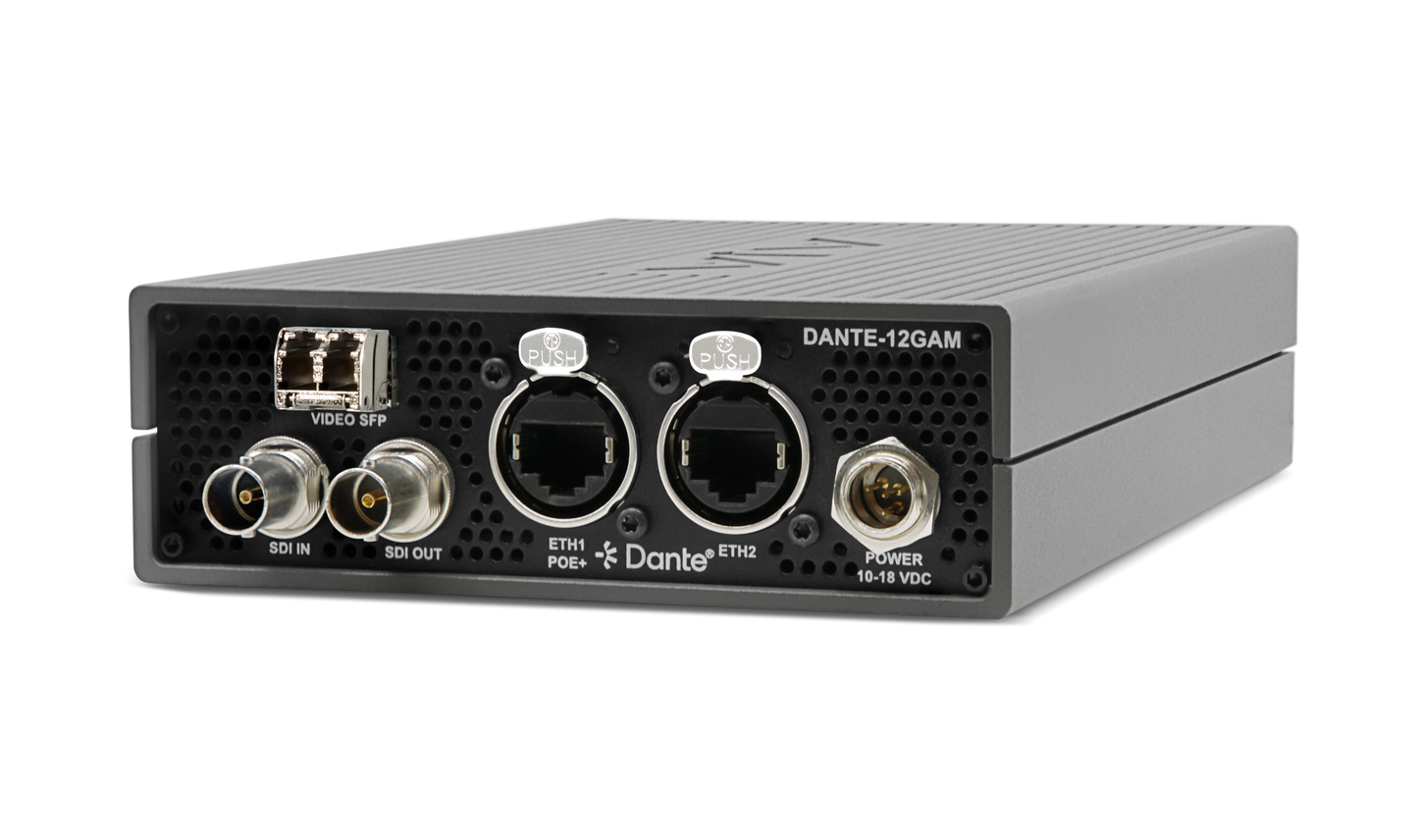

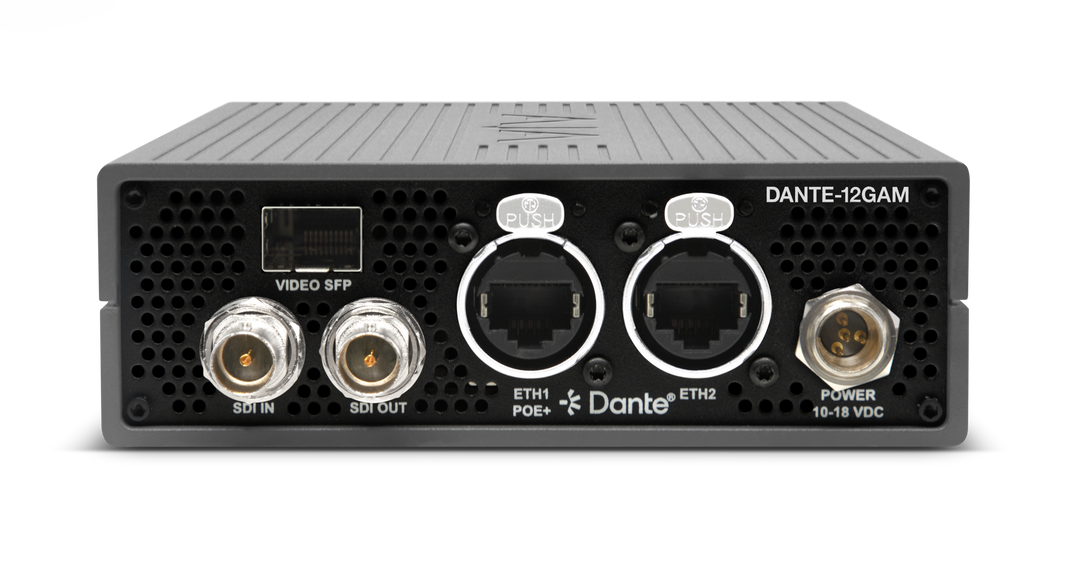

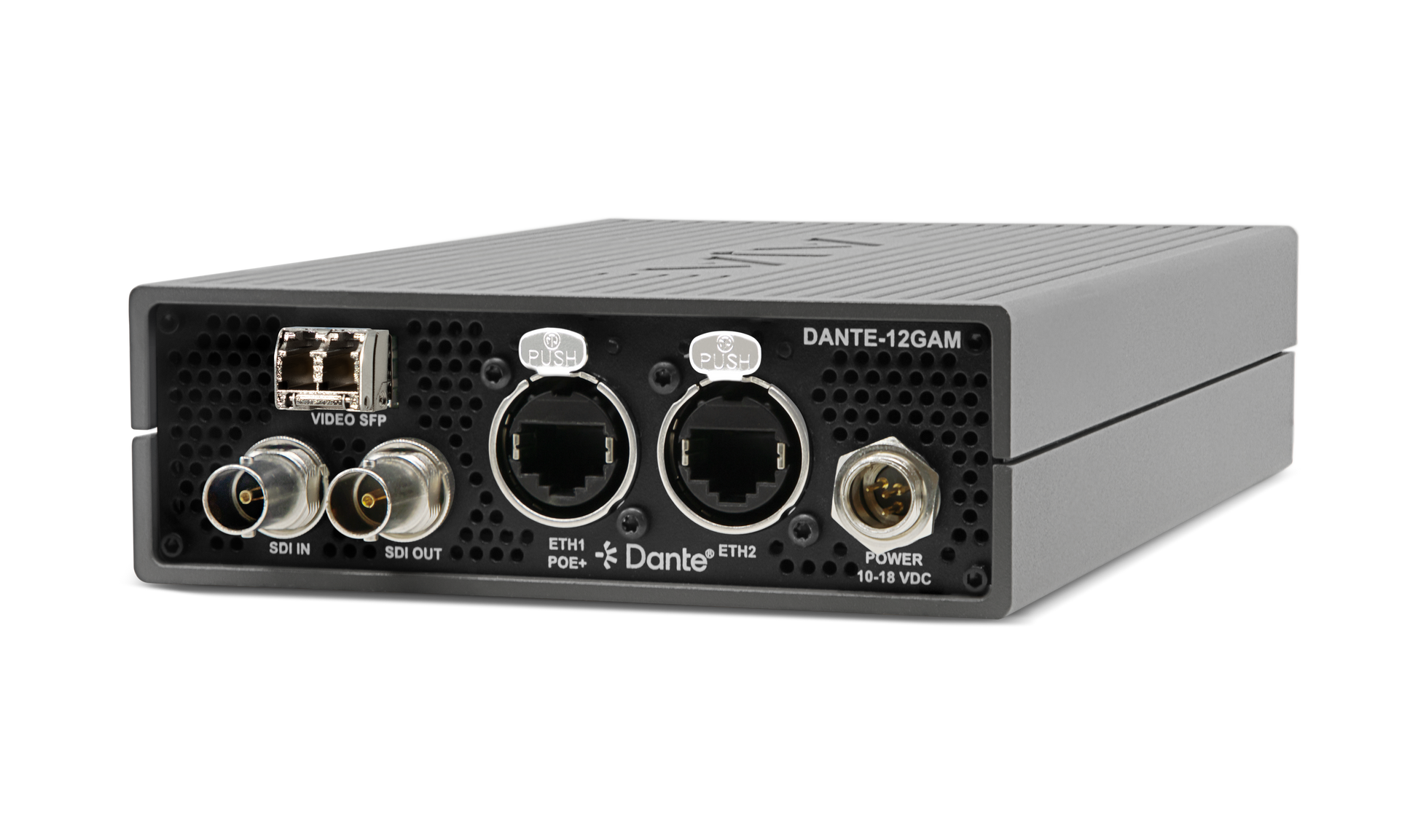

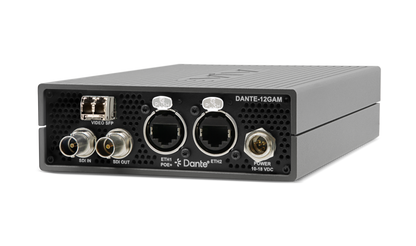

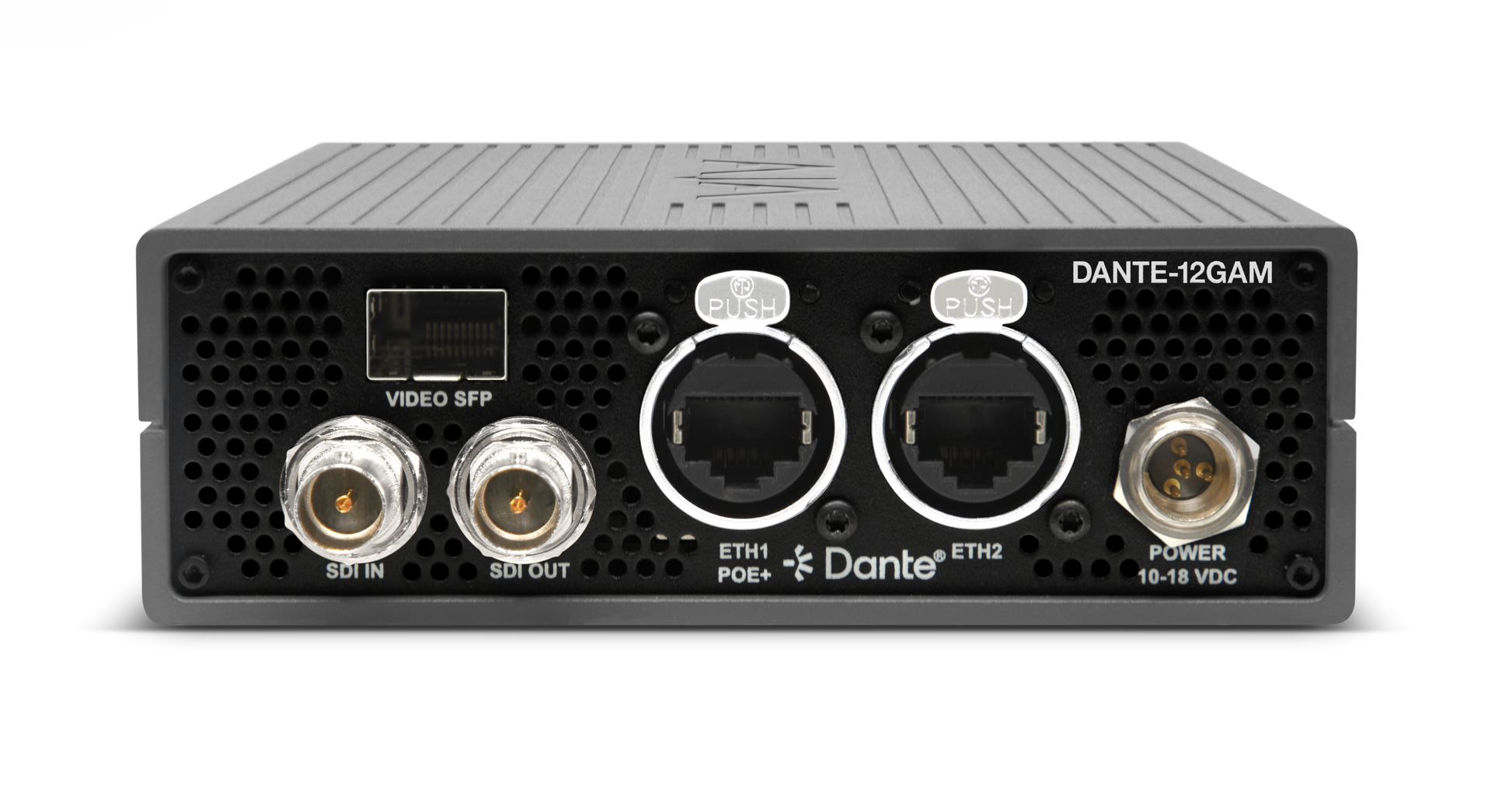

Connectivity

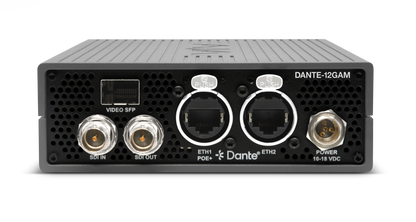

The AJA 12G 32-Ch Dante Embedder converter offers the power and flexibility of professional connectivity to plug and play into your existing SDI and Dante audio infrastructures.

SFP Options
The DANTE-12GAM-TR-BNC includes the BNC-TR-12G SFP, doubling the Dante conversion capacity, up to 64 channels.

The DANTE-12GAM-TR-LC includes the Fiber FIBERLC-TR-12G SFP, doubling the Dante conversion capacity, up to 64 channels.

Both SFP types can be swapped easily with the DANTE-12GAM to match the desired workflow. Customers can also upgrade to the dual channel version at any time by purchasing an optional license and adding either the BNC or LC Fiber SFP.

Dante and AES67
In addition to Dante IP audio, the DANTE-12GAM also supports AES67, which is an open standard for IP audio developed by the Audio Engineering Society (AES). Dante and AES67 work together by leveraging AES67's interoperability to allow Dante devices to communicate with other AES67-compliant systems, enhancing the flexibility and integration capabilities of audio networks, greatly expanding the Dante audio ecosystem. This means you can integrate Dante systems with other IP audio systems that use AES67, such as RAVENNA, Livewire, and Q-LAN. To enable AES67 on Dante devices, you need to activate AES67 in Dante Controller software, which allows the Dante network to transmit and receive AES67 streams.

Dante and SMPTE ST 2110-30
SMPTE ST 2110-30 is the SMPTE standard for transporting uncompressed audio over IP networks. The DANTE-12GAM also supports SMPTE ST 2110-30 IP audio, which is a component of the broader SMPTE ST 2110 IP AV suite. The SMPTE ST 2110 standard includes video, audio, ancillary data, and more, transporting the highest quality video and audio IP data streams over robust IP networks, typically in broadcast environments. The DANTE-12GAM can interoperate with other ST 2110-30 compliant devices via the Dante Controller software. The Dante audio network and the DANTE-12GAM both support Precision Time Protocol version 2 (PTPv2), ensuring synchronization across Dante and SMPTE ST 2110 networks. With its support of SMPTE ST 2110-30, the DANTE-12GAM is a powerful bridge between Dante and SMPTE networks in professional audio and broadcast applications.

Advanced Enclosure

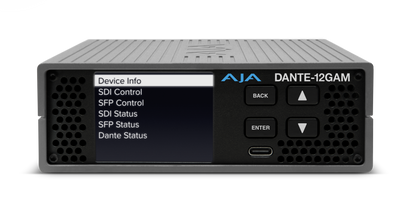

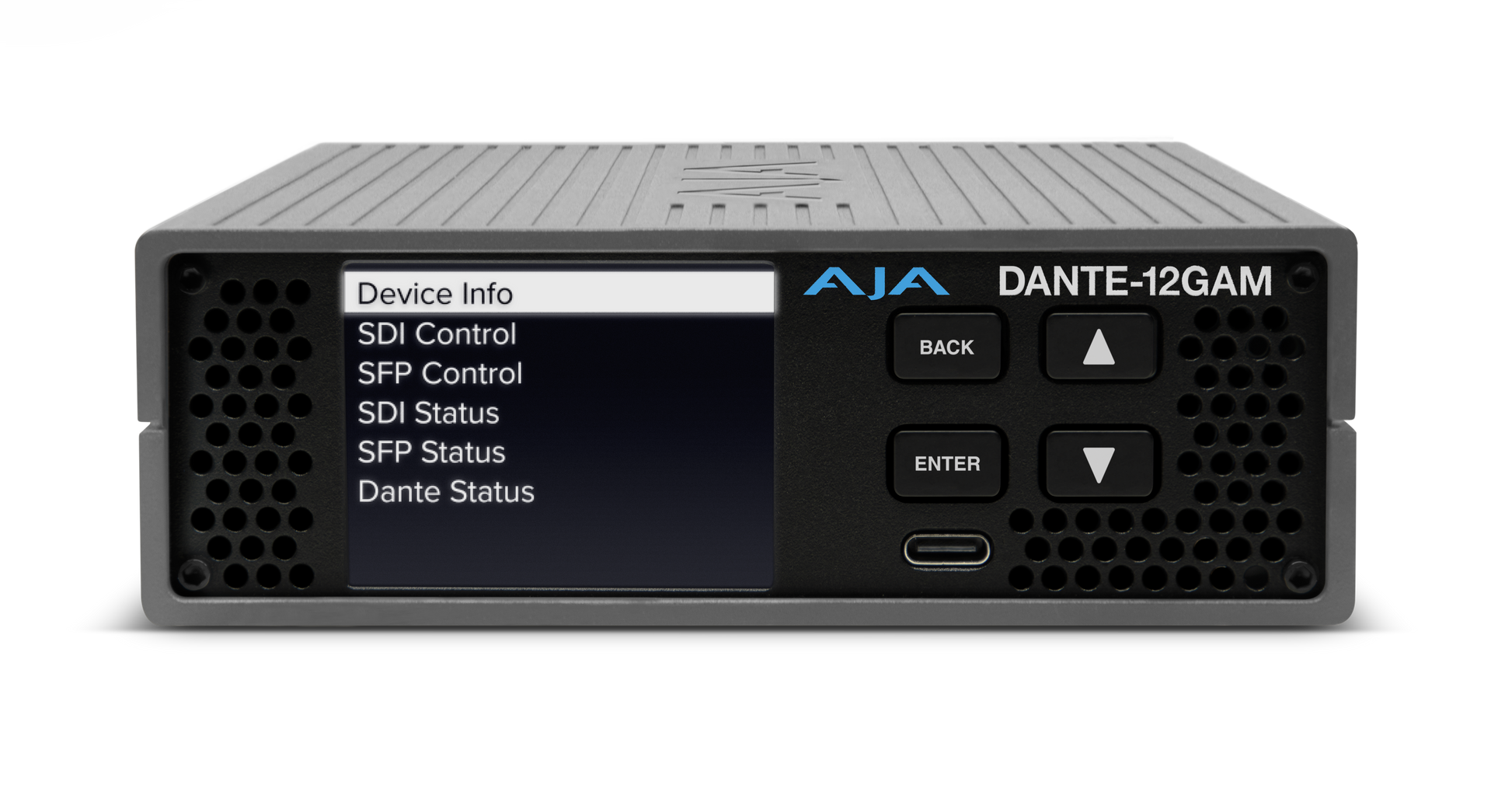

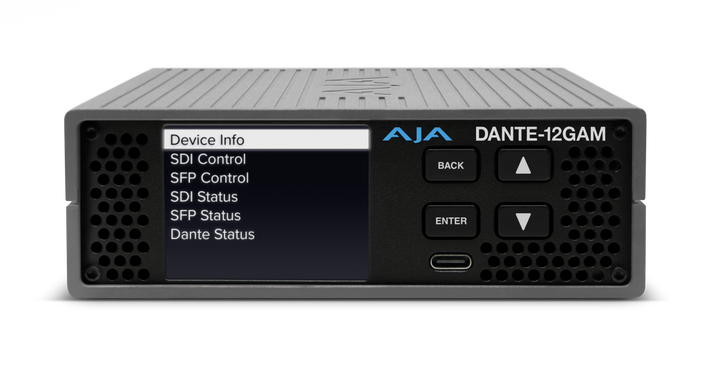

The DANTE-12GAM utilizes a rugged new aluminum enclosure, offering a front panel display, physical push-button controls, USB-C connectivity for initial Static IP configuration, and active cooling designed with front-to-back airflow. The onboard display reports status and configuration and is paired with buttons for enter, back, up, and down for easy access to settings for standalone operation.

AJA Web UI
The DANTE-12GAM can also be monitored and controlled by a user friendly web UI served by its integrated web server. The web UI shows the system status and connections to the Dante audio network. It can be used to configure network settings and update firmware. Applicable controls and status information are mirrored on the LCD front display on the device.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Features:

• Support for 12G/6G/3G/1.5G SDI audio embedding/disembedding to and from the Dante
• audio ecosystem
• Single video channel with independent 12G-SDI Input and Output ports, each supporting 16
• audio channels, totaling 32 channels of Dante audio in a compact, portable design
• PTPv2, SMPTE ST 2110-30, AES67 compatible
• 1x Primary and 1x Secondary etherCON GigE ports for Dante network redundancy
• PoE+ on Primary Ethernet simplifying wiring
• Internal SDI signal generator, which enables transmitting Dante audio channels over SDI
• without having an external SDI source signal
• AJA Web UI support for remote signal status and configuration
• USB-C port for initial Static IP configuration using free AJA eMini-Setup software
• Front-panel LCD information and configuration screen
• 4x Physical control buttons (Back, Enter, Up, Down)
• Upgradable to second video channel via additional SFP and license, expanding support to
• up to 64-channels
• 12V, 60W Power Supply Included
• Five-year warranty

DANTE-12GAM-TR-LC Features

• All of the DANTE-12GAM features with the addition of:
• Dual video channels with independent 12G-SDI Input and Output fiber LC connectors, each
• supporting 16 audio channels, totaling 64 Dante audio channels in a compact design
• 1x Dual LC 12G Fiber Transceiver SFP
• 2x Internal Signal Generators, which enable transmitting Dante audio channels over SDI
• without having an external SDI source signal

DANTE-12GAM-TR-BNC Features

• All of the DANTE-12GAM features with the addition of:
• Dual video channels with independent 12G-SDI BNC Input and Output ports, each
• supporting 16 audio channels, totaling 64 Dante audio channels in a compact design
• 1x Dual BNC 12G Coax Transceiver SFP
• 2x Internal Signal Generators which enable transmitting Dante audio channels over SDI
• without having an external SDI source signal
