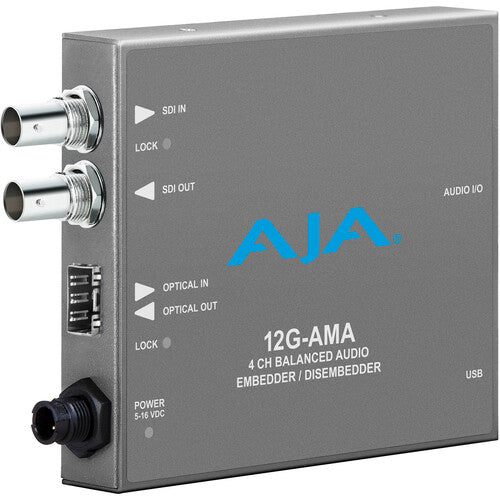

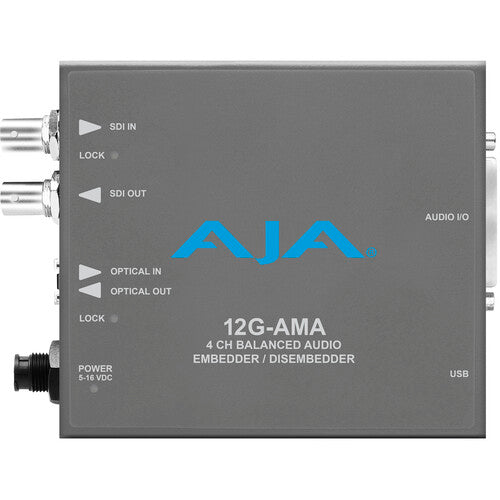

AJA 12G-AMA 12G-SDI 4-Channel Balanced Audio Embedder with Fiber Options

Overview
The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.

Features

• 12G-SDI Input and Output up to 4K/UltraHD
• 4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
• Audio Disembedding is always functional with four Analog outputs
• Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
• Selectable Analog audio levels
• Automatically detects and configures the input video standard
• 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
• Small form factor allows for a wide variety of installation locations
• Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
• Configure via USB port and supplied AJA Mini-Config software

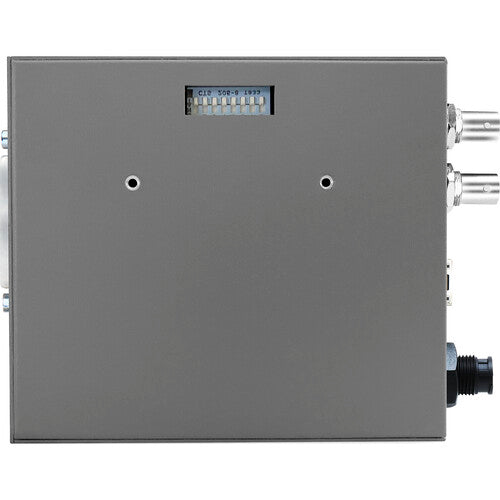

• DIP Switch configuration
• +5-16 VDC Power

12G-AMA Workflow
The 12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the 12G-AMA is disembedding analog audio to the analog audio I/O for mixing.

The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI port of the 12G-AMA. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.

Supplied Breakout Cable
The included breakout cable supports 1-channel of analog audio per XLR connector for 4-Channels of input and 4-channels of output simultaneously.

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Video Formats

• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
• RGB and YCbCr, 4:4:4/4:2:2, 10-bit
• Note: Raster and frame rate dependent. Please see 12G-AMA Video Formats in Documents and Manual.

Video Input Digital

• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
• Single Link SD/HD/2K/UltraHD/4K
• Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425

Video Output Digital

• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
• Single Link SD/HD/2K/UltraHD/4K
• Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425

Cable Equalization

• (Belden 1694A coax)
• 12 Gbps, 65m
• 6 Gbps, 125m
• 3 Gbps, 190m
• 1.5 Gbps, 200m
• 270 Mbps, 405m

Video Path Delay

• Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.
• Video Latency, time measured between video input and video output connector:
• 12G = 3.2 µsec
• 6G = 3.2 µsec
• 3G level B (Dual Stream HD mode) = 6.3 µsec
• 3G level A = 3.2 µsec
• HD (1.5 Gb) = 6.3 µsec
• SD (270 Mb) = 17.2 µsec

Audio Inputs and Outputs

• Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
• Breakout cable provided with 1x 25 pin D male connector:
• 4x XLR female input breakout connectors
• 4x XLR male output breakout connectors

Digital Audio Converters

• 24-bit

Embedded Audio

• SMPTE 272M (SD): 20-bit, 48 kHz synchronous
• SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
• Incoming embedded audio can be passed, removed, or overridden
• Up to 16-channels supported
• Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Path Audio Latency

• Embed Path 1100 µsec
• Disembed Path 1200 µsec

Analog Audio Levels

• Configured via Mini-Config software:
• Pro 1: 0 dBfs = +24 dBu
• Pro 2: 0 dBfs = +18 dBu
• Pro 3: 0 dBfs = +15 dBu
• Consumer 1: 0 dBfs = +12 dBu

User nterface

• External DIP switch
• USB port used with Mini-Config software application to configure the device via PC/Mac

Size (w x d x h)

• 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• +5-16VDC, 10 watts. power supply required, included with purchase

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• 12G-AMA 12G-SDI 4-Channel Balanced Audio Embedder with Fiber Options
• Universal input +5V power supply AJA model DWP-U-R1

Warranty: 5 Years
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
