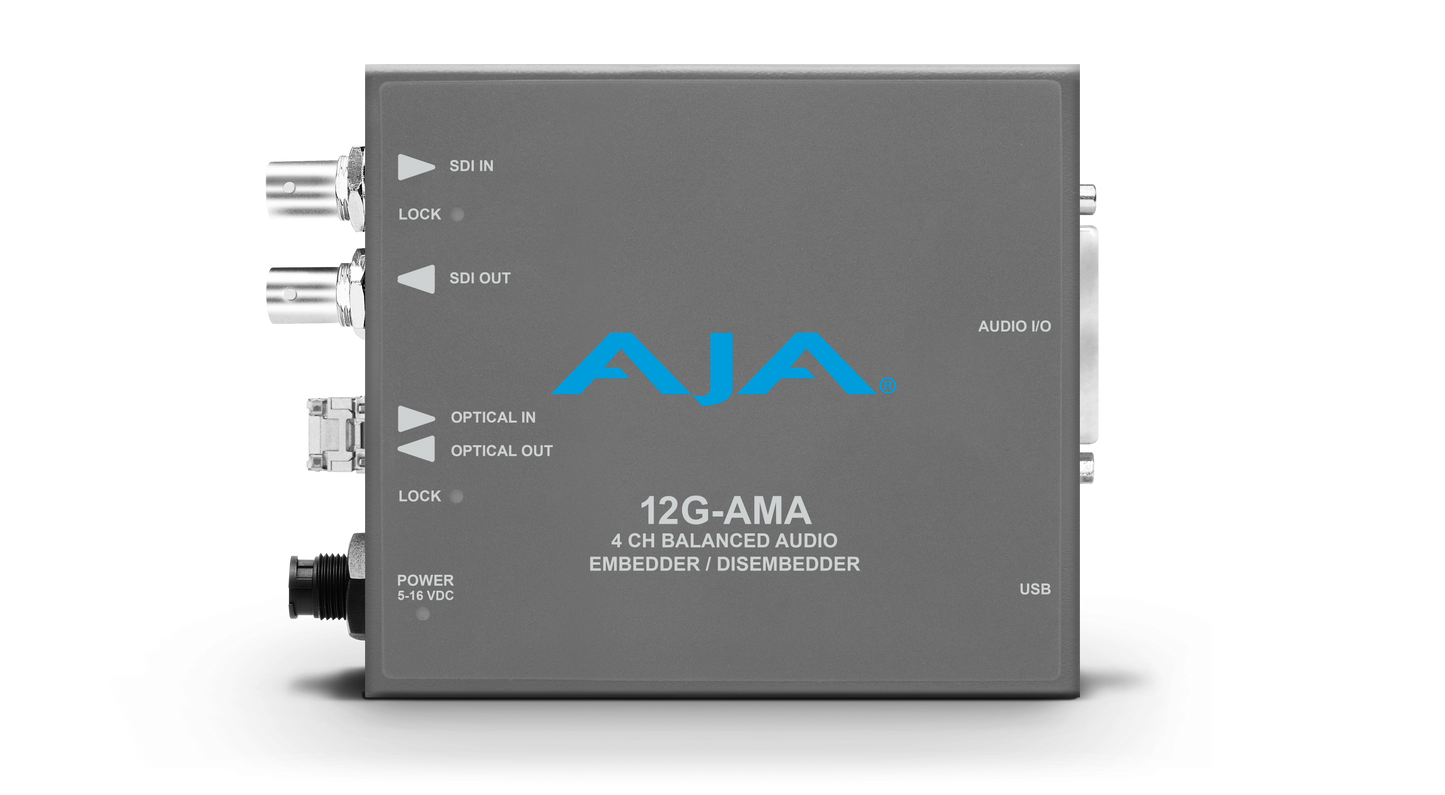

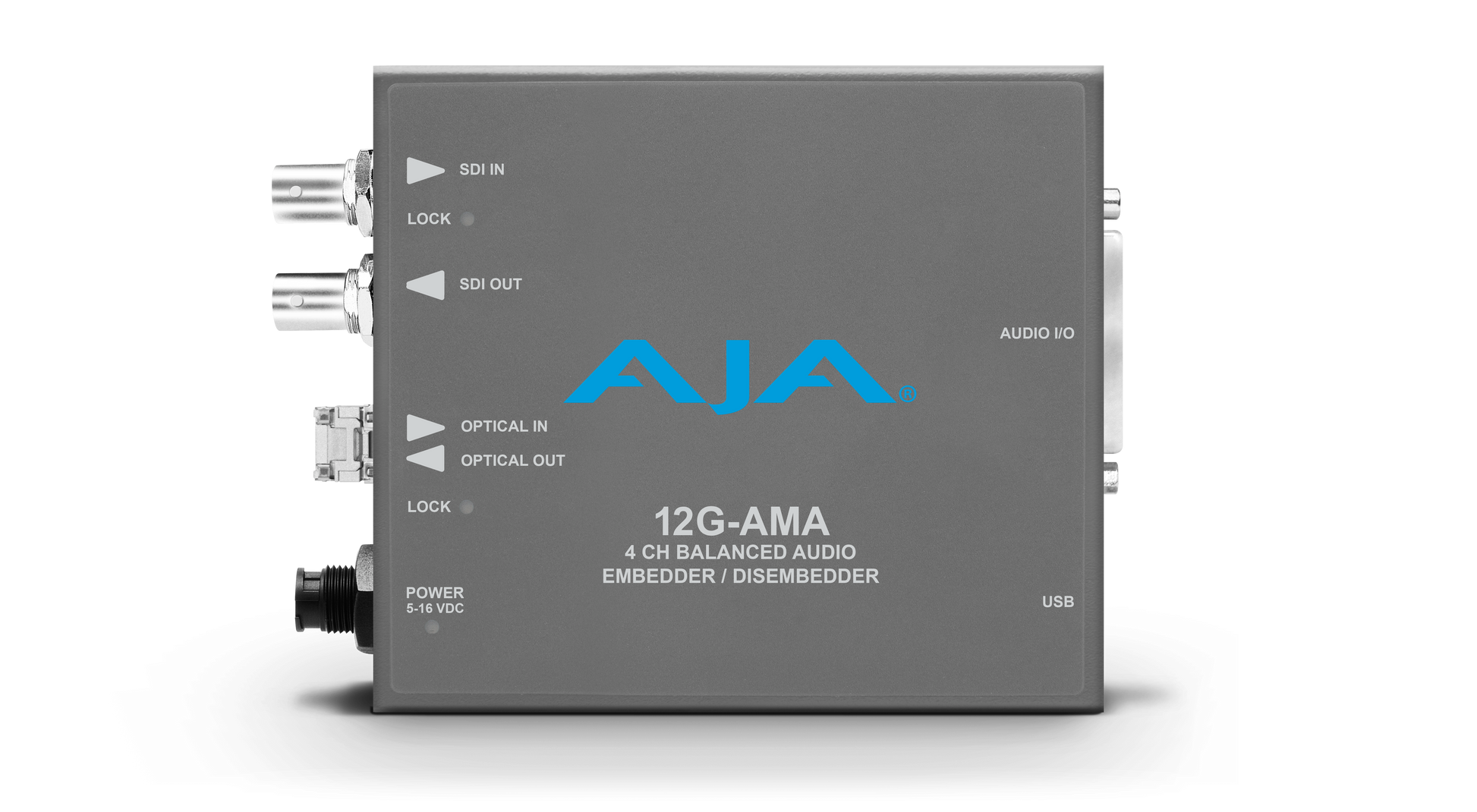

AJA 12G-SDI 4-Channel Balanced Audio Embedder with LC Receiver

Overview
The AJA 12G-SDI Audio Embedder with LC Receiver is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The AJA 12G-SDI Audio Embedder with LC Receiver automatically detects and configures the input video standard.

Features

• 12G-SDI Input and Output up to 4K/UltraHD
• 4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
• Audio Disembedding is always functional with four Analog outputs
• Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
• Selectable Analog audio levels
• Automatically detects and configures the input video standard
• 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
• Small form factor allows for a wide variety of installation locations
• Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
• Configure via USB port and supplied AJA Mini-Config software
• DIP Switch configuration
• +5-16 VDC Power

12G-AMA Workflow
The 12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the 12G-AMA is disembedding analog audio to the analog audio I/O for mixing.

The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI port of the 12G-AMA. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.

12G-AMA-R
12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver

• 12G-SDI Input and Output up to 4K/UltraHD
• 4-channel balanced audio Embedder/Disembedder
• Ships with a Fiber LC single channel SFP Receiver for extending 4K/UltraHD signals over long distances
• Audio Disembedding is always functional with four Analog outputs
• Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
• Selectable Analog audio levels
• Automatically detects and configures the input video standard
• Small form factor allows for a wide variety of installation locations
• Supplied XLR breakout cable offers 4-channels In and 4-channels over eight XLR connectors
• Configure via USB port and supplied AJA Mini-Config software
• DIP Switch configuration
• +5-16 VDC Power
• Five year warranty
• Only $1639 US MSRP*

Supplied Breakout Cable
The included breakout cable supports 1-channel of analog audio per XLR connector for 4-Channels of input and 4-channels of output simultaneously.

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Video Formats

• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
• RGB and YCbCr, 4:4:4/4:2:2, 10-bit


Note: Raster and frame rate dependent. Please see 12G-AMA Video Formats in Documents and Manual.

Video Input Digital
1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
Single Link SD/HD/2K/UltraHD/4K
Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
Fiber Input
(12G-AMA-R, 12G-AMA-TR)
1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
Wavelength: Rx 1260 nm (min), 1620 nm (max)
Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
Overload Power: -2 dBm (min)


12 Gbps, 65m
6 Gbps, 125m
3 Gbps, 190m
1.5 Gbps, 200m
270 Mbps, 405m
Video Path Delay
Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.

Video Latency, time measured between video input and video output connector:
12G = 3.2 µsec
6G = 3.2 µsec
3G level B (Dual Stream HD mode) = 6.3 µsec
3G level A = 3.2 µsec
HD (1.5 Gb) = 6.3 µsec
SD (270 Mb) = 17.2 µsec
Audio Inputs and Outputs
Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
Breakout cable provided with 1x 25 pin D male connector:
4x XLR female input breakout connectors
4x XLR male output breakout connectors
Digital Audio Converters
24-bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48 kHz synchronous
SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden
Up to 16-channels supported


Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Path Audio Latency
Embed Path 1100 µsec
Disembed Path 1200 µsec
Analog Audio Levels
Configured via Mini-Config software:

Pro 1: 0 dBfs = +24 dBu
Pro 2: 0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu
User Interface
External DIP switch
USB port used with Mini-Config software application to configure the device via PC/Mac


Size (w x d x h)
5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight
0.6 lb (0.3 kg)
Power
+5-16VDC, 10 watts. power supply required, included with purchase
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
