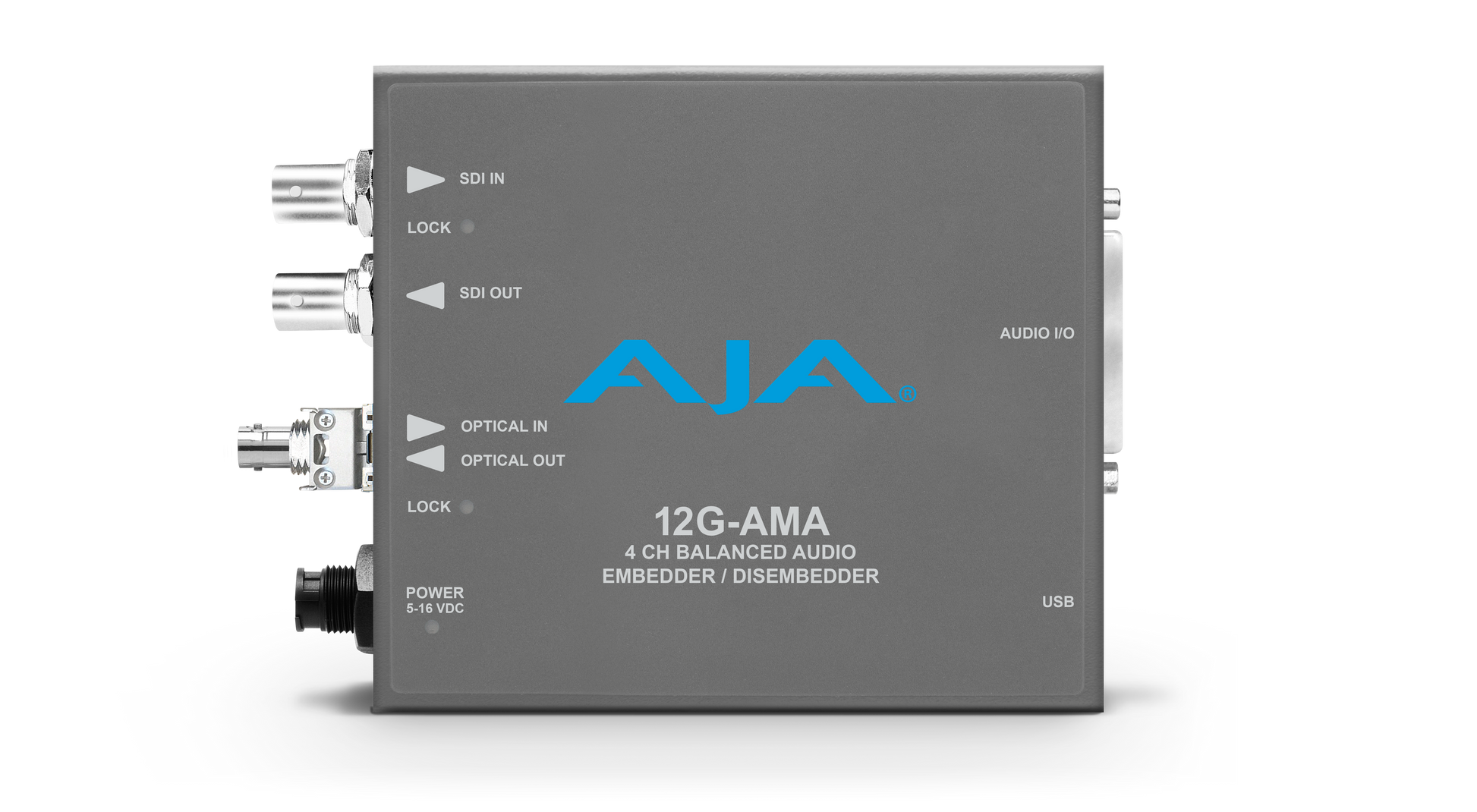

AJA 12G-SDI 8-Channel AES Audio Embedder with ST Receiver

AJA 12G 8-Channel Audio Embedder/Receiver
AJA 12G 8-Channel Audio Embedder/Receiver with ST Fiber Rx SFP

• 12G-SDI Input and Output up to 4K/UltraHD
• 8-channel balanced AES audio Embedder/Disembedder
• Ships with a ST Fiber single channel SFP Receiver for extending
• 4K/UltraHD signals over long distances
• AES audio Disembedding is always functional with four AES outputs
• AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
• Selectable AES audio levels
• Automatically detects and configures the input video standard
• Small form factor allows for a wide variety of installation locations
• Supplied XLR breakout cable offers 8-channels In and 8-channels
• Out over eight XLR connectors
• USB connectivity via AJA Mini-Config software
• DIP Switch configuration
• 5-16 VDC Power
• Five year warranty
• Only $1759 US MSRP*

Video Formats

• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
• RGB and YCbCr, 4:4:4/4:2:2, 10-bit


Note: Raster and frame rate dependent. Please see 12G-AM Video Formats in Documents and Manual.

• Video Input Digital
• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
• Single Link SD/HD/2K/UltraHD/4K
• Single Link 3G-SDI Level A or B DL, SMPTE 425


Fiber Input

• (12G-AM-R-ST)
• 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
• Wavelength: Rx 1260 nm (min), 1620 nm (max)
• Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
• Overload Power: -2 dBm (min)

Video Output Digital

• 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
• Single Link SD/HD/2K/UltraHD/4K
• Single Link 3G-SDI Level A or B-DL, SMPTE 425
• Fiber Output


Video Latency, time measured between video input and video output connector:

• 12G = 3.2 µsec
• 6G = 3.2 µsec
• 3G level A = 3.2 µsec
• 3G level B-DL = 6.3 µsec
• HD (1.5 Gb) = 6.3 µsec
• SD (270 Mb) = 17.2 µsec

Audio Inputs and Outputs

• AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out,
• selectable in pairs
• Breakout cable provided with 1x 25 pin D male connector:
• 4x XLR female input breakout connectors (AES3 110 ohm)
• 4x XLR male output breakout connectors (AES3 110 ohm)

Audio Data Formats

• AES3-2003

Embedded Audio

• SMPTE 272M (SD): 20-bit, 48 kHz synchronous
• SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
• Incoming embedded audio can be passed, removed, or overridden
• Up to 16-channels supported


Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Embed Path Audio Latency
(Time measured between audio input and video output connector):

• 1500 µsec (SRC ON)
• 400 µsec (SRC OFF)

Disembed Path Audio Latency

• (Time measured between video input and audio output connector):
• 210 µsec

User Interface

• External DIP switch
• USB port used with Mini-Config software application to configure the device via PC/Mac

Size (w x d x h)

• 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

• 0.6 lb (0.3 kg)

Power

• +5-16VDC, 10 watts, power supply required, included with purchase

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

12G-SDI 8-Channel AES Audio Embedder with ST Receiver
