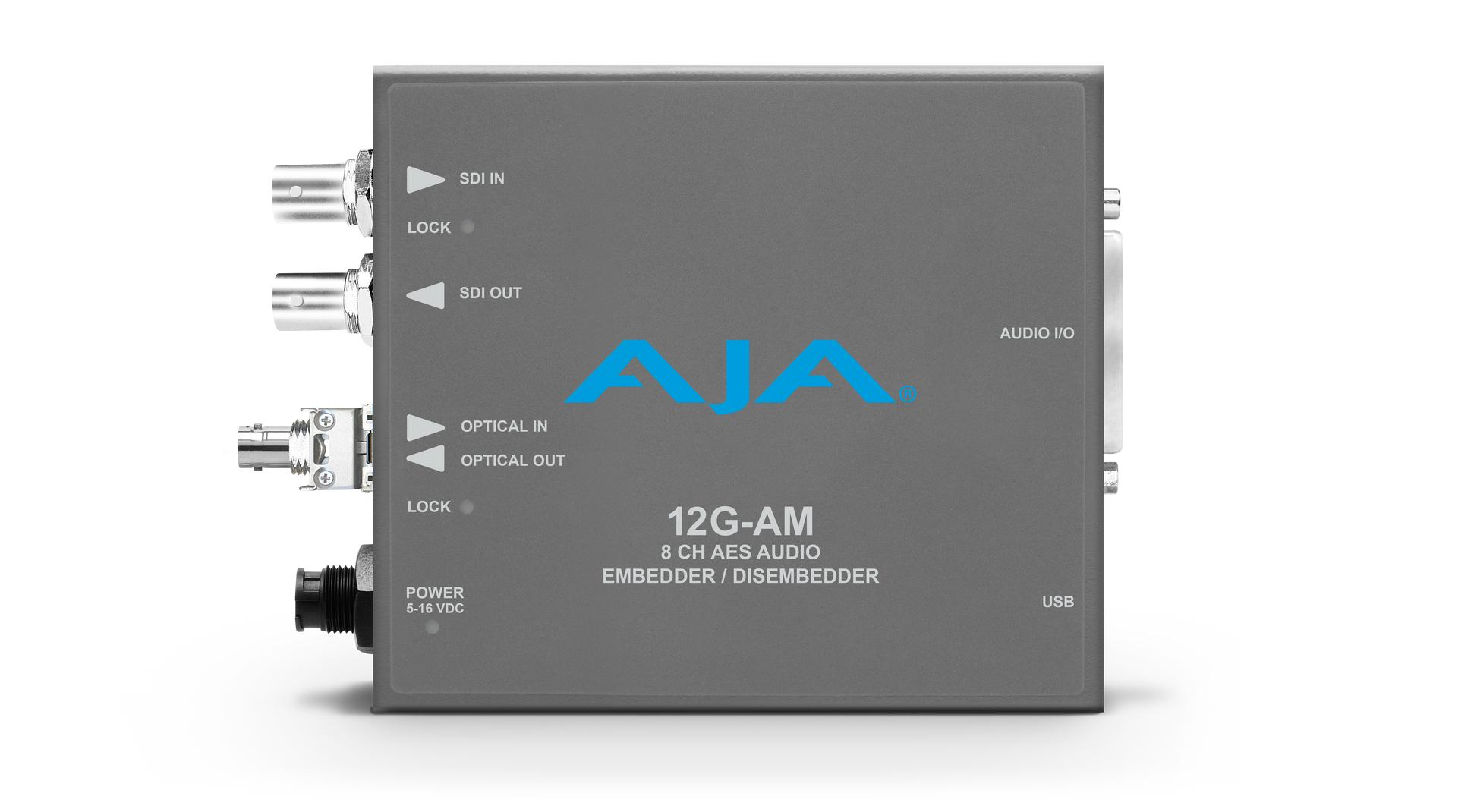

12GAMTST Top
AJA

AJA 12G-SDI 8-Channel AES Audio Embedder with ST Transmitter

$1,759.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): 12G-AM-T-ST
Videoguys Part # (SKU): 12GAMTST
Short Description:
  • Free Shipping & Tech Support

12G-AM-T-ST Workflow
The 12G-AM in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the 12G-SDI audio embedder is disembedding AES audio to the AES I/O for mixing. Additional inputs, like a microphone or other auxiliary can also be added to the mix.

The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI port of the 12G-SDI audio embedder. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio. At the same time the ST fiber output is fed to a FIDO mini-converter for video village use, allowing multiple monitors to be fed the same video.


Supplied Breakout Cable
The included breakout cable (12G-AM CBL DB25-8XLR) supports 2-channels of AES per XLR connector for 8-channels of input and 8-channels of output simultaneously.

An optional BNC breakout cable for AES (12G-AM CBL DB25-8BNC) is available separately.


USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.


Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.


Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.


AJA Mini-Matrix
Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.


Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit

     Note: Raster and frame rate dependent. Please see 12G-AM Video Formats in Documents and Manual.

Video Input Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
    • Single Link 3G-SDI Level A or B DL, SMPTE 425

Fiber Input (12G-AM-R, 12G-AM-TR)

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Fiber Input (12G-AM-R-ST)

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Video Output Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
    • Single Link 3G-SDI Level A or B-DL, SMPTE 425

Fiber Output (12G-AM-T, 12G-AM-TR)


  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

Fiber Output (12G-AM-T-ST)

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 2 dBm (max)
    • Extinction Ratio: 3.4 dB (min)

Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 65m
  • 6 Gbps, 125m
  • 3 Gbps, 190m
  • 1.5 Gbps, 200m270 Mbps, 405m

Video Path Delay

Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

  • Video Latency, time measured between video input and video output connector:
    • 12G = 3.2 µsec
    • 6G = 3.2 µsec
    • 3G level A = 3.2 µsec
    • 3G level B-DL = 6.3 µsec
    • HD (1.5 Gb) = 6.3 µsec
    • SD (270 Mb) = 17.2 µsec

Audio Inputs and Outputs

  • AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in
  • pairs
  • Breakout cable provided with 1x 25 pin D male connector:
    • 4x XLR female input breakout connectors (AES3 110 ohm)
    • 4x XLR male output breakout connectors (AES3 110 ohm)

Audio Data Formats

  • AES3-2003

Embedded Audio

  • SMPTE 272M (SD): 20-bit, 48 kHz synchronousSMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • Up to 16-channels supported


Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Embed Path Audio Latency
(Time measured between audio input and video output connector)

  • 1500 µsec (SRC ON)
  • 400 µsec (SRC OFF)

Disembed Path Audio Latency

  • (Time measured between video input and audio output connector):
  • 210 µsec
  • User Interface
  • External DIP switch
  • USB port used with Mini-Config software application to configure the device via PC/Mac

Size (w x d x h)

  • 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

  • 0.6 lb (0.3 kg)

Power

  • +5-16VDC, 10 watts, power supply required, included with purchase

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
