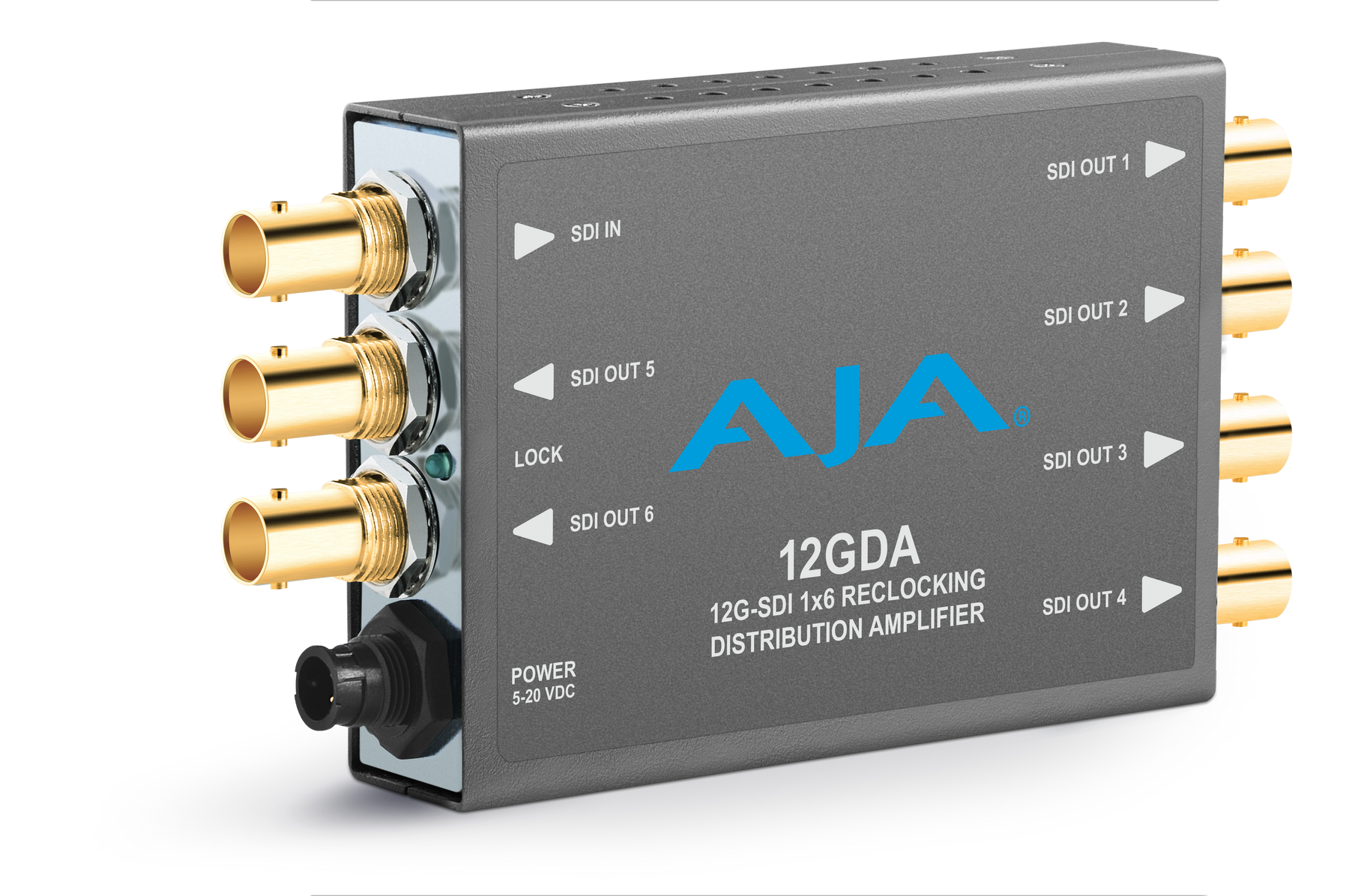

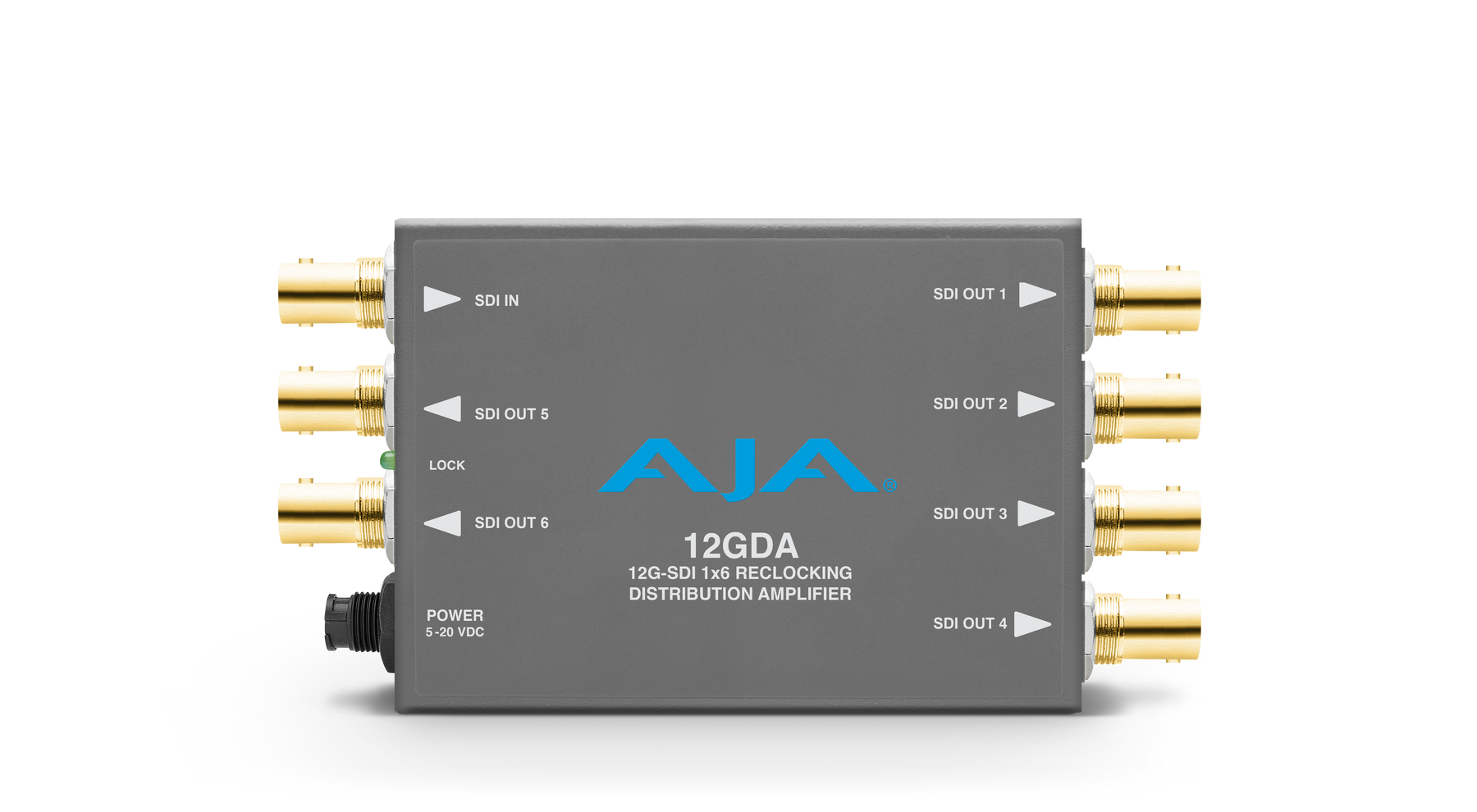

12GDA is a miniature 1x6 12G-SDI reclocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, reclocking and cable equalization, as well as a throw down package and LED signal detection indicator.
Features
12G-SDI from Camera to Fiber, Edit and More
Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable. Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM muxer/demuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.
Universal Power Supply
Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.
Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
Video Formats
100 Mbps - 12 Gbps, format agnostic
Video Input Digital
1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital
6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Cable Equalization
(Belden 1694A coax)
12 Gbps, 70m
6 Gbps, 120m
3 Gbps, 190m
1.5 Gbps, 195m
270 Mbps, 405m
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
All other rates are passed through and not reclocked
