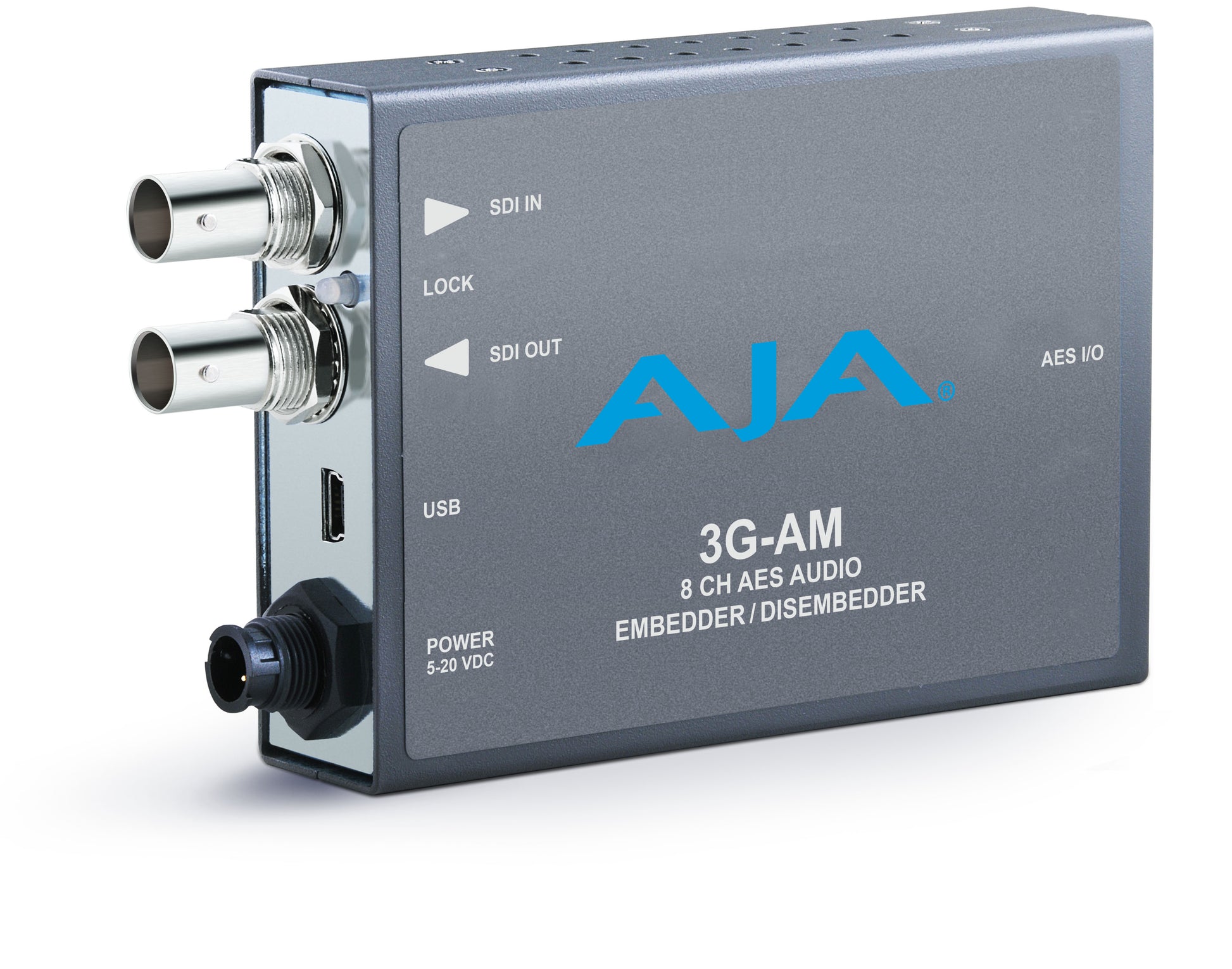

The 3G-AM from AJA is a triple rate 8-channel AES audio embedder/disembedder. AES audio can be embedded and disembedded simultaneously. The embedder is user selectable, on a channel pair basis, to either "pass" existing SDI input audio or embed AES input audio from the breakout cable. The ability to pass incoming ancillary data makes it possible to embed up to 16 channels of audio by cascading two units. Horizontal ancillary data (HANC) packets in compliance with SMPTE 291M can also be dropped at the input. The 3G-AM automatically detects and configures to the input video standard, and formats to a resolution of up to 2048 x 1080p. This unit includes an XLR connector AES breakout cable.

Key Features:

• Triple Rate 3G, HD, and SD-SDI
• 8-Channel AES I/O
• Setup via DIP Switch or Windows/Mac
• Formats to 2048 x 1080p Resolution

Video Input Formats

• 1x 3 Gb SDI (level A or B)
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• 1x 1.5 Gb SDI
• (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
• (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
• (SD) 625i
• (SD) 525i
• RGB and YCbCr, 4:4:4/4:2:2, 10-bit


Video Input Digital
1x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital
1x 3G-SDI BNC, SMPTE-259/292/424
Audio Inputs and Outputs
AES PCM audio, 1x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs
Breakout cable provided with 1x 25 pin D male connector:
4x XLR female input breakout connectors (AES3 110 ohm)
4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats
AES3-2003
SMPTE 337M
Digital Audio Converters
24-bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48 KHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous
Incoming embedded audio can be passed, removed, or overridden
Up to 16-channels supported


Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio

Embed Path Audio Latency
(time measured between audio input and video output connector):

1500 usec (SRC ON)
400 usec (SRC OFF)


Disembed Path Audio Latency
(time measured between video input and audio output connector):

210 usec
User Interface
External DIP switch
USB port used with Mini-Config software application to configure device via PC/Mac


Size (w x d x h)
5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)


Weight
0.61 lb. (0.28 kg)


Power
+5-20VDC, 5 watts power supply required, included with purchase


Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

• AJA 3G-AM 8-Channel AES Embedder/Disembedder with XLR Breakout Cable

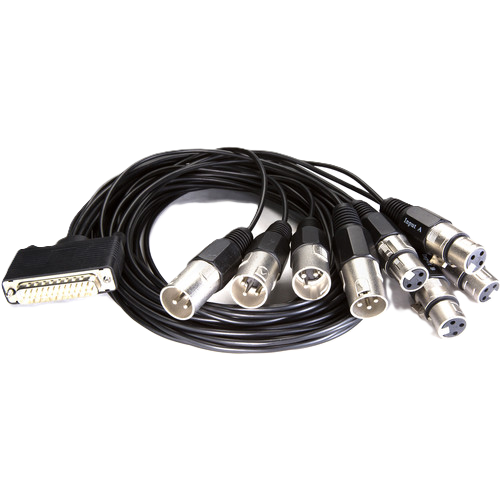

• 25-Pin Sub-D Male to XLR Breakout Cable
• USB Cable
• DWP-U-R1 Power Supply
• Warranty: Limited 5-Year Manufacturer Warranty
