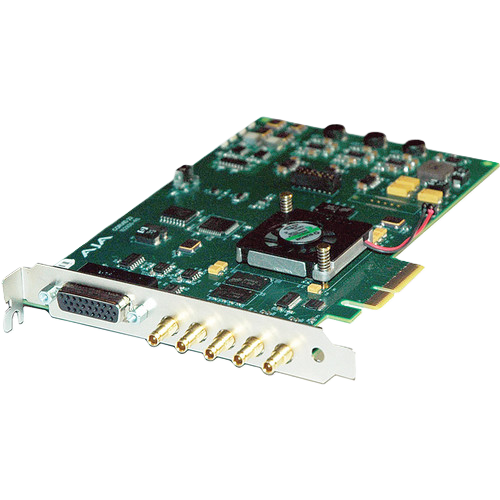

AJA Corvid 22 Z-OEM 4-Lane PCIe Card

AJA Corvid 22 Z-OEM 4-Lane PCIe Video I/O Card

The AJA Corvid 22 Z-OEM 4-Lane PCIe Video I/O Card delivers professional broadcast-quality video input and output for demanding video production, broadcast, and software-based workflows. With two independent channels, Corvid 22 supports 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 formats, along with uncompressed 8-/10-bit YCbCr and RGB frame buffer formats.

Key Features

• 4-lane PCIe video I/O card for professional broadcast and video systems
• Two independent channels for video input and output
• Supports 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 formats
• Transfers 8-/10-bit uncompressed YCbCr and RGB frame buffer formats
• Supports two simultaneous video/key pairs over 3G
• Up to two simultaneous downstream keyers
• Independent LTC, metadata, and RS-422 for each channel
• Two independent 16-channel, 24-bit/48 kHz SDI embedded audio input/output engines
• Supports analog color black and HD tri-level synchronization
• Includes five 1.0/2.3-to-BNC pigtail adapters
• Designed for broadcast-quality performance

Professional SDI Video I/O

The Corvid 22 provides two independent channels for capturing and playing back digital, uncompressed audio and video. It supports 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 video formats, making it suitable for broadcast production, video ingest, playback, live production, and other professional video applications.

The card transfers 8-/10-bit YCbCr and RGB frame buffer formats for high-quality uncompressed video workflows.

Dual-Channel Keying and Video Output

Corvid 22 supports advanced keying workflows with two simultaneous video/key pairs over 3G using two mixer/keyer widgets. It can also provide up to two simultaneous downstream keyers, giving developers and broadcast professionals greater flexibility for graphics, compositing, and live production systems.

Embedded Audio and Synchronization

The AJA Corvid 22 features two independent SDI embedded audio input/output engines, each supporting 16 channels of 24-bit, 48 kHz audio. The card also supports analog color black and HD tri-level synchronization for reliable timing in professional video environments.

Each channel provides separate LTC, metadata, and RS-422 connections for capturing and playing back digital uncompressed audio and video. A breakout cable supporting LTC and RS-422 input/output is available separately.

Software Development and System Compatibility

Corvid 22 is designed for software-based video applications and supports AJA's API and SDK environments. The API helps simplify development when working across multiple platforms or using multiple AJA video cards.

The card is compatible with Windows and 32-/64-bit Linux operating systems through supported SDK-based development environments.

• Video Inputs Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424
• Video Outputs Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424
• Audio Inputs Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous
• Audio Outputs Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous
• Additional Inputs/Outputs
  • 2 x Independent LTC In/Out
  • 2 x Independent RS-422
• Video Formats
  • 2K:
  • 2048 x 1080P 25/24/23.97
  • 2048 x 1080PsF 25/24/23.97
  • HD:
  • 1080p 60/50/30/29.97/25/24/23.98
  • 1080PsF 30/29.97/25/24/23.98
  • 1080i 30/29.97/25
  • 720p 60/59.94/50
  • SD:
  • 525i 29.97, 625i 25
• Reference: Analog Color Black or HD Tri-Level Sync
• Supported Operating Systems
  • Supports Multiple OS's, Including:
  • All Windows 7 Platforms
  • All Windows Vista Platforms
  • All Windows XP Platforms
  • Linux 32-/64-Bit
• Dimensions: 7 x 6.57 x 3.86" / 17.78 x 16.69 x 9.80 cm
• Weight: 7 oz / 198.45 g Approx

• AJA Corvid 22 Z-OEM 4-Lane PCIe Card
• 5 x 1.0/2.3-to-BNC Pigtail Adapters
• Warranty: Limited 3-Year Manufacturer Warranty
