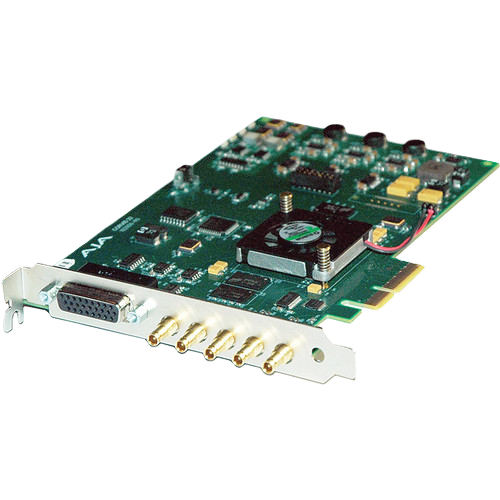

AJA Corvid 22 Z-OEM 4-Lane PCIe Card, No Cables

AJA Corvid 22 Z-OEM 4-Lane PCIe Card, No Cables

The AJA Corvid 22 Z-OEM 4-Lane PCIe Card delivers professional broadcast-quality video input and output for demanding production, broadcast, and software-based video workflows. This version is supplied without cables and provides two independent channels for input and output, with support for 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 video formats.

Corvid 22 supports 8-/10-bit uncompressed YCbCr and RGB frame buffer formats, embedded SDI audio, LTC, metadata, RS-422, and professional synchronization for flexible video capture, playback, keying, and broadcast applications.

Key Features

• 4-lane PCIe video I/O card for professional broadcast and video systems
• Two independent channels for video input and output
• Supports 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 formats
• Transfers 8-/10-bit uncompressed YCbCr and RGB frame buffer formats
• Supports two simultaneous video/key pairs over 3G
• Up to two simultaneous downstream keyers
• Independent LTC, metadata, and RS-422 for each channel
• Two independent 16-channel, 24-bit/48 kHz SDI embedded audio engines
• Supports analog color black and HD tri-level synchronization
• Compatible with supported Windows and 32-/64-bit Linux SDK environments
• No cables included

Professional SDI Video I/O

The AJA Corvid 22 provides two independent channels for capturing and playing back digital, uncompressed audio and video. It supports 3G-SDI, HD-SDI, SD-SDI, SD, and 2K/1080 input and output formats, making it suitable for broadcast production, video ingest, playback, live production, and other professional video applications.

The PCIe card transfers 8-/10-bit YCbCr and RGB frame buffer formats, providing high-quality uncompressed video for professional workflows.

Dual-Channel Keying and Video Output

Corvid 22 supports two simultaneous video/key pairs over 3G using two mixer/keyer widgets. It can also provide up to two simultaneous downstream keyers, making it suitable for broadcast graphics, compositing, and other applications requiring multiple video and key outputs.

Embedded Audio and Synchronization

The Corvid 22 features two independent SDI embedded audio input/output engines with support for 16 channels of 24-bit, 48 kHz audio. It also supports analog color black and HD tri-level synchronization for accurate timing in professional video systems.

Each channel provides separate LTC, metadata, and RS-422 functionality for capturing and playing back digital uncompressed audio and video.

Software Development and System Compatibility

The AJA Corvid 22 is designed for software-based video applications and supports AJA's API and SDK environments. Its API helps simplify development when working across multiple platforms or with multiple AJA video cards.

The card supports compatible Windows and 32-/64-bit Linux operating systems through SDK-based development environments.

• Video Inputs Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424
• Video Outputs Digital: 2 x 3G/HD/SD-SDI, SMPTE-259/292/296/424
• Audio Inputs Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous
• Audio Outputs Digital: 2 x 16-Channel 24-Bit SDI Embedded, 48 kHz Synchronous
• Additional Inputs/Outputs
  • 2 x Independent LTC In/Out
  • 2 x Independent RS-422
• Video Formats
  • 2K:
  • 2048 x 1080P 25/24/23.97
  • 2048 x 1080PsF 25/24/23.97
  • HD:
  • 1080p 60/50/30/29.97/25/24/23.98
  • 1080PsF 30/29.97/25/24/23.98
  • 1080i 30/29.97/25
  • 720p 60/59.94/50
  • SD:
  • 525i 29.97, 625i 25
• Reference: Analog Color Black or HD Tri-Level Sync
• Supported Operating Systems
  • Supports Multiple OS's, Including:
  • All Windows 7 Platforms
  • All Windows Vista Platforms
  • All Windows XP Platforms
  • Linux 32-/64-Bit
• Dimensions: 7 x 6.57 x 3.86" / 17.78 x 16.69 x 9.80 cm
• Weight: 7 oz / 198.45 g Approx

• AJA Corvid 22 Z-OEM 4-Lane PCIe Card
• Limited 3-Year Manufacturer Warranty
