AJA Corvid 44 12G BNC, Tall Bracket, Passive Cooling

AJA Corvid 44 12G BNC, Tall Bracket, Passive Cooling

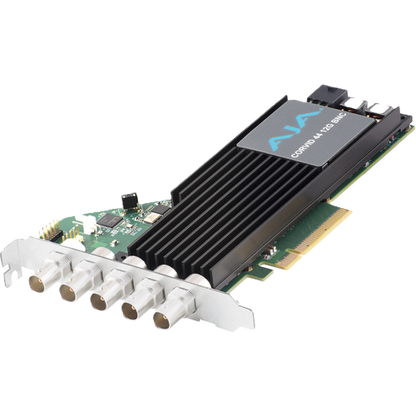

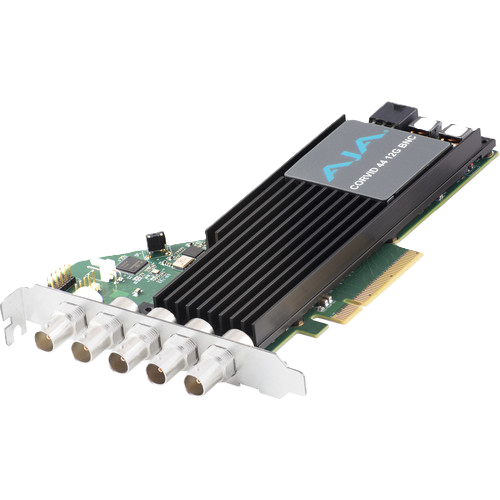

The AJA Corvid 44 12G BNC is a professional PCIe video I/O card with four bidirectional 12G-SDI connections for high-bandwidth broadcast, live production, post-production, and 8K workflows. This configuration features a tall bracket and passive cooling, with no fan for quiet operation.

Corvid 44 12G BNC supports 8K, UltraHD2, 4K, UltraHD, 2K, HD, and SD video formats, including multi-channel 4K up to 50/60p. Its four full-size bidirectional 12G-SDI connections provide flexible video input and output for demanding SDI workflows.

Key Features

• Four full-size bidirectional 12G-SDI BNC connections
• Supports 8K, UltraHD2, 4K, UltraHD, 2K, HD, and SD
• 8K input and output using quad 12G-SDI connections
• 4K/UltraHD I/O over single 12G-SDI or 6G-SDI, or quad 3G-SDI
• Multi-channel 4K workflows up to 50/60p
• 12-bit RGB 4:4:4 and 10-bit YCbCr 4:2:2 HFR workflows
• Up to 12-bit LUT support with .cube files
• Passive cooling with tall bracket
• 16-channel embedded audio per SDI connection
• Hardware downstream keyer for real-time graphics and image overlays up to 4K
• HDR support including PQ, HLG, and Dolby Vision
• VPID signaling and HDR metadata capture
• Reference/LTC input and RS-422 via internal headers
• Dynamic FPGA firmware reconfiguration
• Apple silicon support

Professional 12G-SDI Video I/O

Corvid 44 12G BNC provides four bidirectional 12G-SDI connections for flexible video capture, playback, and monitoring. The card supports a wide range of resolutions and frame rates, making it suitable for current production systems and future 8K workflows.

For 8K workflows, quad 12G-SDI connections can be used for input or output. 4K and UltraHD workflows can use a single 12G-SDI or 6G-SDI connection, or quad 3G-SDI. The card also supports 2K, HD, and SD I/O while allowing SDI capture and monitoring to take place simultaneously.

8K, 4K, and High Frame Rate Support

Corvid 44 12G BNC supports 8K (8192 x 4320) and UltraHD2 (7680 x 4320) high-frame-rate workflows up to 50/60p. Film rates including 23.98, 24, 47.95, and 48p are supported across 8K, 4K, and 2K formats.

Multiple-I/O 4K, UltraHD, 1080p, and 720p HD workflows are also supported up to 50/60p, providing flexibility for broadcast, live production, and professional video applications.

HDR, LUT, and Color Support

Corvid 44 12G BNC supports advanced HDR and color workflows, including 12-bit RGB 4:4:4, 10-bit YCbCr 4:2:2, PQ, HLG, and Dolby Vision. VPID signaling carries SDR/HDR transfer characteristics, colorimetry, and luminance information through SDI.

Up to 12-bit LUTs in .cube format are also supported for color processing workflows.

Hardware Keying

The built-in hardware downstream keyer allows graphics and images to be overlaid on incoming video in real time at resolutions up to 4K. This provides hardware-based keying for live production and broadcast applications without relying entirely on software processing.

Metadata and AJA Control Room

The AJA Control Room Metadata Toolset works with SDI signals containing metadata such as SCTE-104 and Dolby Vision metadata. Metadata can be captured and exported as a sidecar file.

AJA Control Room can also export metadata synchronized with media on a per-frame basis. Metadata toolset functionality is available on macOS and Windows.

Reference, LTC, and RS-422

Corvid 44 12G BNC includes a switchable external LTC/Reference input for synchronization. Reference support includes analog black burst and tri-level sync.

An internal RS-422 connection is also provided through a header on the card. RS-422 supports control of external devices for frame-accurate ingest and layoff workflows.

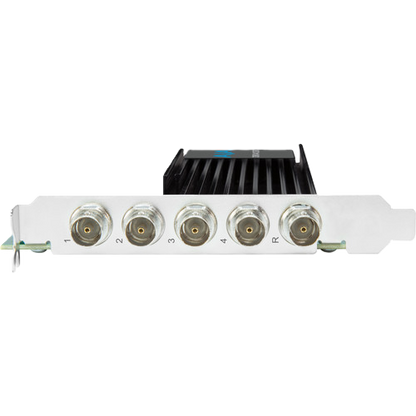

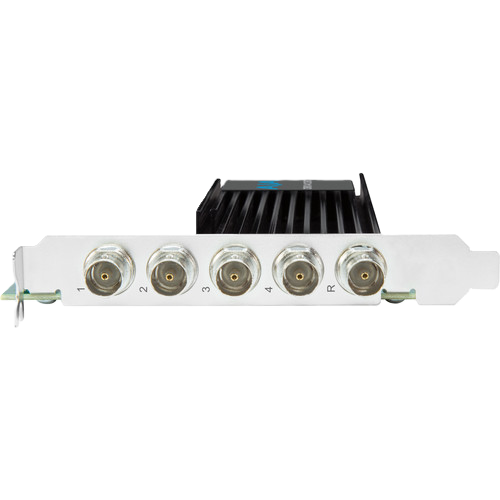

Passive Cooling and Tall Bracket

This version of the Corvid 44 12G BNC features passive cooling with no fan and a tall bracket configuration. Passive cooling can be beneficial in systems where reduced mechanical noise and fan-free operation are important.

Audio and Firmware

Each of the four 12G-SDI connections supports 16-channel embedded audio, providing up to 64 channels of embedded audio across the four connections. The card also supports dynamic FPGA firmware reconfiguration for flexible video processing and I/O applications.

Corvid 44 12G BNC includes support for Apple silicon systems and is designed for professional video applications requiring high-bandwidth SDI connectivity.

Professional AJA Support and Warranty

AJA provides technical support for Corvid installation, configuration, operation, and troubleshooting. Corvid products are covered by a three-year warranty with advance replacement as standard.

• Video Formats
  • (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.
• Video Inputs Digital
  • 12G-SDI, SMPTE-2082, 12-bit*, 10-bit
  • 6G-SDI, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
  • Note: Corvid 44 12G BNC SDI connectors are full-size BNC
• Video Outputs Digital
  • 12G-SDI*, SMPTE-2082, 12-bit*, 10-bit
  • 6G-SDI*, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
  • Note: Corvid 44 12G BNC SDI connectors are full-size BNC
• HDR SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
• SDI I/O
  • SDI connections are bidirectional
  • 2K/HD, capture and monitoring is simultaneous
  • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous
  • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output
  • 8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output
  • Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.
• Audio Inputs Digital: 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
• Audio Outputs Digital: 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• Downstream Keyer: Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K
• Reference
  • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x full-size BNC on PCIe bracket
  • Reference input is terminated into 75 ohms when Genlock is set to Ref In
• Timecode: LTC timecode input via 2-pin header on PCIe card, or via full-size BNC Ref In connector (switchable) on PCIe bracket
• Electrical Interface: 8-lane PCIe 3.0
• Machine Control
  • RS-422, Sony 9-pin protocol via header on PCIe card
  • 9-pin D-connector pinout is as follows:
  • 1: GND
  • 2: RX-
  • 3: TX+
  • 4: GND
  • 5: No Connection
  • 6: GND
  • 7: RX+
  • 8: TX-
  • 9: GND
  • Shell: GND
• Size (w x d x h): 0.75" x 7.0" x 4.75" (19 x 178 x 121 mm)
• Noise
  • <50dBA (A-weighted at 1m in free air) [models with active cooling (fan)]
  • Ultra quiet (virtually silent) [models with passive* cooling (no fan)]
  • Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 C
• Weight: PCIe Card:  0.6 lbs (0.3 kg)
• Power
  • 25W typical, 32W maximum
  • PC Internal ATX Power Connector (Molex p/n 45559-0002)
  • Note: Unlike other Corvid cards, Corvid 44 12G can use either PCIe power from a 6 pin ATX connector, or via the PCIe slot
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA Corvid 44 12G BNC, Tall Bracket, Passive Cooling
• Warranty: Limited 3-Year Manufacturer Warranty
