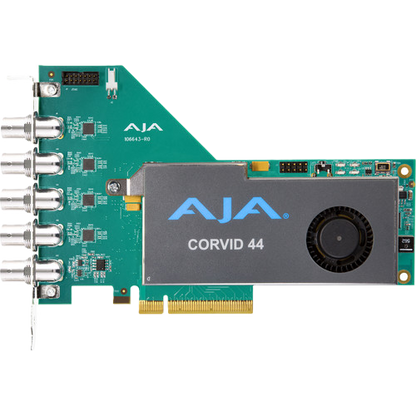

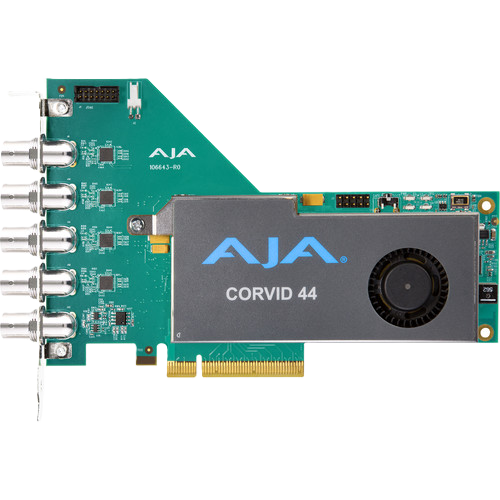

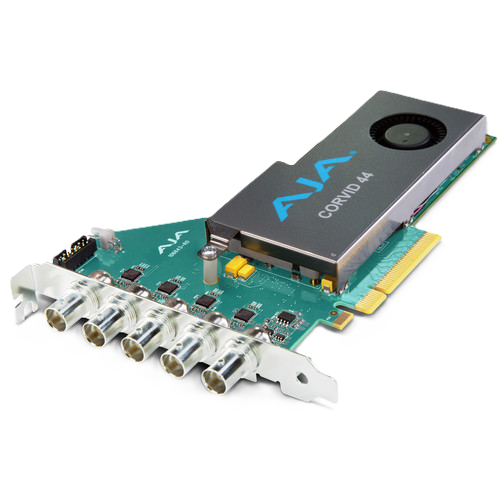

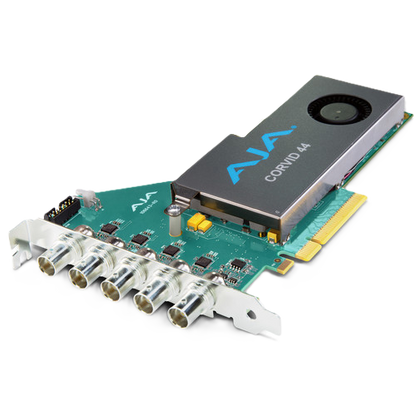

The AJA Corvid 44 BNC is a flexible multi-format PCIe video I/O card designed for professional broadcast, live production, post-production, and other demanding video workflows. It provides four full-size bidirectional 3G-SDI BNC connections, allowing AJA Developer Partner applications to access up to four simultaneous SDI input or output streams from a single PCIe card.

Corvid 44 BNC supports 4K, UltraHD, 2K, HD, and SD workflows up to 50/60p, along with 12-bit RGB 4:4:4, 10-bit YCbCr 4:2:2, HDR, embedded audio, hardware keying, and professional synchronization and device-control features.

Key Features

• 4x Full-Size Bidirectional 3G-SDI BNC Connections
• 4K, UltraHD, 2K, HD, and SD Support up to 50/60p
• Up to 64 Channels of Embedded SDI Audio
• 12-Bit RGB 4:4:4 and 10-Bit YCbCr 4:2:2
• 2x Independent Mixer/Keyer Widgets
• PQ, HLG, and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• 4K Closed Caption Support
• LTC, Reference, and RS-422 Connectivity
• Apple Silicon Support

Flexible Multi-Format 3G-SDI I/O

Each of the four full-size 3G-SDI BNC connections can be programmed independently as either an input or output. Each connection can also support a different video format, provided the signals use the same clock timing.

The connections can be linked for dual-link or 4K/UltraHD workflows, giving Corvid 44 BNC the flexibility to handle a variety of SDI configurations from a single PCIe card.

4K and High Frame Rate Support

Corvid 44 BNC supports 4K (4096 x 2160) and UltraHD (3840 x 2160) high frame rate workflows at 48p, 50p, and 60p. It also supports multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p.

This makes the Corvid 44 BNC suitable for professional applications requiring smooth motion and high-quality video across 4K, HD, and SD formats.

Professional Video and Color Support

Corvid 44 BNC supports advanced video formats for demanding production workflows, including:

• RGB 4:4:4 12-bit workflows
• YCbCr 4:2:2 10-bit high frame rate workflows
• 4K, UltraHD, 2K, HD, and SD video
• SDR and HDR workflows
• PQ, HLG, and Dolby Vision
• VPID signaling for HDR transfer characteristics, colorimetry, and luminance
• 4K closed caption support

Dual Mixer/Keyer Support

Two independent Mixer/Keyer widgets provide hardware-based video mixing and keying capabilities. This gives developers additional flexibility when building professional broadcast and live production applications around the Corvid 44 BNC.

64-Channel Embedded Audio

The Corvid 44 BNC features four independent 16-channel, 48 kHz SDI embedded audio I/O engines. Each 3G-SDI connection supports 16 channels of embedded audio, with up to 64 channels of audio available across multiple SDI connections.

This provides the audio capacity needed for complex broadcast and production workflows.

HDR Metadata and AJA Control Room

The AJA Control Room Metadata Toolset helps manage advanced SDI workflows containing metadata such as SCTE-104 and Dolby Vision metadata. Metadata can be captured and exported to a sidecar file.

AJA Control Room can also export metadata synchronized with media on a per-frame basis, helping maintain accurate metadata throughout supported workflows. The metadata toolset is available for macOS and Windows.

LTC and Reference Input

Corvid 44 BNC provides an external, switchable LTC/Reference input on the back of the card. An additional LTC input is available through an internal header.

Reference input supports analog black burst and tri-level sync, providing synchronization options for professional video environments.

RS-422 Device Control

A built-in RS-422 connection provides control of external devices for frame-accurate ingest and layoff workflows. The RS-422 connection is available through an external connection on the Corvid 44 BNC.

Apple Silicon Support

Corvid 44 BNC includes support for Apple silicon, allowing the card to be used with supported modern Mac-based professional video workflows.

Professional Support and Warranty

AJA provides technical support for Corvid 44 BNC installation, configuration, operation, and troubleshooting. The Corvid 44 BNC is covered by a three-year warranty.

• Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
• Video Output Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
• HDR SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
• Audio Input Digital: 16-channel 24-bit SDI embedded, 48 kHz synchronous
• Audio Output Digital: 16-channel 24-bit SDI embedded, 48 kHz synchronous
• Reference: Analog Color Black or HD Tri-level sync
• BNC: 4x 3G-SDI
• Electrical Interface: 4-lane PCIe 3.0
• Size (w x d x h): 0.73" × 6.6” × 2.72” (18.54 × 167.64 × 69.09 mm)
• Weight: 0.4 lb (0.2 kg)
• Power: 17W typical, 20W max
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
• Airflow across the board if the fan is removed: 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink

• Corvid 44 Flexible Multi-Format I/O with Full-Size BNC
• Warranty: Limited 3-Year Manufacturer Warranty
