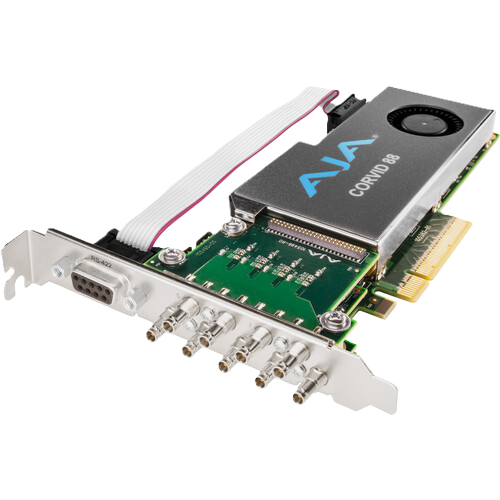

AJA Corvid 88 CRV88-9-T 8-Channel PCIe 2.0 Video I/O Card with 9 Cables

AJA Corvid 88 CRV88-9-T 8-Channel PCIe 2.0 Video I/O Card with 9 Cables

Maximize video and audio I/O capacity with the AJA Corvid 88 CRV88-9-T, a tall standard-height PCIe 2.0 8-channel video I/O card designed for high-density broadcast, ingest, playout, and channel-in-a-box applications. Each SDI connection can be configured independently as an input or output, allowing multiple formats to be used on a single card when they share the same master clock.

Corvid 88 supports 4K, 2K, HD, and SD workflows, with SDI connections that can be linked for Dual Link and 4K/UltraHD applications. The CRV88-9-T provides up to eight independent 3G-SDI channels, 4K-capable processing, embedded audio, mixer/keyer functionality, LTC, Reference, and RS-422 device control.

This CRV88-9-T configuration includes 9x AJA 101999-02 cables and features a standard-height PCIe bracket.

Key Features

• 8-Channel PCIe 2.0 Video I/O
• 8x Independent 3G-SDI Input/Output Channels
• 4K/2K/HD/SD Video Support
• 4K Capable with Dual Link and 4K/UltraHD Support
• Up to 8 Simultaneous SDI Input/Output Streams
• 8-/10-Bit YCbCr and 12-Bit RGB
• 4x Independent Mixer/Keyer Widgets
• Up to 64 Channels of Embedded Audio
• High Frame Rate 3G-SDI Support
• Analog Color Black and HD Tri-Level Sync
• LTC and Reference Input
• RS-422 Device Control
• Standard-Height PCIe Bracket
• Includes 9x AJA 101999-02 Cables
• 3-Year Warranty

High-Density 8-Channel SDI I/O

The Corvid 88 expands on the multi-channel architecture of the Corvid family with eight SDI connections on a single PCIe card. AJA Developer Partner applications can access up to eight simultaneous input and output streams, making the card well suited for high-density ingest and playout servers, broadcast systems, and channel-in-a-box applications.

Each BNC connection can be configured programmatically as either an input or output. Individual channels can support different video formats as long as they use the same master clock timing, providing flexibility for mixed-format workflows.

4K, 2K, HD, and SD Support

Corvid 88 supports professional 4K, 2K, HD, and SD video formats. SDI connections can be linked for Dual Link or 4K/UltraHD workflows, allowing the card to handle higher-resolution applications while retaining the flexibility needed for multi-channel HD and SD systems.

High Frame Rate Video

The CRV88-9-T supports 3G-SDI High Frame Rate (HFR) workflows, including 4K and UltraHD applications at 48p, 50p, and 60p. Multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p.

12-Bit RGB and 10-Bit YCbCr

Corvid 88 supports a range of professional frame buffer formats, including 8- and 10-bit YCbCr and 12-bit RGB. This provides the processing flexibility required for broadcast, post-production, ingest, playout, and other professional video applications.

Mixer, Keyer, and Video Processing

Built-in processing provides additional functionality without requiring separate hardware. Corvid 88 includes:

• 8 Frame Stores for input or output
• 8 Color Space Converters
• 4 independent Mixer/Keyer widgets
• 8 1D LUTs
• 8 Dual Link inputs
• 8 Dual Link outputs
• 8 independent 16-channel embedded audio engines

The four independent Mixer/Keyer widgets provide hardware processing capabilities for applications requiring keying and compositing.

High-Density Embedded Audio

Corvid 88 features independent 16-channel, 48 kHz SDI embedded audio I/O engines for multi-channel audio workflows. Across the card's SDI connections, the architecture supports up to 64 channels of embedded audio, providing substantial audio capacity for high-density ingest and playout systems.

LTC and Reference Synchronization

The Corvid 88 provides an external, switchable LTC/Reference input for professional synchronization. Reference support includes analog Color Black and HD Tri-Level Sync.

A second LTC input is available through an internal header for additional system flexibility.

RS-422 Device Control

A built-in RS-422 connection enables control of external devices for frame-accurate ingest and layoff workflows. The full-height Corvid 88 configuration provides the RS-422 connection through the card's external connection.

Standard-Height PCIe Configuration

The CRV88-9-T uses a tall, standard-height PCIe bracket, making it suited for compatible full-height server and workstation chassis. This configuration is specifically supplied with the standard PCIe bracket and cable package.

Includes 9x AJA 101999-02 Cables

This CRV88-9-T package includes 9x AJA 101999-02 cables, providing the required cable connections for installation and system configuration.

Professional Broadcast I/O for Servers and Channel-in-a-Box Systems

With eight configurable SDI channels on one PCIe card, Corvid 88 is designed for applications where high I/O density is important. Its combination of independent SDI channels, 4K capability, embedded audio, processing, synchronization, and device control makes it suitable for broadcast servers, ingest systems, playout servers, and channel-in-a-box systems.

Professional Support and Warranty

AJA provides technical support for Corvid products covering installation, configuration, operation, and troubleshooting. The Corvid 88 CRV88-9-T is covered by a three-year warranty, subject to AJA's warranty terms and conditions.

• Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
• Video Output Digital
  • 3G-SDI, SMPTE 425
  • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
  • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.
• HDR SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance
• Audio Input Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
• Audio Output Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
• Reference: Analog Color Black or HD Tri-level sync
• BNC: 8x 3G-SDI, Din 1.0/2.3
• Electrical Interface: 4-lane PCIe 3.0
• Size (w x d x h): 0.88" x 7.25" x 4.88" (22.36 × 184.15 × 123.96 mm)
• Weight: 0.4 lb (0.2 kg)
• Power: 17W typical, 20W maximum
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 70 C (-40 to 158 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
• Airflow across the board if the fan is removed:
• 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink

• Corvid 88 Card
• 9x AJA 101999-02 Cables
• Warranty: Warranty: Limited 3-Year Manufacturer Warranty
