DANTE-12GAM Overview
The DANTE-12GAM is a high performance Audio over IP (AoIP) Converter, embedding and disembedding SDI audio to a Dante network and back to SDI from Dante audio. Equipped with 12G-SDI input and output and dual etherCON GigE ports, the DANTE-12GAM is capable of simultaneously embedding and disembedding up to 16* channels of audio in and out for a total of 32* audio channels in a compact device.

The DANTE-12GAM is your portal to a vast array of IP audio solutions. Dante networks not only support the Dante audio streams but also support AES67 and SMPTE ST 2110-30 AoIP, providing massive flexibility for all your IP audio needs.

DANTE-12GAM is available with a single channel 12G-SDI input and output, or as two dual channel options: DANTE-12GAM-TR-LC (with LC Fiber SFP) or DANTE-12GAM-TR-BNC (with BNC SFP), which support a total of up to 64 channels of Dante® audio in a compact Mini-Converter form factor. The single channel can be upgraded to the dual channel version at any time via an optional license and the addition of either the BNC or LC Fiber SFP.

No matter the configuration you choose, you can rely on AJA’s legendary build quality and support to give you peace of mind whether you're an individual creator or broadcasting the largest live events.

*up to 64 channels of audio with the dual channel option/upgrade.

Dante: The Audio Networking Standard for the Pro AV Industry and Beyond
Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters. It is widely adopted by over 600 manufacturers offering 4000+ Dante device types. Dante IP audio networking provides digital audio distribution over local and wide area networking with very low latency (<1 ms), using standard network hardware or connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, ease of installation, and maintenance.

Dante allows uncompressed, multi-channel, low-latency, high-resolution digital audio to be distributed across a switched Ethernet network using standard TCP/IP protocols while meeting stringent quality and timing requirements of professional audio. For your peace of mind, Dante audio supports a redundant network topology with dual networks via a primary and secondary 1 GigE port on most Dante devices.

Connectivity
The DANTE-12GAM converter offers the power and flexibility of professional connectivity to plug and play into your existing SDI and Dante audio infrastructures.

Dante and AES67
In addition to Dante IP audio, the DANTE-12GAM also supports AES67, which is an open standard for IP audio developed by the Audio Engineering Society (AES). Dante and AES67 work together by leveraging AES67's interoperability to allow Dante devices to communicate with other AES67-compliant systems, enhancing the flexibility and integration capabilities of audio networks, greatly expanding the Dante audio ecosystem. This means you can integrate Dante systems with other IP audio systems that use AES67, such as RAVENNA, Livewire, and Q-LAN. To enable AES67 on Dante devices, you need to activate AES67 in Dante Controller software, which allows the Dante network to transmit and receive AES67 streams.

Dante and SMPTE ST 2110-30
SMPTE ST 2110-30 is the SMPTE standard for transporting uncompressed audio over IP networks. The DANTE-12GAM also supports SMPTE ST 2110-30 IP audio, which is a component of the broader SMPTE ST 2110 IP AV suite. The SMPTE ST 2110 standard includes video, audio, ancillary data, and more, transporting the highest quality video and audio IP data streams over robust IP networks, typically in broadcast environments. The DANTE-12GAM can interoperate with other ST 2110-30 compliant devices via the Dante Controller software. The Dante audio network and the DANTE-12GAM both support Precision Time Protocol version 2 (PTPv2), ensuring synchronization across Dante and SMPTE ST 2110 networks. With its support of SMPTE ST 2110-30, the DANTE-12GAM is a powerful bridge between Dante and SMPTE networks in professional audio and broadcast applications.

Advanced Enclosure

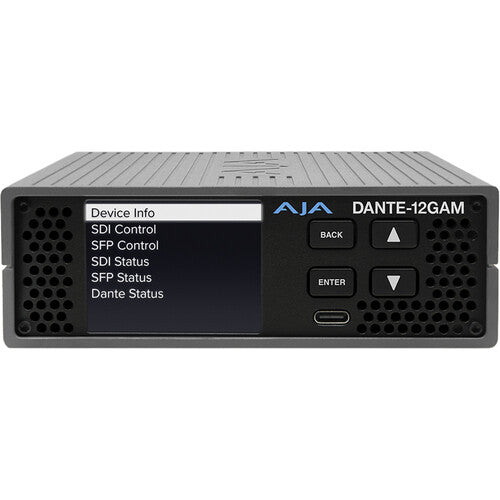

The DANTE-12GAM utilizes a rugged new aluminum enclosure, offering a front panel display, physical push-button controls, USB-C connectivity for initial Static IP configuration, and active cooling designed with front-to-back airflow. The onboard display reports status and configuration and is paired with buttons for enter, back, up, and down for easy access to settings for standalone operation

AJA Web UI
The DANTE-12GAM can also be monitored and controlled by a user friendly web UI served by its integrated web server. The web UI shows the system status and connections to the Dante audio network. It can be used to configure network settings and update firmware. Applicable controls and status information are mirrored on the LCD front display on the device.

AJA Mini-Matrix
Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers.

Video Formats
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
RGB and YCbCr, 4:4:4/4:2:2, 10 or 12-bit
Note: Raster and frame rate dependent; please refer to DANTE-12GAM Video Formats in the Documents.

Video Input Digital
1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
Single Link HD/2K/UltraHD/4K

Video Output Digital
1-channel independent 12G-SDI BNC connectors, SMPTE 292/424/2081/2082
Single Link HD/2K/UltraHD/4K

Video Optical SFP Input/Output
(DANTE-12GAM-TR-LC)
1x FiberLC-TR-12G Dual LC 12G Fiber Transceiver SFP, SMPTE 297/292/424/2081/2082
Wavelength: Rx 1260 nm (min), 1620 nm (max)
Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
Overload Power: -2 dBm (min)

Video Electrical SFP Input/Output (DANTE-12GAM-TR-BNC)
1x BNC-TR-12G Dual BNC 12G Coax Transceiver SFP, SMPTE 292/424/2081/2082

Internal Signal Generators
2x independent internal video signal generators

Cable Equalization
(Belden 1694A coax)
12 Gbps, 60m
6 Gbps, 120m
3 Gbps, 180m
1.5 Gbps, 200m

Video Path Delay
Video Latency, time measured between video input and video output connector:
12G = 3.6 µsec
6G = 7.2 µsec
3G level B Dual Link = 7.2 µsec
3G level A = 3.6 µsec
HD (1.5 Gb) = 7.2 µsec

Digital Audio Input/Output
SDI: 1x independent 12G-SDI BNC connectors, 16 embedded channels each
DANTE: 1x primary Nuetrik etherCON RJ-45 Connector and 1x secondary Nuetrik etherCon RJ-45 Connector, Up to 32-channels
Video Optical SFP (TR-LC Option): 1x independent 12G-SDI Fiber LC SFP connector, 16 embedded channels each
Video Electrical SFP (TR-BNC Option): 1x independent 12G-SDI BNC SFP connector, 16 embedded channels each

SDI Embedded Audio
SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
Incoming embedded audio can be passed, removed, or overridden
4 groups: (16-channels) of audio supported per SDI path
Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

DANTE Audio
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32

Audio Latency
Embed Path: 1500 µsec
Disembed Path: 1410 µsec

Network Interface
2x Nuetrik etherCON RJ-45, 100/1000 Ethernet
Rest Interface

User Interface
Onboard LCD display with buttons for enter, back, up, and down operation
AJA webUI
DANTE Controller, Dante Domain Manager & Network Management Applications
USB-C port for initial Static IP configuration using AJA eMini-Setup

Size (w x d x h)
5.0" x 8.09" x  1.65" (127 x 205.49 x 41.81 mm)

Weight
1.92 lbs (.87 kg)

Power
Enclosure: 10-18VDC regulated, 4-pin mini-XLR, 16W typical 3G-SDI, 21W typical 12G-SDI, 25W max
IEEE 802.3at Class 4, Type 2 (25.5, Max) PoE+ on Primary Ethernet port
AC Adapter included: 100-240VAC, 50/60 Hz, universal input, 60W

Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

• AJA DANTE-12GAM
• AC Adapter included: 100-240VAC, 50/60 Hz, universal input, 60W

Warranty: 5 Years
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
