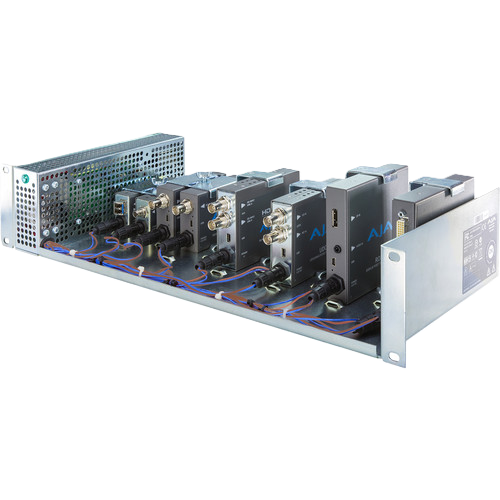

The AJA DRM-R2 is a 2RU Mini-Converter rackmount frame designed to consolidate multiple AJA Mini-Converters into a single professional rack unit. The frame can accommodate up to 12 AJA D4/D5 series Mini-Converters or up to six D10/HD10 series Mini-Converters, helping organize converters while eliminating the need for individual power supplies.

A built-in universal power supply provides 12 discrete regulated +5V outputs with up to 50W total power, creating a cleaner and more efficient installation for broadcast, live production, studio, and professional AV environments.

Key Features

• Supports up to 12 AJA Mini-Converters
• 2RU rackmount design
• Supports up to 12 D4/D5 series converters
• Supports up to 6 D10/HD10 series converters
• Mix and match supported Mini-Converters
• 12 discrete regulated +5V power outputs
• Universal power supply included
• Supports 100-240V AC, 50/60 Hz
• Up to 50W total power output
• 19-inch rack width
• Six brackets for D4/D5 Mini-Converters
• Six larger brackets for D10/HD10 Mini-Converters

Consolidate AJA Mini-Converters in a 2RU Rack Frame

The AJA DRM-R2 provides a convenient way to install multiple Mini-Converters in a standard 19-inch equipment rack. Instead of mounting individual converters throughout a rack and managing multiple power supplies, the DRM-R2 consolidates compatible AJA Mini-Converters into one organized 2RU chassis.

The frame supports up to 12 D4/D5 series Mini-Converters or up to six D10/HD10 series Mini-Converters, with the flexibility to mix and match supported converter sizes.

Integrated Universal Power Supply

The DRM-R2 includes a universal power supply with 12 discrete regulated +5V outputs, eliminating the need for a separate power supply for each installed converter.

The power supply accepts 100-240V AC at 50/60 Hz and provides up to 50W of total power across its 12 outputs. This helps reduce cable clutter and simplifies power distribution within the equipment rack.

Flexible Mini-Converter Mounting

The DRM-R2 includes mounting brackets designed for AJA Mini-Converters. Six brackets accommodate D4/D5 series Mini-Converters, while six larger brackets support D10/HD10 series Mini-Converters.

This flexible mounting system lets you configure the rack frame around the specific combination of AJA converters required for your video workflow.

Professional Rackmount Installation

With a standard 19-inch rack width and 2RU height, the DRM-R2 integrates easily into professional equipment racks, broadcast systems, production facilities, studios, and mobile production environments.

AJA recommends leaving 1RU of space above the frame when installing select larger Mini-Converters to provide appropriate clearance.

Applications

The AJA DRM-R2 is well suited for organizing AJA Mini-Converters in:

• Broadcast facilities
• Live production systems
• Mobile production trucks
• Studio environments
• Professional AV systems
• Video control rooms
• Rack-based signal conversion systems
• SDI video workflows
• Professional video equipment racks

• Power
  • Input: 100 to 240 VAC, 50/60 Hz
  • Output: 12 x 5 VDC Regulated
  • 50 W Output (Max)
• Rack Space: 2 RU
• Dimensions: 19 x 9 x 3.5" / 48.26 x 22.86 x 8.89 cm

• AJA DRM-R2 Mini-Converter Rackmount Frame (2 RU)
• 6 x DRM Hold-Down Bracket (D5)
• 6 x DRM Hold-Down Bracket (D10)
• 6 x 1/4 Allen, 6-32 x 2-1/4" Standoff
• 6 x 6-32 x 3/8" Wing Screw Stamped
• 6 x 6-32 x 3/8" PFH ZP U/C S Screw
• 6 x 6-32 Locking Star Washer
• 6 x 6-32 x 1-1/4" PFH Screw
• 6 x 6-32 Allen Nut
• 6 x 1-9/16" Allen Female Standoff
• 6 x 1/4 Allen, 6-32 x 3-1/4" Standoff
• Warranty: Limited 5-Year Manufacturer Warranty
