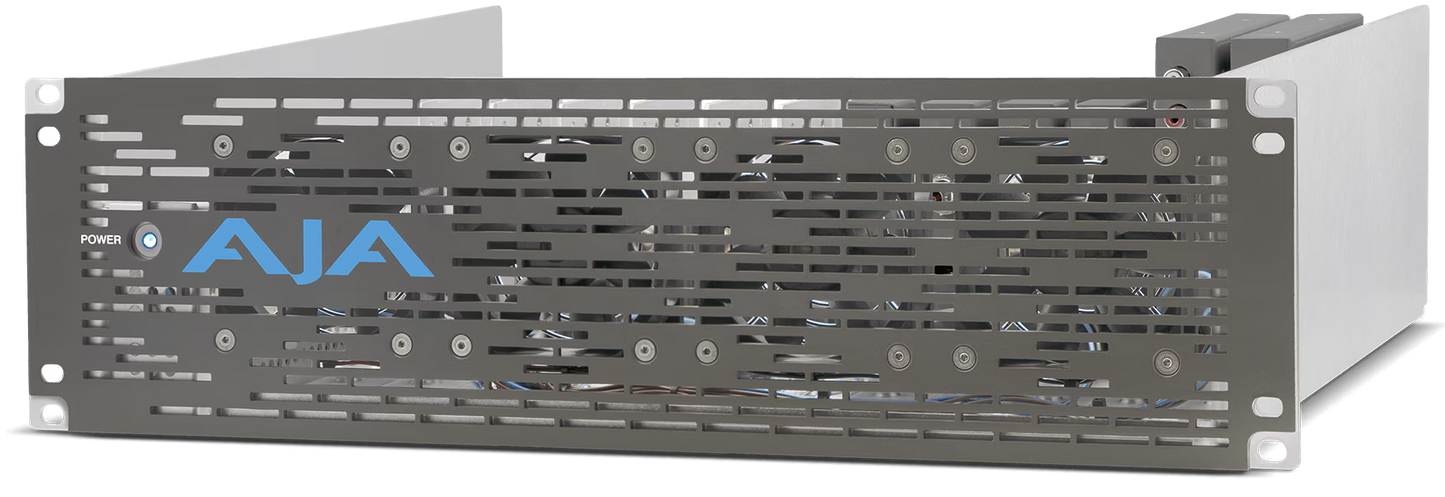

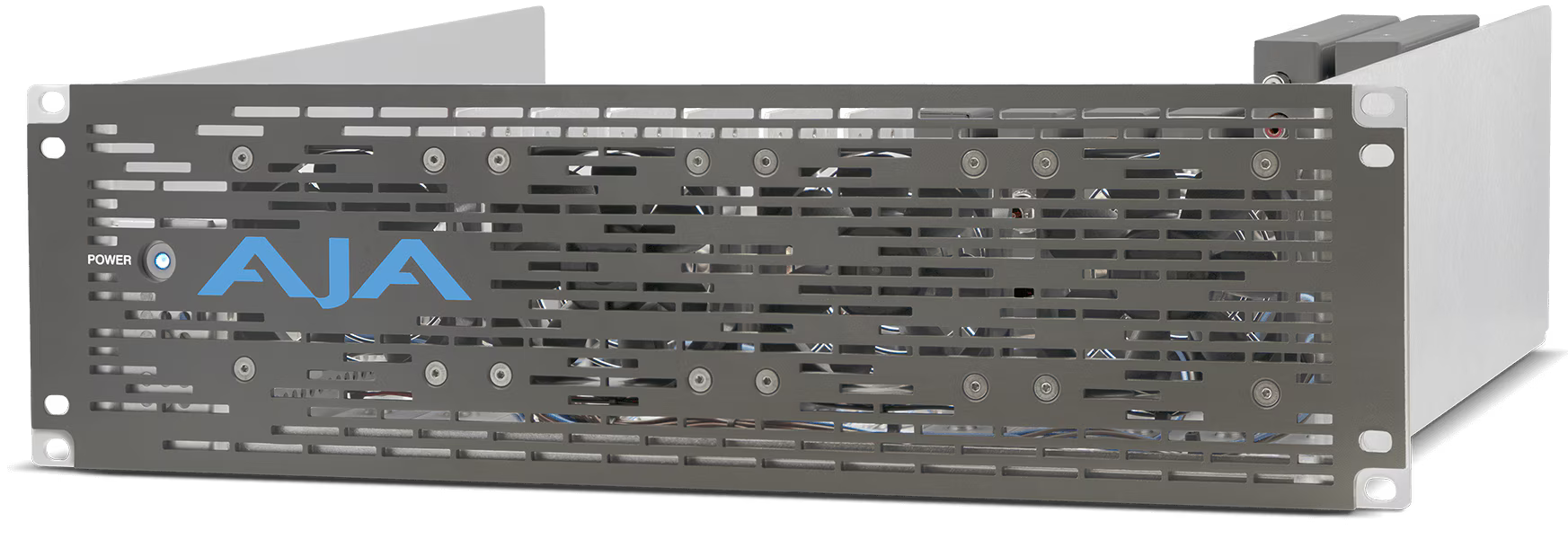

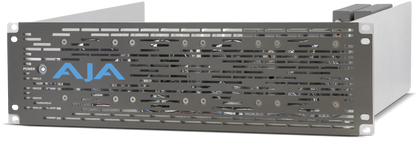

AJA DRM2 3RU Mini-Converter Rackmount Frame with 200W Power Supply, Passive Faceplate
AJA DRM2 3RU Mini-Converter Rackmount Frame with 200W Power Supply, Passive Faceplate
AJA DRM2 3RU Mini-Converter Rackmount Frame with 200W Power Supply, Passive Faceplate

AJA DRM2 3RU Mini-Converter Rackmount Frame with 200W Power Supply, Passive Faceplate

Regular price$1,295.00
/
Free Shipping & Tech Support.

MFR Part # (MPN): DRM2-R0
Videoguys Part # (SKU): DRM2WPASSIVEFACEPLATE

Short Description:
  • Free Shipping & Tech Support

DRM2 is a 3RU rackmount frame to professionally mount, power, and support up to twelve AJA Mini-Converters of any current size/form factor. This rackmount frame will deliver enough power to support any currently available AJA Mini-Converter, with a total power delivery of up to 200 Watts, 100-240V 50/60Hz.

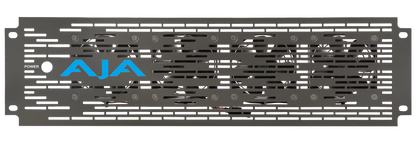

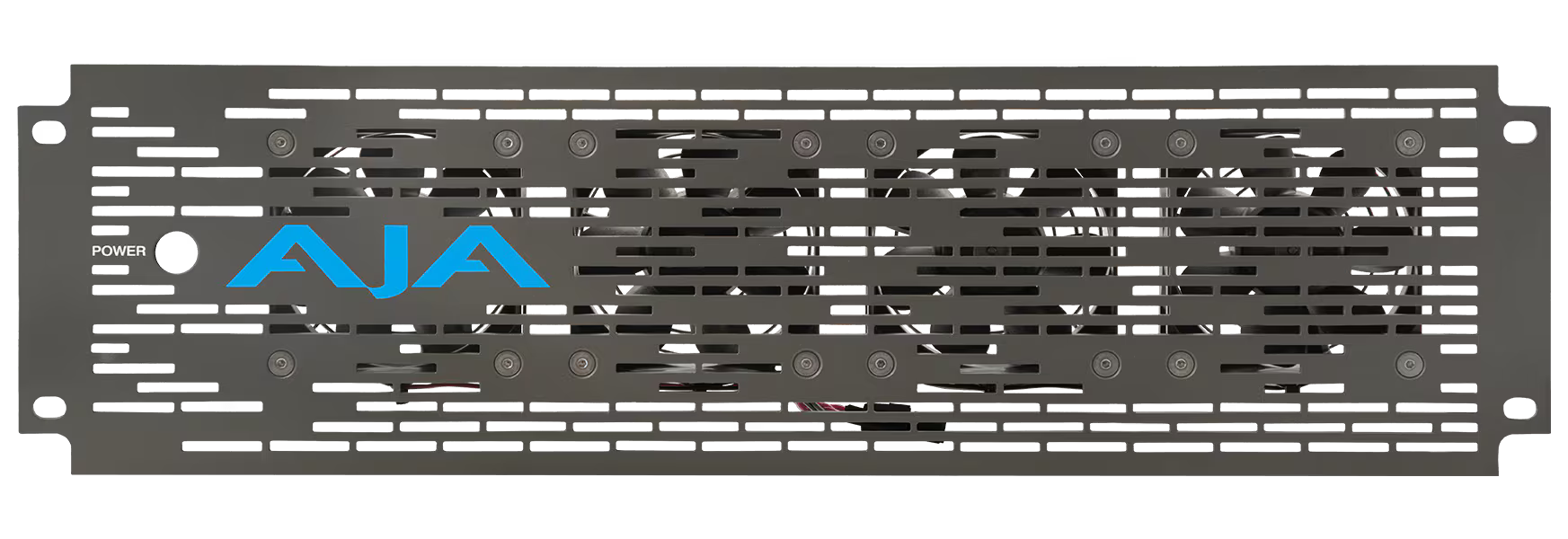

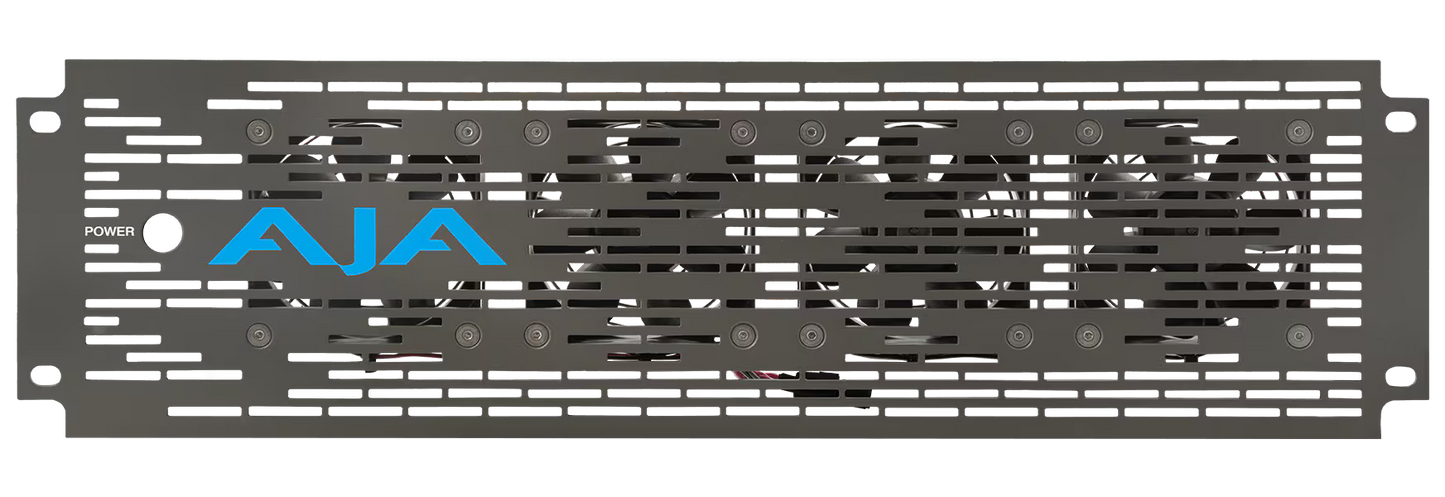

The DRM2 ships with a standard passive faceplate. DRM2-AP ships with an actively cooled faceplate, enabling use with the higher wattage Mini-Converters or in higher ambient temperature environments.  For customers who want to upgrade their passive faceplate to the active version, we offer part number DRM2-AFP, the active cooling faceplate, as a stand-alone part sold separately.

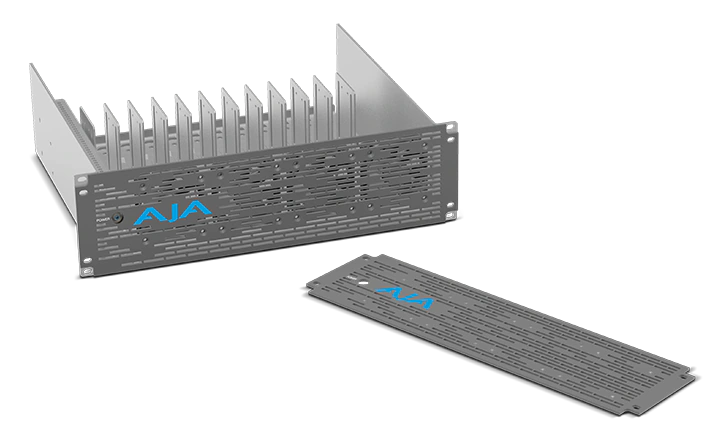

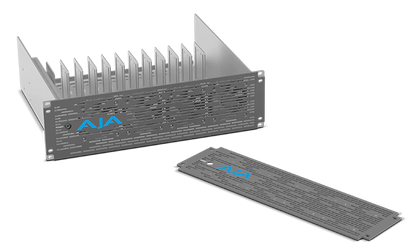

The new DRM2 has a redesigned rackmounting scheme, allowing the faceplate to be removed from the DRM2 without removing the DRM2 from the rack. Converters can easily be swapped in and out of the DRM2 without removing the DRM2 from the rack environment. The DRM2 is the best solution for a clean installation and power for your AJA Mini-Converters.


Features

  • Standout industrial design
  • 12x mounting slots for any AJA Mini-Converters
  • 12x modular carriers are included with the DRM2
  • Mini-Converters may be installed without removing the frame from the rack
  • Up to 24x smaller AJA FiDO fiber converters can be installed - 2x per carrier in the DRM2 with the optional DRM2-YC Y-Cable
  • Optional active faceplate offers 4x fans for maximum cooling in higher ambient temperature installations
  • The included power supply cable has 13x D5/10-PC power connectors.  Installed Mini-Converters utilize twelve connectors, and one is reserved for the active faceplate power


Power and Space for AJA Mini-Converters
The new 3RU Form Factor allows all AJA Mini-Converters to fit cleanly in the rackmount chassis. Modular Mini-Converter carrier mounts are rugged, simple to use, and easy to access from the front or rear of the chassis. 12x carriers are included with the DRM2, and additonal carriers can be purchased individually or in 12-pack bundles.


The Power to Do More

  • Here are a number of exciting use cases for the DRM2:
  • 48x channels of 3G or 12G-SDI to Fiber or Fiber to SDI conversion
  • Up to 60x channels of HD or SD sync distribution utilizing 2x GEN10s and 10x 3GDAs or C10DAs
  • 12x independent channels of 4K HDMI to 12G-SDI or 12G-SDI to 4K HDMI conversion
  • 12x independent scan conversion channels
  • 12x independent Up/Down/Cross conversion channels


Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running. Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

User Interface

  • 12x mounting slots for any AJA Mini-Converters
  • Converters may be installed without removing the frame from the rack


Size (w x d x h)

  • 19.0" x 15.0" x 5.25" (48.26 x 38.1 x 13.34 cm)


Weight

  • DRM2 with 12x carriers, hardware, power harness, and power cord: 9.3 lbs (4.2 kg)
  • DRM2 faceplate without fans 0.9 lbs (0.4 kg)
  • DRM2 faceplate with fans 2.1 lbs (0.9 kg)


Power

  • Universal 100-240V, 50/60Hz power input
  • 12x +5V DC regulated outputs (hardwired to power supply)
  • Power Consumption: 200 Watts maximum
  • Note: If the ambient temperature is under 30C, an active faceplate is recommended if power consumption exceeds 100W.  If the ambient temperature is over 30C, an active faceplate is recommended if power consumption exceeds 75W. Please consult the Tech Specs of your Mini-Converters to calculate expected power consumption.


Environment

  • Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <2,500 meters (<8,000 feet)

  • 1x DRM2 Rack Mount Frame (19" rack mount frame for AJA mini-converters)
  • 1x Passive or Active Faceplate (Passive Faceplate (with DRM2 order) - or - Active Faceplate (with DRM2-AP order))
  • 12x Carriers (Carriers include captive No-Tools secure screws)
  • 12x Anti-Vibration Screws (10-32 x 0.187 Phillips Pan Head Secures rear of Carrier for anti-vibration use)
  • 12x Mini-Converter Rear Mounting Screws (4-40 x 0.312 Phillips Flat Head Secures rear of Mini-Converter to Carrier)
  • 12x Mini-Converter Bottom Mounting Screws (2-56 x 0.250 Phillips Flat Head Secures bottom of Mini-Converter to Carrier)
