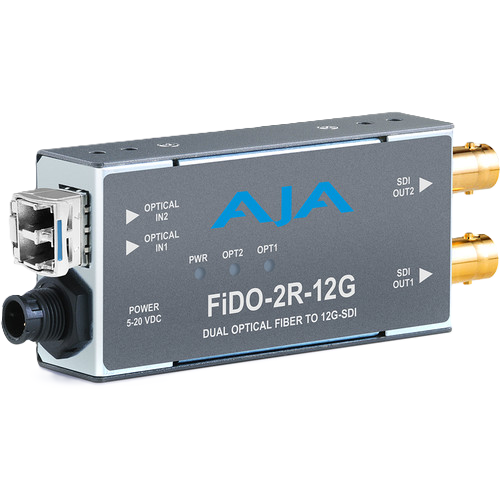

AJA FiDO-2R-12G 2-Channel 12G-SDI Fiber Receiver

AJA FiDO-2R-12G 2-Channel 12G-SDI Fiber Receiver

The AJA FiDO-2R-12G is a compact 2-channel single-mode LC fiber to 12G-SDI receiver designed for reliable long-distance SDI signal transmission. It converts fiber optic signals to two independent 12G-SDI outputs and supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI workflows.

Using standard single-mode fiber optic cable, the FiDO-2R-12G supports transmission distances of up to 10 km (32,808 ft). Its compact Mini-Converter design makes it well suited for broadcast facilities, production studios, mobile trucks, live events, camera systems, and other professional video applications where space is limited.

Key Features

• 2-channel single-mode LC fiber to 12G-SDI receiver
• Supports 12G/6G/3G/HD/SD-SDI
• Provides two independent 12G-SDI outputs
• Supports 2 simplex or 1 duplex LC fiber connection
• Fiber-to-SDI channels operate independently
• Supports SDI metadata pass-through, including HDR
• Transmission distances up to 10 km (32,808 ft) over single-mode fiber
• Compact, low-profile design for racks, mobile production trucks, and camera rigs
• 5-20VDC power input
• Universal power supply included
• Five-year warranty

12G-SDI Fiber Conversion Over Long Distances

The FiDO-2R-12G provides a practical way to transport high-bandwidth SDI signals over long distances using standard single-mode fiber. With support for transmission distances up to 10 km, it can help connect cameras, production equipment, broadcast systems, and other SDI devices across large facilities or production environments.

The receiver provides two independent fiber-to-SDI conversion paths, allowing each channel to operate separately. The unit supports a wide range of SDI formats, including 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI, making it suitable for both modern 4K workflows and existing HD infrastructure.

HDR Metadata Pass-Through

The AJA FiDO-2R-12G supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information as video is converted from fiber to SDI.

High Dynamic Range (HDR) can provide a wider range of brightness and color than Standard Dynamic Range (SDR), allowing production systems to maintain richer images with brighter highlights, deeper blacks, and more detailed color.

Flexible LC Fiber Connectivity

FiDO-2R-12G supports two simplex or one duplex LC fiber connection, providing flexibility for different fiber configurations. Its single-mode fiber support makes it suitable for long-distance professional video signal transport in broadcast, live production, studio, and AV environments.

Compact AJA Mini-Converter Design

The FiDO-2R-12G uses AJA's compact Mini-Converter enclosure, making it easy to install in locations where space is limited. The low-profile design can fit behind monitors, inside equipment racks, in mobile production trucks, or directly on camera rigs.

A locking power connector helps prevent accidental disconnection, while an optional P-TAP power cable can provide battery-powered operation for remote production applications.

Universal Power Supply

The FiDO-2R-12G operates on 5-20VDC power and includes a universal power supply with international plug connections. AJA also offers optional spare power supplies for Mini-Converters, providing additional flexibility for production environments and installations.

Professional AJA Support and Warranty

AJA Mini-Converters are backed by AJA's technical support resources to help with installation, configuration, operation, and troubleshooting. The FiDO-2R-12G is covered by a five-year warranty, providing long-term support for professional video production systems.

AJA FiDO-2R-12G Applications

The AJA FiDO-2R-12G can be used in a variety of professional video and broadcast environments, including:

• 4K and HD broadcast production
• Live event video production
• Mobile production trucks
• Studio and production facilities
• Camera-to-production system connections
• Long-distance SDI signal transport
• Fiber-based SDI infrastructure
• Remote camera systems
• Professional AV and video installations

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Video Input Digital
  • 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
  • Optical Sensitivity: -9 dBm (Max) for 12 Gbps, -10 dBm (Max) for 270 Mbps, 1.5 Gbps, 3 Gbps & 6 Gbps
  • Overload Power: -2 dBm (Min)
• Video Output Digital: 2-channel independent 12G-SDI BNC Outputs, SMPTE 259/292/424/2081/2082
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
• Weight: 0.4 lb (0.2 kg)
• Power
  • 2 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA FiDO-2R-12G 2-Channel 12G-SDI Fiber Receiver
• Warranty: 5-Years
