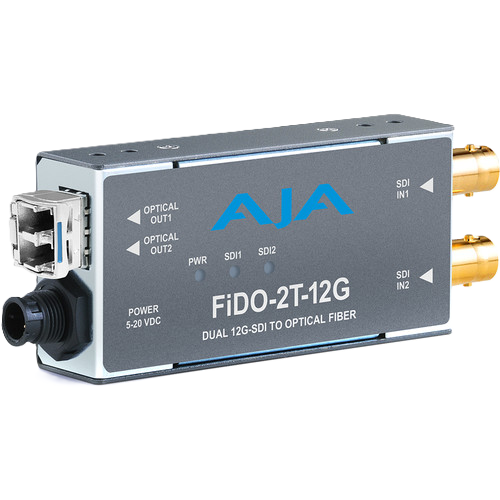

AJA FiDO-2T-12G 2-Channel 12G-SDI Fiber Transmitter

AJA FiDO-2T-12G 2-Channel 12G-SDI Fiber Transmitter

The AJA FiDO-2T-12G is a compact 2-channel 12G-SDI to single-mode LC fiber transmitter designed for long-distance SDI signal transport. It converts two independent SDI inputs to fiber and supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI workflows.

Using standard single-mode fiber optic cable, the FiDO-2T-12G supports transmission distances of up to 10 km (32,808 ft). Its compact Mini-Converter design makes it ideal for broadcast facilities, production studios, mobile production trucks, live events, camera systems, and professional AV installations where reliable long-distance SDI transport is required.

Key Features

• 2-channel 12G-SDI to single-mode LC fiber transmitter
• Supports 12G/6G/3G/HD/SD-SDI
• Provides two independent 12G-SDI inputs
• Supports 2 simplex or 1 duplex LC fiber connection
• Both SDI-to-fiber conversion paths operate independently
• Transmission distances up to 10 km (32,808 ft) over single-mode fiber
• Supports SDI metadata pass-through, including HDR
• 5-20VDC power input
• Universal power supply included
• Compact, low-profile Mini-Converter design
• Five-year warranty

12G-SDI to Fiber Conversion Over Long Distances

The AJA FiDO-2T-12G provides a reliable way to transport high-bandwidth SDI signals over long distances using standard single-mode fiber. It converts two independent SDI sources to fiber, supporting transmission distances of up to 10 km (32,808 ft).

With support for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI, the FiDO-2T-12G can be used with both modern 4K production systems and established HD-SDI infrastructure.

The two SDI-to-fiber paths are completely independent, allowing each channel to operate separately for flexible multi-channel video transport.

Flexible Single-Mode LC Fiber Connectivity

FiDO-2T-12G supports two simplex or one duplex LC fiber connection, providing flexible connectivity for professional video systems.

Single-mode fiber allows SDI signals to be transported much farther than traditional copper SDI cabling, making the FiDO-2T-12G useful for connecting cameras, production equipment, control rooms, venues, studios, and other locations across large facilities.

HDR Metadata Pass-Through

The FiDO-2T-12G supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information during SDI-to-fiber conversion.

High Dynamic Range (HDR) provides a wider range of brightness and color than Standard Dynamic Range (SDR), allowing production systems to maintain richer images with brighter highlights, deeper blacks, and greater color detail.

Compact and Portable Mini-Converter Design

The FiDO-2T-12G features AJA's compact Mini-Converter enclosure, making it easy to install in space-constrained production environments. The low-profile design can fit behind monitors, inside equipment racks, in mobile production trucks, or directly on camera rigs.

A locking power connector helps prevent accidental power disconnection, while an optional P-TAP power cable can provide battery power for remote production applications.

Universal Power Supply

The FiDO-2T-12G operates on 5-20VDC power and includes a universal power supply with international plug connections. A spare universal power supply can also be used with AJA Mini-Converters for additional flexibility in production and installation environments.

Professional AJA Support and Warranty

AJA provides technical support for Mini-Converter installation, configuration, operation, and troubleshooting. The FiDO-2T-12G is covered by a five-year warranty, providing long-term support for professional video production systems.

AJA FiDO-2T-12G Applications

The AJA FiDO-2T-12G can be used for a variety of professional video and broadcast applications, including:

• 4K and HD broadcast production
• Live event video production
• Mobile production trucks
• Studio and production facilities
• Long-distance camera connections
• SDI-to-fiber signal transport
• Fiber-based SDI infrastructure
• Remote camera systems
• Professional AV installations
• Long-distance 12G-SDI workflows

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Video Input Digital: 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
• Video Output Digital
  • 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
  • Optical Power: -5 dBm (Min), 0.5 dBm (Max)
  • Extinction Ratio: 3.5 (Min)
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
• Weight: 0.4 lb (0.2 kg)
• Power
  • 3.5 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA FiDO-2R-12G 2-Channel 12G-SDI Fiber Transmitter
• Warranty: 5-Years
