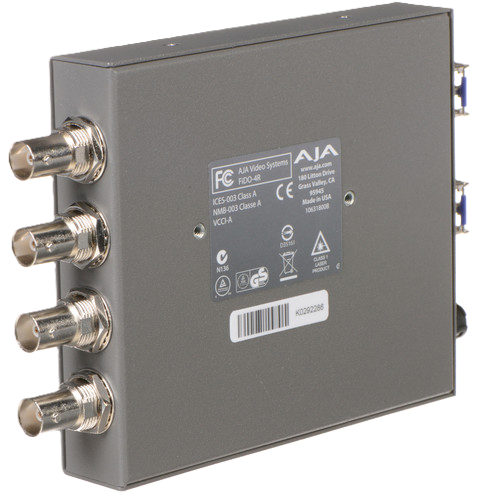

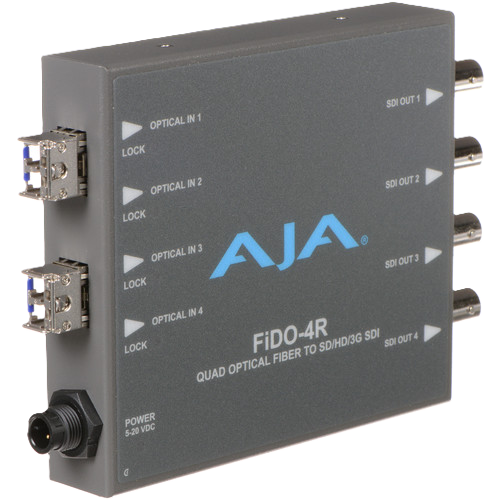

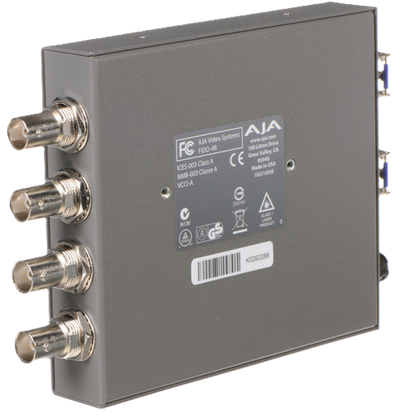

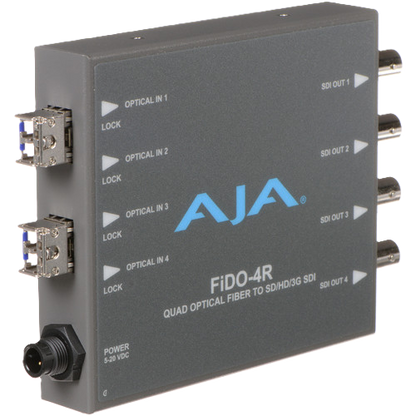

AJA FiDO-4R 4-Channel 3G-SDI Fiber Receiver

AJA FiDO-4R 4-Channel 3G-SDI Fiber Receiver

The AJA FiDO-4R is a 4-channel single-mode LC fiber to 3G-SDI receiver designed for reliable, long-distance SDI signal transport. It converts four independent single-mode fiber signals to 3G-SDI, HD-SDI, or SD-SDI outputs, with transmission distances of up to 10 km (32,808 ft).

FiDO-4R also supports 4K/UltraHD-SDI over four fiber links and provides electrical isolation between fiber and SDI connections, which can help eliminate ground loop problems. Its compact Mini-Converter design makes it suitable for broadcast facilities, live production, mobile production trucks, studios, and camera systems.

Key Features

• 4-channel single-mode LC fiber to 3G-SDI receiver
• 4 independent 3G/HD/SD-SDI outputs
• Supports 4K/UltraHD-SDI over 4 fiber links
• Up to 10 km (32,808 ft) transmission over single-mode fiber
• Supports 4 simplex or 2 duplex LC fiber connections
• Provides electrical isolation to help eliminate ground loop problems
• Supports SDI metadata pass-through, including HDR
• 5-20VDC power input
• Universal power supply included
• Compact, low-profile Mini-Converter design
• Five-year warranty

4-Channel Fiber to 3G-SDI Conversion

The AJA FiDO-4R provides four independent fiber-to-SDI conversion paths in a compact Mini-Converter. It receives signals over single-mode LC fiber and converts them to 3G-SDI outputs, while also supporting HD-SDI and SD-SDI formats.

Each channel operates independently, providing flexible multi-channel signal transport for professional video systems. This makes FiDO-4R particularly useful when multiple cameras or video sources need to be transported over fiber to a central production or broadcast system.

Long-Distance Single-Mode Fiber Transmission

FiDO-4R supports transmission distances of up to 10 km (32,808 ft) using standard single-mode fiber optic cable. Fiber provides a practical way to transport professional SDI signals over long distances without the distance limitations of traditional copper SDI cabling.

The receiver supports four simplex or two duplex LC fiber connections, allowing flexible fiber infrastructure configurations.

4K and UltraHD-SDI Over Fiber

FiDO-4R supports 4K/UltraHD-SDI over four fiber links, allowing multiple 3G-SDI signals to be used together for high-resolution video workflows.

The four independent fiber connections can transport the individual SDI signals required for 4K and UltraHD production systems, providing a flexible solution for high-resolution video signal transport.

Electrical Isolation for Ground Loop Protection

FiDO-4R provides electrical isolation between the fiber and SDI connections. This can help eliminate ground loop problems that may occur when video equipment is connected across different electrical systems or locations.

Electrical isolation makes fiber-based signal transport particularly useful in broadcast facilities, live events, mobile production, and other environments where equipment may be distributed across a large area.

HDR Metadata Pass-Through

The FiDO-4R supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information as video is converted from fiber to SDI.

High Dynamic Range (HDR) provides a wider range of brightness and color than Standard Dynamic Range (SDR), allowing compatible production systems to maintain brighter highlights, deeper blacks, and richer color detail.

Compact AJA Mini-Converter Design

The FiDO-4R features AJA's compact, low-profile Mini-Converter enclosure. Its small footprint allows it to fit behind monitors, inside equipment racks, in mobile production trucks, or directly on camera rigs.

A locking power connector helps prevent accidental power disconnection. An optional P-TAP power cable can also provide battery-powered operation for remote production applications.

Universal Power Supply

The FiDO-4R operates on 5-20VDC power and includes a universal power supply with international plug connections. Spare universal power supplies are also available for AJA Mini-Converters, providing additional flexibility for professional production environments.

Professional AJA Support and Warranty

AJA provides technical support for Mini-Converter installation, configuration, operation, and troubleshooting. The FiDO-4R is covered by a five-year warranty, providing long-term support for professional video production systems.

AJA FiDO-4R Applications

The AJA FiDO-4R is designed for professional video environments requiring multiple SDI signals to be transported over long-distance fiber, including:

• 4K and UltraHD broadcast production
• Live event video production
• Mobile production trucks
• Television and production studios
• Multi-camera production
• Long-distance SDI signal transport
• Fiber-based SDI infrastructure
• Remote camera systems
• Professional AV installations
• 4K/UltraHD workflows using multiple 3G-SDI signals

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital
  • 4-channel independent Single Mode LC Fiber Inputs, SMPTE-297
  • Nominal Wavelength: 1260 - 1620 nm
  • Optical Sensitivity: -18dBm (Max)
  • Overload Power: -3dBm (Min)
• Video Output Digital: 4-channel independent 3G-SDI BNC Outputs, SMPTE-259/292/424
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6mm)
• Weight: 0.8 lb (0.4 kg)
• Power
  • 5 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA FiDO Quad-Channel LC Fiber to 3G-SDI Mini Converter
• AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
• Warranty: Limited 5-Year Manufacturer Warranty
