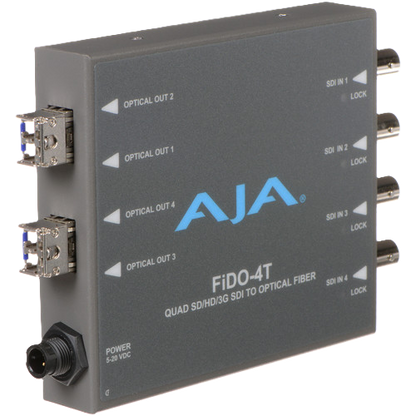

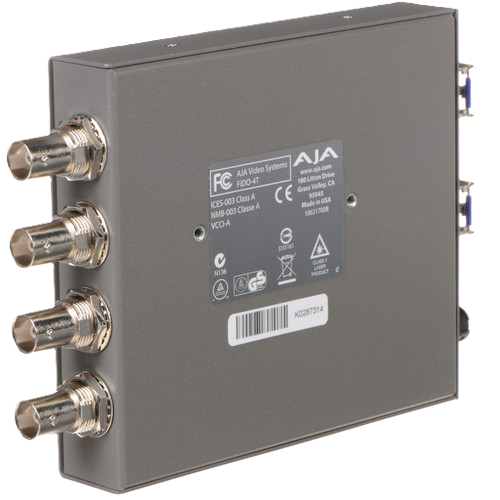

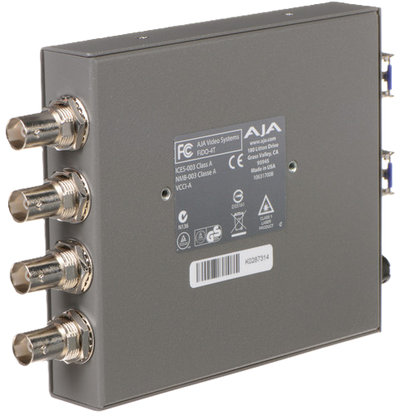

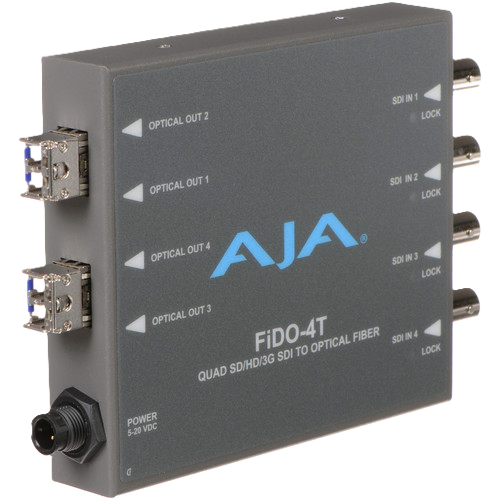

AJA FiDO-4T 4-Channel 3G-SDI Fiber Transmitter

AJA FiDO-4T 4-Channel 3G-SDI Fiber Transmitter

The AJA FiDO-4T is a 4-channel 3G-SDI to single-mode LC fiber transmitter designed for reliable, long-distance transport of professional video signals. It converts four independent 3G-SDI, HD-SDI, or SD-SDI inputs to single-mode fiber and supports transmission distances of up to 10 km (32,808 ft).

FiDO-4T also supports 4K/UltraHD-SDI over four fiber links and provides electrical isolation between the SDI and fiber connections, helping eliminate ground loop problems. Its compact Mini-Converter design makes it well suited for broadcast facilities, live events, mobile production trucks, studios, and camera systems.

Key Features

• 4-channel 3G-SDI to single-mode LC fiber transmitter
• 4 independent 3G/HD/SD-SDI inputs
• Supports 4K/UltraHD-SDI over 4 fiber links
• Up to 10 km (32,808 ft) transmission over single-mode fiber
• Supports 4 simplex or 2 duplex LC fiber connections
• Provides electrical isolation to help eliminate ground loop problems
• Supports SDI metadata pass-through, including HDR
• 5-20VDC power input
• Universal power supply included
• Compact, low-profile Mini-Converter design
• Five-year warranty

4-Channel 3G-SDI to Fiber Conversion

The AJA FiDO-4T provides four independent SDI-to-fiber conversion paths in a compact Mini-Converter. It accepts four 3G-SDI inputs and converts them to single-mode fiber for long-distance signal transport.

The transmitter also supports HD-SDI and SD-SDI, making it compatible with a broad range of professional video equipment and production workflows.

The four independent channels provide a convenient solution for transporting multiple camera or video signals from a production location to a centralized broadcast or production system.

Long-Distance Single-Mode Fiber Transmission

FiDO-4T supports transmission distances of up to 10 km (32,808 ft) using standard single-mode fiber optic cable. Fiber allows professional SDI signals to travel long distances without the distance limitations associated with traditional copper SDI cabling.

The transmitter supports four simplex or two duplex LC fiber connections, providing flexibility when designing fiber-based video infrastructure.

4K and UltraHD-SDI Over Fiber

The FiDO-4T supports 4K/UltraHD-SDI over four fiber links, making it suitable for high-resolution video workflows that use multiple 3G-SDI signals.

The four fiber connections can transport the individual SDI signals required for 4K and UltraHD production systems, providing a flexible approach to high-bandwidth video signal distribution.

Electrical Isolation for Ground Loop Protection

FiDO-4T provides electrical isolation between the SDI and fiber connections, which can help eliminate ground loop problems.

This makes fiber-based signal transport particularly useful in broadcast facilities, live events, mobile production, and other environments where cameras and production equipment may be distributed across different electrical systems or locations.

HDR Metadata Pass-Through

The FiDO-4T supports SDI metadata pass-through, including HDR metadata, helping preserve important signal information during SDI-to-fiber conversion.

High Dynamic Range (HDR) provides a wider range of brightness and color than Standard Dynamic Range (SDR), allowing compatible production systems to maintain brighter highlights, deeper blacks, and richer color detail.

Compact AJA Mini-Converter Design

The FiDO-4T uses AJA's compact, low-profile Mini-Converter enclosure, making it easy to install in space-constrained environments. It can fit behind monitors, inside equipment racks, in mobile production trucks, or directly on camera rigs.

A locking power connector helps prevent accidental power disconnection. An optional P-TAP power cable can also provide battery-powered operation for remote production applications.

Universal Power Supply

The FiDO-4T operates on 5-20VDC power and includes a universal power supply with international plug connections. Spare universal power supplies are also available for AJA Mini-Converters, providing additional flexibility for professional production environments.

Professional AJA Support and Warranty

AJA provides technical support for Mini-Converter installation, configuration, operation, and troubleshooting. The FiDO-4T is covered by a five-year warranty, providing long-term support for professional video production systems.

AJA FiDO-4T Applications

The AJA FiDO-4T is designed for professional video environments requiring multiple SDI signals to be transported over long-distance fiber, including:

• 4K and UltraHD broadcast production
• Live event video production
• Mobile production trucks
• Television and production studios
• Multi-camera production
• Long-distance SDI signal transport
• SDI-to-fiber conversion
• Fiber-based SDI infrastructure
• Remote camera systems
• Professional AV installations
• 4K/UltraHD workflows using multiple 3G-SDI signals

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital: 4-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
• Video Output Digital
  • 4-channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (Min), 0dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6mm)
• Weight: 0.8 lb (0.4 kg)
• Power
  • 5 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA FiDO Quad-Channel 3G-SDI to LC Fiber Mini Converter
• AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
• Warranty: Limited 5-Year Manufacturer Warranty
