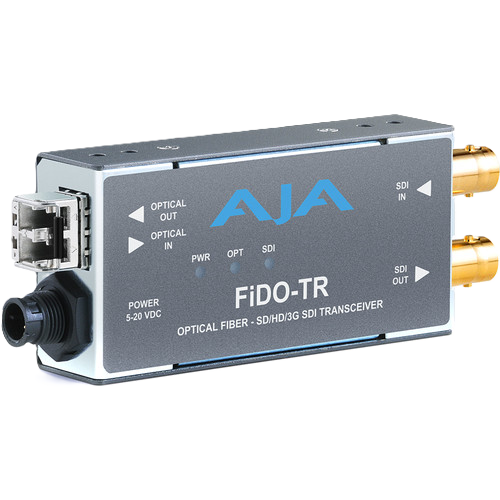

AJA FiDO-TR-MM 3G-SDI Multi-Mode LC Fiber Transceiver

AJA FiDO-TR-MM 3G-SDI Multi-Mode LC Fiber Transceiver

The AJA FiDO-TR-MM is a professional 3G-SDI multi-mode LC fiber transceiver designed for bidirectional video signal transmission over fiber optic cable. It supports 3G-SDI, HD-SDI, and SD-SDI signals, transmitting and receiving video over a duplex LC fiber connection. With support for cable runs up to 700 meters (2,296 feet) over OM4 fiber or 300 meters (984 feet) over OM3 fiber, it is ideal for broadcast facilities, live production, and professional AV installations.

The FiDO-TR-MM provides electrical isolation to help eliminate ground loop problems and features a compact Mini-Converter design that fits easily behind monitors, inside equipment racks, in mobile production trucks, and on camera rigs.

Key Features of the AJA FiDO-TR-MM

• Bidirectional SDI-to-fiber conversion: Transmits and receives 3G-SDI, HD-SDI, and SD-SDI signals over fiber.
• Multi-mode LC fiber connectivity: Uses a duplex LC connection for bidirectional video transmission.
• Long-distance transmission: Supports cable runs up to 700 m (2,296 ft) over OM4 fiber or 300 m (984 ft) over OM3 fiber.
• Dual-channel fiber operation: Supports bidirectional transmission over two fiber channels.
• HDR metadata pass-through: Supports pass-through of SDI metadata, including HDR information.
• Electrical isolation: Fiber optic transmission helps eliminate ground loop problems between connected equipment.
• Compact, portable design: Fits behind monitors, inside equipment racks, in mobile production trucks, and on camera rigs.
• Flexible power options: Accepts 5–20 VDC power and includes a universal power supply.
• Five-year warranty: Covered by AJA's five-year product warranty, subject to applicable terms and conditions.

Bidirectional 3G-SDI Multi-Mode Fiber Conversion

The AJA FiDO-TR-MM simplifies video signal transport by combining SDI-to-fiber transmission and fiber-to-SDI reception in one compact device. Its bidirectional design supports sending and receiving 3G-SDI, HD-SDI, and SD-SDI signals over a duplex multi-mode LC fiber connection.

With transmission distances up to 700 meters over OM4 fiber and 300 meters over OM3 fiber, the FiDO-TR-MM is well suited to broadcast studios, live event venues, production facilities, and other environments where video equipment needs to communicate across longer distances.

Fiber optic transmission also provides electrical isolation, helping reduce ground loop problems in professional video systems.

HDR Metadata Pass-Through

The FiDO-TR-MM supports pass-through of SDI metadata, including High Dynamic Range (HDR) information. HDR video can deliver a wider range of colors, brighter highlights, and deeper blacks than Standard Dynamic Range (SDR). Metadata pass-through helps preserve supported signal information as video travels through the fiber transmission path.

Compact and Portable Mini-Converter Design

Designed for professional broadcast and video production environments, the FiDO-TR-MM features a compact, low-profile enclosure that fits into space-constrained installations. Place it behind a monitor, inside an equipment rack, in a mobile production truck, or directly on a camera rig.

The unit accepts 5–20 VDC power and includes a universal power supply with international plug connections. An optional P-TAP power cable supports battery-powered setups in remote production environments.

AJA Support and Warranty

AJA provides technical support to assist customers with Mini-Converter installation, configuration, and operation. The FiDO-TR-MM is covered by a five-year warranty, subject to the manufacturer's applicable terms and conditions.

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Video Input Digital
  • 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-channel Multi-Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Sensitivity: 0dBm (Min), -15dBm (Min)
• Video Output Digital
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Multi-Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Power: -7dBm (Min), -2dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)
• Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked
• Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
• Weight: 0.4 lb (0.2 kg)
• Power
  • 3 watts, max
  • Uses 5-20VDC power, universal power supply included
• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
• Warranty: Limited 5-Year Manufacturer Warranty
